RH11L-JRW3 (1982)
Toyota Hiace

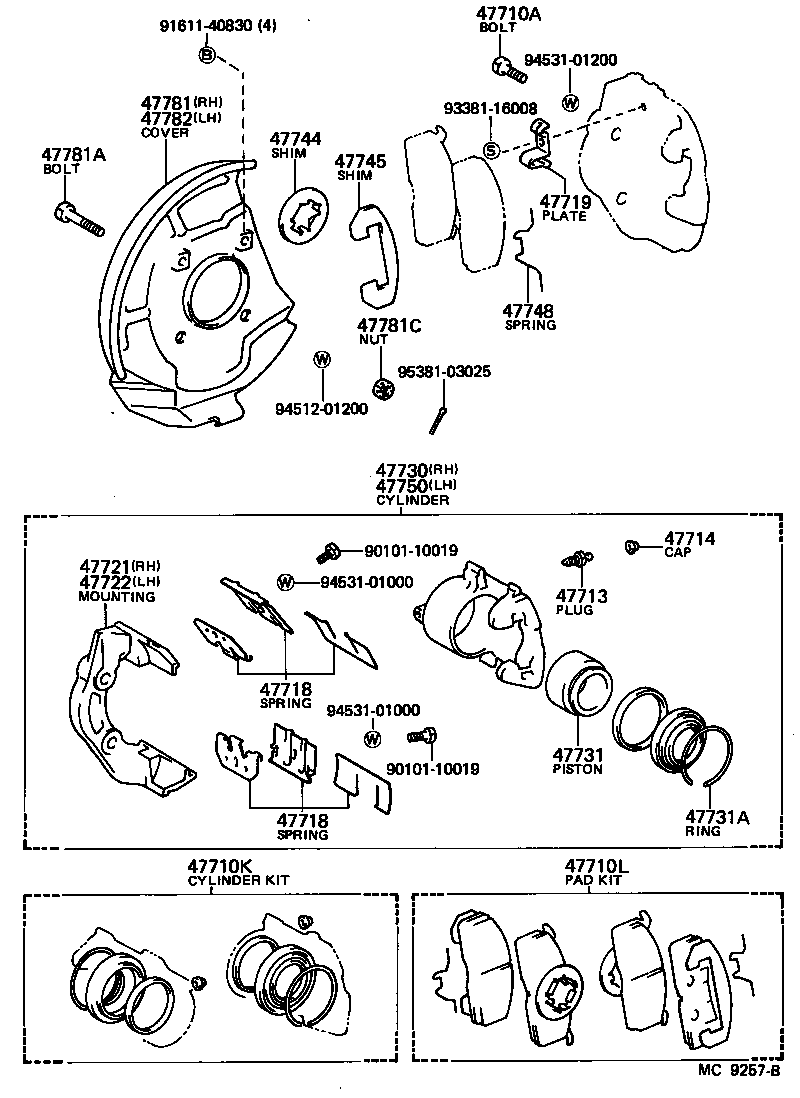

ILLUST NO. 1 OF 2(8211- )ARL,EUR,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12010 |
LH11,RH11..ARL,EUR,GEN *12-1.25PX50-26 |
4 | ||
| 47710K - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-26020 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 47710L - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-26060 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
LH11,RH11..ARL,EUR,GEN |
2 | ||
| 47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
LH11,RH11..ARL,EUR,GEN |
2 | ||
| 47718 - SPRING, FRONT DISC BRAKE CYLINDER SUPPORT | ||||
| 47718-29025 |
LH11,RH11..ARL,EUR,GEN UPR |
2 | ||
| 47719-29025 |
LH11,RH11..ARL,EUR,GEN LWR |
2 | ||
| 47718 - SPRING, FRONT DISC BRAKE CYLINDER SUPPORT | ||||
| 47718-29025 |
LH11,RH11..ARL,EUR,GEN UPR |
2 | ||
| 47719-29025 |
LH11,RH11..ARL,EUR,GEN LWR |
2 | ||
| 47719 - PLATE, FRONT DISC BRAKE PAD GUIDE | ||||
| 47738-26010 |
LH11,RH11..ARL,EUR,GEN LH |
1 | ||
| 47736-26010 |
LH11,RH11..ARL,EUR,GEN RH |
1 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-26010 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47722-26010 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-26050 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-26020 |
LH11,RH11..ARL,EUR,GEN |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-65001 |
LH11,RH11..ARL,EUR,GEN |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-26030 |
LH11,RH11..ARL,EUR,GEN |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-26010 |
LH11,RH11..ARL,EUR,GEN |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-26010 |
LH11,RH11..ARL,EUR,GEN |
2 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-26050 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-26020 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90102-12050 |
LH11,RH11..ARL,EUR,GEN |
4 | ||
| 47781C - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-51200 |
LH11,RH11..ARL,EUR,GEN |
4 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-26020 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| Common parts | ||||
| 90101-10019 | ||||
| 91611-40830 | ||||
| 93381-16008 | ||||
| 94512-01200 | ||||
| 94531-01000 | ||||
| 94531-01200 | ||||
| 95381-03025 | ||||
ILLUST NO. 2 OF 2(8211- )ARL,EUR,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-35160 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-26050 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-26070 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
