RH11L-JRW3 (1982)
Toyota Hiace
Production
Nov 1982
-
Jul 1985
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

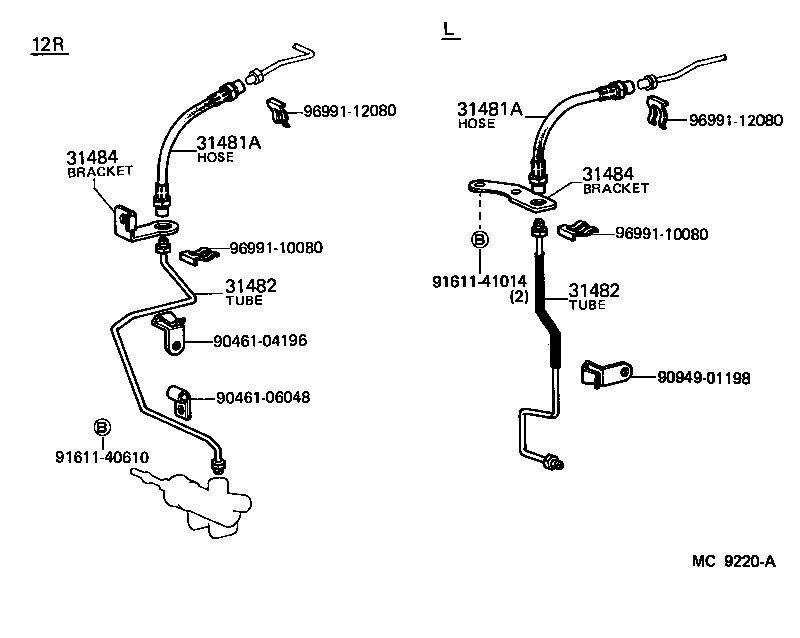

(8211- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96815-50230 |
RH11 |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96815-50230 |
RH11 |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-35030 |
RH11 |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-35030 |
RH11 |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-35040 |
RH11 |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-35040 |
RH11 |
1 | ||
| Common parts | ||||
| 90461-04196 | ||||
| 90461-06048 | ||||
| 90949-01198 | ||||
| 91611-40610 | ||||
| 91611-41014 | ||||
| 96991-10080 | ||||
| 96991-12080 | ||||

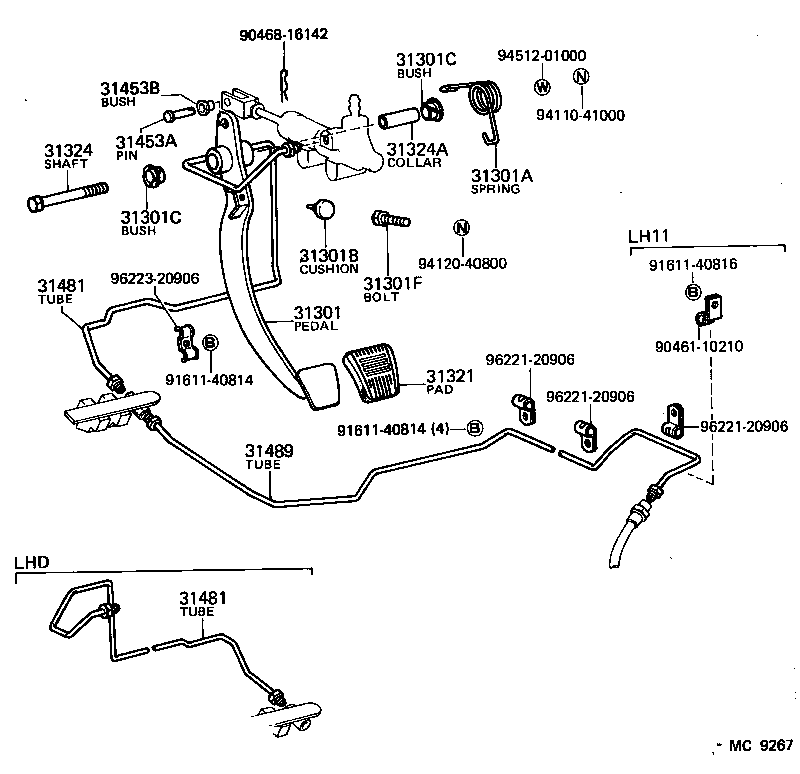

(8211- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-26041 |
LH11,RH11..LHD |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-32002 |
LH11,RH11 |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
LH11,RH11 |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
LH11,RH11 |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
LH11,RH11 |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-08052 |
LH11,RH11 |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14010 |
LH11,RH11 |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51070 |
LH11,RH11 |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
LH11,RH11 |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08027 |
LH11,RH11 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
LH11,RH11 |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-26101 |
LH11,RH11..LHD |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-26101 |
LH11,RH11..LHD |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-26060 |
RH11 |
1 | ||
| Common parts | ||||
| 90461-10210 | ||||
| 90468-16142 | ||||
| 91611-40814 | ||||
| 91611-40816 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94512-01000 | ||||
| 96221-20906 | ||||
| 96223-20906 | ||||
