RH11L-JRW3 (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )12R..EUR

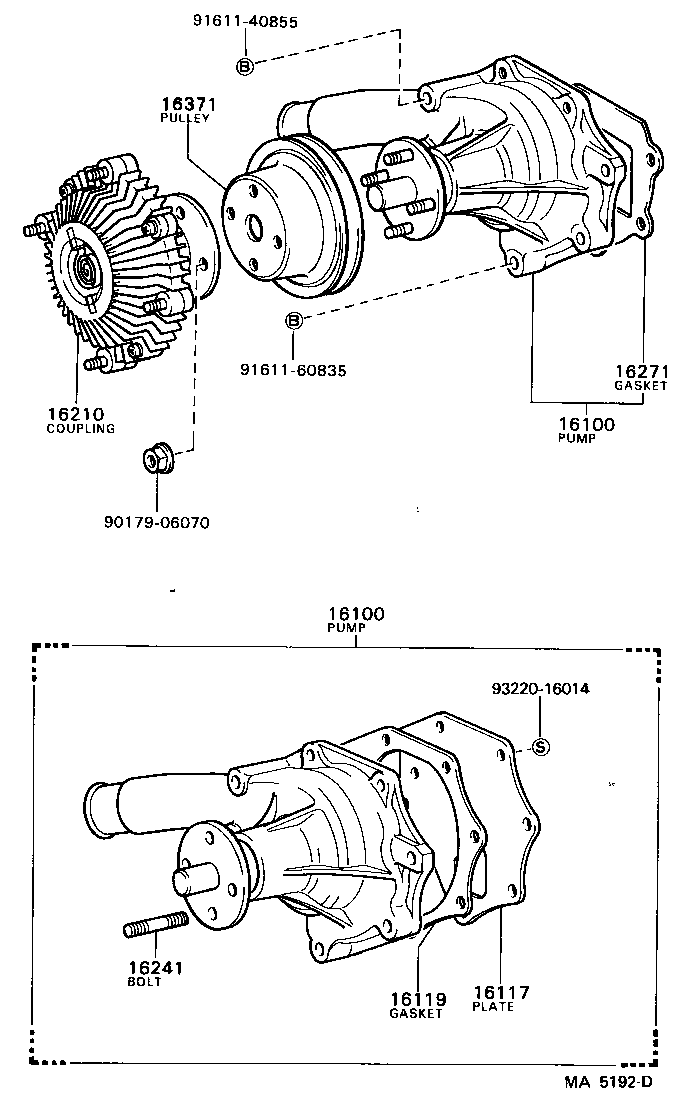

Click highlighted areas on diagram

diagram 16100 16100 16117 16119 16210 16241 16271 16371 9017906070 9161140855 9161160835 9322016014
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39285

12R..RH11..EUR

 1
16100 - PUMP ASSY, ENGINE WATER
16100-39285

12R..RH11..EUR

 1
16117 - PLATE, WATER PUMP
16117-31031

12R..RH11

 1
16119 - GASKET, WATER PUMP BODY
16124-31031

12R..RH11

 1
16210 - COUPLING ASSY, FLUID
16210-31010

12R..RH11..EUR

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16193-54010

12R..RH11..EUR

 4
16271 - GASKET, WATER PUMP
16271-31010

12R..RH11

 1
16371 - PULLEY, FAN
16371-31030

12R..RH11..EUR

 1
Common parts
90179-06070
91611-40855
91611-60835
93220-16014

(8211- )L

Click highlighted areas on diagram

diagram 16100 16171 16210 16241 16271 16371 9011908108 9017906070
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-39285

12R..RH11..EUR

 1
16210 - COUPLING ASSY, FLUID
16210-31010

12R..RH11..EUR

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16193-54010

12R..RH11..EUR

 4
16271 - GASKET, WATER PUMP
16271-31010

12R..RH11

 1
16371 - PULLEY, FAN
16371-31030

12R..RH11..EUR

 1
Common parts
90119-08108
90179-06070
