RH11L-JRB (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

Click highlighted areas on diagram

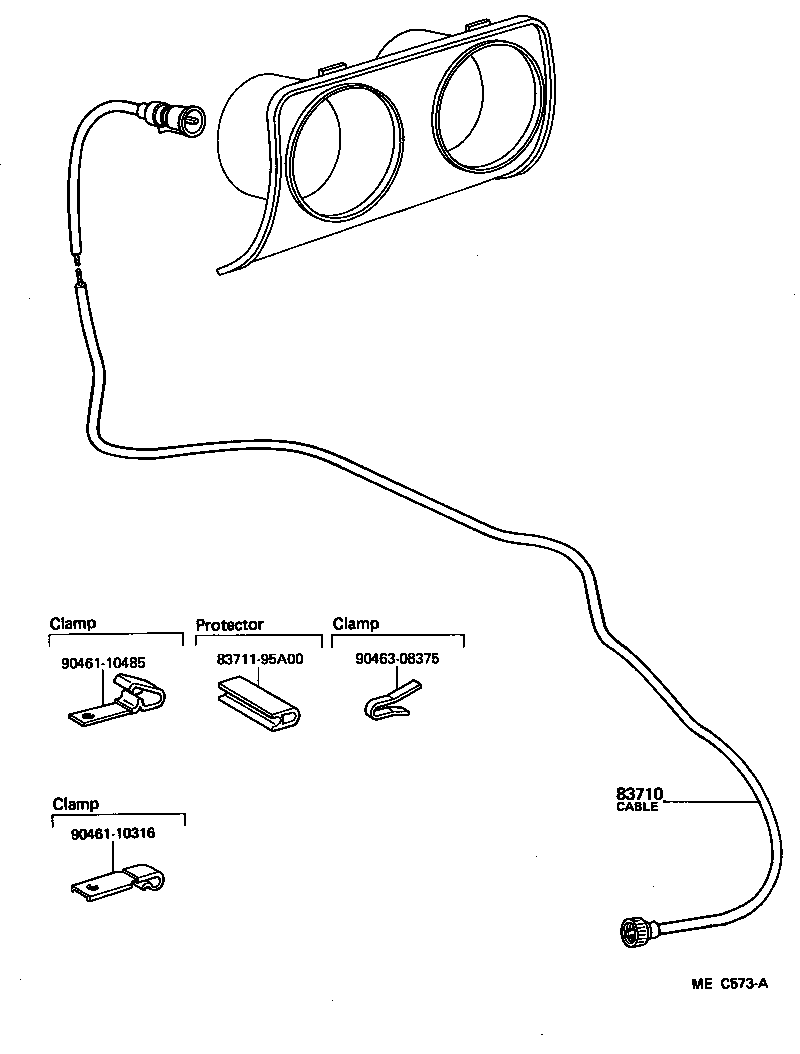

diagram 83710 8371195A00 9046110316 9046110485 9046308375
Part # Description Qty Price
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95A11

RH11..LHD

 1
Common parts
83711-95A00
90461-10316
90461-10485
90463-08375

(8211- )ARL,EUR,GEN

Click highlighted areas on diagram

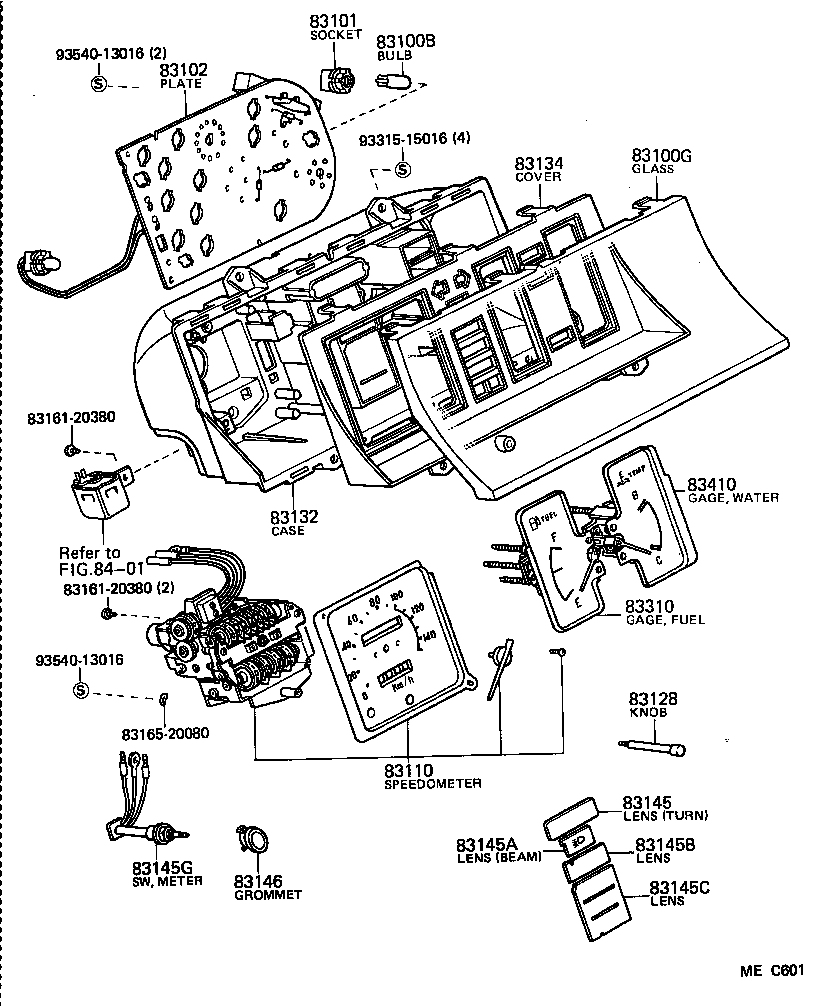

diagram 83100B 83100G 83101 83102 83110 83128 83132 83134 83145 83145A 83145B 83145C 83145G 83146 8316120380 8316120380 8316520080 83310 83410 8401 9331515016 9354013016 9354013016
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

LH11,RH11

12V 3.4W,12V 3.4W

 12
83100G - GLASS, COMBINATION METER
83138-95700

RH11

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

LH11,RH11

12V 3.4W

 12
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-95A08

RH11

 1
83110 - SPEEDOMETER ASSY
83110-95A10

RH11..EUR,GEN

MILE

 1
83110-95A08

RH11..EUR,GEN

KM

 1
83110-95A08

RH11

KM

 1
83128 - KNOB, TRIP COUNTER
83128-95010

LH11,RH11..ARL,EUR,GEN

 1
83132 - CASE, COMBINATION METER
83132-95A02

RH11

 1
83134 - COVER, COMBINATION METER, NO.1
83134-95A04

LH11,RH11..EUR,GEN

 1
83145 - LENS, METER, NO.1
83145-95013

LH11,RH11..ARL,EUR,GEN

 1
83145A - LENS, METER, NO.2
83145-95A15

LH11,RH11..EUR,GEN

 1
83145B - LENS, METER, NO.3
83145-95017

LH11,RH11..EUR,GEN

 1
83145C - LENS, METER, NO.4
83145-95018

RH11

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-95A02

LH11,RH11..EUR,GEN

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-95A07

LH11,RH11..EUR,GEN

 1
83244-95A04

RH11..LHD..GEN

MIDDLE EAST COUNTRY SPEC

 1
Common parts
83161-20380
83165-20080
93315-15016
93540-13016
Linked diagrams
8401
