RH11L-JRB (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )12R

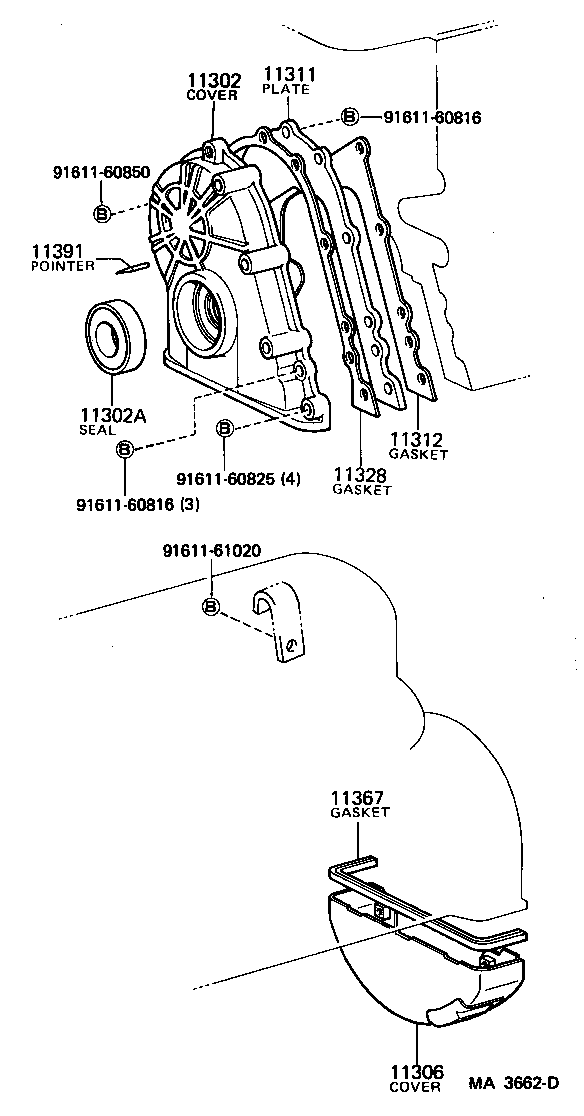

Click highlighted areas on diagram

diagram 11302 11302A 11306 11311 11312 11328 11367 11391 9161160816 9161160816 9161160825 9161160850 9161161020
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-31040

12R..RH11

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38013

12R..RH11

 1
11306 - COVER SUB-ASSY, FLYWHEEL HOUSING UNDER
11306-31030

12R..RH11

 1
11311 - PLATE, FRONT END
11311-31010

12R..RH11

 1
11312 - GASKET, FRONT END PLATE
11312-31010

12R..RH11

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-31010

12R..RH11

 1
11367 - GASKET, FLYWHEEL HOUSING UNDER
11367-31020

12R..RH11

 1
11391 - POINTER, TIMING
11391-31021

12R..RH11

 1
Common parts
91611-60816
91611-60825
91611-60850
91611-61020

(8211- )L

Click highlighted areas on diagram

diagram 11301 11301B 11301C 11302 11302E 11305 11305A 11305B 11312 11328 11329 11354 11355 11381 11381A 11383 11384 11391 11492A 9010906017 9021008019 9048007001 9095001312 9161160814 9161160828 9161160830 9161160840 9161161020 9671119015
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-31040

12R..RH11

 1
11312 - GASKET, FRONT END PLATE
11312-31010

12R..RH11

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-31010

12R..RH11

 1
11391 - POINTER, TIMING
11391-31021

12R..RH11

 1
Common parts
90109-06017
90210-08019
90480-07001
90950-01312
91611-60814
91611-60828
91611-60830
91611-60840
91611-61020
96711-19015
