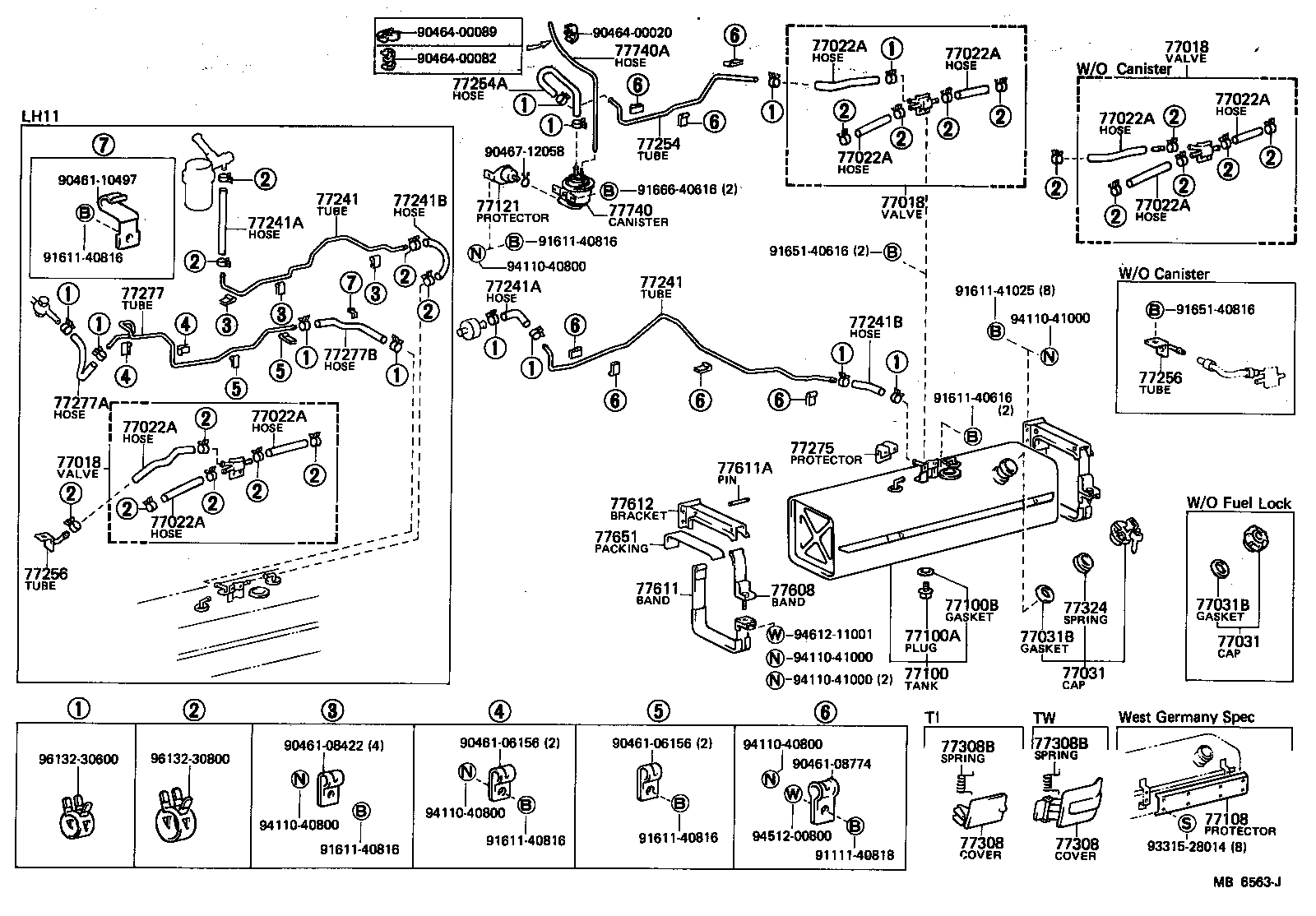

RH11L-JRB (1977)
Toyota Hiace
(7702- )LH11,RH11,25
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-26050 |
RH20,22,3#,42..EUR,GEN,PHL,SA |
1 | ||
| 77018-26040 |
LH11,RH11,25..EUR,GEN,IDN |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-26050 |
RH20,22,3#,42..EUR,GEN,PHL,SA |
1 | ||
| 77018-26040 |
LH11,RH11,25..EUR,GEN,IDN |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-26050 |
RH20,22,3#,42..EUR,GEN,PHL,SA |
1 | ||
| 77018-26040 |
LH11,RH11,25..EUR,GEN,IDN |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06008 |
LH20,RH2#,3#,42 *H,L=80 |
2 | ||
| 95332-08020 |
LH11,RH11,25..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-06010 |
RH20,22,3#,42..EUR,GEN,SA *H,L=80 |
2 | ||
| 95332-08026 |
LH11,RH11..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 95332-08014 |
LH11,RH11..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-08030 |
LH11,RH11,25..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06008 |
LH20,RH2#,3#,42 *H,L=80 |
2 | ||
| 95332-08020 |
LH11,RH11,25..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-06010 |
RH20,22,3#,42..EUR,GEN,SA *H,L=80 |
2 | ||
| 95332-08026 |
LH11,RH11..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 95332-08014 |
LH11,RH11..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-08030 |
LH11,RH11,25..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06008 |
LH20,RH2#,3#,42 *H,L=80 |
2 | ||
| 95332-08020 |
LH11,RH11,25..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-06010 |
RH20,22,3#,42..EUR,GEN,SA *H,L=80 |
2 | ||
| 95332-08026 |
LH11,RH11..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 95332-08014 |
LH11,RH11..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-08030 |
LH11,RH11,25..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06008 |
LH20,RH2#,3#,42 *H,L=80 |
2 | ||
| 95332-08020 |
LH11,RH11,25..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-06010 |
RH20,22,3#,42..EUR,GEN,SA *H,L=80 |
2 | ||
| 95332-08026 |
LH11,RH11..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 95332-08014 |
LH11,RH11..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-08030 |
LH11,RH11,25..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06008 |
LH20,RH2#,3#,42 *H,L=80 |
2 | ||
| 95332-08020 |
LH11,RH11,25..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-06010 |
RH20,22,3#,42..EUR,GEN,SA *H,L=80 |
2 | ||
| 95332-08026 |
LH11,RH11..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 95332-08014 |
LH11,RH11..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-08030 |
LH11,RH11,25..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06008 |
LH20,RH2#,3#,42 *H,L=80 |
2 | ||
| 95332-08020 |
LH11,RH11,25..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-06010 |
RH20,22,3#,42..EUR,GEN,SA *H,L=80 |
2 | ||
| 95332-08026 |
LH11,RH11..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 95332-08014 |
LH11,RH11..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-08030 |
LH11,RH11,25..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06008 |
LH20,RH2#,3#,42 *H,L=80 |
2 | ||
| 95332-08020 |
LH11,RH11,25..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-06010 |
RH20,22,3#,42..EUR,GEN,SA *H,L=80 |
2 | ||
| 95332-08026 |
LH11,RH11..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 95332-08014 |
LH11,RH11..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-08030 |
LH11,RH11,25..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06008 |
LH20,RH2#,3#,42 *H,L=80 |
2 | ||
| 95332-08020 |
LH11,RH11,25..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-06010 |
RH20,22,3#,42..EUR,GEN,SA *H,L=80 |
2 | ||
| 95332-08026 |
LH11,RH11..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 95332-08014 |
LH11,RH11..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-08030 |
LH11,RH11,25..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06008 |
LH20,RH2#,3#,42 *H,L=80 |
2 | ||
| 95332-08020 |
LH11,RH11,25..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-06010 |
RH20,22,3#,42..EUR,GEN,SA *H,L=80 |
2 | ||
| 95332-08026 |
LH11,RH11..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 95332-08014 |
LH11,RH11..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-08030 |
LH11,RH11,25..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 69058-14030 |
RH11,25 W/KEY |
1 | ||
| 77310-14070 |
LH20,30,RH11,20,22,3#,42 W/O KEY |
1 | ||
| 77310-12041 |
RH11,2#,3#,42 W/O KEY |
1 | ||
| 69058-95400 |
RH11,25 W/KEY |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 69058-14030 |
RH11,25 W/KEY |
1 | ||
| 77310-14070 |
LH20,30,RH11,20,22,3#,42 W/O KEY |
1 | ||
| 77310-12041 |
RH11,2#,3#,42 W/O KEY |
1 | ||
| 69058-95400 |
RH11,25 W/KEY |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
LH20,30,RH11,20,22,3#,42 W/O FUEL LOCK |
1 | ||
| 77316-12031 |
LH11,RH11,25 W/FUEL LOCK |
1 | ||
| 77316-12040 |
RH11,2#,3#,42 W/O FUEL LOCK |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
LH20,30,RH11,20,22,3#,42 W/O FUEL LOCK |
1 | ||
| 77316-12031 |
LH11,RH11,25 W/FUEL LOCK |
1 | ||
| 77316-12040 |
RH11,2#,3#,42 W/O FUEL LOCK |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-28020 |
RH11,25 |
1 | ||
| 77001-26050 |
RH11 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-26060 |
RH11 |
1 | ||
| 77251-26061 |
RH11 |
1 | ||
| 77251-26062 |
RH11,25 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-26060 |
RH11 |
1 | ||
| 77251-26061 |
RH11 |
1 | ||
| 77251-26062 |
RH11,25 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RH11,25 *H,L=180 |
1 | ||
| 95332-06040 |
RH20,22,3#,42 *H,L=380 |
1 | ||
| 95332-06018 |
RH11 *H,L=180 |
1 | ||
| 95332-06038 |
RH2#,3#,42 *H,L=380 |
1 | ||
| 95332-06010 |
RH11 *H,L=100 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RH11,25 *H,L=180 |
1 | ||
| 95332-06040 |
RH20,22,3#,42 *H,L=380 |
1 | ||
| 95332-06018 |
RH11 *H,L=180 |
1 | ||
| 95332-06038 |
RH2#,3#,42 *H,L=380 |
1 | ||
| 95332-06010 |
RH11 *H,L=100 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RH11,25 *H,L=110 |
1 | ||
| 95332-06011 |
RH11 *H,L=110 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RH11,25 *H,L=110 |
1 | ||
| 95332-06011 |
RH11 *H,L=110 |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77263-26020 |
RH20,22,3#,42..EUR,GEN,PHL,SA |
1 | ||
| 77244-26010 |
LH11,RH11,25..EUR,GEN,IDN |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77263-26020 |
RH20,22,3#,42..EUR,GEN,PHL,SA |
1 | ||
| 77244-26010 |
LH11,RH11,25..EUR,GEN,IDN |
1 | ||
| 77275 - PROTECTOR, FUEL EVAPORATIVE SEPARATOR | ||||
| 77197-25010 |
LH11,RH11,25..T3 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77310-95A00 |
RH2#,3#,42 |
1 | ||
| 77310-95A01 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 77310-95A03 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77310-95A00 |
RH2#,3#,42 |
1 | ||
| 77310-95A01 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 77310-95A03 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 77324 - SPRING, FUEL TANK CAP | ||||
| 77324-12011 |
LH11,RH11,25 W/FUEL LOCK |
1 | ||
| 77608 - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-26010 |
LH11,RH11 |
2 | ||
| 77603-26011 |
LH11,RH11,25 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-25090 |
LH11,RH11,25 |
2 | ||
| 77601-26010 |
LH11,RH11 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77629-25010 |
LH11,RH11,25 |
4 | ||
| 77612 - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77502-25010 |
LH11,RH11,25 |
2 | ||
| 77501-28011 |
LH11,RH11,25 |
2 | ||
| 77651 - PACKING, FUEL TANK BRACKET | ||||
| 77651-25040 |
LH11,RH11,25 |
2 | ||
| Common parts | ||||
| 90461-06156 | ||||
| 90461-08422 | ||||
| 90461-08774 | ||||
| 90461-10497 | ||||
| 90464-00020 | ||||
| 90464-00082 | ||||
| 90464-00089 | ||||
| 90467-12058 | ||||
| 91111-40818 | ||||
| 91611-40616 | ||||
| 91611-40816 | ||||
| 91611-41025 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91666-40616 | ||||
| 93315-28014 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94512-00800 | ||||
| 94612-11001 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
(7702- )LH20,30,RH20,22,3#,42
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-26050 |
RH20,22,3#,42..EUR,GEN,PHL,SA |
1 | ||
| 77018-26040 |
LH11,RH11,25..EUR,GEN,IDN |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06008 |
LH20,RH2#,3#,42 *H,L=80 |
2 | ||
| 95332-08020 |
LH11,RH11,25..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-06010 |
RH20,22,3#,42..EUR,GEN,SA *H,L=80 |
2 | ||
| 95332-08026 |
LH11,RH11..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 95332-08014 |
LH11,RH11..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-08030 |
LH11,RH11,25..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06008 |
LH20,RH2#,3#,42 *H,L=80 |
2 | ||
| 95332-08020 |
LH11,RH11,25..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-06010 |
RH20,22,3#,42..EUR,GEN,SA *H,L=80 |
2 | ||
| 95332-08026 |
LH11,RH11..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 95332-08014 |
LH11,RH11..EUR,GEN,IDN *H,L=140,ID=7.6 |
2 | ||
| 95332-08030 |
LH11,RH11,25..EUR,GEN,IDN *H,L=260,ID=7.6 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 69058-14030 |
RH11,25 W/KEY |
1 | ||
| 77310-14070 |
LH20,30,RH11,20,22,3#,42 W/O KEY |
1 | ||
| 77310-12041 |
RH11,2#,3#,42 W/O KEY |
1 | ||
| 69058-95400 |
RH11,25 W/KEY |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
LH20,30,RH11,20,22,3#,42 W/O FUEL LOCK |
1 | ||
| 77316-12031 |
LH11,RH11,25 W/FUEL LOCK |
1 | ||
| 77316-12040 |
RH11,2#,3#,42 W/O FUEL LOCK |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-28020 |
RH11,25 |
1 | ||
| 77001-26050 |
RH11 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12018 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-24012 |
LH20,30,RH20,22,3#,42 *H,L=340 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-26030 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-26020 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-26060 |
RH11 |
1 | ||
| 77251-26061 |
RH11 |
1 | ||
| 77251-26062 |
RH11,25 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-26060 |
RH11 |
1 | ||
| 77251-26061 |
RH11 |
1 | ||
| 77251-26062 |
RH11,25 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RH11,25 *H,L=180 |
1 | ||
| 95332-06040 |
RH20,22,3#,42 *H,L=380 |
1 | ||
| 95332-06018 |
RH11 *H,L=180 |
1 | ||
| 95332-06038 |
RH2#,3#,42 *H,L=380 |
1 | ||
| 95332-06010 |
RH11 *H,L=100 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RH11,25 *H,L=180 |
1 | ||
| 95332-06040 |
RH20,22,3#,42 *H,L=380 |
1 | ||
| 95332-06018 |
RH11 *H,L=180 |
1 | ||
| 95332-06038 |
RH2#,3#,42 *H,L=380 |
1 | ||
| 95332-06010 |
RH11 *H,L=100 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RH11,25 *H,L=110 |
1 | ||
| 95332-06011 |
RH11 *H,L=110 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06020 |
RH11,25 *H,L=110 |
1 | ||
| 95332-06011 |
RH11 *H,L=110 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77251-10010 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 77256 - TUBE, FUEL EMISSION, NO.3 | ||||
| 77263-26020 |
RH20,22,3#,42..EUR,GEN,PHL,SA |
1 | ||
| 77244-26010 |
LH11,RH11,25..EUR,GEN,IDN |
1 | ||
| 77267 - COVER, FUEL EVAPORATIVE TUBE | ||||
| 77267-26010 |
RH20,22,3#,42..EUR,GEN,PHL,SA W/O CANISTER |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-26010 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 77283 - BRACKET, FUEL TUBE | ||||
| 77281-26010 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77310-95A00 |
RH2#,3#,42 |
1 | ||
| 77310-95A01 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 77310-95A03 |
LH20,30,RH20,22,3#,42 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
RH20,22,3#,42..EUR,GEN,PHL,SA |
1 | ||
| 77198-35010 |
LH11,RH11,25..EUR,GEN,IDN |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
RH20,22,3#,42..EUR,GEN,PHL,SA |
1 | ||
| 77198-35010 |
LH11,RH11,25..EUR,GEN,IDN |
1 | ||
| Common parts | ||||
| 39967-95660 | ||||
| 90119-06128 | ||||
| 90119-08190 | ||||
| 90460-62033 | ||||
| 90461-06156 | ||||
| 90461-08774 | ||||
| 90461-10199 | ||||
| 90462-16028 | ||||
| 90462-16035 | ||||
| 90464-00015 | ||||
| 90464-00020 | ||||
| 90464-00032 | ||||
| 90464-00082 | ||||
| 90464-00089 | ||||
| 90464-00275 | ||||
| 90467-12058 | ||||
| 90541-05080 | ||||
| 91611-40814 | ||||
| 91651-40816 | ||||
| 91666-40616 | ||||
| 93316-15014 | ||||
| 93381-15012 | ||||
| 96112-10250 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
