RH11L-JR (1977)

Toyota Hiace

Production Feb 1977 - Nov 1982
Engine 12R
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7702- )LH11,RH11,25

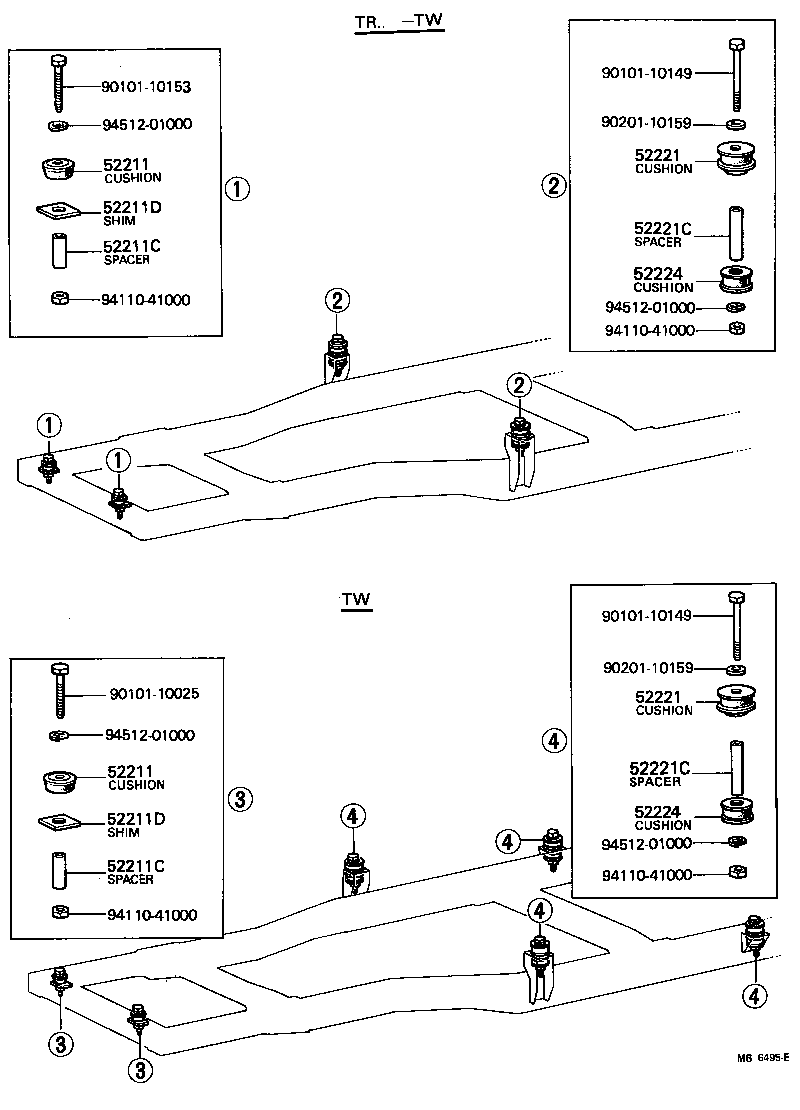

Click highlighted areas on diagram

diagram 52211 52211 52211C 52211C 52211D 52211D 52221 52221 52221C 52221C 52224 52224 9010110025 9010110149 9010110149 9010110153 9020110159 9020110159 9411041000 9411041000 9411041000 9411041000 9451201000 9451201000 9451201000 9451201000
Part # Description Qty Price
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
90540-10047

LH11,RH11,25

 2
52211 - CUSHION, BODY MOUNTING, NO.1 UPPER
90540-10047

LH11,RH11,25

 2
52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION)
90440-14045

LH11,RH11,25

 2
52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION)
90440-14045

LH11,RH11,25

 2
52211D - SHIM(FOR BODY MOUNTING NO.1 CUSHION)
90950-04008

LH11,RH11,25

 2
52211D - SHIM(FOR BODY MOUNTING NO.1 CUSHION)
90950-04008

LH11,RH11,25

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52203-35010

LH11,RH11,25..03S

 2
52221 - CUSHION, BODY MOUNT, NO.2 UPPER
52203-35010

LH11,RH11,25..03S

 2
52221C - SPACER(FOR BODY MOUNT NO.2 CUSHION)
90440-16014

LH11,RH11,25..03S

 2
52221C - SPACER(FOR BODY MOUNT NO.2 CUSHION)
90440-16014

LH11,RH11,25..03S

 2
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52204-35010

LH11,RH11,25..03S

 2
52224 - CUSHION, BODY MOUNT, NO.2 LOWER
52204-35010

LH11,RH11,25..03S

 2
Common parts
90101-10025
90101-10149
90101-10153
90201-10159
94110-41000
94512-01000
