RH11L-JR (1977)
Toyota Hiace
Production
Feb 1977
-
Nov 1982
Engine
12R
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7702- )4H

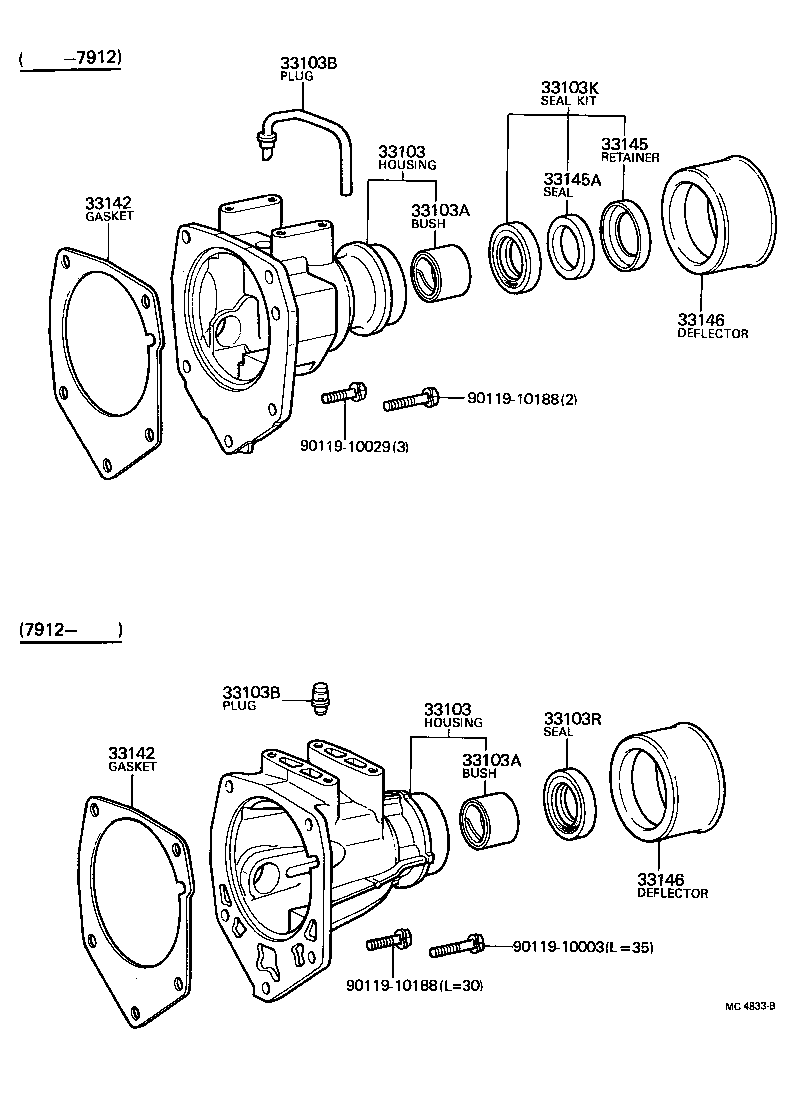

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-26020 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33103-27020 |
LH11,20,30,RH11,2#,3#,42..4H |
1 | ||
| 33103 - HOUSING SUB-ASSY, EXTENSION(MTM) | ||||
| 33103-26020 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33103-27020 |
LH11,20,30,RH11,2#,3#,42..4H |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-72023 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33103A - BUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90999-72023 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33103B - PLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING) | ||||
| 90930-03053 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 90930-03075 |
LH11,20,30,RH11,2#,3#,42..4H |
1 | ||
| 33103B - PLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING) | ||||
| 90930-03053 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 90930-03075 |
LH11,20,30,RH11,2#,3#,42..4H |
1 | ||
| 33103K - SEAL KIT, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING | ||||
| 04332-30010 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90311-38043 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-26010 |
LH11,20,30,RH11,2#,3#,42..4H |
1 | ||
| 33142 - GASKET, EXTENSION HOUSING(MTM) | ||||
| 33142-26010 |
LH11,20,30,RH11,2#,3#,42..4H |
1 | ||
| 33145 - RETAINER, EXTENSION HOUSING DUST SEAL(MTM) | ||||
| 33145-30010 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33145A - SEAL, DUST(FOR MANUAL TRANSMISSION EXTENSION HOUSING) | ||||
| 90303-38010 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-30010 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM) | ||||
| 33146-30010 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| Common parts | ||||
| 90119-10003 | ||||
| 90119-10029 | ||||
| 90119-10188 | ||||
