LH30LV-QRFW (1979)
Toyota Hiace
(7912- )LH11,20,30..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION) | ||||
| 90930-03065 |
LH11,20,30..EUR |
1 | ||
| 33121 - COVER, MANUAL TRANSMISSION CASE | ||||
| 33121-26903 |
RH11,20,30..EUR |
1 | ||
| 33121-35060 |
LH11,20,30..EUR |
1 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-14004 |
LH11,20,30..EUR |
6 | ||
| 90331-14003 |
LH11,20,30..EUR |
6 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-14004 |
LH11,20,30..EUR |
6 | ||
| 90331-14003 |
LH11,20,30..EUR |
6 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-14004 |
LH11,20,30..EUR |
6 | ||
| 90331-14003 |
LH11,20,30..EUR |
6 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-14004 |
LH11,20,30..EUR |
6 | ||
| 90331-14003 |
LH11,20,30..EUR |
6 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-14004 |
LH11,20,30..EUR |
6 | ||
| 90331-14003 |
LH11,20,30..EUR |
6 | ||
| 33121B - PLUG, EXPANSION OR TIGHT(FOR TRANSMISSION CASE COVER) | ||||
| 90331-14004 |
LH11,20,30..EUR |
6 | ||
| 90331-14003 |
LH11,20,30..EUR |
6 | ||
| 33121C - PIN(FOR TRANSMISSION CASE COVER) | ||||
| 90250-10214 |
LH11,20,30..EUR L=14,OD=10 |
2 | ||
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-35020 |
LH11,20,30..EUR |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33261-26030 |
LH11,20,30..EUR |
1 | ||
| 33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT) | ||||
| 90313-20001 |
LH11,20,30..EUR |
1 | ||
| 90312-20016 |
LH11,20,30..EUR |
1 | ||
| 33203D - PLUG, TIGHT(FOR SHIFT LEVER SHAFT) | ||||
| 90331-24002 |
LH11,20,30..EUR |
1 | ||
| 33203P - BOOT, DUST(FOR SHIFT LEVER SHAFT) | ||||
| 33531-26010 |
LH11,20,30..EUR |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33262-35031 |
LH11,20,30..EUR |
1 | ||
| 33262-35030 |
LH11,20,30..EUR |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90313-13001 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33205D - WASHER(FOR OUTER LEVER OIL SETTING) | ||||
| 94612-11300 |
LH11,20,30,RH11,2#,3#,42 |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-35020 |
LH11,20,30..EUR |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-35010 |
LH11,20,30..EUR |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LH11,20,30,RH11,2#,3#,42 L=22 |
7 | ||
| 90254-05016 |
LH11,20,30..EUR L=25.5 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LH11,20,30,RH11,2#,3#,42 L=22 |
7 | ||
| 90254-05016 |
LH11,20,30..EUR L=25.5 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LH11,20,30,RH11,2#,3#,42 L=22 |
7 | ||
| 90254-05016 |
LH11,20,30..EUR L=25.5 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LH11,20,30,RH11,2#,3#,42 L=22 |
7 | ||
| 90254-05016 |
LH11,20,30..EUR L=25.5 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LH11,20,30,RH11,2#,3#,42 L=22 |
7 | ||
| 90254-05016 |
LH11,20,30..EUR L=25.5 |
1 | ||
| 33214F - FORK, 5TH SHIFT | ||||
| 33214-35010 |
LH11,20,30..EUR |
1 | ||
| 33214-35011 |
LH11,20,30..EUR |
1 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-35020 |
LH11,20,30..EUR |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33201-35020 |
LH11,20,30..EUR |
1 | ||
| 33222A - ARM, 5TH SHIFT | ||||
| 33233-28010 |
LH11,20,30..EUR |
1 | ||
| 33233-35020 |
LH11,20,30..EUR |
1 | ||
| 33233-28011 |
LH11,20,30..EUR |
1 | ||
| 33223 - PIVOT, SHIFT ARM | ||||
| 33223-35020 |
LH11,20,30..EUR |
1 | ||
| 33223B - RING, O(FOR SHIFT ARM PIVOT) | ||||
| 96710-01010 |
LH11,20,30..EUR |
1 | ||
| 96711-19010 |
LH11,20,30..EUR |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-35020 |
LH11,20,30..EUR |
1 | ||
| 33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE) | ||||
| 90520-08098 |
LH11,20,30..EUR |
1 | ||
| 33226 - PLUNGER, REVERSE SHIFT RETURN | ||||
| 33226-35011 |
LH11,20,30..EUR |
1 | ||
| 33226-35010 |
LH11,20,30..EUR |
1 | ||
| 33226A - SPRING, COMPRESSION(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90501-14046 |
LH11,20,30..EUR |
1 | ||
| 33226C - RING, SHAFT SNAP(FOR REVERSE SHIFT RETURN PLUNGER) | ||||
| 90520-06001 |
LH11,20,30..EUR |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33202-26010 |
LH11,20,30..EUR |
1 | ||
| 33202-26011 |
LH11,20,30..EUR |
1 | ||
| 33231A - SPRING, REVERSE SHIFT RESTRICT | ||||
| 90501-12046 |
LH11,20,30..EUR |
1 | ||
| 90501-10046 |
LH11,20,30..EUR |
1 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-06004 |
LH11,20,30..EUR |
1 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 96160-01200 |
LH11,20,30..EUR |
2 | ||
| 33231D - PIN(FOR REVERSE SHIFT HEAD) | ||||
| 90254-03050 |
LH11,20,30..EUR |
1 | ||
| 90254-03006 |
LH11,20,30..EUR |
1 | ||
| 33232 - HEAD, 1ST & 2ND SHIFT | ||||
| 33232-35010 |
LH11,20,30..EUR |
1 | ||
| 33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET) | ||||
| 90254-03005 |
LH11,20,30..EUR |
1 | ||
| 33234F - HEAD, REVERSE & 5TH SHIFT | ||||
| 33234-35010 |
LH11,20,30..EUR |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33245-35020 |
LH11,20,30..EUR |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-35010 |
LH11,20,30..EUR |
1 | ||
| 33244A - SHAFT, 5TH SHIFT FORK | ||||
| 33246-35010 |
LH11,20,30..EUR |
1 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-28010 |
LH11,20,30..EUR |
1 | ||
| 33243-35030 |
LH11,20,30..EUR |
1 | ||
| 33243-26020 |
RH11,20,30..EUR W/TOP SWITCH |
1 | ||
| 33245A - SHAFT, 5TH SHIFT ARM | ||||
| 33244-35010 |
LH11,20,30..EUR |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-26030 |
LH11,20,30..EUR |
1 | ||
| 33251F - PIN OR BOLT (FOR SHIFT & SELECT LEVER) | ||||
| 33218-35010 |
LH11,20,30..EUR |
1 | ||
| 33253 - LEVER, SHIFT OUTER, NO.1 | ||||
| 33253-26030 |
LH11,20,30..EUR |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33282-57010 |
LH11,20,30..EUR |
1 | ||
| 33257 - LEVER, SELECT OUTER | ||||
| 33257-26030 |
LH11,20,30..EUR |
1 | ||
| 33257A - BOLT, SELECT OUTER LEVER LOCK | ||||
| 33218-35010 |
LH11,20,30..EUR |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10001 |
LH11,20,30..EUR L=32.9,OD=9.53 |
1 | ||
| 90361-10008 |
LH11,20,30..EUR L=14.9,OD=9.53 |
3 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10001 |
LH11,20,30..EUR L=32.9,OD=9.53 |
1 | ||
| 90361-10008 |
LH11,20,30..EUR L=14.9,OD=9.53 |
3 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10001 |
LH11,20,30..EUR L=32.9,OD=9.53 |
1 | ||
| 90361-10008 |
LH11,20,30..EUR L=14.9,OD=9.53 |
3 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05010 |
LH11,20,30..EUR |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05010 |
LH11,20,30..EUR |
2 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12003 |
LH11,20,30..EUR |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-13006 |
LH11,20,30..EUR |
4 | ||
| 90501-14047 |
LH11,20,30..EUR |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-13006 |
LH11,20,30..EUR |
4 | ||
| 90501-14047 |
LH11,20,30..EUR |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LH11,20,30,RH11,2#,3#,42 OD=8 |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LH11,20,30,RH11,2#,3#,42 OD=8 |
4 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-12003 |
LH11,20,30..EUR |
1 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-14047 |
LH11,20,30..EUR |
1 | ||
| 90501-13006 |
LH11,20,30..EUR |
1 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
LH11,20,30..EUR |
1 | ||
| Common parts | ||||
| 90201-10092 | ||||
| 90580-14051 | ||||
| 91651-60835 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
| 94512-00800 | ||||

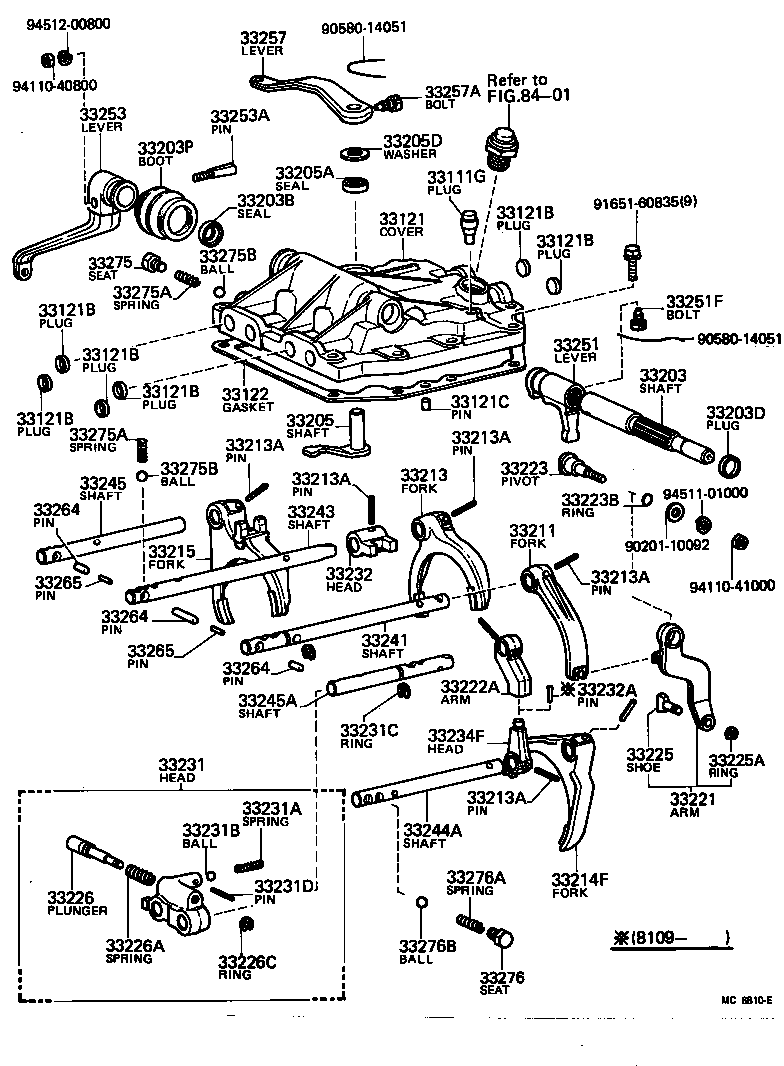

| Linked diagrams | ||||
| 8401 | ||||
