Toyota Hiace LH20 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
EU
HIACE
LH20RV-JRE (1979)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

LH20RV-JRE (1979)

Toyota Hiace

Production Sep 1979 - Nov 1982

Engine L

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8012- )RH20..LHD..BUS..GEN ; (8103- )RH22,32..LHD..12S,15S ; (8105- )LH20

Click highlighted areas on diagram

Part #	Description	Period	Qty
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-30300	RH11,20,22,3#..ARL,GEN FR	02/1977 - 11/1982	1
88361 - FAN, COOLER BLOWER, NO.1
88541-10010	RH11,20,22,3#..ARL,GEN FR	02/1977 - 11/1982	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30531	RH11,20,22,3#..ARL,GEN FR	12/1979 - 11/1982	1
88501-30530	RH11,2#,3#..(03S,06S)..(ARL,GEN) FR	02/1977 - 12/1979	1
88510 - UNIT ASSY, COOLER
88510-30670	RH11,2#,3#..ARL,GEN	02/1977 - 12/1979	1
88510-30671	RH11,20,22,3#..ARL,GEN FR	12/1979 - 11/1982	1
88515 - VALVE, COOLER EXPANSION
88515-12051	RH11,20,22,3#..ARL,GEN FR	12/1979 - 11/1982	1
88515-10010	RH11,2#,3#..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88536 - BRACKET, COOLING UNIT, NO.1
88536-95A02	RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88536-95A15	RH11,20,22,3#..RHD..(ARL,GEN) FR	12/1979 - 12/1980	1
88536 - BRACKET, COOLING UNIT, NO.1
88536-95A02	RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88536-95A15	RH11,20,22,3#..RHD..(ARL,GEN) FR	12/1979 - 12/1980	1
88536A - BRACKET, COOLING UNIT, NO.2
88536-95A00	RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88536-95A14	RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) FR	12/1979 - 12/1980	1
88536A - BRACKET, COOLING UNIT, NO.2
88536-95A00	RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88536-95A14	RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) FR	12/1979 - 12/1980	1
88536B - BRACKET, COOLING UNIT, NO.3
88536-95A01	RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88536-95A13	RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) FR	12/1979 - 12/1980	1
88536B - BRACKET, COOLING UNIT, NO.3
88536-95A01	RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88536-95A13	RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) FR	12/1979 - 12/1980	1
88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET
88570-30600	RH11,20,22,3#..ARL,GEN FR	02/1977 - 11/1982	1
88610 - SWITCH ASSY, COOLER CONTROL
88610-95A00	RH11,2#,3#..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88635 - RESISTOR, COOLER UNIT BLOWER
88635-30370	RH11,20,22,3#..ARL,GEN FR	02/1977 - 11/1982	1
Common parts
88688-95A22
88718-95703
88718-95705
88895-95715
88899-95A08
90093-00519
90099-00906
90099-00932
90099-02134
90099-02135
90099-02210
90099-05164
90099-12405
90099-32102
93385-15012
93385-16016
93385-16020
93385-18020
93540-14012
93540-55012
93540-55016
93590-16035

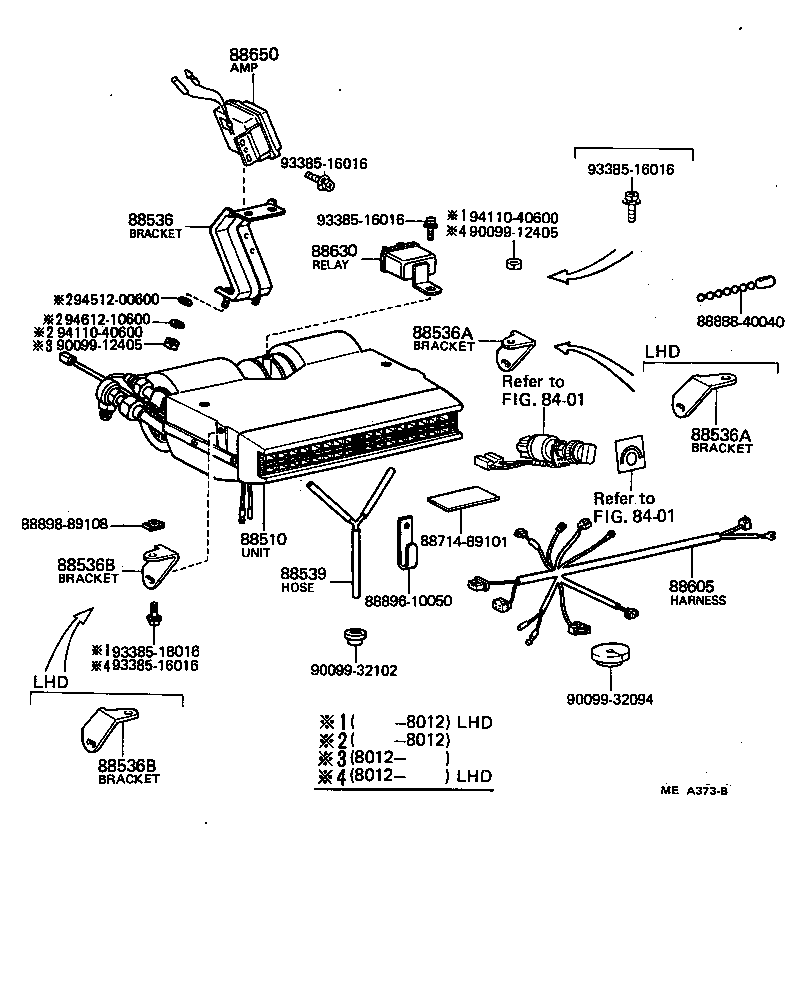

(7912- )RH11,20,22,3#..03S,06S..ARL,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
88510 - UNIT ASSY, COOLER
88510-30670	RH11,2#,3#..ARL,GEN	02/1977 - 12/1979	1
88510-30671	RH11,20,22,3#..ARL,GEN FR	12/1979 - 11/1982	1
88536 - BRACKET, COOLING UNIT, NO.1
88536-95A02	RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88536-95A15	RH11,20,22,3#..RHD..(ARL,GEN) FR	12/1979 - 12/1980	1
88536A - BRACKET, COOLING UNIT, NO.2
88536-95A00	RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88536-95A14	RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) FR	12/1979 - 12/1980	1
88536A - BRACKET, COOLING UNIT, NO.2
88536-95A00	RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88536-95A14	RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) FR	12/1979 - 12/1980	1
88536B - BRACKET, COOLING UNIT, NO.3
88536-95A01	RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88536-95A13	RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) FR	12/1979 - 12/1980	1
88536B - BRACKET, COOLING UNIT, NO.3
88536-95A01	RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88536-95A13	RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) FR	12/1979 - 12/1980	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-26040	RH11,2#,3#..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88539-95A00	RH11,20,22,3#..RHD..(ARL,GEN)	12/1979 - 11/1982	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95A09	RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN)	12/1979 - 12/1980	1
88605-95A00	RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88630 - RELAY ASSY, COOLER
88630-10010	RH11,2#,3#..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88630-14010	RH11,20,22,3#..(03S,06S)..(ARL,GEN)	12/1979 - 11/1982	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-22040	RH11,20,22,3#..ARL,GEN	12/1979 - 11/1982	1
Common parts
88714-89101
88888-40040
88896-10050
88898-89108
90099-12405
90099-32094
90099-32102
93385-16016
93385-18016
94110-40600
94512-00600
94612-10600
Linked diagrams
8401

(8012- )RH20..LHD..BUS..GEN ; (8103- )RH22,32..LHD..12S,15S ; (8105- )LH20

Click highlighted areas on diagram

Part #	Description	Period	Qty
88536 - BRACKET, COOLING UNIT, NO.1
88536-95A02	RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88536-95A15	RH11,20,22,3#..RHD..(ARL,GEN) FR	12/1979 - 12/1980	1
88536A - BRACKET, COOLING UNIT, NO.2
88536-95A00	RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88536-95A14	RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) FR	12/1979 - 12/1980	1
88536B - BRACKET, COOLING UNIT, NO.3
88536-95A01	RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88536-95A13	RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN) FR	12/1979 - 12/1980	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-26040	RH11,2#,3#..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88539-95A00	RH11,20,22,3#..RHD..(ARL,GEN)	12/1979 - 11/1982	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-95A09	RH11,20,22,3#..RHD..(03S,06S)..(ARL,GEN)	12/1979 - 12/1980	1
88605-95A00	RH11,2#,3#..RHD..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88630 - RELAY ASSY, COOLER
88630-10010	RH11,2#,3#..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88630-14010	RH11,20,22,3#..(03S,06S)..(ARL,GEN)	12/1979 - 11/1982	1
88630 - RELAY ASSY, COOLER
88630-10010	RH11,2#,3#..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88630-14010	RH11,20,22,3#..(03S,06S)..(ARL,GEN)	12/1979 - 11/1982	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-22040	RH11,20,22,3#..ARL,GEN	12/1979 - 11/1982	1
Common parts
88714-89101
88718-95A36
88888-40040
88896-10050
90044-64009
90099-12405
90099-32094
90099-32102
93385-16016
Linked diagrams
8202
8401

(7912- )RH11,20,22,3#..ARL,GEN

Click highlighted areas on diagram

Part #	Description	Period	Qty
88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1
88550-30300	RH11,20,22,3#..ARL,GEN FR	02/1977 - 11/1982	1
88361 - FAN, COOLER BLOWER, NO.1
88541-10010	RH11,20,22,3#..ARL,GEN FR	02/1977 - 11/1982	1
88371 - FAN, COOLER BLOWER, NO.2
88541-10020	RH11,20,22,3#..ARL,GEN FR	02/1977 - 11/1982	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-30531	RH11,20,22,3#..ARL,GEN FR	12/1979 - 11/1982	1
88501-30530	RH11,2#,3#..(03S,06S)..(ARL,GEN) FR	02/1977 - 12/1979	1
88510 - UNIT ASSY, COOLER
88510-30670	RH11,2#,3#..ARL,GEN	02/1977 - 12/1979	1
88510-30671	RH11,20,22,3#..ARL,GEN FR	12/1979 - 11/1982	1
88515 - VALVE, COOLER EXPANSION
88515-12051	RH11,20,22,3#..ARL,GEN FR	12/1979 - 11/1982	1
88515-10010	RH11,2#,3#..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET
88570-30600	RH11,20,22,3#..ARL,GEN FR	02/1977 - 11/1982	1
88625 - THERMISTOR, COOLER, NO.1
88625-12040	RH11,20,22,3#..ARL,GEN	12/1979 - 11/1982	1
88625-30480	RH11,2#,3#..(03S,06S)..(ARL,GEN)	02/1977 - 12/1979	1
88635 - RESISTOR, COOLER UNIT BLOWER
88635-30370	RH11,20,22,3#..ARL,GEN FR	02/1977 - 11/1982	1
Common parts
90099-14046

LH20RV-JRE (1979)

(8012- )RH20..LHD..BUS..GEN ; (8103- )RH22,32..LHD..12S,15S ; (8105- )LH20

(7912- )RH11,20,22,3#..03S,06S..ARL,GEN

(8012- )RH20..LHD..BUS..GEN ; (8103- )RH22,32..LHD..12S,15S ; (8105- )LH20

(7912- )RH11,20,22,3#..ARL,GEN
