LH20RB-JRE (1979)
Toyota Hiace
(8103- )RH22,32..LHD..12S,15S ; (8105- )LH20..12S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-30300 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88550-30300 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88550-30300 |
LH20..12S FR |
1 | ||
| 88550-30300 |
LH20..12S FR |
1 | ||
| 88550-95A04 |
LH20..12S RR |
1 | ||
| 88550-95A04 |
LH20..12S RR |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 88541-10010 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88541-10010 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 87105-14030 |
LH20..12S RR |
1 | ||
| 87105-14030 |
LH20..12S RR |
1 | ||
| 88541-10010 |
LH20..12S FR |
1 | ||
| 88541-10010 |
LH20..12S FR |
1 | ||
| 88371 - FAN, COOLER BLOWER, NO.2 | ||||
| 88541-10020 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88541-10020 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88541-10020 |
LH20..12S FR |
1 | ||
| 88541-10020 |
LH20..12S FR |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-30531 |
LH20..12S FR |
1 | ||
| 88501-30531 |
LH20..12S FR |
1 | ||
| 88501-95701 |
LH20..12S RR |
1 | ||
| 88501-95701 |
LH20..12S RR |
1 | ||
| 88501-30531 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88501-30531 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-30670 |
RH11,2#,3#..ARL,GEN |
1 | ||
| 88510-30670 |
RH11,2#,3#..ARL,GEN |
1 | ||
| 88510-30671 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88510-30671 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88510-95A04 |
LH20..12S RR |
1 | ||
| 88510-95A04 |
LH20..12S RR |
1 | ||
| 88510-30671 |
LH20..12S FR |
1 | ||
| 88510-30671 |
LH20..12S FR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-12051 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88515-12051 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88515-20040 |
LH20..12S RR |
1 | ||
| 88515-20040 |
LH20..12S RR |
1 | ||
| 88515-12051 |
LH20..12S FR |
1 | ||
| 88515-12051 |
LH20..12S FR |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-30600 |
LH20..12S FR |
1 | ||
| 88570-30600 |
LH20..12S FR |
1 | ||
| 88570-30600 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88570-30600 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88893-95700 |
LH20,RH20,30..RHD..BUS..GEN RR |
1 | ||
| 88893-95700 |
LH20,RH20,30..RHD..BUS..GEN RR |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12040 |
RH11,20,22,3#..ARL,GEN |
1 | ||
| 88625-12040 |
RH11,20,22,3#..ARL,GEN |
1 | ||
| 88625-12040 |
LH20..12S |
1 | ||
| 88625-12040 |
LH20..12S |
1 | ||
| 88635 - RESISTOR, COOLER UNIT BLOWER | ||||
| 88635-30370 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88635-30370 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88635-30370 |
LH20..12S FR |
1 | ||
| 88635-30370 |
LH20..12S FR |
1 | ||
| 88635-95A00 |
LH20..12S RR |
1 | ||
| 88635-95A00 |
LH20..12S RR |
1 | ||
| Common parts | ||||
| 90099-14046 | ||||

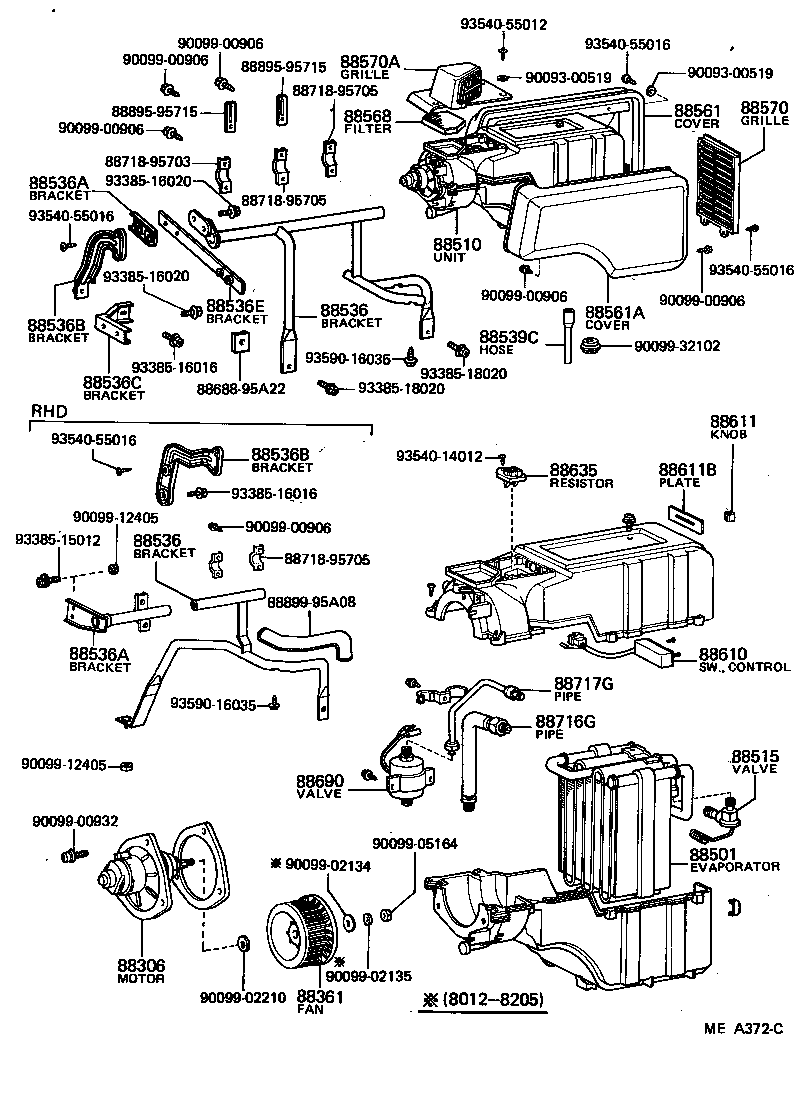

(8012- )RH20..LHD..BUS..GEN ; (8103- )RH22,32..LHD..12S,15S ; (8105- )LH20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-30300 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88550-30300 |
LH20..12S FR |
1 | ||
| 88550-95A04 |
LH20..12S RR |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 88541-10010 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 87105-14030 |
LH20..12S RR |
1 | ||
| 88541-10010 |
LH20..12S FR |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-30531 |
LH20..12S FR |
1 | ||
| 88501-95701 |
LH20..12S RR |
1 | ||
| 88501-30531 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-30670 |
RH11,2#,3#..ARL,GEN |
1 | ||
| 88510-30671 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88510-95A04 |
LH20..12S RR |
1 | ||
| 88510-30671 |
LH20..12S FR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-12051 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88515-20040 |
LH20..12S RR |
1 | ||
| 88515-12051 |
LH20..12S FR |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95A15 |
RH11,20,22,3#..RHD..(ARL,GEN) FR |
1 | ||
| 88536-95A16 |
LH20,RH20,30..RHD..BUS..GEN RR |
1 | ||
| 88536-95A28 |
LH20..RHD..12S FR,W/TWIN COOLER |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95A15 |
RH11,20,22,3#..RHD..(ARL,GEN) FR |
1 | ||
| 88536-95A16 |
LH20,RH20,30..RHD..BUS..GEN RR |
1 | ||
| 88536-95A28 |
LH20..RHD..12S FR,W/TWIN COOLER |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95A30 |
LH20..RHD..12S FR,W/TWIN COOLER |
1 | ||
| 88536-95A22 |
LH20,RH20,30..RHD..BUS RR |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95A30 |
LH20..RHD..12S FR,W/TWIN COOLER |
1 | ||
| 88536-95A22 |
LH20,RH20,30..RHD..BUS RR |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88536-95A29 |
LH20..RHD..12S FR |
1 | ||
| 88536-95A19 |
LH20,RH20,30..RHD..BUS..GEN RR |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88536-95A29 |
LH20..RHD..12S FR |
1 | ||
| 88536-95A19 |
LH20,RH20,30..RHD..BUS..GEN RR |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-95A01 |
LH20,RH20,30..RHD..BUS..GEN |
1 | ||
| 88561 - COVER, COOLER UNIT | ||||
| 88896-95701 |
LH20,RH20,30..RHD..BUS..GEN |
1 | ||
| 88561A - COVER, COOLER UNIT, A | ||||
| 88896-95702 |
LH20,RH20,30..RHD..BUS..GEN |
1 | ||
| 88568 - FILTER, COOLER UNIT COVER | ||||
| 88899-95701 |
LH20,RH20,30..RHD..BUS..GEN |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-30600 |
LH20..12S FR |
1 | ||
| 88570-30600 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88893-95700 |
LH20,RH20,30..RHD..BUS..GEN RR |
1 | ||
| 88570A - GRILLE ASSY, AIR OUTLET | ||||
| 88570-95700 |
LH20,RH20,30..RHD..BUS..GEN |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 84660-95700 |
LH20..12S RR |
1 | ||
| 88611 - KNOB, COOLER CONTROL SWITCH | ||||
| 88611-95711 |
LH20..12S RR |
1 | ||
| 88611B - PLATE, COOLER CONTROL SWITCH | ||||
| 88549-95700 |
LH20..12S RR |
1 | ||
| 88635 - RESISTOR, COOLER UNIT BLOWER | ||||
| 88635-30370 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88635-30370 |
LH20..12S FR |
1 | ||
| 88635-95A00 |
LH20..12S RR |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88691-95700 |
LH20..12S |
1 | ||
| 88716G - PIPE, COOLER REFRIGERANT LIQUID, G | ||||
| 88716-95710 |
LH20..12S |
1 | ||
| 88717G - PIPE, COOLER REFRIGERANT SUCTION, G | ||||
| 88717-95A16 |
LH20..12S |
1 | ||
| Common parts | ||||
| 88688-95A22 | ||||
| 88718-95703 | ||||
| 88718-95705 | ||||
| 88895-95715 | ||||
| 88899-95A08 | ||||
| 90093-00519 | ||||
| 90099-00906 | ||||
| 90099-00932 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 90099-12405 | ||||
| 90099-32102 | ||||
| 93385-15012 | ||||
| 93385-16016 | ||||
| 93385-16020 | ||||
| 93385-18020 | ||||
| 93540-14012 | ||||
| 93540-55012 | ||||
| 93540-55016 | ||||
| 93590-16035 | ||||
(8012- )RH20..LHD..BUS..GEN ; (8103- )RH22,32..LHD..12S,15S ; (8105- )LH20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-95A15 |
RH11,20,22,3#..RHD..(ARL,GEN) FR |
1 | ||
| 88536-95A16 |
LH20,RH20,30..RHD..BUS..GEN RR |
1 | ||
| 88536-95A28 |
LH20..RHD..12S FR,W/TWIN COOLER |
1 | ||
| 88536A - BRACKET, COOLING UNIT, NO.2 | ||||
| 88536-95A30 |
LH20..RHD..12S FR,W/TWIN COOLER |
1 | ||
| 88536-95A22 |
LH20,RH20,30..RHD..BUS RR |
1 | ||
| 88536B - BRACKET, COOLING UNIT, NO.3 | ||||
| 88536-95A29 |
LH20..RHD..12S FR |
1 | ||
| 88536-95A19 |
LH20,RH20,30..RHD..BUS..GEN RR |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95A00 |
RH11,20,22,3#..RHD..(ARL,GEN) |
1 | ||
| 88539-95A00 |
LH20..RHD..12S |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-95A35 |
LH20..RHD..12S W/TWIN COOLER |
1 | ||
| 88630B - RELAY ASSY, COOLER | ||||
| 88630-95704 |
LH20..RHD..12S |
1 | ||
| 88630C - BRACKET, COOLER RELAY | ||||
| 88688-95A11 |
LH20..12S |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-95A12 |
LH20..12S |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-22040 |
RH11,20,22,3#..ARL,GEN |
1 | ||
| 88650-32020 |
LH20..12S |
1 | ||
| Common parts | ||||
| 88714-89101 | ||||
| 88718-95A36 | ||||
| 88888-40040 | ||||
| 88896-10050 | ||||
| 90044-64009 | ||||
| 90099-12405 | ||||
| 90099-32094 | ||||
| 90099-32102 | ||||
| 93385-16016 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

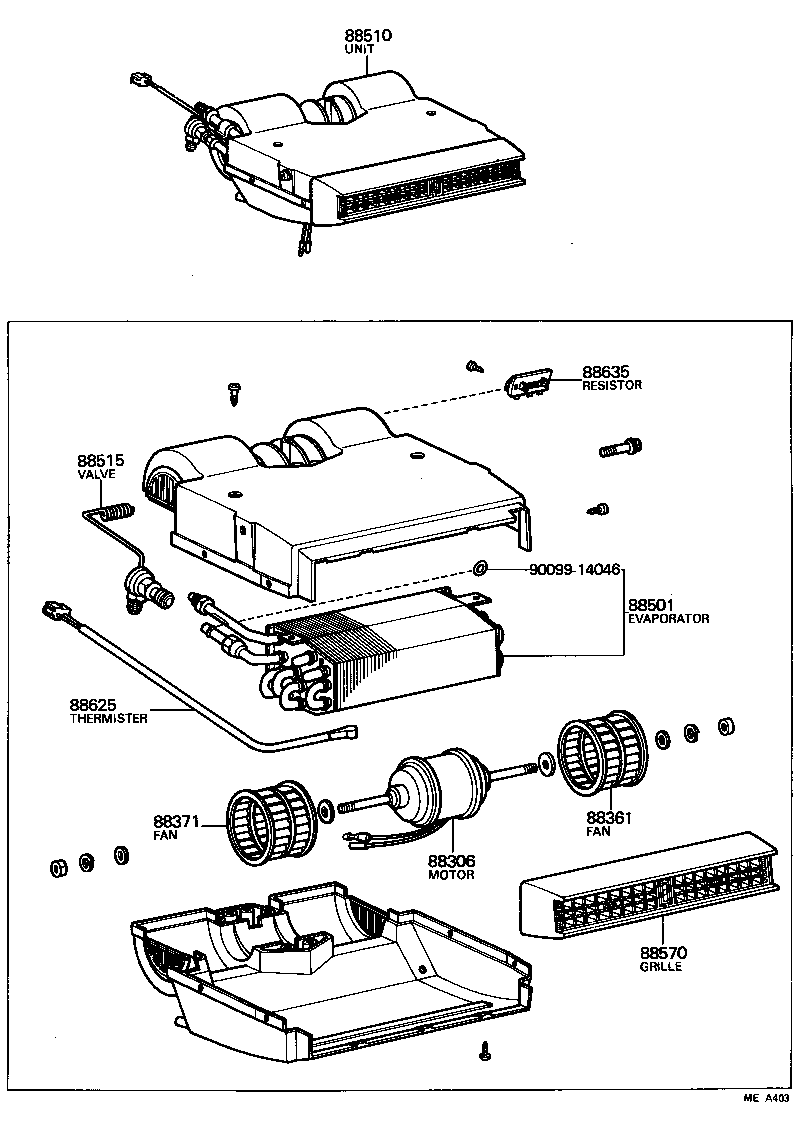

(7912- )RH11,20,22,3#..ARL,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 88550-30300 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88550-30300 |
LH20..12S FR |
1 | ||
| 88550-95A04 |
LH20..12S RR |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 88541-10010 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 87105-14030 |
LH20..12S RR |
1 | ||
| 88541-10010 |
LH20..12S FR |
1 | ||
| 88371 - FAN, COOLER BLOWER, NO.2 | ||||
| 88541-10020 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88541-10020 |
LH20..12S FR |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-30531 |
LH20..12S FR |
1 | ||
| 88501-95701 |
LH20..12S RR |
1 | ||
| 88501-30531 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-30670 |
RH11,2#,3#..ARL,GEN |
1 | ||
| 88510-30671 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88510-95A04 |
LH20..12S RR |
1 | ||
| 88510-30671 |
LH20..12S FR |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-12051 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88515-20040 |
LH20..12S RR |
1 | ||
| 88515-12051 |
LH20..12S FR |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-30600 |
LH20..12S FR |
1 | ||
| 88570-30600 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88893-95700 |
LH20,RH20,30..RHD..BUS..GEN RR |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-12040 |
RH11,20,22,3#..ARL,GEN |
1 | ||
| 88625-12040 |
LH20..12S |
1 | ||
| 88635 - RESISTOR, COOLER UNIT BLOWER | ||||
| 88635-30370 |
RH11,20,22,3#..ARL,GEN FR |
1 | ||
| 88635-30370 |
LH20..12S FR |
1 | ||
| 88635-95A00 |
LH20..12S RR |
1 | ||
| Common parts | ||||
| 90099-14046 | ||||
