LH11RP-JR (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

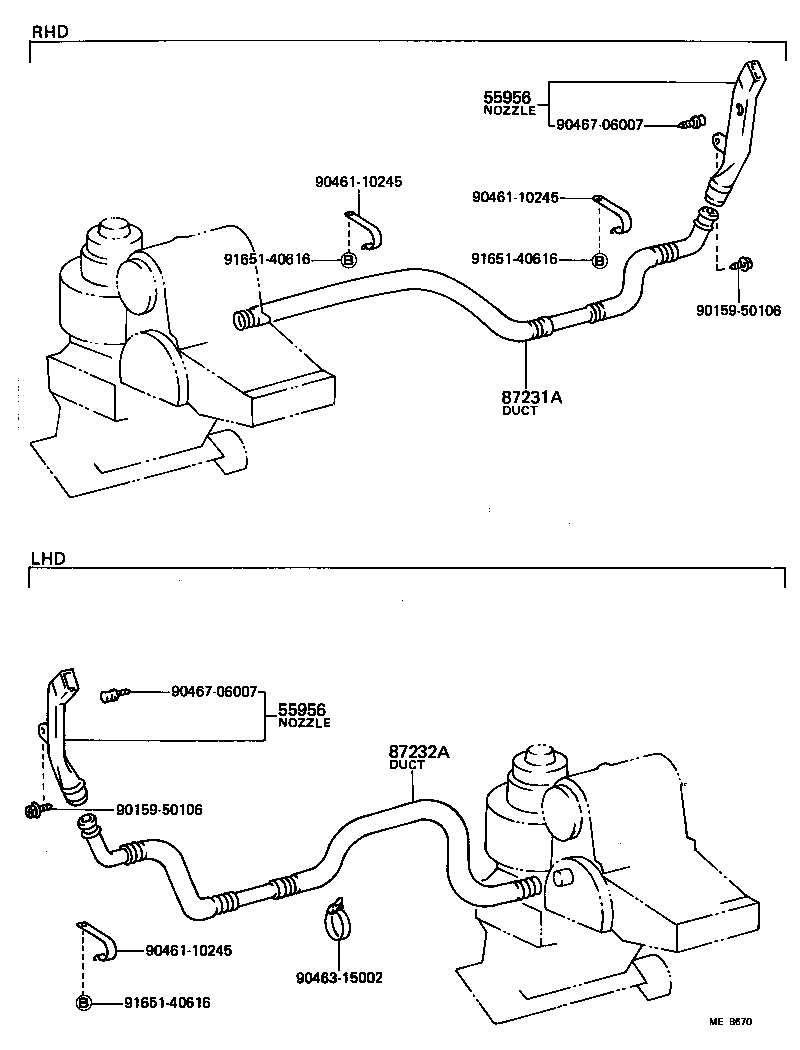

Click highlighted areas on diagram

diagram 55956 55956 87231A 87232A 9015950106 9015950106 9046110245 9046110245 9046110245 9046315002 9046706007 9046706007 9165140616 9165140616 9165140616
Part # Description Qty Price
Common parts
90159-50106
90461-10245
90463-15002
90467-06007
91651-40616

(8211- )

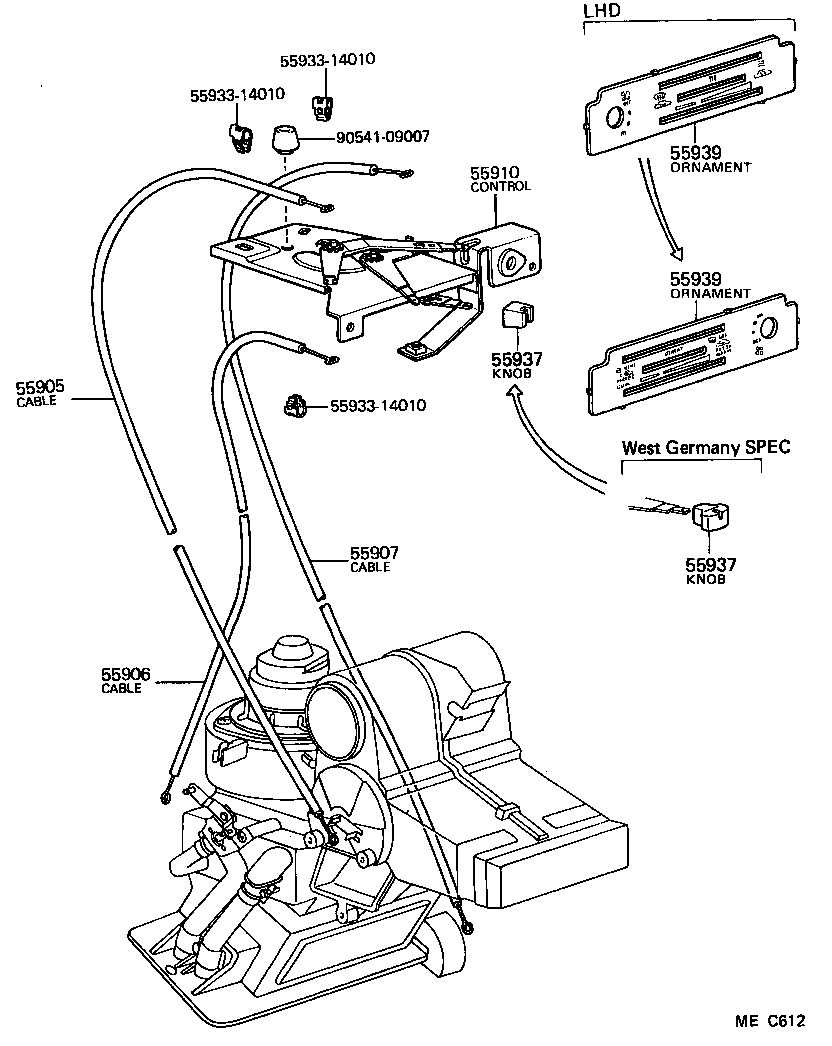

Click highlighted areas on diagram

diagram 55905 55906 55907 55910 5593314010 5593314010 5593314010 55937 55937 55939 55939 9054109007
Part # Description Qty Price
55905 - CABLE SUB-ASSY, DEFROST CONTROL
55905-95A00

LH11,RH11..RHD..(ARL,EUR,GEN)

 1
55906 - CABLE SUB-ASSY, HEATER CONTROL
55907-95A02

LH11,RH11..RHD..(ARL,EUR,GEN)

 1
55907 - CABLE SUB-ASSY, HEATER AIR INLET BUTTERFLY
55906-95A00

LH11,RH11..ARL,EUR,GEN

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55902-95A04

LH11,RH11..RHD..GEN

W/BOOST VENTILATOR

 1
55902-95A02

LH11,RH11..RHD..(ARL,EUR,GEN)

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-12070

LH11,RH11..ARL,EUR,GEN

 3
55937 - KNOB, HEATER CONTROL LEVER
55905-12070

LH11,RH11..ARL,EUR,GEN

 3
55939 - ORNAMENT, HEATER CONTROL
55519-95A00

LH11,RH11..RHD..(ARL,EUR,GEN)

 1
55519-95A03

LH11,RH11..RHD..GEN

W/BOOST VENTILATOR

 1
55939 - ORNAMENT, HEATER CONTROL
55519-95A00

LH11,RH11..RHD..(ARL,EUR,GEN)

 1
55519-95A03

LH11,RH11..RHD..GEN

W/BOOST VENTILATOR

 1
Common parts
55933-14010
90541-09007
