LH11R-QRBW (1982)
Toyota Hiace
Production
Nov 1982
-
Jul 1985
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8211- )

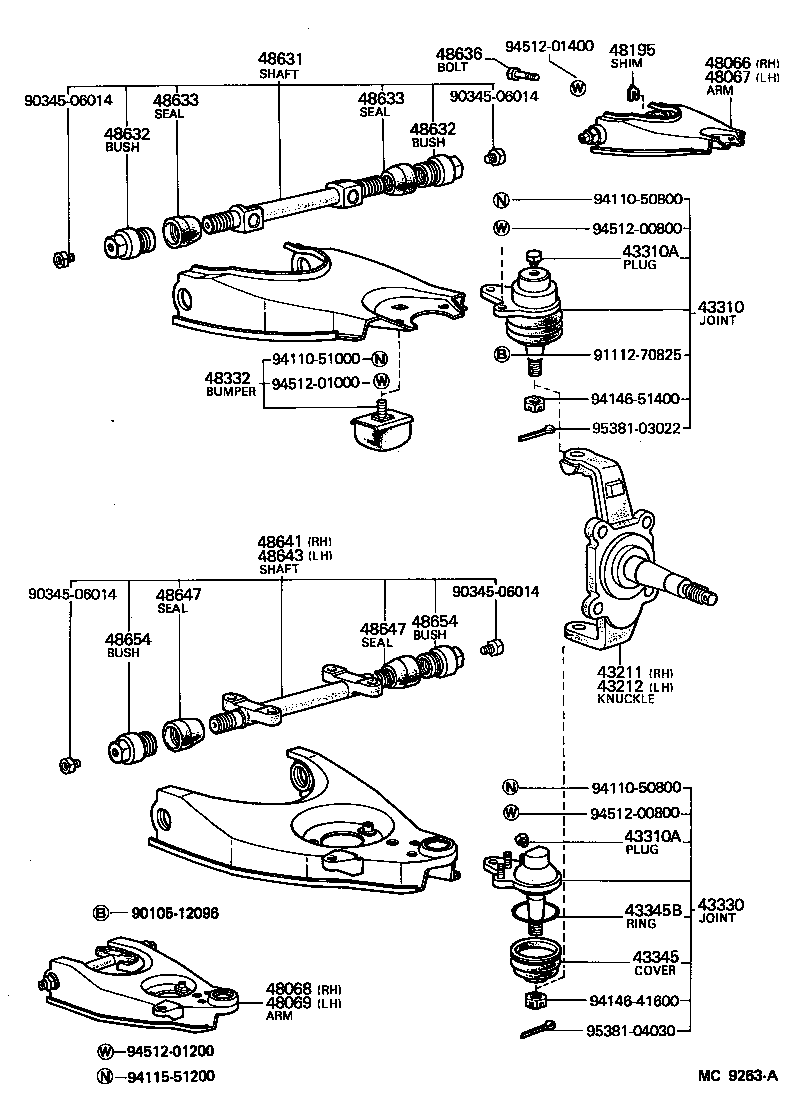

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-26030 |
LH11,RH11..ARL,EUR,GEN FR DISC BRAKE |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-26010 |
LH11,RH11..ARL,EUR,GEN FR DISC BRAKE |
1 | ||
| 43310 - JOINT ASSY, UPPER BALL | ||||
| 43360-29025 |
LH11,RH11 LH |
1 | ||
| 43350-29025 |
LH11,RH11 RH |
1 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
LH11,RH11 |
4 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
LH11,RH11 |
4 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-39045 |
LH11,RH11 RH |
1 | ||
| 43340-39075 |
LH11,RH11 LH |
1 | ||
| 43345 - COVER, LOWER BALL JOINT DUST | ||||
| 43345-35010 |
LH11,RH11 |
2 | ||
| 43345B - RING, SET (FOR LOWER BALL JOINT DUST COVER) | ||||
| 90522-58039 |
LH11,RH11 |
2 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-26010 |
LH11,RH11 |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48067-26010 |
LH11,RH11 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-26011 |
LH11,RH11 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-26011 |
LH11,RH11 |
1 | ||
| 48195 - SHIM, CAMBER ADJUST | ||||
| 90565-15016 |
LH11,RH11 T=1.6,T=1.6 |
1 | ||
| 90565-15018 |
LH11,RH11 T=2.0,T=2.0 |
1 | ||
| 90565-15017 |
LH11,RH11 T=1.0,T=1.0 |
1 | ||
| 90565-15001 |
LH11,RH11 T=4.5 |
1 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48305-29016 |
LH11,RH11 |
2 | ||
| 48631 - SHAFT, FRONT SUSPENSION UPPER ARM | ||||
| 04485-26020 |
LH11,RH11 |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-30012 |
LH11,RH11 |
4 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-30012 |
LH11,RH11 |
4 | ||
| 48633 - SEAL, UPPER ARM PIVOT DUST | ||||
| 48633-35010 |
LH11,RH11 |
4 | ||
| 48633 - SEAL, UPPER ARM PIVOT DUST | ||||
| 48633-35010 |
LH11,RH11 |
4 | ||
| 48636 - BOLT, UPPER ARM SET | ||||
| 91112-71455 |
LH11,RH11 |
4 | ||
| 48641 - SHAFT, LOWER ARM, RH | ||||
| 04486-26010 |
LH11,RH11 |
1 | ||
| 48643 - SHAFT, LOWER ARM, LH | ||||
| 04486-26010 |
LH11,RH11 |
1 | ||
| 48647 - SEAL, LOWER ARM BUSH DUST | ||||
| 48645-35010 |
LH11,RH11 |
4 | ||
| 48647 - SEAL, LOWER ARM BUSH DUST | ||||
| 48645-35010 |
LH11,RH11 |
4 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48632-30012 |
LH11,RH11 |
4 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48632-30012 |
LH11,RH11 |
4 | ||
| Common parts | ||||
| 90105-12096 | ||||
| 90345-06014 | ||||
| 91112-70825 | ||||
| 94110-50800 | ||||
| 94110-51000 | ||||
| 94115-51200 | ||||
| 94146-41600 | ||||
| 94146-51400 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94512-01200 | ||||
| 94512-01400 | ||||
| 95381-03022 | ||||
| 95381-04030 | ||||
