LH11R-JRY (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

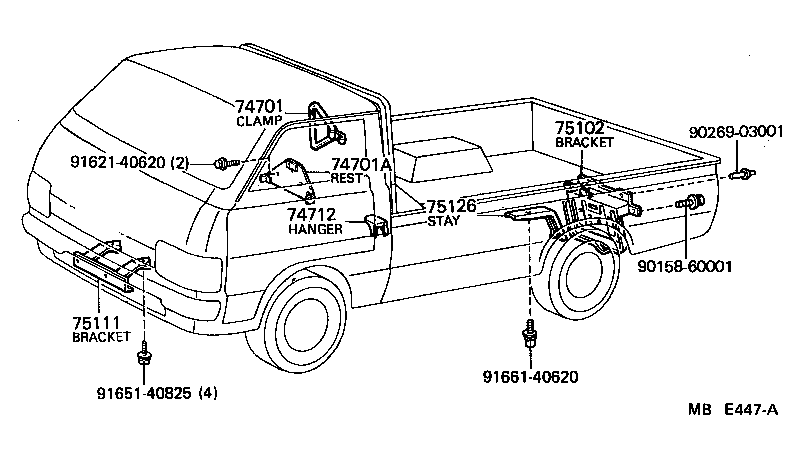

Click highlighted areas on diagram

diagram 74701 74701A 74712 75102 75111 75126 9015860001 9026903001 9162140620 9165140825 9166140620
Part # Description Qty Price
74701 - CLAMP SUB-ASSY, TOOL BAG
74701-95601

LH11,RH11

 1
74701A - REST SUB-ASSY, TOOL BAG
75203-95A02

LH11

 1
74712 - HANGER, JACK HOLDER
74711-95A00

LH11,RH11..T1,T3

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-95018

LH11,RH11..(T1,TW)..(ARL,GEN,IDN)

 1
75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER
66407-95011

LH11,RH11..ARL,GEN,IDN

 1
Common parts
90158-60001
90269-03001
91621-40620
91651-40825
91661-40620
