LH11L-QRW3 (1982)
Toyota Hiace
Production
Nov 1982
-
Jul 1985
Engine
L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8211- )

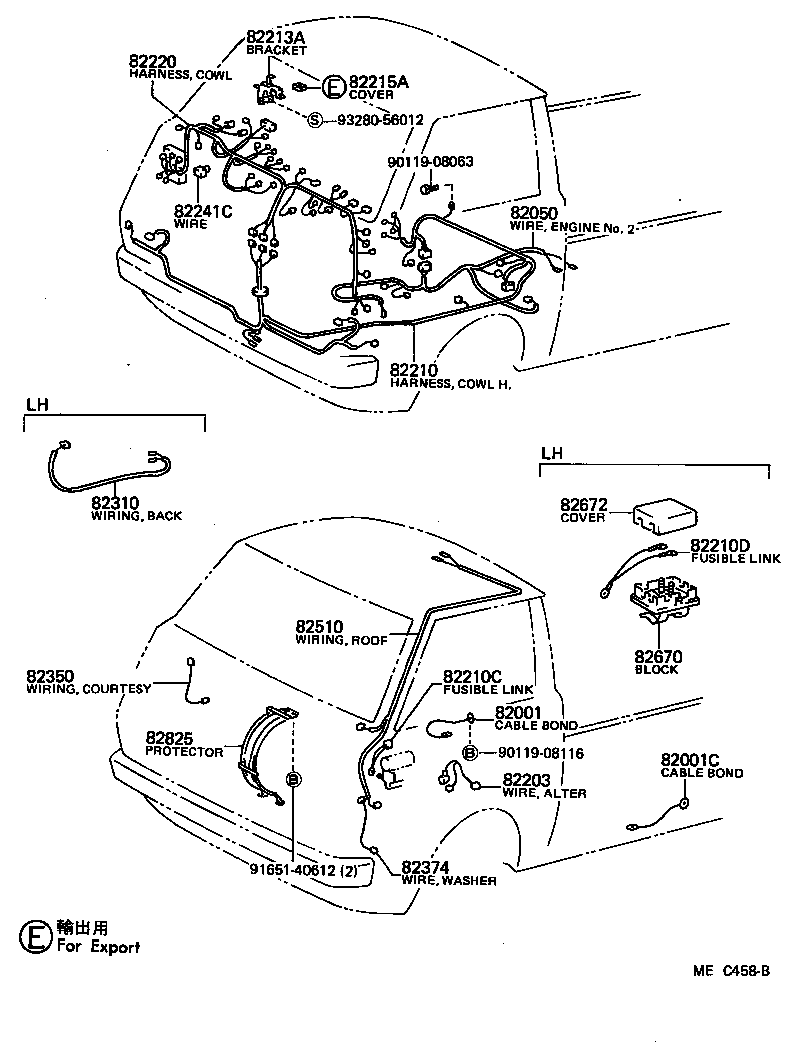

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07220 |
LH11 |
1 | ||
| 82050 - WIRE ASSY, ENGINE | ||||
| 82320-95A31 |
LH11..EUR |
1 | ||
| 82203 - WIRE SUB-ASSY, ALTERNATOR | ||||
| 82405-95A08 |
LH11..ARL,EUR,GEN |
1 | ||
| 82210 - HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1 | ||||
| 82380-95A00 |
LH11..LHD..03S..EUR |
1 | ||
| 82380-95A03 |
LH11..LHD..T1 *FRG |
1 | ||
| 82380-95A12 |
LH11..LHD..03S..EUR |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08177 |
LH11..EUR NX200-10L,W/12V 2.5KW STARTER |
1 | ||
| 90982-08115 |
LH11..EUR L=110,G,N70Z,W/12V 2.0KW STARTER |
1 | ||
| 82210D - FUSIBLE LINK | ||||
| 90982-08173 |
LH11..EUR BATTERY=N70Z |
1 | ||
| 90982-08178 |
LH11..EUR BATTERY=NX200-10L |
1 | ||
| 82213A - BRACKET, HARNESS CONNECTOR | ||||
| 82203-95A01 |
LH11..LHD..EUR..IV SWEDEN SPEC |
1 | ||
| 82203-95A00 |
LH11,RH11 |
1 | ||
| 82215A - COVER, CONNECTOR BRACKET | ||||
| 82215-95A00 |
LH11,RH11..LHD..T1..EUR *FRG |
1 | ||
| 82220 - HARNESS ASSY, WIRING COWL | ||||
| 82270-95A01 |
LH11..LHD..EUR..IV *FRG |
1 | ||
| 82270-95A02 |
LH11..LHD..EUR..IV SWEDEN SPEC |
1 | ||
| 82220-95A88 |
LH11..LHD..EUR |
1 | ||
| 82220-95A89 |
LH11..LHD..T1 W/HEAD LAMP CLEANER |
1 | ||
| 82310 - WIRING ASSY, TO BACK UP LAMP SWITCH | ||||
| 82302-95A04 |
LH11..5H |
1 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82301-95A09 |
LH11,RH11..ARL,EUR,GEN |
1 | ||
| 82510 - WIRING ASSY, ROOF | ||||
| 82510-95A23 |
LH11,RH11..(T1,T3)..(ARL,EUR,GEN) |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82671-30030 |
LH11..EUR |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-26010 |
LH11..EUR |
1 | ||
| 82825 - PROTECTOR, WIRING HARNESS | ||||
| 82707-95A05 |
LH11,RH11..LHD |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90119-08116 | ||||
| 91651-40612 | ||||
| 93280-56012 | ||||
(8211- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

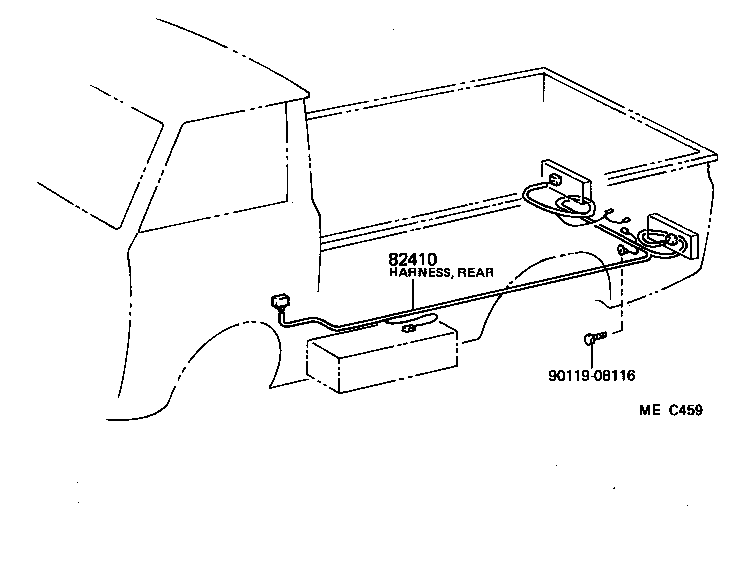

| 82410 - HARNESS ASSY, WIRING TO REAR LAMP | ||||
| 82430-95A51 |
LH11,RH11..LHD..EUR |
1 | ||
| 82430-95A49 |
LH11,RH11..LHD *FRG |
1 | ||
| Common parts | ||||
| 90119-08116 | ||||
(8211- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

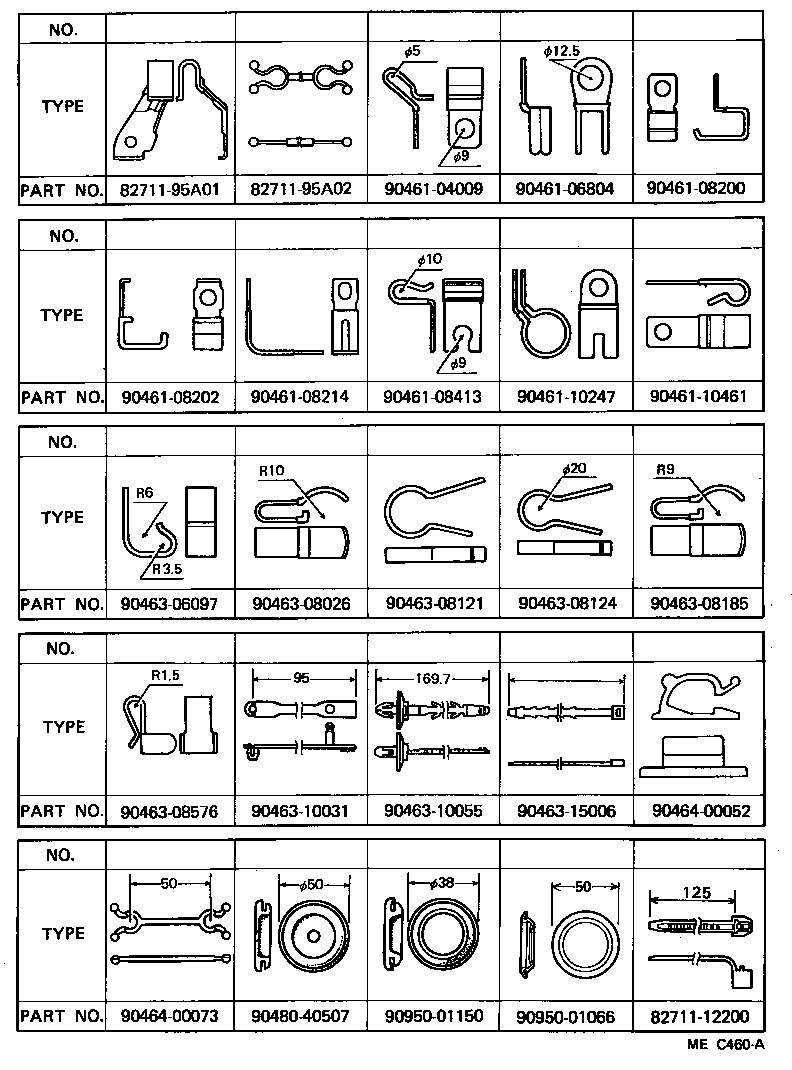

| Common parts | ||||
| 82711-12200 | ||||
| 82711-95A01 | ||||
| 82711-95A02 | ||||
| 90461-04009 | ||||
| 90461-06804 | ||||
| 90461-08200 | ||||
| 90461-08202 | ||||
| 90461-08214 | ||||
| 90461-08413 | ||||
| 90461-10247 | ||||
| 90461-10461 | ||||
| 90463-06097 | ||||
| 90463-08026 | ||||
| 90463-08121 | ||||
| 90463-08124 | ||||
| 90463-08185 | ||||
| 90463-08576 | ||||
| 90463-10031 | ||||
| 90463-10055 | ||||
| 90463-15006 | ||||
| 90464-00052 | ||||
| 90464-00073 | ||||
| 90480-40507 | ||||
| 90950-01066 | ||||
| 90950-01150 | ||||
(8211- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

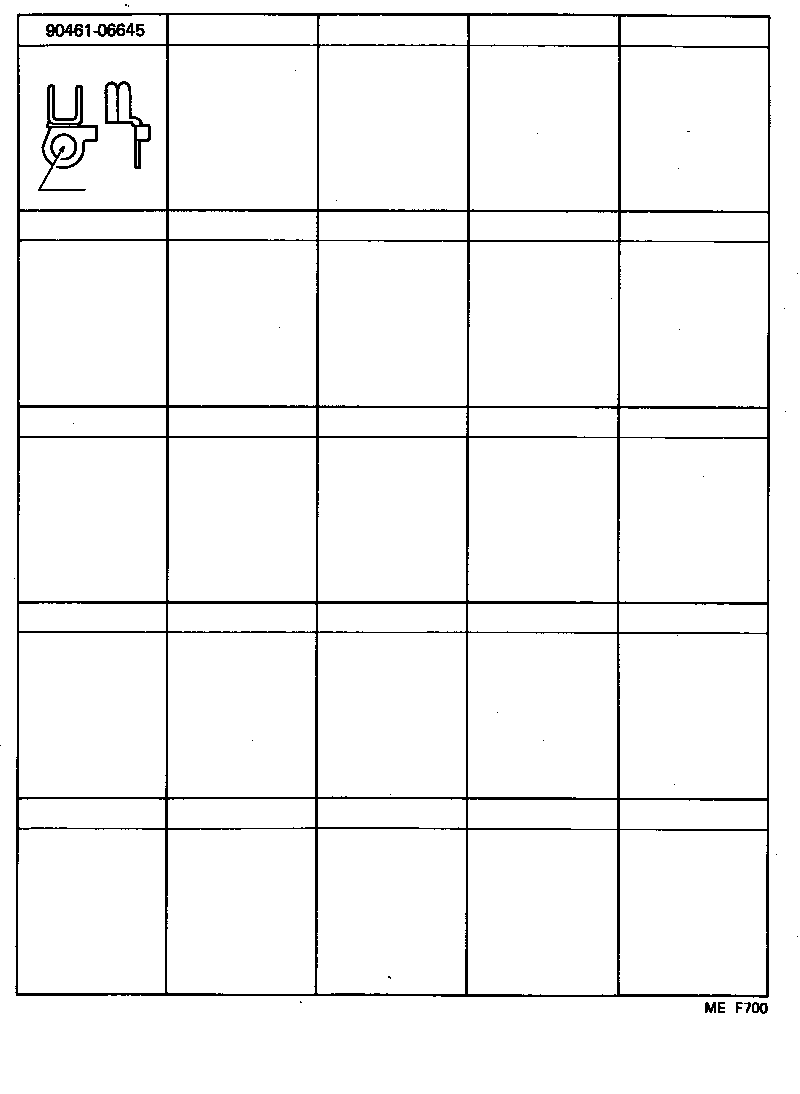

| Common parts | ||||
| 90461-06645 | ||||
