LH11L-QRW (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

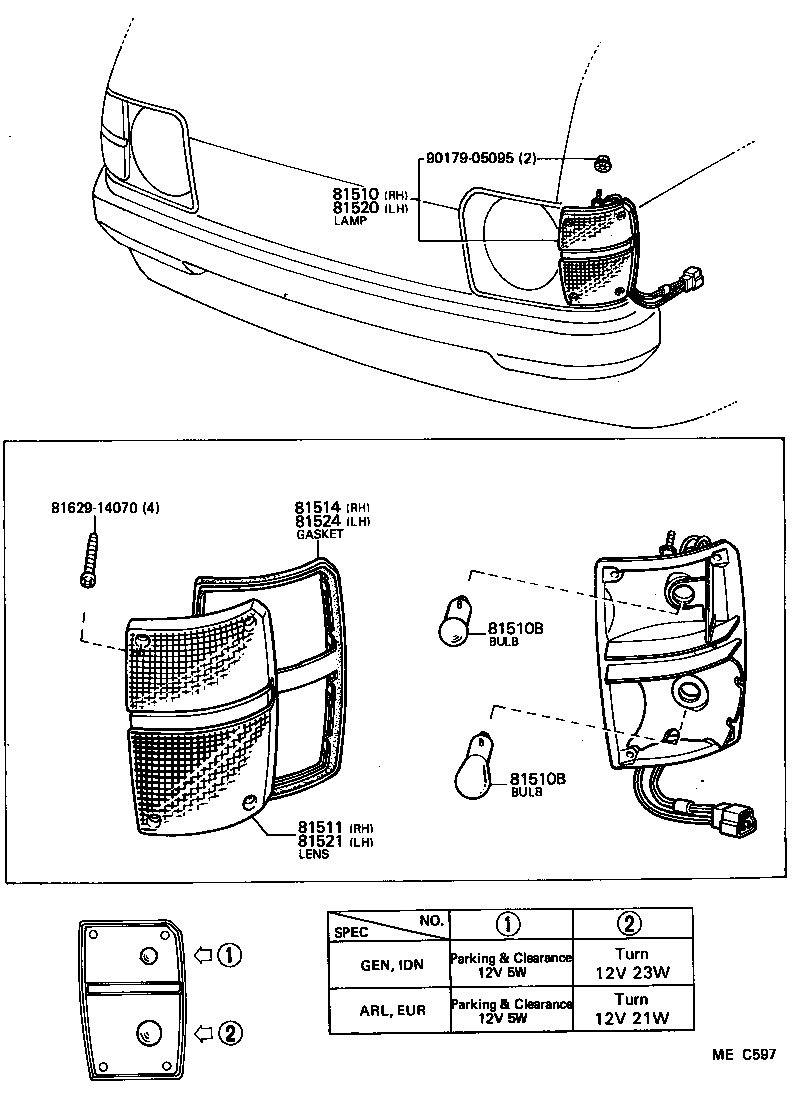

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81514 81520 81521 81524 8162914070 9017905095
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-29445

LH11,RH11..ARL,EUR

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11050

LH11,RH11

12V 5W,12V 5W

 2
99132-11210

LH11,RH11..ARL,EUR

12V 21W,12V 21W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11050

LH11,RH11

12V 5W,12V 5W

 2
99132-11210

LH11,RH11..ARL,EUR

12V 21W,12V 21W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-95A03

LH11,RH11

 1
81514 - GASKET, FRONT TURN SIGNAL LAMP BODY, RH
81512-95A00

LH11,RH11

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-29445

LH11,RH11..ARL,EUR

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-95A03

LH11,RH11

 1
81524 - GASKET, FRONT TURN SIGNAL LAMP BODY, LH
81522-95A00

LH11,RH11

 1
Common parts
81629-14070
90179-05095
