LH11L-JR3 (1982)

Toyota Hiace

Production Nov 1982 - Jul 1985
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8211- )

Click highlighted areas on diagram

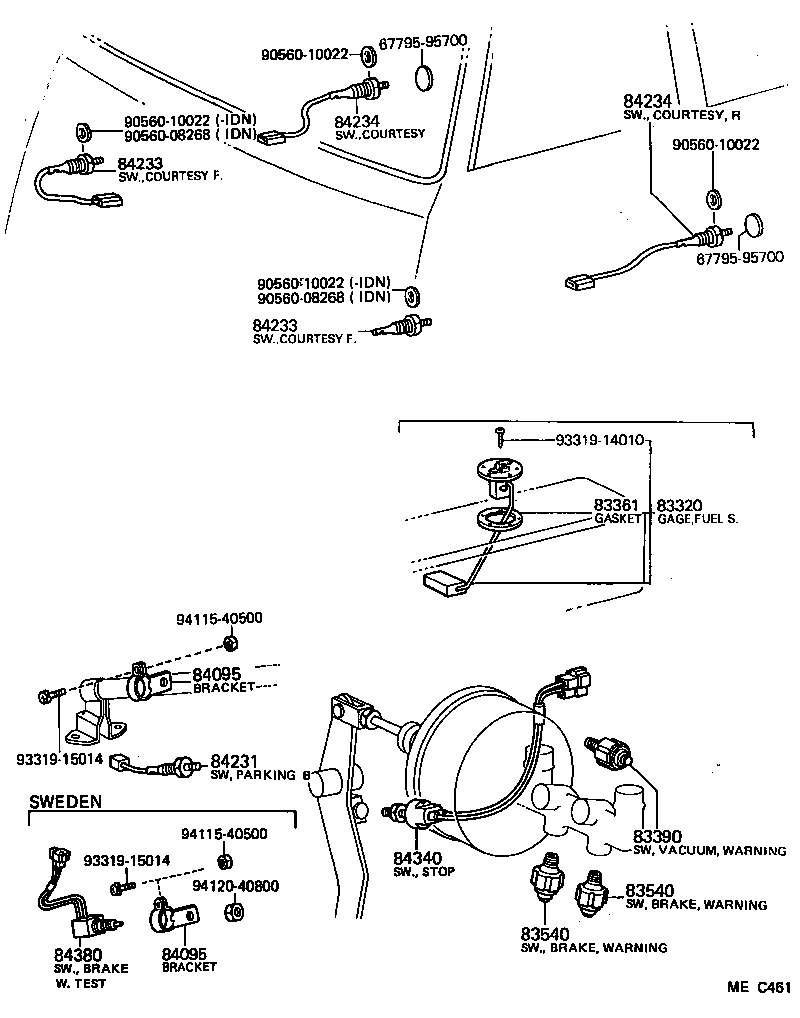

diagram 6779595700 6779595700 83320 83361 83390 83540 83540 84095 84095 84231 84233 84233 84234 84234 84340 84380 9056008268 9056008268 9056010022 9056010022 9056010022 9056010022 9331914010 9331915014 9331915014 9411540500 9411540500 9412040800
Part # Description Qty Price
83320 - GAGE ASSY, FUEL SENDER
83320-29345

LH11,RH11

 1
83361 - GASKET, FUEL SENDER GAGE
83361-20030

LH11,RH11

 1
83390 - SWITCH ASSY, VACUUM WARNING
83390-30020

LH11

 1
84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH
84956-26020

LH11,RH11

 1
84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH
84956-26020

LH11,RH11

 1
84231 - SWITCH ASSY, COURTESY LAMP (FOR PARKING BRAKE)
84550-20030

LH11,RH11

 1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-95A00

LH11,RH11..ARL,EUR,GEN

 2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-95A00

LH11,RH11..ARL,EUR,GEN

 2
84340 - SWITCH ASSY, STOP LAMP
84340-22072

LH11,RH11

 1
Common parts
67795-95700
90560-08268
90560-10022
93319-14010
93319-15014
94115-40500
94120-40800

(8211- )

Click highlighted areas on diagram

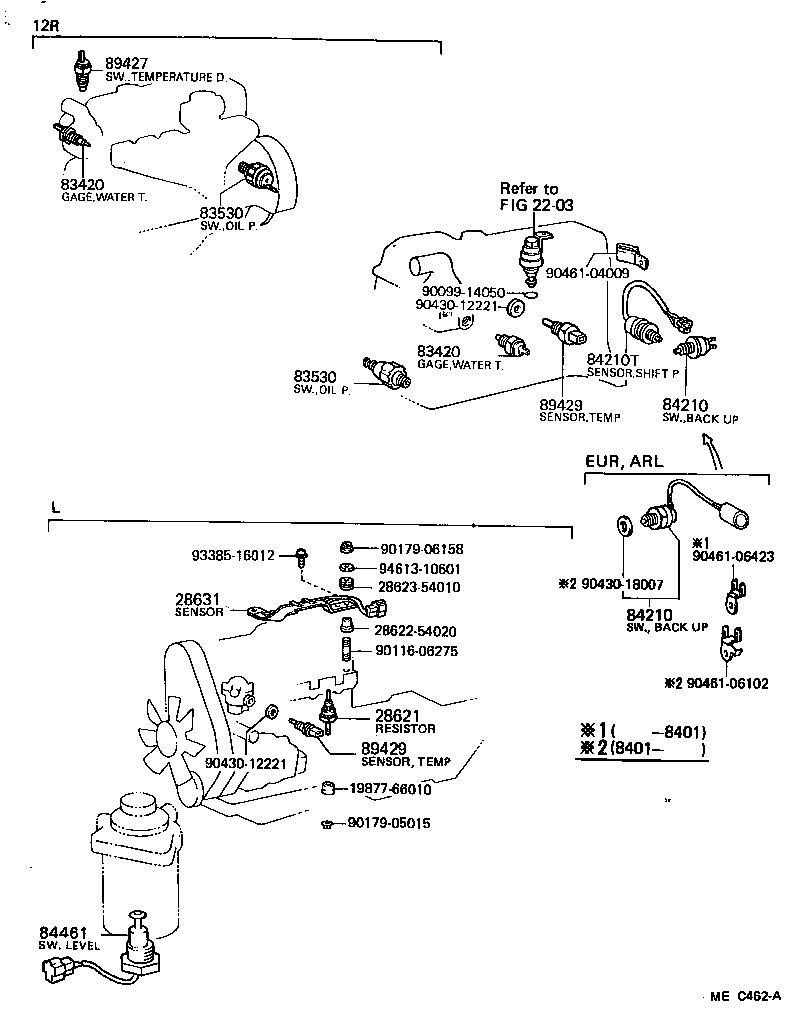

diagram 1987766010 2203 28621 2862254020 2862354010 28631 83420 83420 83530 83530 84210 84210 84210T 84461 89427 89429 89429 9009914050 9011606275 9017905015 9017906158 9043012221 9043012221 9043018007 9046104009 9046106102 9046106423 9338516012 9461310601
Part # Description Qty Price
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

LH11,RH11

YAZAKI

 1
83420-16010

LH11,RH11

DENSO

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
83420-20020

LH11,RH11

YAZAKI

 1
83420-16010

LH11,RH11

DENSO

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30060

LH11

 1
83530-36011

LH11

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-30060

LH11

 1
83530-36011

LH11

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-26010

LH11,RH11..4H

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-26010

LH11,RH11..4H

 1
84461 - SWITCH, LEVEL WARNING
84461-14030

LH11

 1
89429 - SENSOR, OIL TEMPERATURE
89422-30020

LH11

 1
89429 - SENSOR, OIL TEMPERATURE
89422-30020

LH11

 1
Common parts
19877-66010
28622-54020
28623-54010
90099-14050
90116-06275
90179-05015
90179-06158
90430-12221
90430-18007
90461-04009
90461-06102
90461-06423
93385-16012
94613-10601
Linked diagrams
2203

(8211- )

Click highlighted areas on diagram

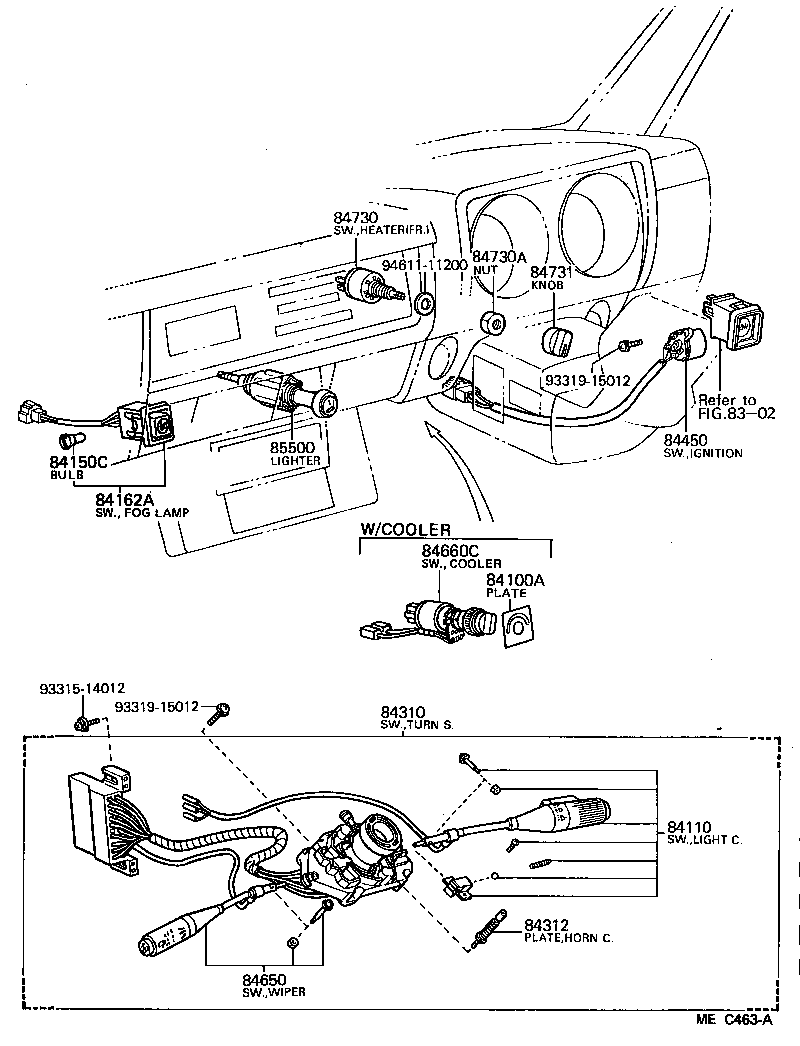

diagram 8302 84100A 84110 84150C 84162A 84310 84312 84450 84650 84660C 84730 84730A 84731 85500 9331514012 9331915012 9331915012 9461111200
Part # Description Qty Price
84110 - SWITCH ASSY, LIGHT CONTROL, NO.1
84112-29046

LH11,RH11..LHD

 1
84310 - SWITCH ASSY, TURN SIGNAL
84310-26041

LH11,RH11..LHD..GEN

 1
84312 - PLATE, HORN CONTACT
84312-20011

LH11,RH11

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-26030

LH11,RH11..LHD

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-29056

LH11,RH11..LHD..GEN

 1
84730 - SWITCH ASSY, HEATER BLOWER
84732-12020

LH11,RH11..ARL,EUR,GEN

 1
84730A - NUT, HEATER BLOWER SWITCH
90170-11206

LH11,RH11..ARL,EUR,GEN

 1
84731 - KNOB, HEATER BLOWER SWITCH
84731-12010

LH11,RH11..ARL,EUR,GEN

 1
85500 - LIGHTER ASSY, CIGARETTE
85500-30340

LH11,RH11

 1
Common parts
93315-14012
93319-15012
94611-11200
Linked diagrams
8302

(8211- )

Click highlighted areas on diagram

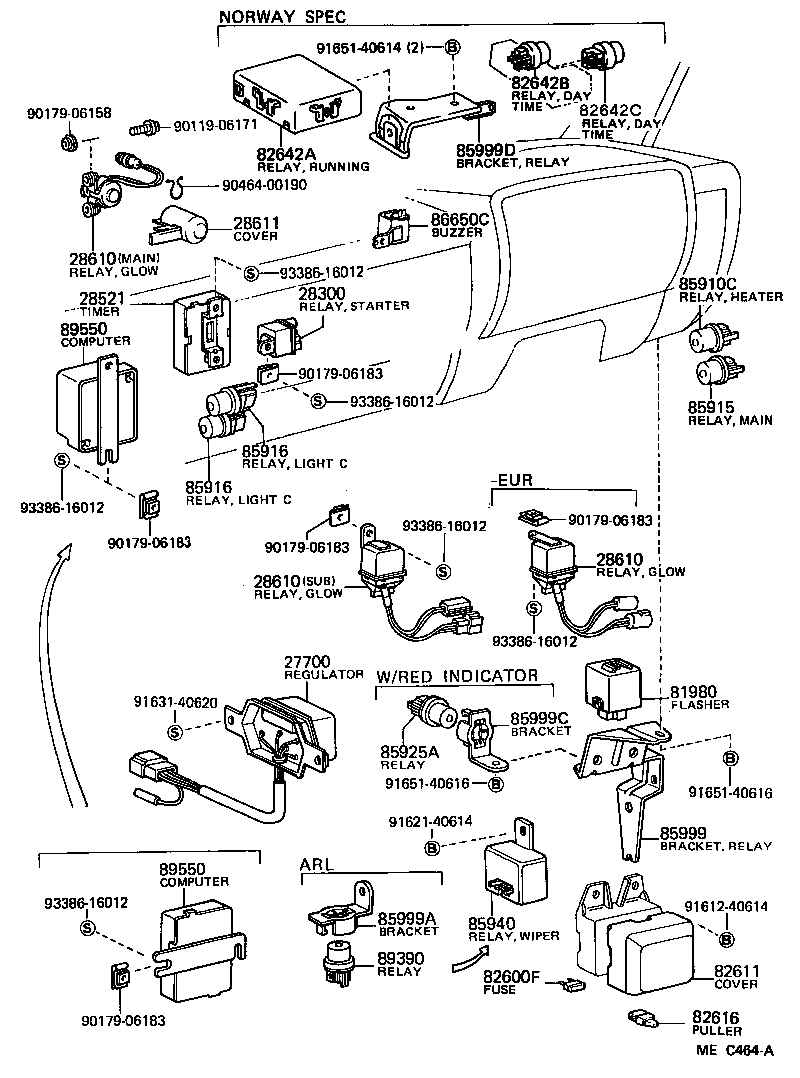

diagram 27700 28300 28521 28610 28610 28610 28611 81980 82600F 82611 82616 82642A 82642B 82642C 85910C 85915 85916 85916 85925A 85940 85999 85999A 85999C 85999D 86650C 89390 89550 89550 9011906171 9017906158 9017906183 9017906183 9017906183 9017906183 9017906183 9046400190 9161240614 9162140614 9163140620 9165140614 9165140616 9165140616 9338616012 9338616012 9338616012 9338616012 9338616012 9338616012
Part # Description Qty Price
27700 - REGULATOR ASSY, GENERATOR
27700-41021

L,12R..LH11,RH11

 1
28300 - RELAY ASSY, STARTER
28300-48010

L..LH11

 1
28521 - TIMER, PREHEATING
28521-54040

L..LH11..ARL,GEN,IDN

 1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-54130

L..LH11..ARL,GEN,IDN

 1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-54130

L..LH11..ARL,GEN,IDN

 1
28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG
28610-54130

L..LH11..ARL,GEN,IDN

 1
81980 - FLASHER ASSY, TURN SIGNAL
81980-22070

LH11,RH11

 1
82600F - FUSE, FUSE BLOCK
90982-09003

LH11,RH11..ARL,EUR,GEN

15A,15A

 5
90982-09002

LH11,RH11..ARL,EUR,GEN

10A,10A

 9
90982-09001

LH11,RH11..ARL,EUR,GEN

5A,5A

 4
82611 - COVER, FUSE BLOCK
82611-95A03

LH11,RH11..LHD

*FRG

 1
82611-95A04

LH11,RH11..ARL,EUR,GEN

 1
82616 - PULLER, FUSE
82616-12010

LH11,RH11..ARL,EUR,GEN

 1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-02004

LH11,RH11..ARL,EUR,GEN

 1
85915 - RELAY, MAIN
90987-02004

LH11,RH11..ARL,EUR,GEN

 1
85916 - RELAY, LIGHT CONTROL
90987-01003

LH11,RH11

 2
85916 - RELAY, LIGHT CONTROL
90987-01003

LH11,RH11

 2
85999 - BRACKET, COMBINATION RELAY
85907-95A03

LH11,RH11..LHD..GEN

 1
86650C - BUZZER ASSY, SEDIMENTER WARNING
86650-95010

LH11..ARL,GEN

 1
86650-95A02

LH11..ARL,GEN

 1
Common parts
90119-06171
90179-06158
90179-06183
90464-00190
91612-40614
91621-40614
91631-40620
91651-40614
91651-40616
93386-16012
