TGN156L-STTSKW (2020)

Toyota Fortuner

Production Jun 2020 - Aug 2021
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )

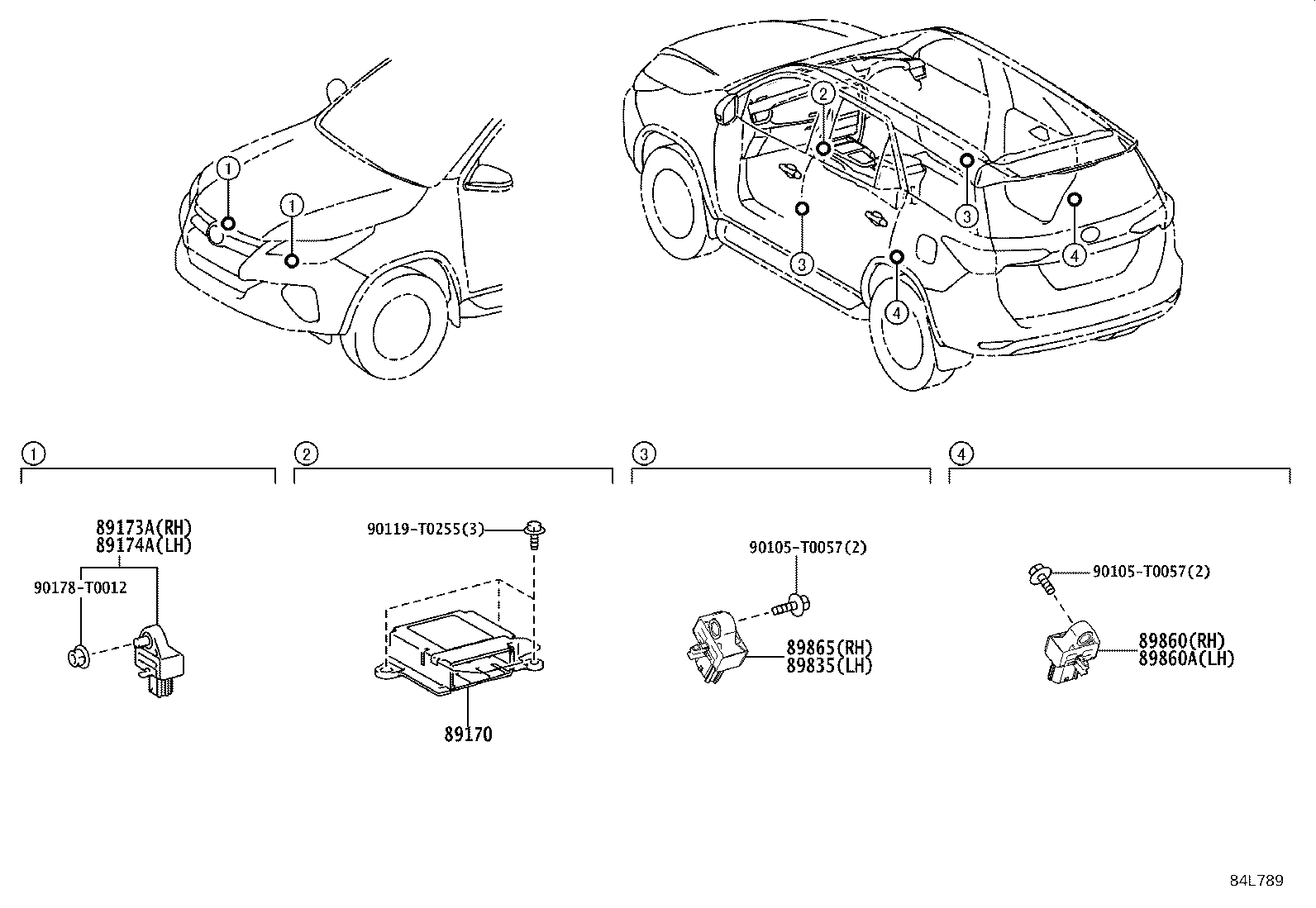

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89835 89860 89860A 89865 90105T0057 90105T0057 90119T0255 90178T0012
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-0KF30

TGN156..L

 1
89170-0KF40

GUN156,TGN156..6FC

 1
89170-0K630

TGN156..S

WITHOUT(DESTINATION PACKAGE(EUROPE))&AZERBAIJAN SPEC

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09B20

GUN156,TGN156

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-09B20

GUN156,TGN156

 1
89835 - SENSOR, DOOR SIDE AIR BAG, LH
89831-0K040

GUN156,TGN156..6FC

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-0K070

GUN156,TGN156..6FC

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-0K070

GUN156,TGN156..6FC

 1
89865 - SENSOR, DOOR SIDE AIR BAG, RH
89831-0K040

GUN156,TGN156..6FC

 1
Common parts
90105-T0057
90119-T0255
90178-T0012
