TGN156L-STTSKW (2020)

Toyota Fortuner

Production Jun 2020 - Aug 2021
Engine 2TRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )6FC

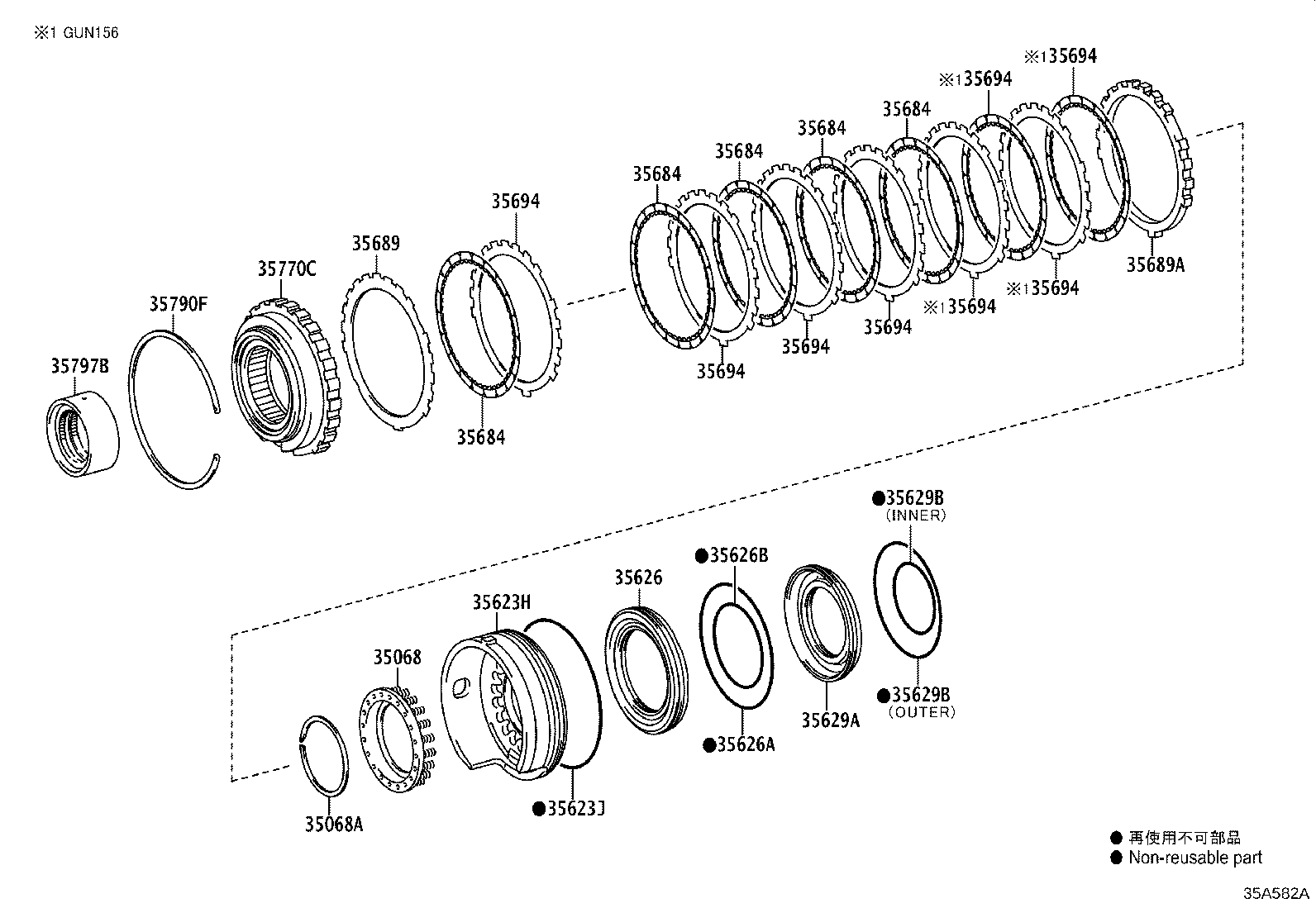

Click highlighted areas on diagram

AC60F

diagram 35068 35068A 35623H 35623J 35626 35626A 35626B 35629A 35629B 35629B 35684 35684 35684 35684 35684 35689 35689A 35694 35694 35694 35694 35694 35694 35694 35694 35770C 35790F 35797B
Part # Description Qty Price
35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068-0K010

TGN156..S

 1
35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-61001

GUN156,TGN156..6FC

 1
35623H - PISTON, 1ST & REVERSE BRAKE
35623-0K020

TGN156..S

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-T0072

TGN156..S

 1
35626 - SLEEVE, BRAKE REACTION
35626-50010

GUN156,TGN156..6FC

 1
35626A - RING (FOR BRAKE REACTION SLEEVE OUTER)
90301-T0073

TGN156..S

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-T0074

TGN156..S

 1
35629A - PISTON, BRAKE, NO.4
35629-50020

GUN156,TGN156..6FC

 1
35629B - RING, O (FOR BRAKE PISTON NO.4)
90301-T0076

TGN156..S

INNER

 1
90301-T0075

TGN156..S

OUTER

 1
35629B - RING, O (FOR BRAKE PISTON NO.4)
90301-T0076

TGN156..S

INNER

 1
90301-T0075

TGN156..S

OUTER

 1
35684 - DISC, BRAKE, NO.4
35684-0K010

TGN156..S

 5
35684 - DISC, BRAKE, NO.4
35684-0K010

TGN156..S

 5
35684 - DISC, BRAKE, NO.4
35684-0K010

TGN156..S

 5
35684 - DISC, BRAKE, NO.4
35684-0K010

TGN156..S

 5
35684 - DISC, BRAKE, NO.4
35684-0K010

TGN156..S

 5
35689 - FLANGE, BRAKE, NO.4
35689-60280

GUN156,TGN156..6FC

T=1.97,MARK 1

 1
35689-60270

GUN156,TGN156..6FC

T=1.8,MARK 0

 1
35689-60360

GUN156,TGN156..6FC

T=3.09,MARK 12

 1
35689-60310

GUN156,TGN156..6FC

T=2.39,MARK 5

 1
35689-60290

GUN156,TGN156..6FC

T=2.11,MARK 3

 1
35689-60300

GUN156,TGN156..6FC

T=2.25,MARK 4

 1
35689-60320

GUN156,TGN156..6FC

T=2.53,MARK 7

 1
35689-60330

GUN156,TGN156..6FC

T=2.67,MARK 8

 1
35689-60340

GUN156,TGN156..6FC

T=2.81,MARK10

 1
35689-60370

GUN156,TGN156..6FC

T=3.23,MARK 14

 1
35689-60350

GUN156,TGN156..6FC

T=2.95,MARK 11

 1
35689A - FLANGE, BRAKE, NO.4
35689-71010

GUN156,TGN156..6FC

 1
35694 - PLATE, BRAKE, NO.4
35694-0K010

TGN156..S

 4
35694 - PLATE, BRAKE, NO.4
35694-0K010

TGN156..S

 4
35694 - PLATE, BRAKE, NO.4
35694-0K010

TGN156..S

 4
35694 - PLATE, BRAKE, NO.4
35694-0K010

TGN156..S

 4
35694 - PLATE, BRAKE, NO.4
35694-0K010

TGN156..S

 4
35694 - PLATE, BRAKE, NO.4
35694-0K010

TGN156..S

 4
35694 - PLATE, BRAKE, NO.4
35694-0K010

TGN156..S

 4
35694 - PLATE, BRAKE, NO.4
35694-0K010

TGN156..S

 4
35770C - CLUTCH ASSY, 1WAY NO.3
35770-0K020

TGN156..S

 1
35790F - RING, HOLE SNAP(FOR 1WAY CLUTCH)
90521-99131

GUN156,TGN156..6FC

 1
35797B - RACE, 1 WAY CLUTCH, INNER
35797-60020

GUN156,TGN156..6FC

 1
