TGN156L-STMLKW (2020)
Toyota Fortuner
Production
Jun 2020
-
Aug 2021
Engine
2TRFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(2006- )

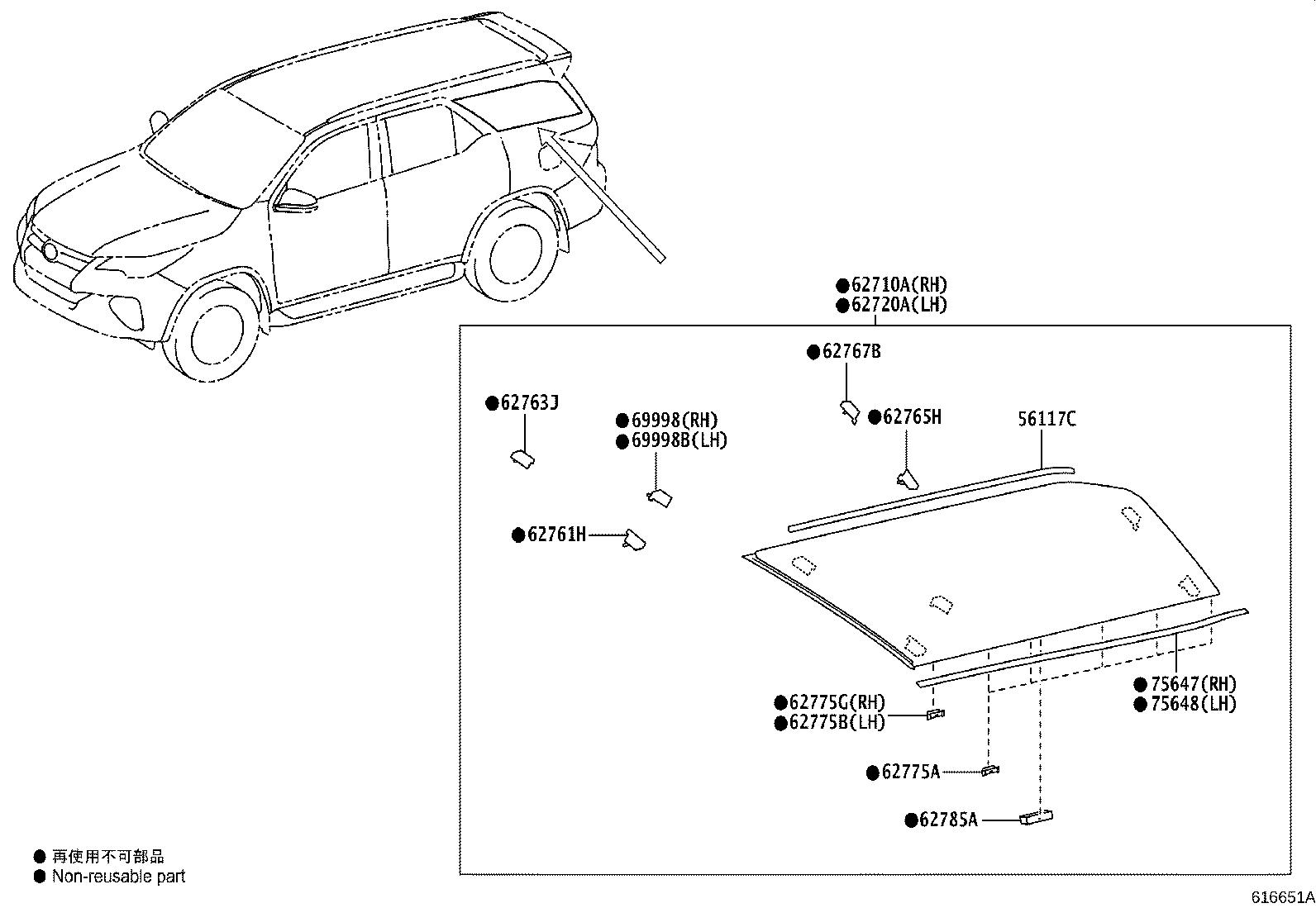

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 56117C - DAM, WINDOW GLASS ADHESIVE(FOR REAR SIDE) | ||||
| 56117-KK070 |
GUN156,TGN156 L=770 |
2 | ||
| 62710A - WINDOW ASSY, QUARTER, RH | ||||
| 62710-0K461 |
GUN156,TGN156..L,S |
1 | ||
| 62720A - WINDOW ASSY, QUARTER, LH | ||||
| 62720-0K351 |
GUN156,TGN156..L,S |
1 | ||
| 62761H - RETAINER, QUARTER WINDOW GLASS, FRONT | ||||
| 62761-0K051 |
GUN156,TGN156 RH |
1 | ||
| 62762-0K051 |
GUN156,TGN156 LH |
1 | ||
| 62763J - RETAINER, QUARTER WINDOW GLASS, UPPER | ||||
| 62763-0K051 |
GUN156,TGN156 RH |
1 | ||
| 62764-0K011 |
GUN156,TGN156 LH |
1 | ||
| 62765H - RETAINER, QUARTER WINDOW GLASS, LOWER | ||||
| 62765-0K051 |
GUN156,TGN156 RH |
1 | ||
| 62766-0K011 |
GUN156,TGN156 LH |
1 | ||
| 62767B - RETAINER, QUARTER WINDOW GLASS, REAR | ||||
| 62768-0K011 |
GUN156,TGN156 LH |
1 | ||
| 62767-0K011 |
GUN156,TGN156 RH |
1 | ||
| 62775A - CLIP, QUARTER WINDOW | ||||
| 62775-0K220 |
GUN156,TGN156 |
10 | ||
| 62775B - CLIP, QUARTER WINDOW, LH | ||||
| 62775-0K210 |
GUN156,TGN156 |
1 | ||
| 62775G - CLIP, QUARTER WINDOW, RH | ||||
| 62775-0K210 |
GUN156,TGN156 |
1 | ||
| 62785A - SPACER, QUARTER WINDOW GLASS | ||||
| 68294-26030 |
GUN156,TGN156 |
2 | ||
| 69998 - PIN, QUARTER WINDOW GUIDE PIECE, NO.1 | ||||
| 69998-0K011 |
GUN156,TGN156 |
1 | ||
| 69998B - PIN, QUARTER WINDOW GUIDE PIECE, NO.2 | ||||
| 69999-0K011 |
GUN156,TGN156 |
1 | ||
| 75647 - MOULDING, QUARTER WINDOW, OUTSIDE LOWER RH | ||||
| 75647-0K060 |
GUN156,TGN156..L,S |
1 | ||
| 75648 - MOULDING, QUARTER WINDOW, OUTSIDE LOWER LH | ||||
| 75648-0K060 |
GUN156,TGN156..L,S |
1 | ||
