TGN156L-STMLKW (2020)

Toyota Fortuner

Production Jun 2020 - Aug 2021
Engine 2TRFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )TGN156..S

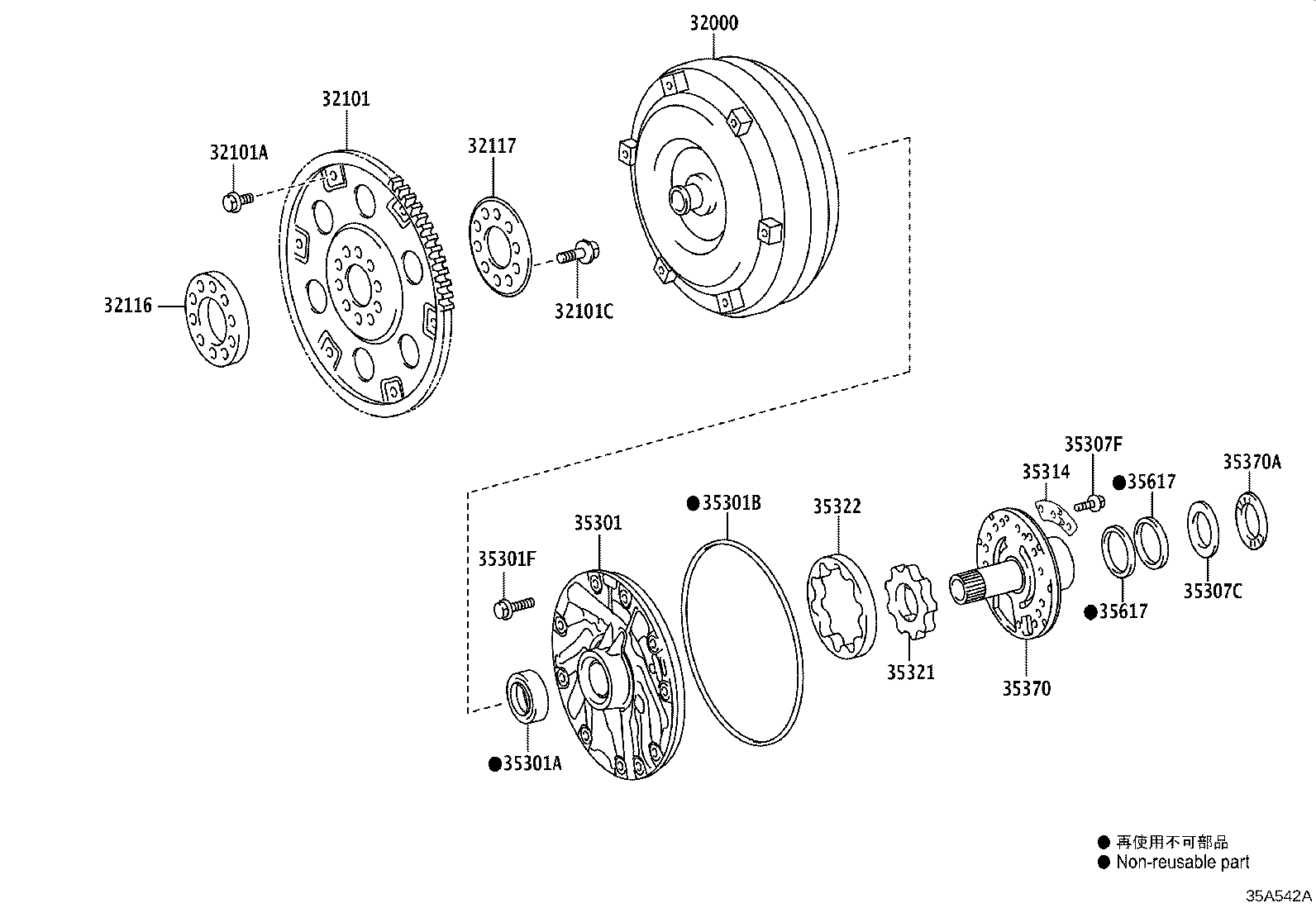

Click highlighted areas on diagram

AC60F

diagram 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35307C 35307F 35314 35321 35322 35370 35370A 35617 35617
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-71050

TGN156..S

(J)

 1
32000-0K030

TGN156..S

(L)

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-26010

TGN156..S

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09027

TGN156..S

*9-1.25PX12.8-8.8,SILVER WHITE

 5
90119-09026

TGN156..S

*9-1.25PX12.8-9,BLACK

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10276

TGN156..S

*10-1.25PX30-17.5

 10
32116 - SPACER, DRIVE PLATE, FRONT
32116-26010

TGN156..S

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-26010

TGN156..S

 1
