GUN156L-STTSXW (2020)

Toyota Fortuner

Production Jun 2020 - Aug 2021
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

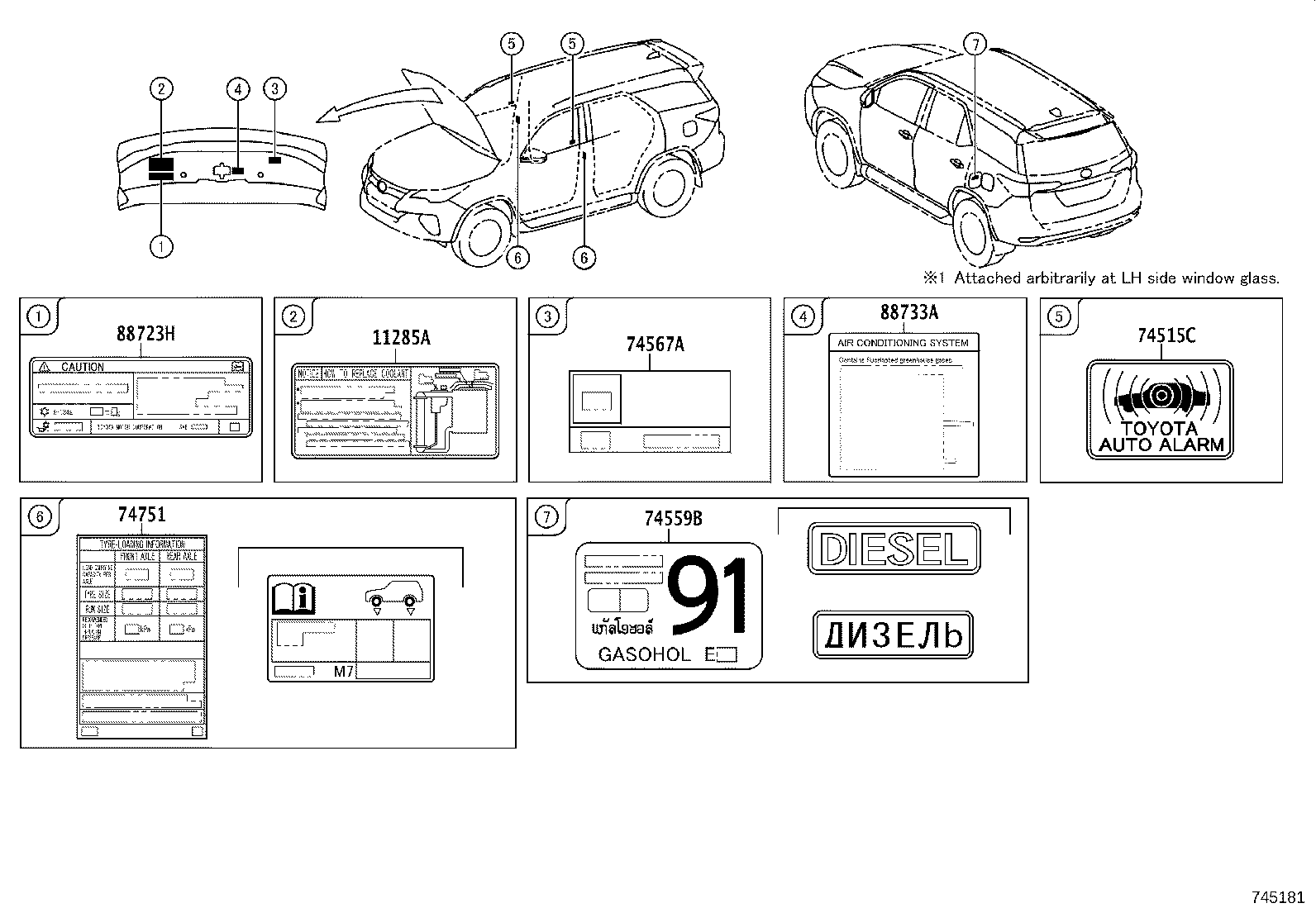

ILLUST NO. 1 OF 2(2006- )

Click highlighted areas on diagram

ENGINE ROOM & EXTERIOR

diagram 11285A 74515C 74559B 74567A 74751 88723H 88733A
Part # Description Qty Price
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-0E010

1GDFTV..GUN156

 1
74515C - LABEL, THEFT WARNING INFORMATION
74515-0K020

GUN156,TGN156

 2
74559B - LABEL, FUEL INFORMATION
74559-60020

GUN156

 1
74567A - PLATE, E.C.E APPROVED NUMBER
74567-25041

GUN156

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-0KP40

GUN156..H

TIRE & DISC WHEEL-265/65R17, ALUMINUM

 1
42661-0KP40

GUN156,TGN156..L,S

 1
42661-0KS60

GUN156,TGN156..S

TIRE & DISC WHEEL-265/60R18, ALUMINUM

 1
42661-0KS60

GUN156..H

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-0K280

GUN156,TGN156

 1
88733A - LABEL, COOLER SERVICE INFORMATION
88733-0K010

GUN156,TGN156

 1

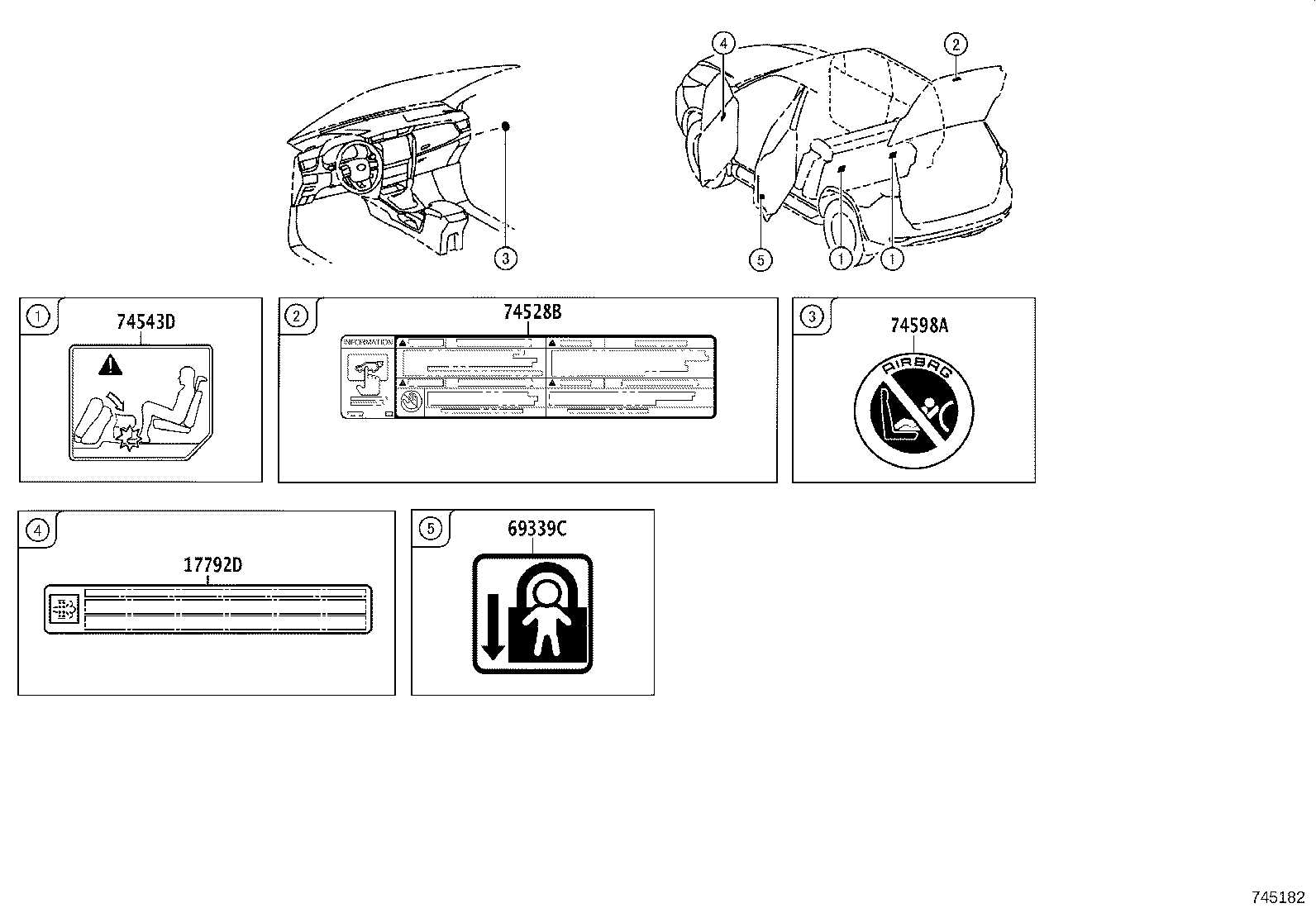

ILLUST NO. 2 OF 2(2006- )

Click highlighted areas on diagram

INTERIOR

diagram 17792D 69339C 74528B 74543D 74598A
Part # Description Qty Price
17792D - LABEL, EMISSION CONTROL DEVICE INFORMATION
17792-11760

1GDFTV..GUN156

 1
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-06060

GUN156,TGN156..L,S

 2
69339-06060

GUN156..H

 2
74528B - LABEL, BACK DOOR CAUTION
74528-0K270

GUN156..H

 1
74543D - PLATE, REAR SEAT CAUTION, NO.1
74543-0K070

GUN156,TGN156

 2
74598A - LABEL, PASSENGER AIR BAG CAUTION
74598-02040

GUN156,TGN156

 1
