GUN156L-STTSXW (2020)

Toyota Fortuner

Production Jun 2020 - Aug 2021
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(2006- )

Click highlighted areas on diagram

ROOF PANEL

diagram 63105D 63111 63132 63137A 63141G 63142 63143B 63144B 63145A 63145D 90119T0208 90119T0208
Part # Description Qty Price
63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER
63105-KK020

GUN156,TGN156

 1
63111 - PANEL, ROOF
63111-KK050

GUN156,TGN156..6FC

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-KK900

GUN156,TGN156

 1
63137A - BRACKET, DOME LAMP, NO.1
63137-KK030

GUN156,TGN156

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63104-KK010

GUN156,TGN156

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63141-KK050

GUN156,TGN156

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63103-KK010

GUN156,TGN156

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63144-KK010

GUN156,TGN156

 1
63145A - REINFORCEMENT, ROOF PANEL, NO.5
63106-KK010

GUN156,TGN156

 1
63145D - BRACKET, ROOF REINFORCEMENT
63145-KK030

GUN156,TGN156

 2
63145-KK010

GUN156,TGN156

 2
Common parts
90119-T0208

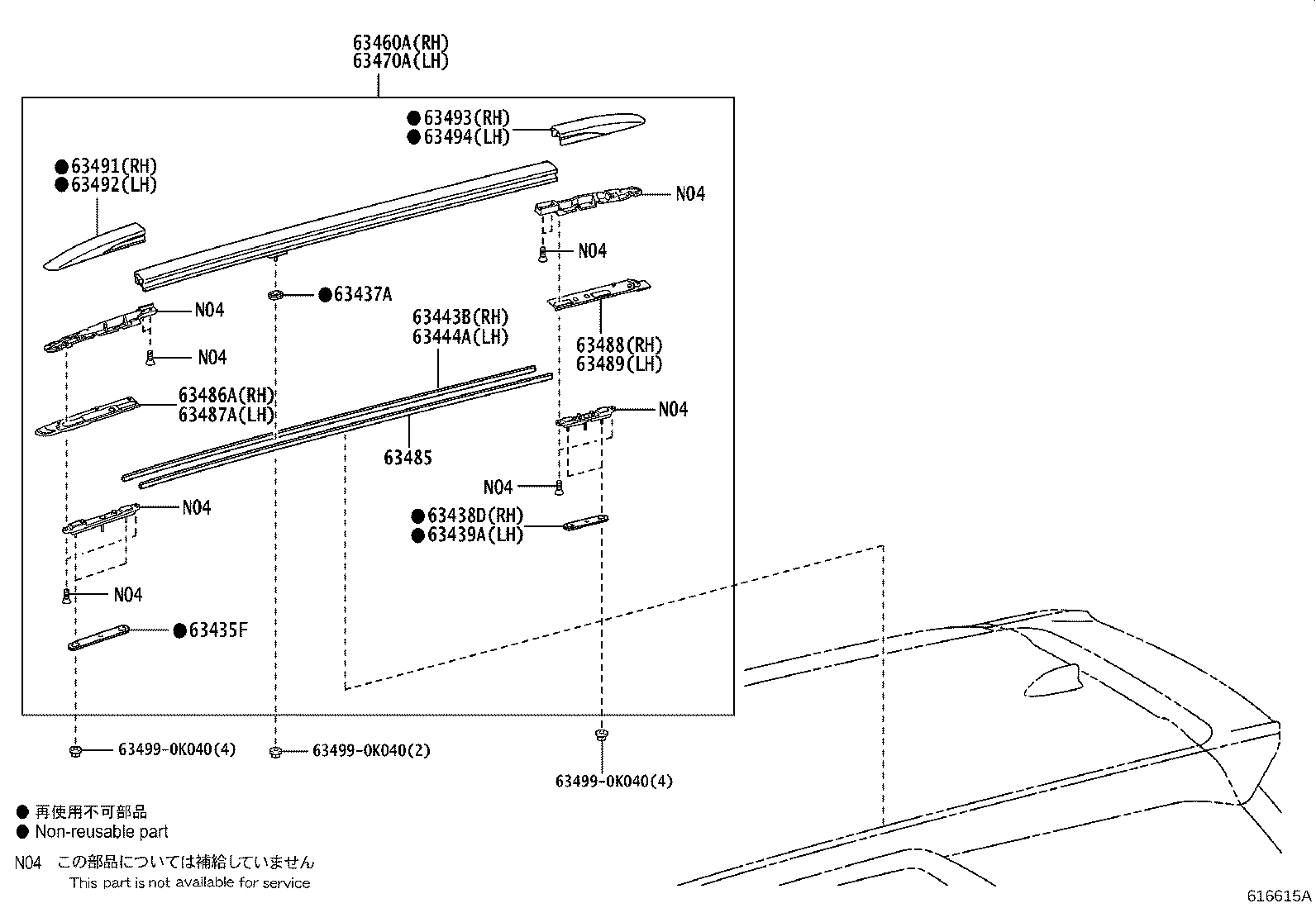

ILLUST NO. 2 OF 2(2006- )

Click highlighted areas on diagram

ROOF RAIL

diagram 63435F 63437A 63438D 63439A 63443B 63444A 63460A 63470A 63485 63486A 63487A 63488 63489 63491 63492 63493 63494 634990K040 634990K040 634990K040
Part # Description Qty Price
63435F - SEAL, ROOF CARRIER, NO.1
63437-0K020

GUN156,TGN156..6FC

 2
63437A - SEAL, ROOF CARRIER, NO.2
63439-0K010

GUN156,TGN156..6FC

 2
63438D - SEAL, ROOF CARRIER, NO.3 RH
63437-0K070

GUN156,TGN156..6FC

 1
63439A - SEAL, ROOF CARRIER, NO.3 LH
63437-0K070

GUN156,TGN156..6FC

 1
63443B - PROTECTOR, ROOF RACK, RH
63444-0K010

GUN156,TGN156..6FC

 1
63444A - PROTECTOR, ROOF RACK, LH
63444-0K010

GUN156,TGN156..6FC

 1
63460A - RACK ASSY, ROOF, RH
63460-0K040

GUN156,TGN156..6FC

 1
63470A - RACK ASSY, ROOF, LH
63470-0K040

GUN156,TGN156..6FC

 1
63485 - CUSHION, ROOF RACK LEG, CENTER
63485-0K040

GUN156,TGN156..6FC

 2
63486A - CUSHION, ROOF RACK LEG, FRONT RH
63486-0K040

GUN156,TGN156..6FC

 1
63487A - CUSHION, ROOF RACK LEG, FRONT LH
63487-0K040

GUN156,TGN156..6FC

 1
63488 - CUSHION, ROOF RACK LEG, REAR RH
63488-0K040

GUN156,TGN156..6FC

 1
63489 - CUSHION, ROOF RACK LEG, REAR LH
63489-0K040

GUN156,TGN156..6FC

 1
63491 - COVER, ROOF RACK LEG, FRONT RH
63491-0K040

GUN156,TGN156..6FC

 1
63492 - COVER, ROOF RACK LEG, FRONT LH
63492-0K040

GUN156,TGN156..6FC

 1
63493 - COVER, ROOF RACK LEG, REAR RH
63493-0K040

GUN156,TGN156..6FC

 1
63494 - COVER, ROOF RACK LEG, REAR LH
63494-0K040

GUN156,TGN156..6FC

 1
Common parts
63499-0K040
