GUN156L-STTSXW (2020)

Toyota Fortuner

Production Jun 2020 - Aug 2021
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )1GDFTV

Click highlighted areas on diagram

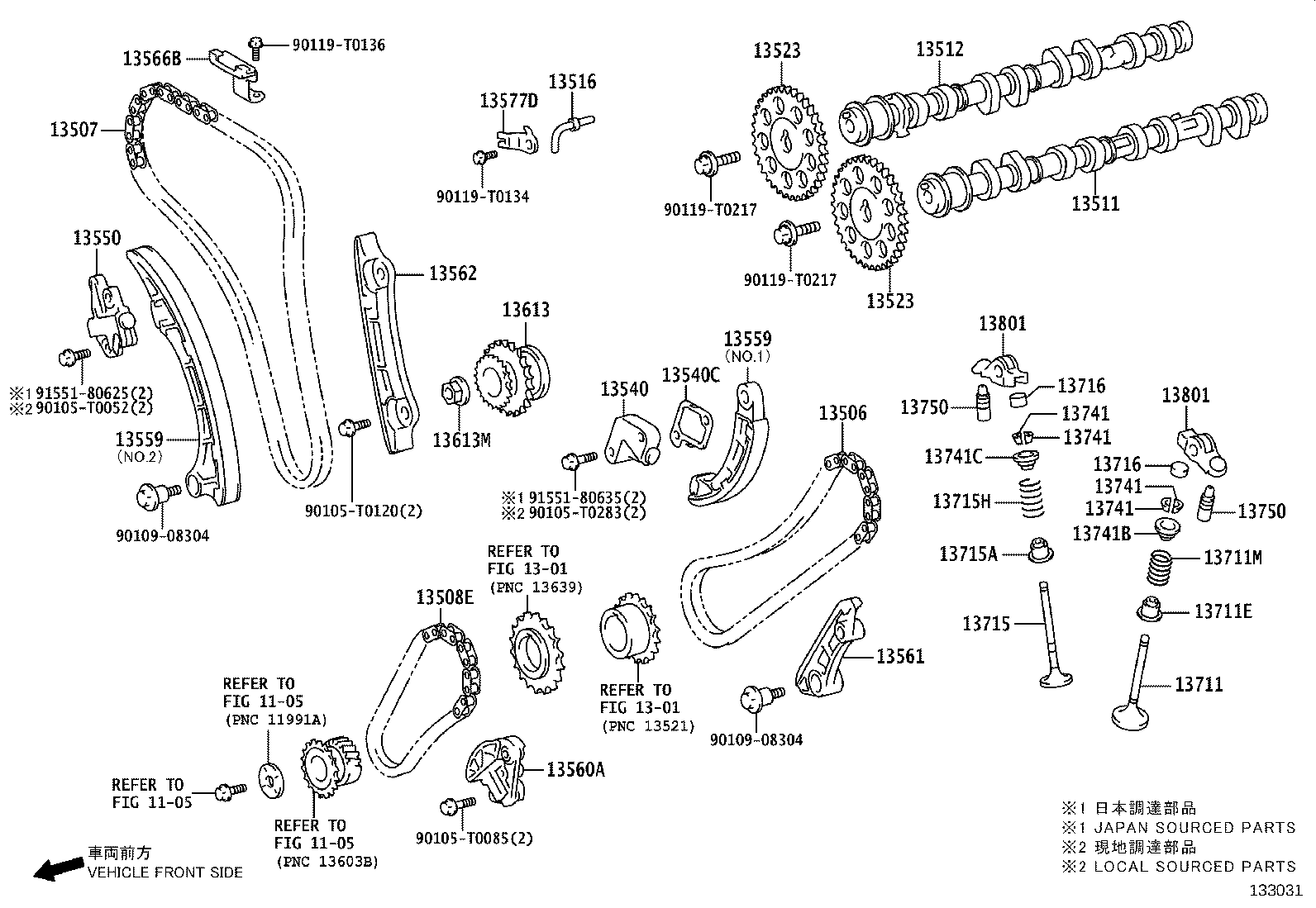

diagram 1105 1105 1105 1301 1301 13506 13507 13508E 13511 13512 13516 13523 13523 13540 13540C 13550 13559 13559 13560A 13561 13562 13566B 13577D 13613 13613M 13711 13711E 13711M 13715 13715A 13715H 13716 13716 13741 13741 13741 13741 13741B 13741C 13750 13750 13801 13801 90105T0052 90105T0085 90105T0120 90105T0283 9010908304 9010908304 90119T0134 90119T0136 90119T0217 90119T0217 9155180625 9155180635
Part # Description Qty Price
13506 - CHAIN SUB-ASSY
13506-0E011

1GDFTV..GUN156

(L)

 1
13507 - CHAIN SUB-ASSY, NO.2
13507-0E010

1GDFTV..GUN156

(L)

 1
13508E - CHAIN SUB-ASSY, NO.3
13508-0E010

1GDFTV..GUN156

(L)

 1
13508-11010

1GDFTV..GUN156

(J)

 1
13511 - CAMSHAFT
13501-0E010

1GDFTV..GUN156

THA SOURCED PARTS

 1
13501-0E020

1GDFTV..GUN156

IND SOURCED PARTS

 1
13512 - CAMSHAFT, NO.2
13502-0E020

1GDFTV..GUN156

IND SOURCED PARTS

 1
13502-0E010

1GDFTV..GUN156

THA SOURCED PARTS

 1
13516 - JET, OIL
13516-0E010

1GDFTV..GUN156

(L)

 1
13516-11010

1GDFTV..GUN156

(J)

 1
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-0E010

1GDFTV..GUN156

THA SOURCED PARTS

 2
13523-0E030

1GDFTV..GUN156

IND SOURCED PARTS

 2
13523 - GEAR OR SPROCKET, CAMSHAFT TIMING
13523-0E010

1GDFTV..GUN156

THA SOURCED PARTS

 2
13523-0E030

1GDFTV..GUN156

IND SOURCED PARTS

 2
13540 - TENSIONER ASSY, CHAIN, NO.1
13540-0E010

1GDFTV..GUN156

(L)

 1
13540C - GASKET(FOR CHAIN TENSIONER)
13552-0E010

1GDFTV..GUN156

THA SOURCED PARTS

 1
13552-0E020

1GDFTV..GUN156

IND SOURCED PARTS

 1
13550 - TENSIONER ASSY, CHAIN, NO.2
13550-0E010

1GDFTV..GUN156

(L)

 1
13559 - SLIPPER, CHAIN TENSIONER
13559-0E010

1GDFTV..GUN156

(L),NO.2

 1
13559-0E020

1GDFTV..GUN156

(L),NO.1

 1
13559 - SLIPPER, CHAIN TENSIONER
13559-0E010

1GDFTV..GUN156

(L),NO.2

 1
13559-0E020

1GDFTV..GUN156

(L),NO.1

 1
13560A - TENSIONER ASSY, CHAIN, NO.3
13560-11011

1GDFTV..GUN156

(J)

 1
13560-0E010

1GDFTV..GUN156

(L)

 1
13561 - DAMPER, CHAIN VIBRATION, NO.1
13561-0E011

1GDFTV..GUN156

(L)

 1
13562 - DAMPER, CHAIN VIBRATION, NO.2
13562-0E010

1GDFTV..GUN156

(L)

 1
13566B - GUIDE, TIMING CHAIN
13566-0E010

1GDFTV..GUN156

(L)

 1
13577D - PLATE, LOCK
13577-0E020

1GDFTV..GUN156

IND SOURCED PARTS

 1
13577-0E010

1GDFTV..GUN156

THA SOURCED PARTS

 1
13613 - GEAR, INJECTION PUMP DRIVE
13616-0E021

1GDFTV..GUN156

TYPE B,*650

 1
13616-0E011

1GDFTV..GUN156

TYPE B,*652

 1
13613M - NUT(FOR INJECTION PUMP DRIVE GEAR)
90179-T0009

1GDFTV..GUN156

(L)

 1
13711 - VALVE, INTAKE
13711-0E020

1GDFTV..GUN156

IND SOURCED PARTS

 8
13711-0E010

1GDFTV..GUN156

THA SOURCED PARTS

 8
13711E - SEAL, INTAKE VALVE STEM OIL
90913-T2006

1GDFTV..GUN156

(L)

 8
13711M - SPRING, COMPRESSION(FOR INTAKE VALVE)
90501-T0043

1GDFTV..GUN156

(L)

 8
13715 - VALVE, EXHAUST
13715-0E010

1GDFTV..GUN156

THA SOURCED PARTS

 8
13715-0E020

1GDFTV..GUN156

IND SOURCED PARTS

 8
13715A - SEAL, EXHAUST VALVE STEM OIL
90913-T2006

1GDFTV..GUN156

(L)

 8
13715H - SPRING, COMPRESSION(FOR EXHAUST VALVE)
90501-T0043

1GDFTV..GUN156

(L)

 8
13716 - CAP, VALVE STEM
13716-0E010

1GDFTV..GUN156

(L)

 16
13716 - CAP, VALVE STEM
13716-0E010

1GDFTV..GUN156

(L)

 16
13741 - RETAINER, VALVE SPRING
90913-03021

1GDFTV..GUN156

 32
13741 - RETAINER, VALVE SPRING
90913-03021

1GDFTV..GUN156

 32
13741 - RETAINER, VALVE SPRING
90913-03021

1GDFTV..GUN156

 32
13741 - RETAINER, VALVE SPRING
90913-03021

1GDFTV..GUN156

 32
13741B - RETAINER, INTAKE VALVE SPRING
13741-0E010

1GDFTV..GUN156

(L)

 8
13741-33020

1GDFTV..GUN156

(J)

 8
13741C - RETAINER, EXHAUST VALVE SPRING
13741-0E010

1GDFTV..GUN156

(L)

 8
13741-33020

1GDFTV..GUN156

(J)

 8
13750 - ADJUSTER ASSY, VALVE LASH
13750-0E010

1GDFTV..GUN156

(L)

 16
13750 - ADJUSTER ASSY, VALVE LASH
13750-0E010

1GDFTV..GUN156

(L)

 16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-0E012

1GDFTV..GUN156

(L)

 16
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13801-0E012

1GDFTV..GUN156

(L)

 16
Common parts
90105-T0052
90105-T0085
90105-T0120
90105-T0283
90109-08304
90119-T0134
90119-T0136
90119-T0217
91551-80625
91551-80635
