GUN156L-STTHXW (2020)
Toyota Fortuner
ILLUST NO. 4 OF12(2006- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-KKX30 |
GUN156..H |
1 | ||
| 82151-KKZ60 |
GUN156..S |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-KKT40 |
GUN156..H |
1 | ||
| 82152-KKZ80 |
GUN156..S |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-KK560 |
GUN156..H SPEAKER-11SPEAKER & JBL |
1 | ||
| 82153-KK480 |
GUN156..H |
1 | ||
| 82153-KK530 |
GUN156,TGN156..S |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-KK600 |
GUN156..H SPEAKER-11SPEAKER & JBL |
1 | ||
| 82154-KK520 |
GUN156..H |
1 | ||
| 82154-KK570 |
GUN156,TGN156..S |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-KK570 |
GUN156,TGN156..L,S |
1 | ||
| 82184-KKA40 |
GUN156..H |
1 | ||
| 82184-KKK20 |
GUN156..H SPEAKER-11SPEAKER & JBL |
1 | ||
| 82184-KK580 |
GUN156,TGN156..S AUDIO-*DA(8INCH) & *BT & DAB |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
| 90119-T0130 | ||||

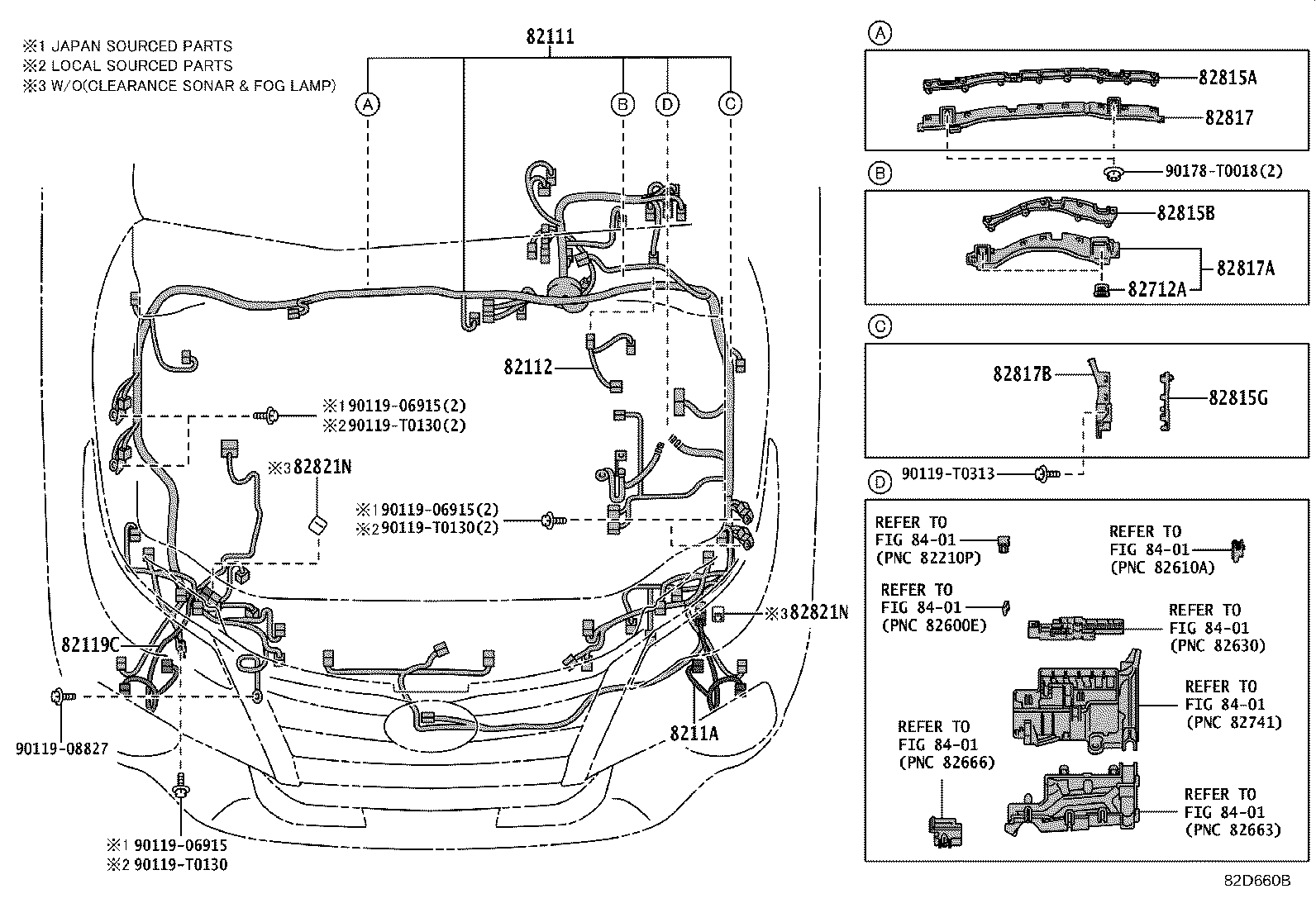

ILLUST NO. 1 OF12(2006- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 8211D-KK120 |
GUN156..S |
1 | ||
| 8211D-KK140 |
GUN156..H |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-KK010 |
GUN156,TGN156..6FC FRONT FOG LAMP-WITH(LED) |
1 | ||
| 82119-KK030 |
GUN156,TGN156..6FC |
1 | ||
| 8211A - WIRE, ENGINE ROOM, NO.6 | ||||
| 8211A-KK010 |
GUN156,TGN156..6FC FRONT FOG LAMP-WITH(LED) |
1 | ||
| 8211A-KK030 |
GUN156,TGN156..6FC |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-33190 |
GUN156,TGN156 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-0K530 |
GUN156,TGN156 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-0K520 |
GUN156,TGN156 |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-0K540 |
GUN156,TGN156 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-0K530 |
GUN156,TGN156 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-0K520 |
GUN156,TGN156 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-0K540 |
GUN156,TGN156 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08827 | ||||
| 90119-T0130 | ||||
| 90119-T0313 | ||||
| 90178-T0018 | ||||
| Linked diagrams | ||||
| 8401 | ||||

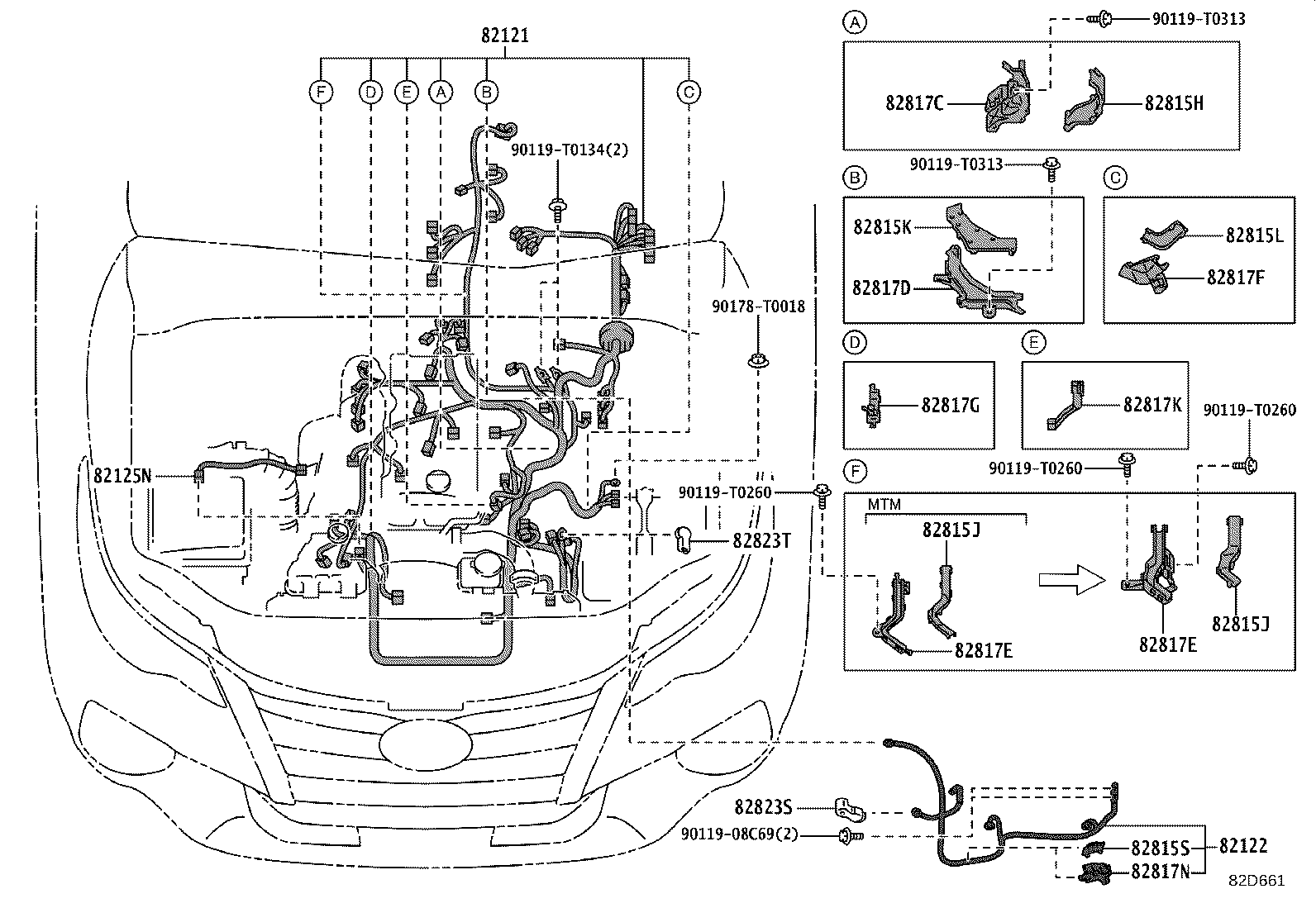

ILLUST NO. 2 OF12(2006- )GUN156
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 8213A-KKL80 |
GUN156 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-KK100 |
GUN156 |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-KK010 |
GUN156,TGN156 |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-0K270 |
GUN156 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-0K350 |
GUN156 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-0K350 |
GUN156 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-0K280 |
GUN156 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-0K510 |
GUN156 |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-0K400 |
GUN156 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-0K270 |
GUN156 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-0K280 |
GUN156 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-0K350 |
GUN156 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-0K350 |
GUN156 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-0K510 |
GUN156 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-0K300 |
GUN156 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-0K310 |
GUN156 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-0K400 |
GUN156 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-30100 |
GUN156 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
GUN156,TGN156 |
1 | ||
| Common parts | ||||
| 90119-08C69 | ||||
| 90119-T0134 | ||||
| 90119-T0260 | ||||
| 90119-T0313 | ||||
| 90178-T0018 | ||||

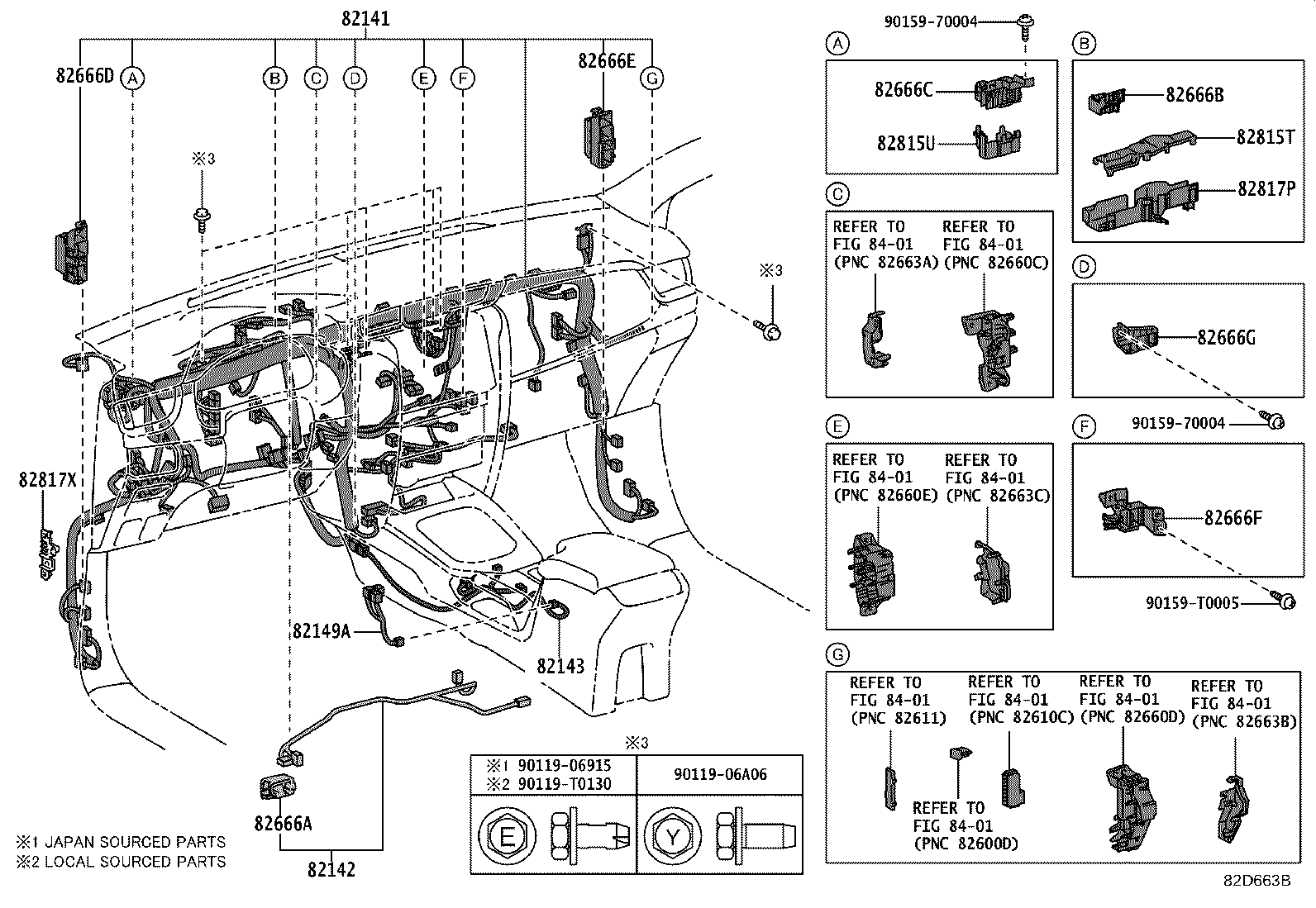

ILLUST NO. 3 OF12(2006- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 8214E-KKF90 |
GUN156..H |
1 | ||
| 8214E-KKF80 |
GUN156..S AUDIO-*DA(8INCH) & *BT & DAB |
1 | ||
| 8214E-KKG10 |
GUN156..H AUDIO-AVN(8INCH) & *BT & DAB&SPEAKER-11SPEAKER & JBL |
1 | ||
| 8214E-KKG00 |
GUN156..S |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-KK880 |
GUN156 |
1 | ||
| 82142-KK890 |
GUN156..H SPEAKER-11SPEAKER & JBL |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-KKA70 |
GUN156..H SPEAKER-11SPEAKER & JBL |
1 | ||
| 82143-KKA80 |
GUN156..S |
1 | ||
| 82143-KKA70 |
GUN156..H |
1 | ||
| 82149A - WIRE, INSTRUMENT PANEL, NO.5 | ||||
| 82149-KK090 |
GUN156,TGN156..6FC |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-0K200 |
GUN156,TGN156 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-0K290 |
GUN156,TGN156 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-0K170 |
GUN156,TGN156 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-0K210 |
GUN156,TGN156 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-0K220 |
GUN156,TGN156 |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-0K230 |
GUN156,TGN156 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-0K310 |
GUN156,TGN156 |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-0K410 |
GUN156,TGN156 |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-0K470 |
GUN156,TGN156 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-0K410 |
GUN156,TGN156 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-0K840 |
GUN156,TGN156 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
| 90119-T0130 | ||||
| 90159-70004 | ||||
| 90159-T0005 | ||||
| Linked diagrams | ||||
| 8401 | ||||

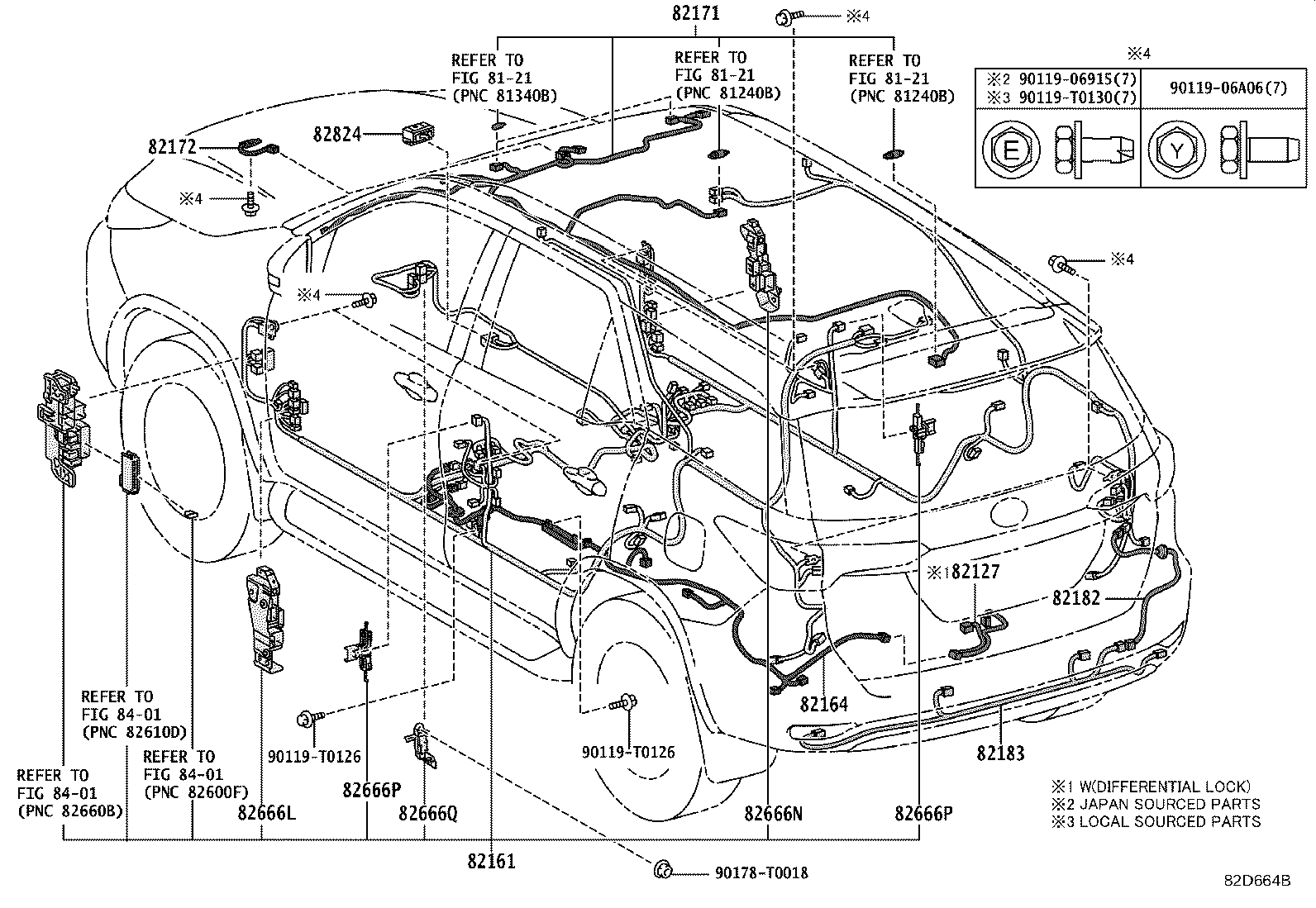

ILLUST NO. 5 OF12(2006- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-0K010 |
GUN156..H DIFFERENTIAL LOCK-WITH |
1 | ||
| 82127-0K010 |
GUN156,TGN156..L,S |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 8219F-KKZ70 |
GUN156..S |
1 | ||
| 8219F-KKZ71 |
GUN156..S |
1 | ||
| 8219G-KKG30 |
GUN156..H SPEAKER-11SPEAKER & JBL |
1 | ||
| 8219G-KKG21 |
GUN156..H |
1 | ||
| 8219G-KKG20 |
GUN156..H |
1 | ||
| 8219G-KKG31 |
GUN156..H SPEAKER-11SPEAKER & JBL |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-KK660 |
GUN156..H |
1 | ||
| 82164-KK680 |
GUN156,TGN156..L,S |
1 | ||
| 82164-KK680 |
GUN156..H DIFFERENTIAL LOCK-WITH |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-KKD00 |
GUN156,TGN156..L,S |
1 | ||
| 82171-KKD20 |
GUN156..H ACTIVE SAFETY PACKAGE-WITH&INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE |
1 | ||
| 82171-KKC90 |
GUN156..H INSIDE REAR VIEW MIRROR-MANUAL ANTI-GLARE |
1 | ||
| 82171-KKD30 |
GUN156..S ACTIVE SAFETY PACKAGE-WITH |
1 | ||
| 82171-KKD10 |
GUN156..H |
1 | ||
| 82171-KKD40 |
GUN156..H ACTIVE SAFETY PACKAGE-WITH |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-KK010 |
GUN156 ACTIVE SAFETY PACKAGE-WITH |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-KK190 |
GUN156,TGN156..6FC |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-KK080 |
GUN156,TGN156..6FC |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-0K250 |
GUN156,TGN156 |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-0K260 |
GUN156,TGN156 |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-0K280 |
GUN156,TGN156 |
2 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-0K280 |
GUN156,TGN156 |
2 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-0K410 |
GUN156,TGN156 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 90980-12393 |
GUN156,TGN156 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
| 90119-T0126 | ||||
| 90119-T0130 | ||||
| 90178-T0018 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||

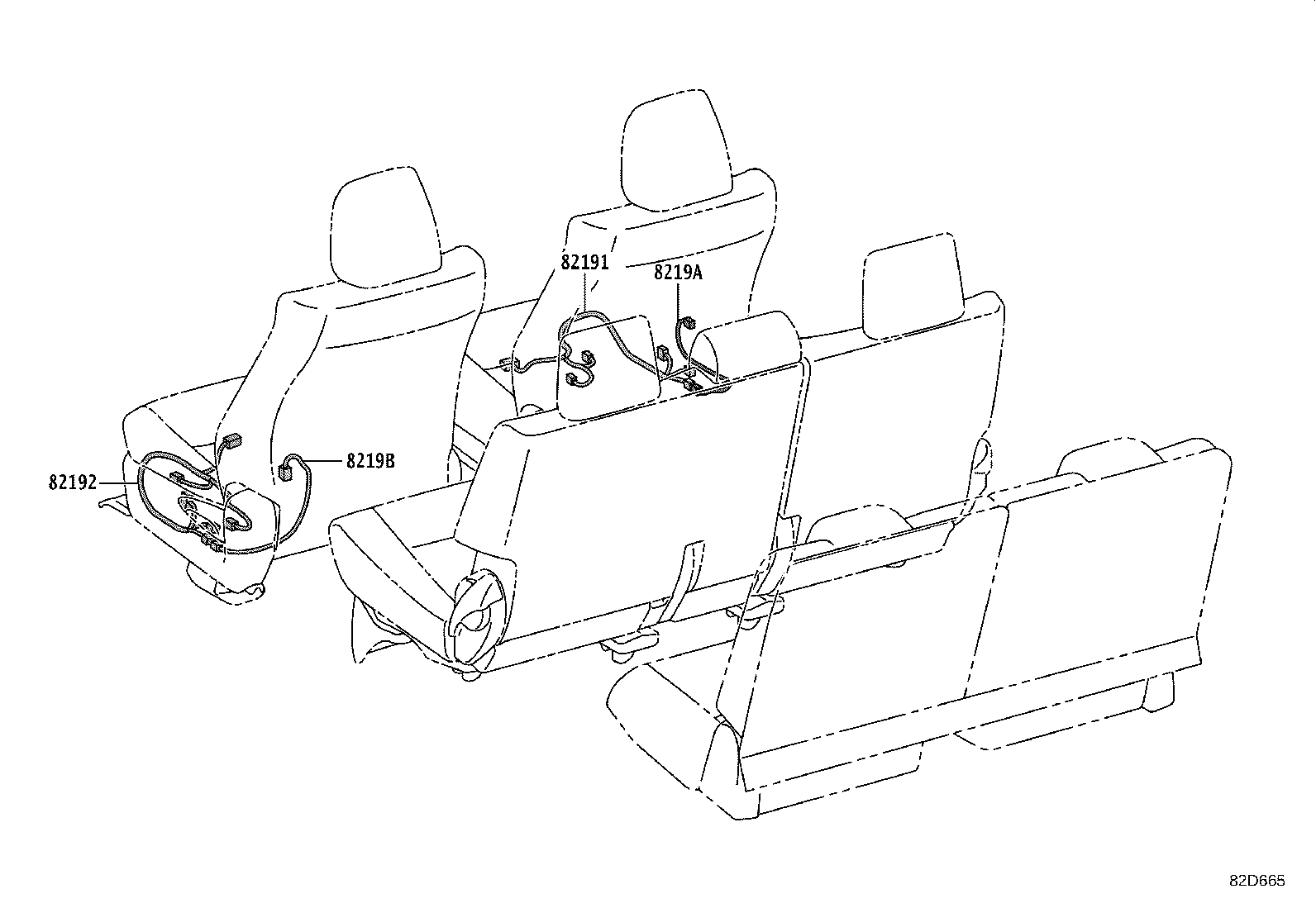

ILLUST NO. 6 OF12(2006- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-0K120 |
GUN156..H |
1 | ||
| 82191-0K120 |
GUN156,TGN156..S SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-0K060 |
GUN156,TGN156..S SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 82192-0K060 |
GUN156..H |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-0K050 |
GUN156,TGN156..S SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||
| 8219A-0K050 |
GUN156..H |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-0K050 |
GUN156..H |
1 | ||
| 8219B-0K050 |
GUN156,TGN156..S SEAT COVER MATERIAL-NATURAL LEATHER |
1 | ||

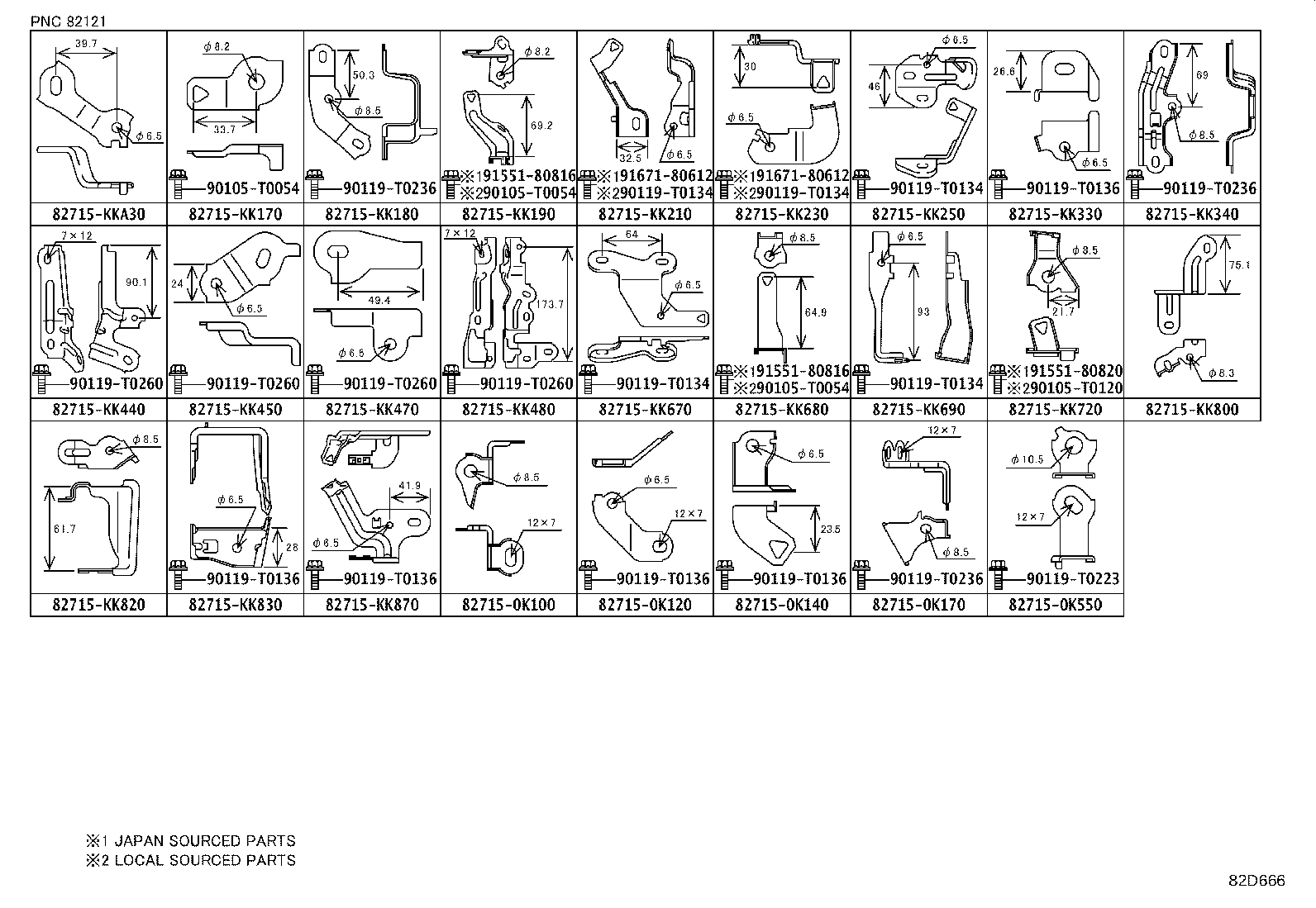

ILLUST NO. 7 OF12(2006- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-0K100 | ||||
| 82715-0K120 | ||||
| 82715-0K140 | ||||
| 82715-0K170 | ||||
| 82715-0K550 | ||||
| 82715-KK170 | ||||
| 82715-KK180 | ||||
| 82715-KK190 | ||||
| 82715-KK210 | ||||
| 82715-KK230 | ||||
| 82715-KK250 | ||||
| 82715-KK330 | ||||
| 82715-KK340 | ||||
| 82715-KK440 | ||||
| 82715-KK450 | ||||
| 82715-KK470 | ||||
| 82715-KK480 | ||||
| 82715-KK670 | ||||
| 82715-KK680 | ||||
| 82715-KK690 | ||||
| 82715-KK720 | ||||
| 82715-KK800 | ||||
| 82715-KK820 | ||||
| 82715-KK830 | ||||
| 82715-KK870 | ||||
| 82715-KKA30 | ||||
| 90105-T0054 | ||||
| 90105-T0120 | ||||
| 90119-T0134 | ||||
| 90119-T0136 | ||||
| 90119-T0223 | ||||
| 90119-T0236 | ||||
| 90119-T0260 | ||||
| 91551-80816 | ||||
| 91551-80820 | ||||
| 91671-80612 | ||||

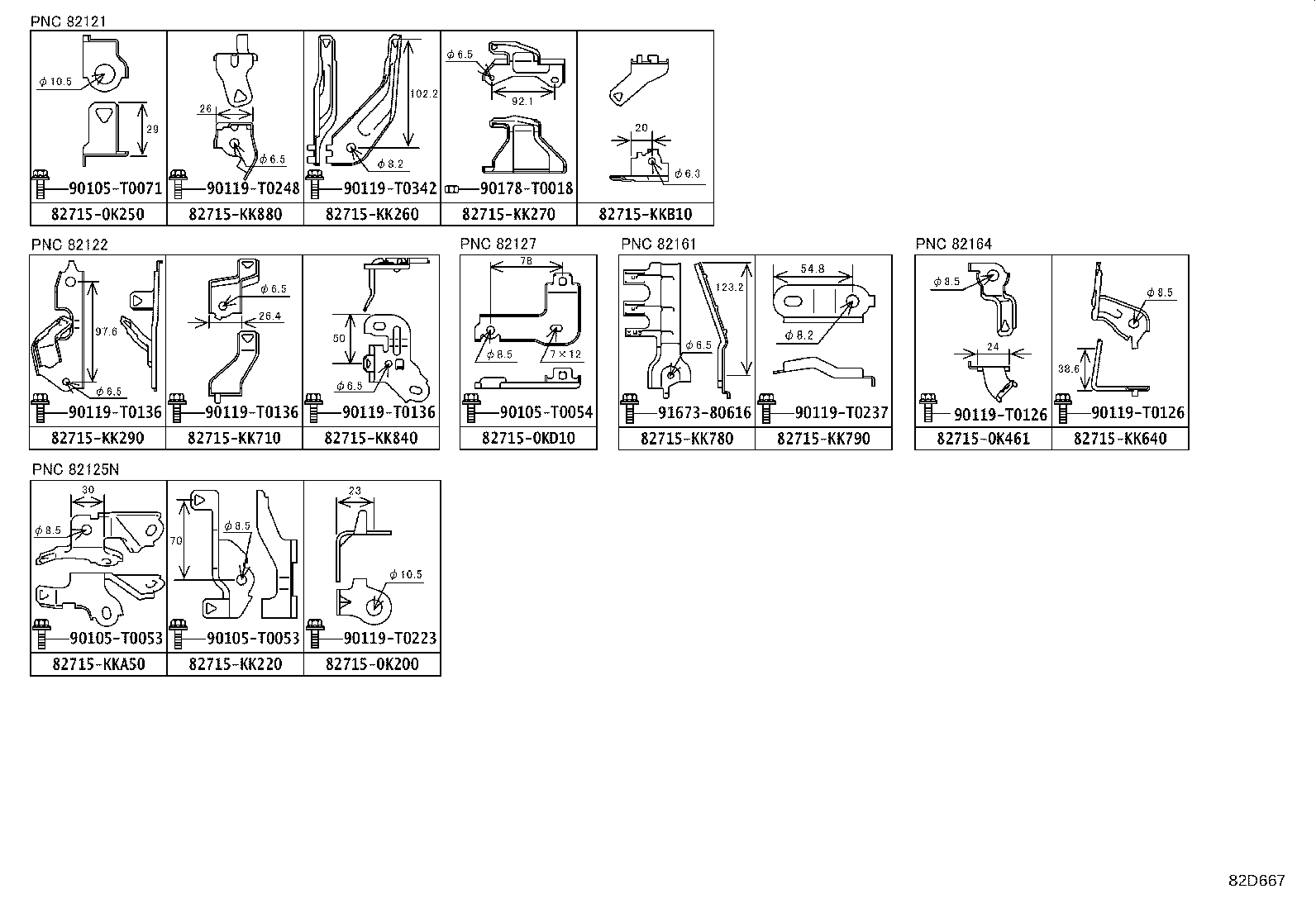

ILLUST NO. 8 OF12(2006- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-0K200 | ||||
| 82715-0K250 | ||||
| 82715-0K461 | ||||
| 82715-0KD10 | ||||
| 82715-KK220 | ||||
| 82715-KK260 | ||||
| 82715-KK270 | ||||
| 82715-KK290 | ||||
| 82715-KK640 | ||||
| 82715-KK710 | ||||
| 82715-KK780 | ||||
| 82715-KK790 | ||||
| 82715-KK840 | ||||
| 82715-KK880 | ||||
| 82715-KKA50 | ||||
| 82715-KKB10 | ||||
| 90105-T0053 | ||||
| 90105-T0054 | ||||
| 90105-T0071 | ||||
| 90119-T0126 | ||||
| 90119-T0136 | ||||
| 90119-T0223 | ||||
| 90119-T0237 | ||||
| 90119-T0248 | ||||
| 90119-T0342 | ||||
| 90178-T0018 | ||||
| 91673-80616 | ||||
ILLUST NO. 9 OF12(2006- )

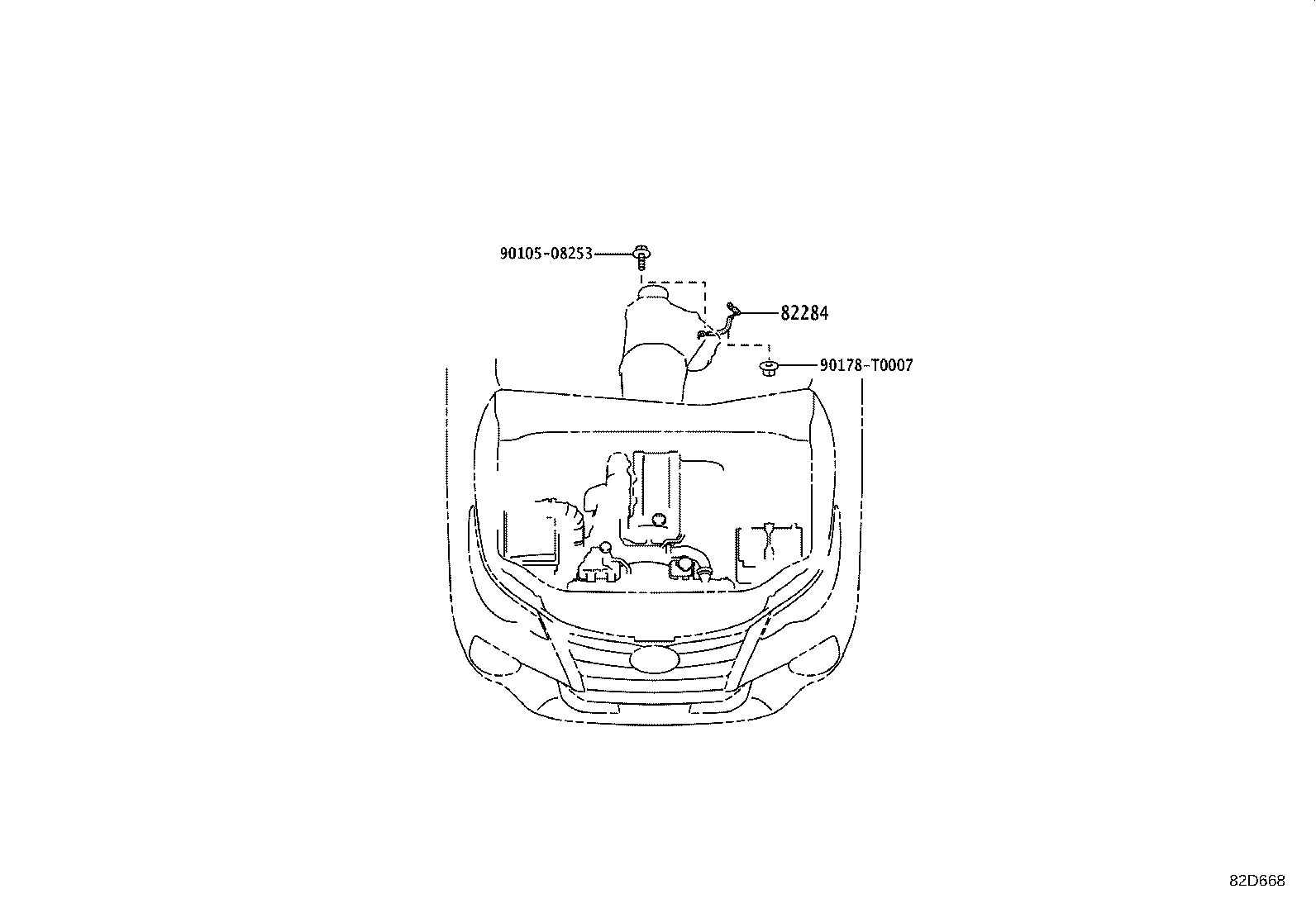

CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82284 - WIRE, EARTH | ||||
| 82284-KK030 |
GUN156,TGN156 |
1 | ||
| Common parts | ||||
| 90105-08253 | ||||
| 90178-T0007 | ||||

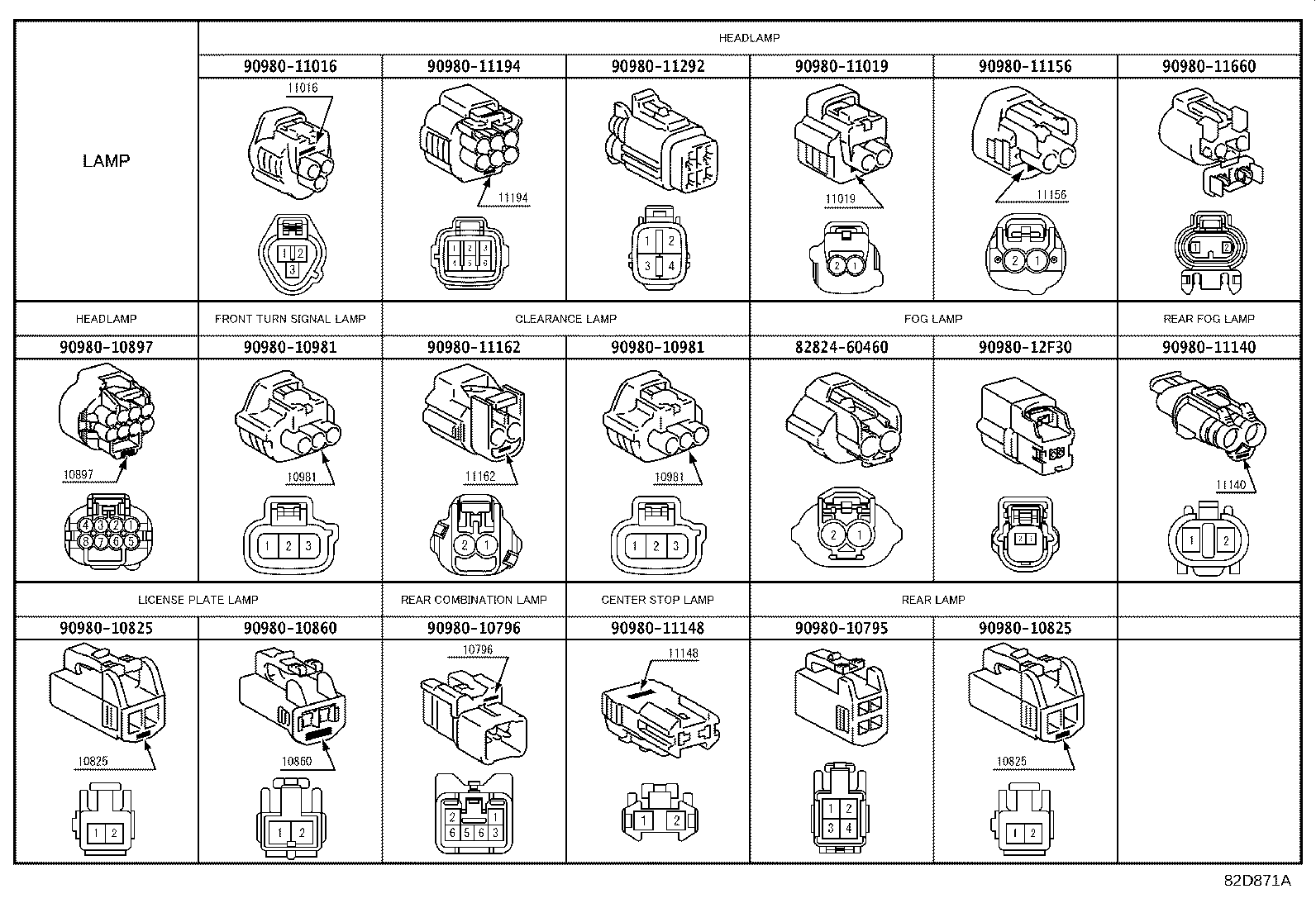

ILLUST NO.10 OF12(2006- )
CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10796 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-10897 | ||||
| 90980-10981 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11140 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11194 | ||||
| 90980-11292 | ||||
| 90980-11660 | ||||
| 90980-12F30 | ||||

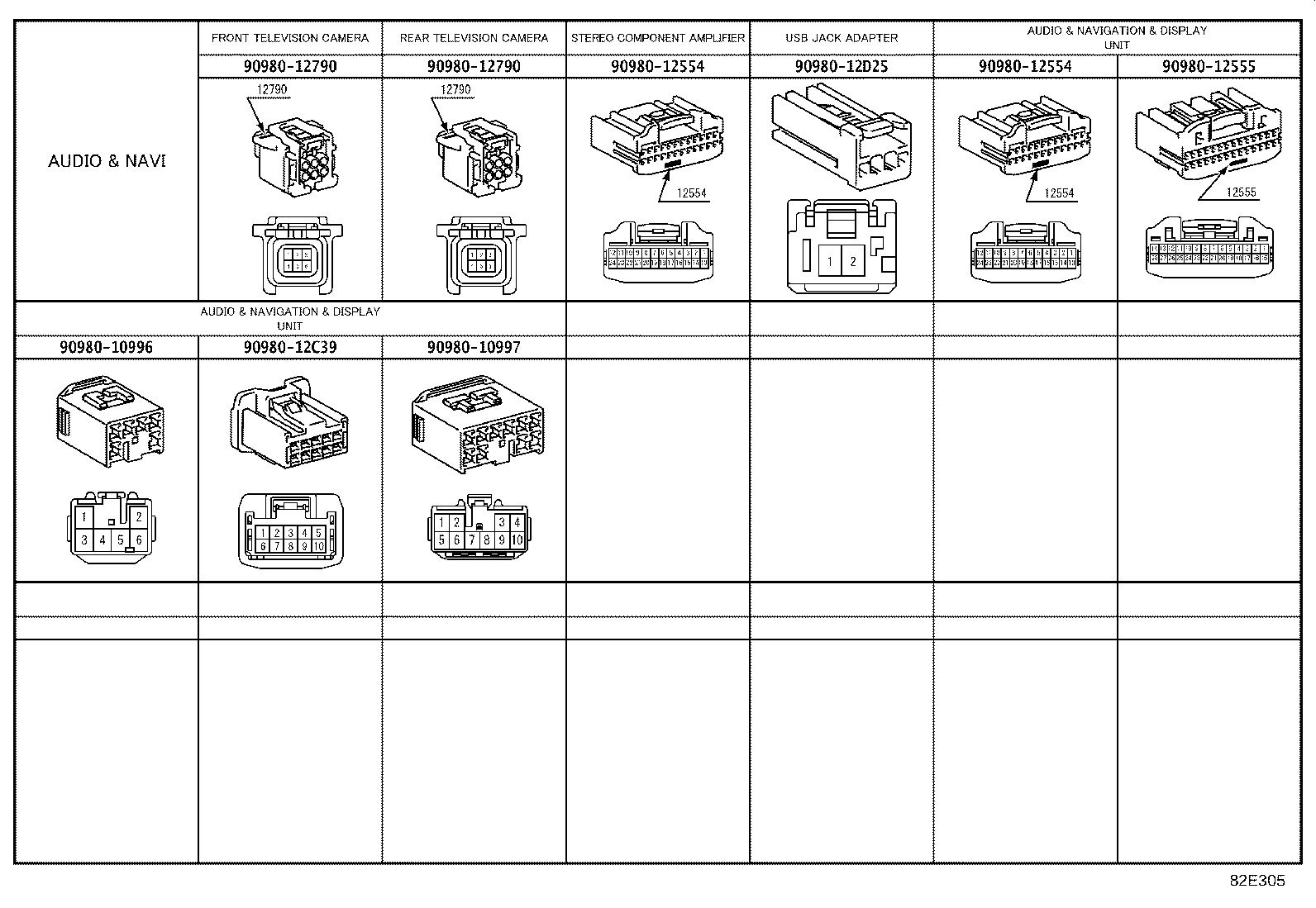

ILLUST NO.12 OF12(2006- )
CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
| 90980-12C39 | ||||
| 90980-12D25 | ||||

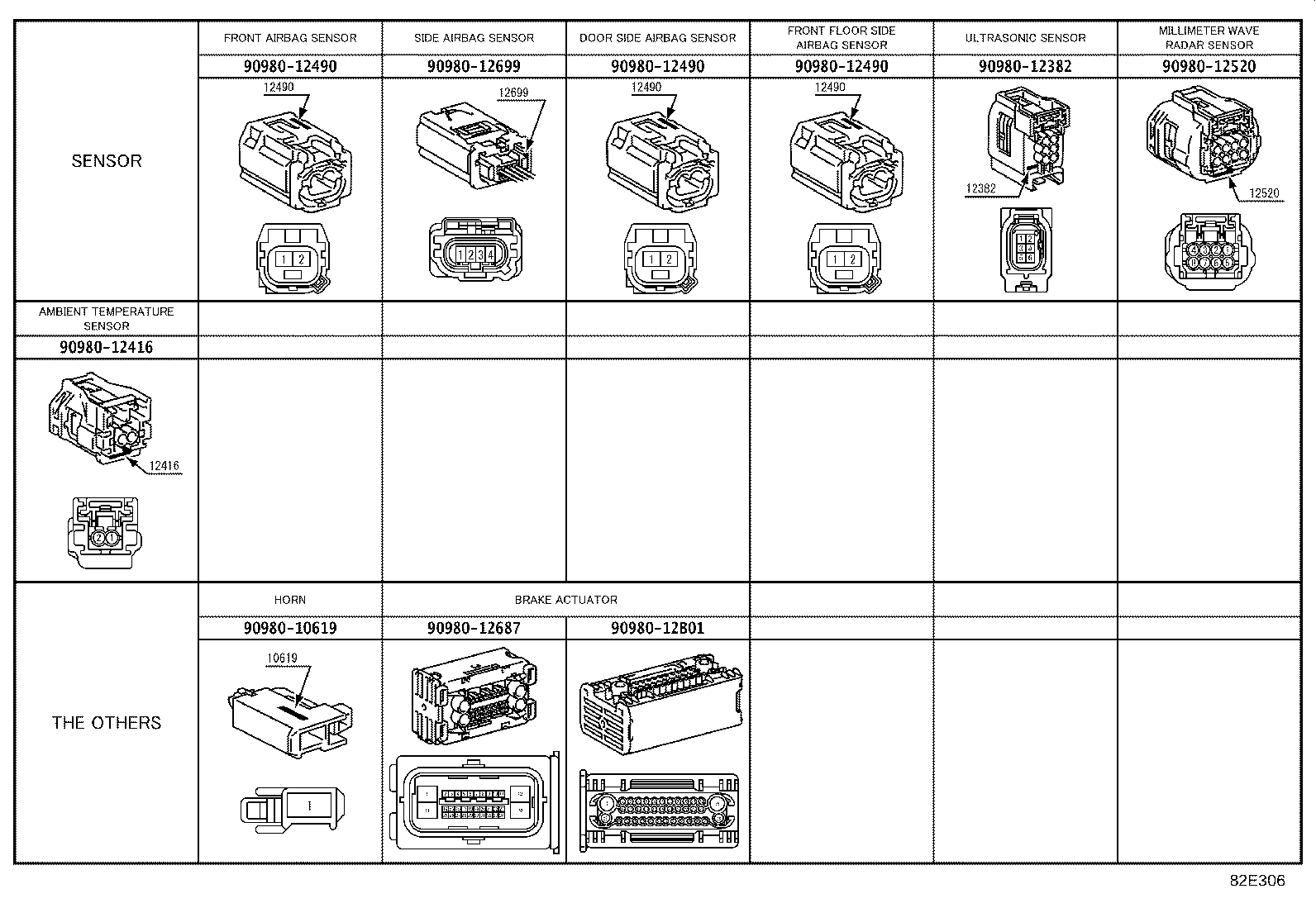

ILLUST NO.11 OF12(2006- )
CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-12382 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12687 | ||||
| 90980-12699 | ||||
| 90980-12B01 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
