GUN156L-STTHXW (2020)

Toyota Fortuner

Production Jun 2020 - Aug 2021
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

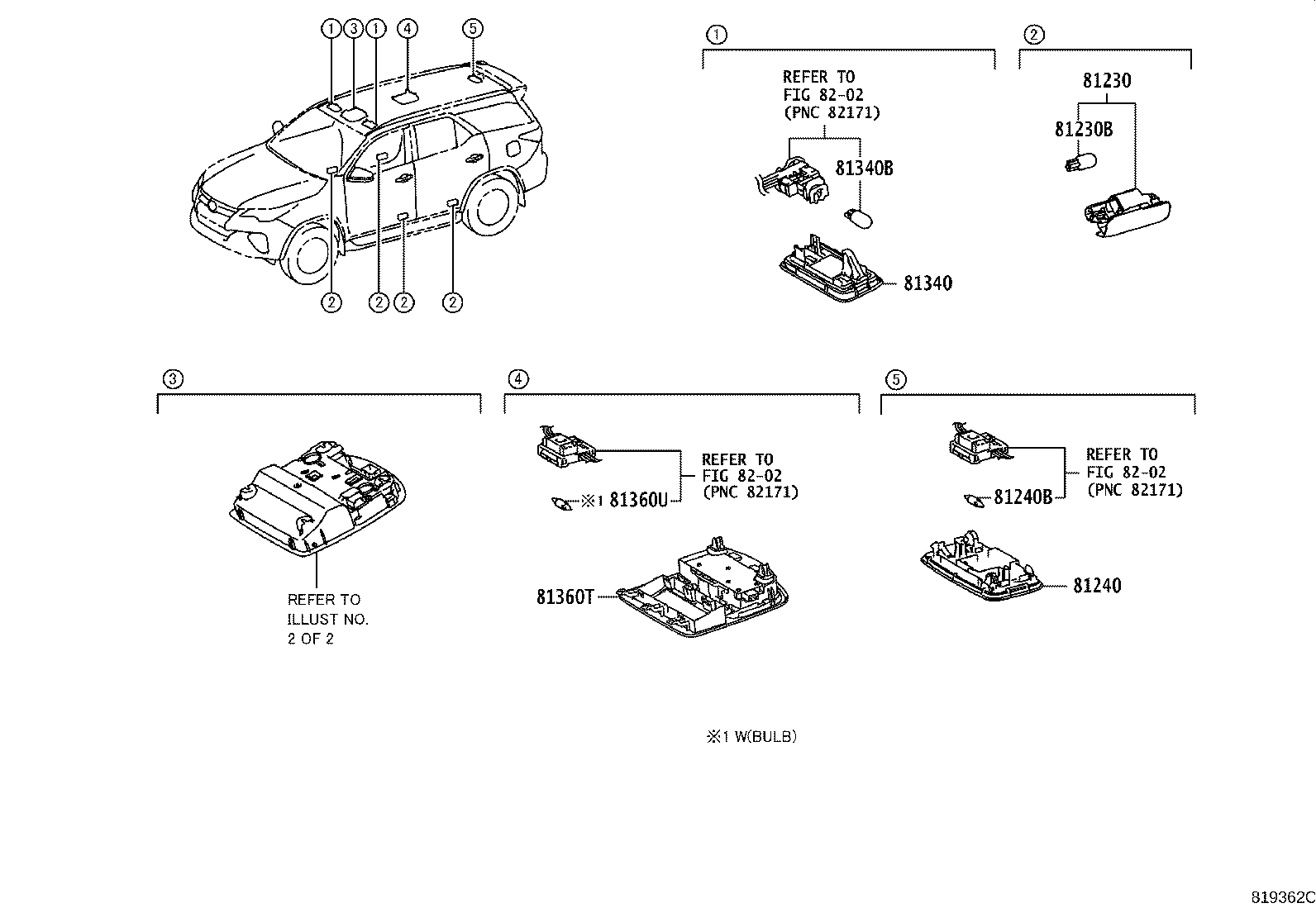

ILLUST NO. 1 OF 2(2006- )

Click highlighted areas on diagram

diagram 81230 81230B 81240 81240B 81340 81340B 81360T 81360U 8202 8202 8202
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-30200

GUN156,TGN156..6FC

 4
81230B - BULB(FOR COURTESY LAMP)
90981-12010

GUN156,TGN156..6FC

12V 5W

 4
81240 - LAMP ASSY, ROOM, NO.1
81240-0K070B0

GUN156,TGN156

LT.GRAY,TRIM2#,4#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

GUN156,TGN156

12V 8W

 1
81340 - LAMP ASSY, VANITY
81340-0K030

GUN156..H

 2
81340B - BULB (FOR VANITY LAMP)
90981-11062

GUN156..H

12V 8W

 2
81360T - LAMP ASSY, SPOT
81360-0K050B0

GUN156

LT.GRAY,TRIM2#,4#

 1
81360U - BULB, SPOT LAMP
90981-14011

GUN156,TGN156

 1
Linked diagrams
8202

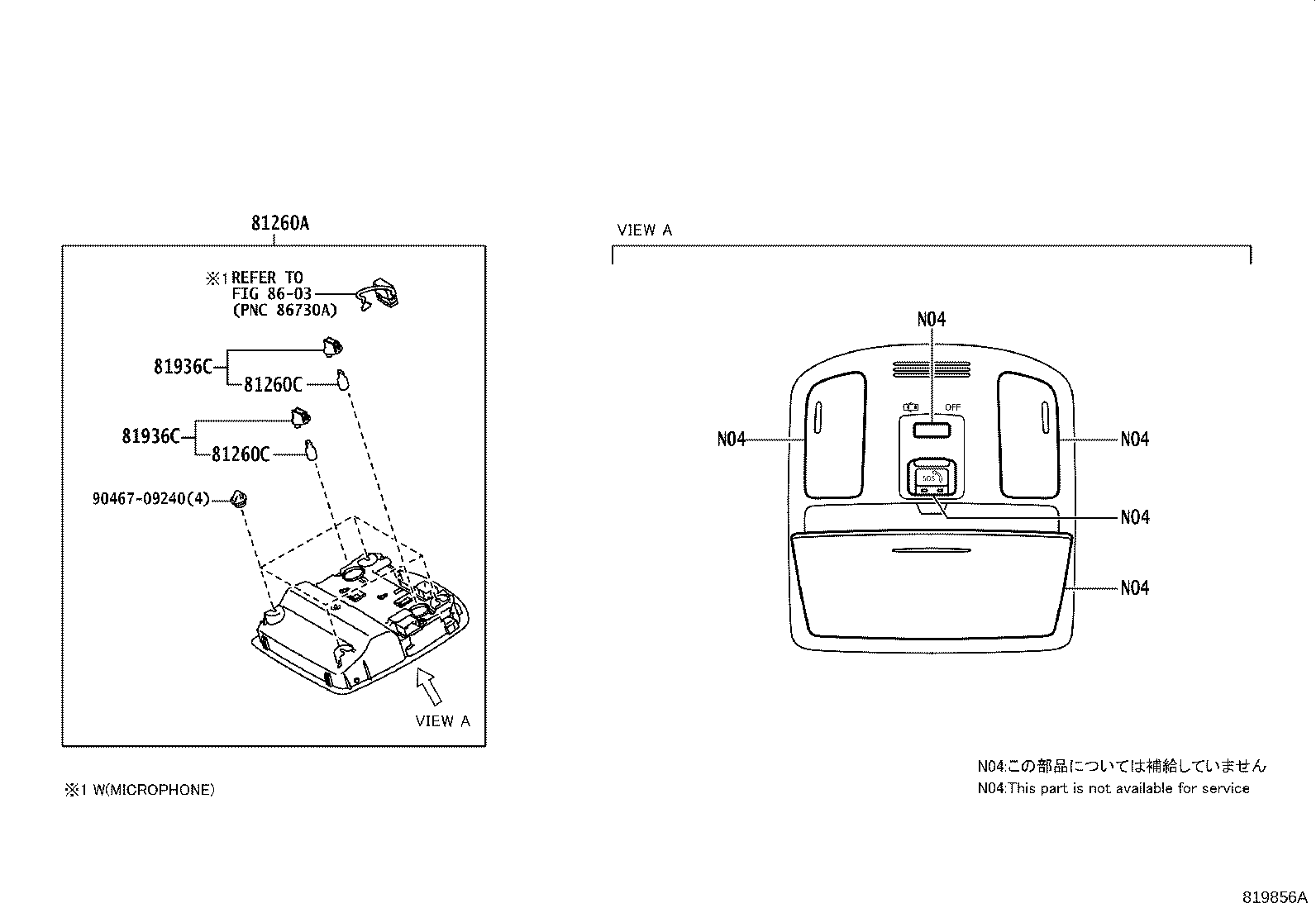

ILLUST NO. 2 OF 2(2006- )

Click highlighted areas on diagram

diagram 81260A 81260C 81260C 81936C 81936C 8603 9046709240
Part # Description Qty Price
81260A - LAMP ASSY, MAP
63650-0K161B0

GUN156,TGN156

LT.GRAY,TRIM2#,4#

 1
81260C - BULB(FOR MAP LAMP)
99132-12050

GUN156,TGN156

12V 5W

 1
81260C - BULB(FOR MAP LAMP)
99132-12050

GUN156,TGN156

12V 5W

 1
81936C - BULB ASSY
81936-28010

GUN156,TGN156

 2
81936C - BULB ASSY
81936-28010

GUN156,TGN156

 2
Common parts
90467-09240
Linked diagrams
8603
