GUN156L-STTHXW (2020)
Toyota Fortuner

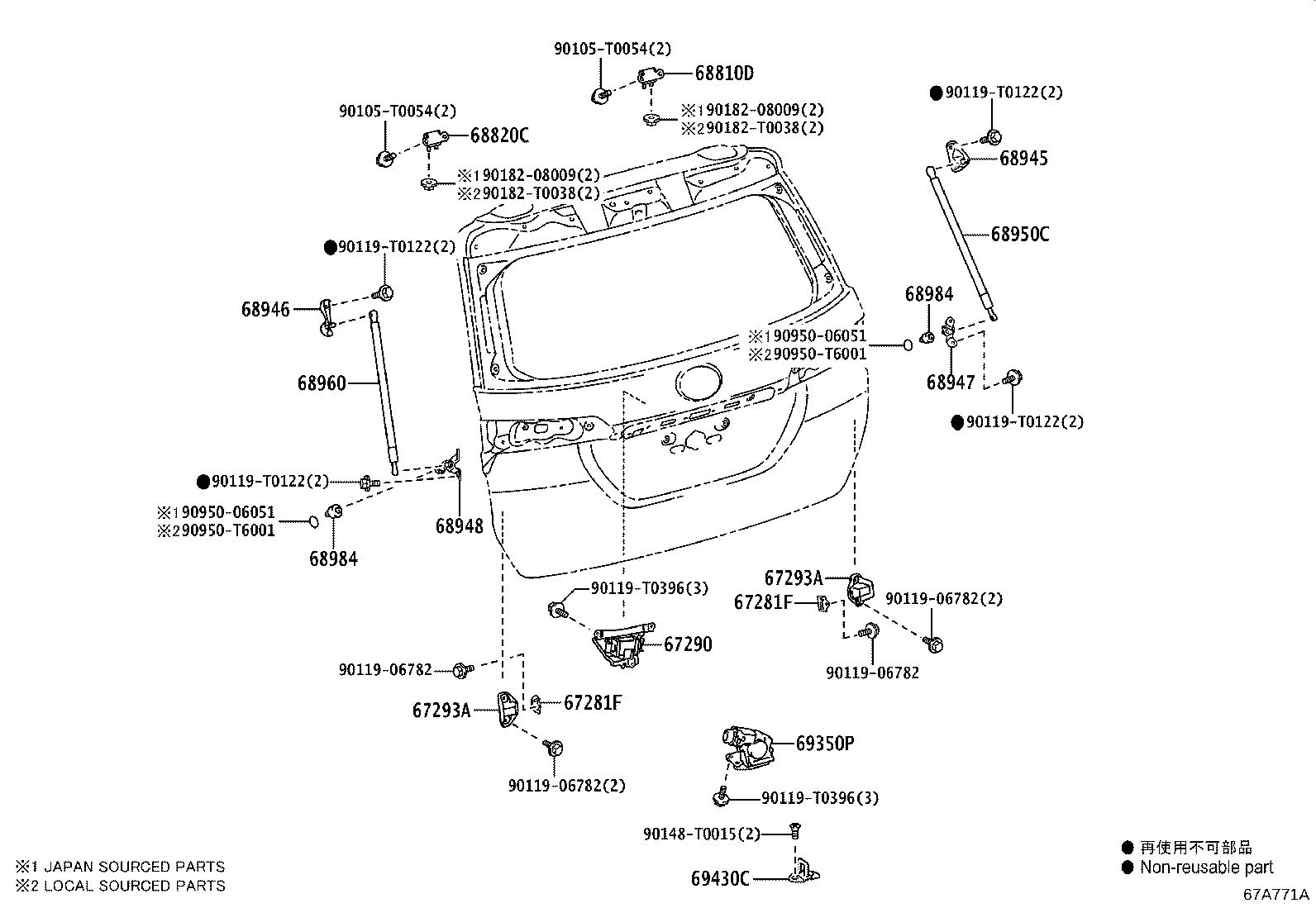

ILLUST NO. 1 OF 2(2006- )
W/O(POWER BACK DOOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67281F - STOPPER, BACK DOOR, LOWER | ||||
| 67281-0K020 |
GUN156,TGN156 |
2 | ||
| 67281F - STOPPER, BACK DOOR, LOWER | ||||
| 67281-0K020 |
GUN156,TGN156 |
2 | ||
| 67290 - DAMPER ASSY, BACK DOOR | ||||
| 67290-0K030 |
GUN156,TGN156 |
1 | ||
| 67293A - CUSHION, BACK DOOR STOPPER | ||||
| 67293-0K020 |
GUN156,TGN156 |
2 | ||
| 67293A - CUSHION, BACK DOOR STOPPER | ||||
| 67293-0K020 |
GUN156,TGN156 |
2 | ||
| 68810D - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-0K070 |
GUN156,TGN156 PAD T=1.6 |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68810-0K070 |
GUN156,TGN156 PAD T=1.6 |
1 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68945-0K020 |
GUN156,TGN156..L,S |
1 | ||
| 68945-0K011 |
GUN156..H |
1 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68946-0K020 |
GUN156,TGN156..L,S |
1 | ||
| 68946-0K011 |
GUN156..H |
1 | ||
| 68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH | ||||
| 68947-0K010 |
GUN156,TGN156 |
1 | ||
| 68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH | ||||
| 68948-0K010 |
GUN156,TGN156 |
1 | ||
| 68950C - STAY ASSY, BACK DOOR, RH | ||||
| 68950-0K381 |
GUN156,TGN156..L,S |
1 | ||
| 68960 - STAY ASSY, BACK DOOR, LH | ||||
| 68960-0K381 |
GUN156,TGN156..L,S |
1 | ||
| 68984 - STOPPER, BACK DOOR STAY | ||||
| 68984-42010 |
GUN156,TGN156 |
2 | ||
| 68984 - STOPPER, BACK DOOR STAY | ||||
| 68984-42010 |
GUN156,TGN156 |
2 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-0K190 |
GUN156,TGN156..L,S |
1 | ||
| 69350-0K290 |
GUN156..H |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-0K070 |
GUN156,TGN156 |
1 | ||
| Common parts | ||||
| 90105-T0054 | ||||
| 90119-06782 | ||||
| 90119-T0122 | ||||
| 90119-T0396 | ||||
| 90148-T0015 | ||||
| 90182-08009 | ||||
| 90182-T0038 | ||||
| 90950-06051 | ||||
| 90950-T6001 | ||||

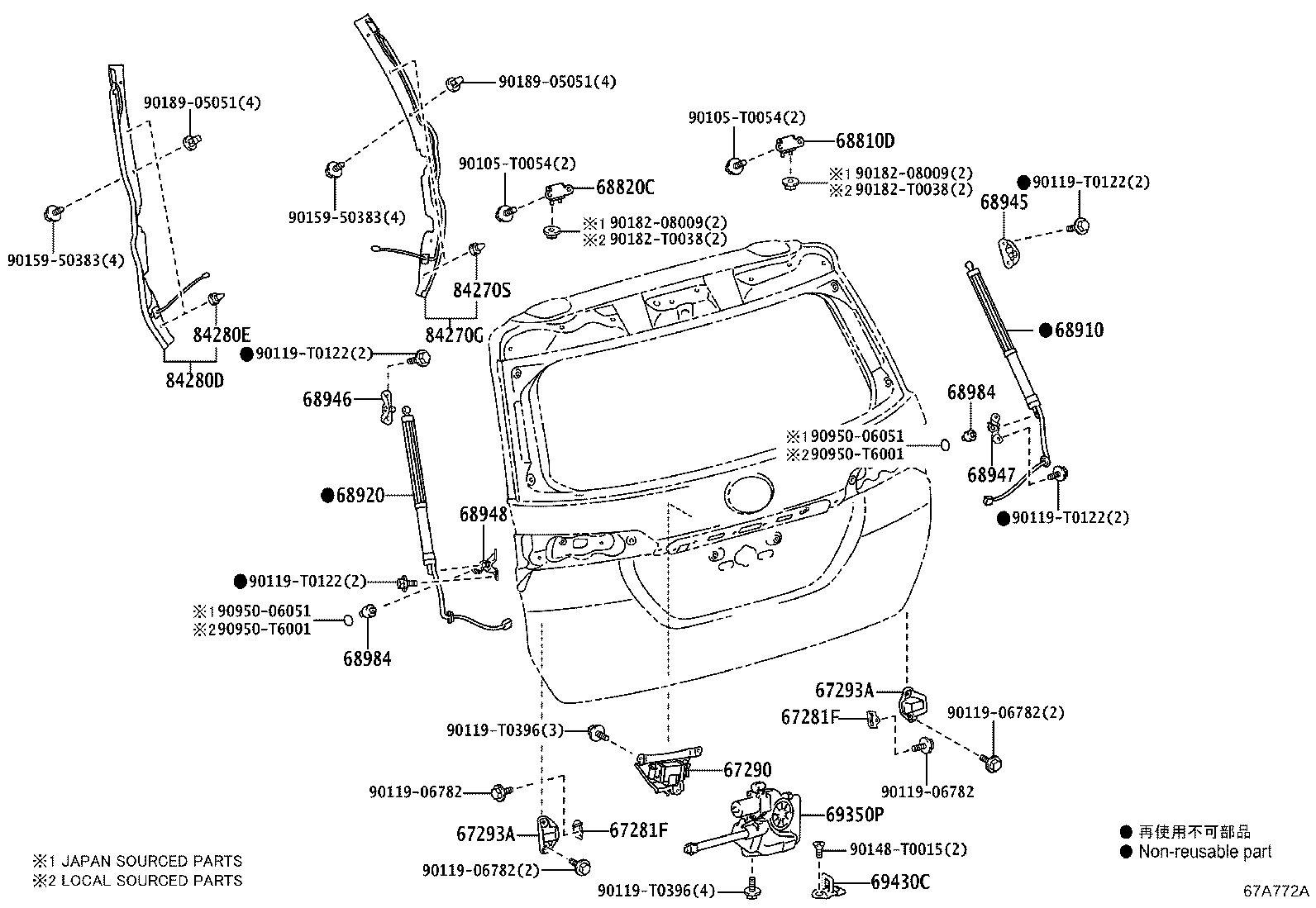

ILLUST NO. 2 OF 2(2006- )
W(POWER BACK DOOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67281F - STOPPER, BACK DOOR, LOWER | ||||
| 67281-0K020 |
GUN156,TGN156 |
2 | ||
| 67281F - STOPPER, BACK DOOR, LOWER | ||||
| 67281-0K020 |
GUN156,TGN156 |
2 | ||
| 67290 - DAMPER ASSY, BACK DOOR | ||||
| 67290-0K030 |
GUN156,TGN156 |
1 | ||
| 67293A - CUSHION, BACK DOOR STOPPER | ||||
| 67293-0K020 |
GUN156,TGN156 |
2 | ||
| 67293A - CUSHION, BACK DOOR STOPPER | ||||
| 67293-0K020 |
GUN156,TGN156 |
2 | ||
| 68810D - HINGE ASSY, BACK DOOR, RH | ||||
| 68810-0K070 |
GUN156,TGN156 PAD T=1.6 |
1 | ||
| 68820C - HINGE ASSY, BACK DOOR, LH | ||||
| 68810-0K070 |
GUN156,TGN156 PAD T=1.6 |
1 | ||
| 68910 - UNIT ASSY, POWER BACK DOOR | ||||
| 68910-71042 |
GUN156..H SPEAKER-11SPEAKER & JBL |
1 | ||
| 68910-71032 |
GUN156..H |
1 | ||
| 68920 - UNIT ASSY SET, POWER BACK DOOR, LH | ||||
| 68920-71042 |
GUN156..H SPEAKER-11SPEAKER & JBL |
1 | ||
| 68920-71032 |
GUN156..H |
1 | ||
| 68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH | ||||
| 68945-0K020 |
GUN156,TGN156..L,S |
1 | ||
| 68945-0K011 |
GUN156..H |
1 | ||
| 68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH | ||||
| 68946-0K020 |
GUN156,TGN156..L,S |
1 | ||
| 68946-0K011 |
GUN156..H |
1 | ||
| 68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH | ||||
| 68947-0K010 |
GUN156,TGN156 |
1 | ||
| 68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH | ||||
| 68948-0K010 |
GUN156,TGN156 |
1 | ||
| 68984 - STOPPER, BACK DOOR STAY | ||||
| 68984-42010 |
GUN156,TGN156 |
2 | ||
| 68984 - STOPPER, BACK DOOR STAY | ||||
| 68984-42010 |
GUN156,TGN156 |
2 | ||
| 69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH | ||||
| 69350-0K190 |
GUN156,TGN156..L,S |
1 | ||
| 69350-0K290 |
GUN156..H |
1 | ||
| 69430C - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-0K070 |
GUN156,TGN156 |
1 | ||
| 84270G - SENSOR ASSY, POWER BACK DOOR, RH | ||||
| 84270-71010 |
GUN156..H |
1 | ||
| 84270S - CLIP(POWER BACK DOOR SENSOR, RH) | ||||
| 61617-42040 |
GUN156..H |
2 | ||
| 84280D - SENSOR ASSY, POWER BACK DOOR, LH | ||||
| 84280-71010 |
GUN156..H |
1 | ||
| 84280E - CLIP (FOR POWER BACK DOOR SENSOR, LH) | ||||
| 61617-42040 |
GUN156..H |
2 | ||
| Common parts | ||||
| 90105-T0054 | ||||
| 90119-06782 | ||||
| 90119-T0122 | ||||
| 90119-T0396 | ||||
| 90148-T0015 | ||||
| 90159-50383 | ||||
| 90182-08009 | ||||
| 90182-T0038 | ||||
| 90189-05051 | ||||
| 90950-06051 | ||||
| 90950-T6001 | ||||
