YY211R-TLMGS (1995)

Toyota Dyna 150

Production May 1995 - Feb 2000
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

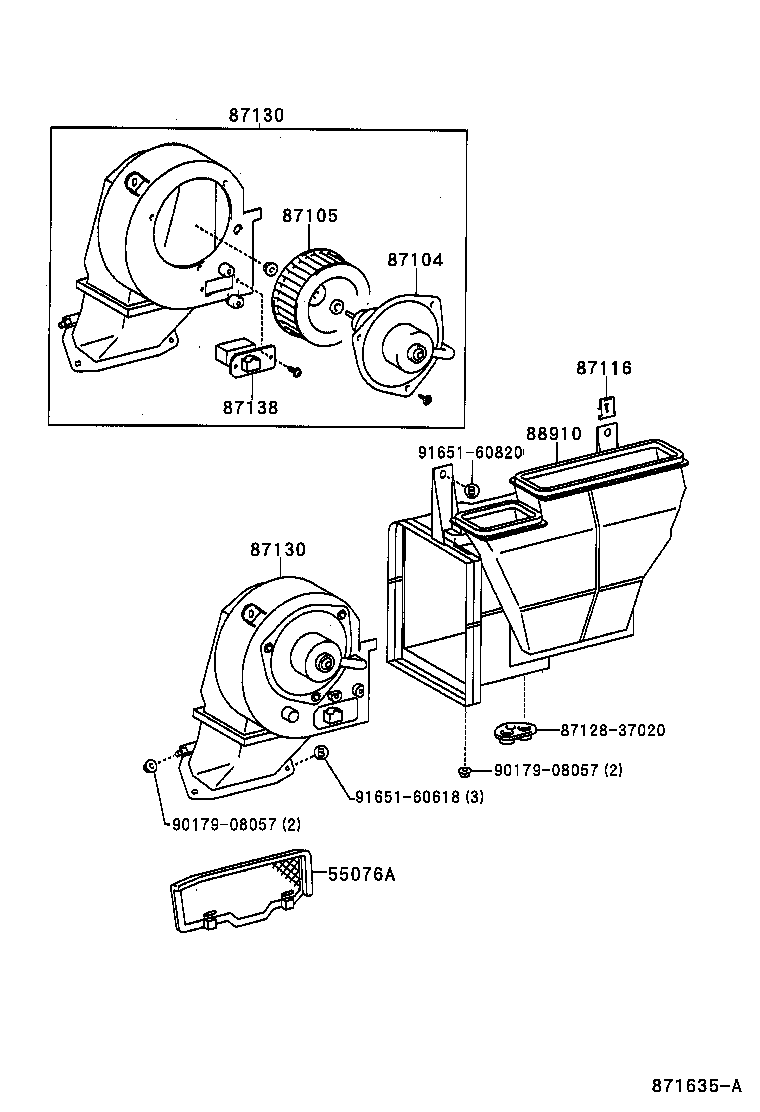

ILLUST NO. 1 OF 2(9505- )EUR,GEN

Click highlighted areas on diagram

BOOST VENTILATOR

diagram 55076A 87104 87105 87116 8712837020 87130 87130 87138 88910 9017908057 9017908057 9165160618 9165160820
Part # Description Qty Price
55076A - NET SUB-ASSY, AIR DUCT
55076-37030

LY212..SA;LY211,YY211..RHD..GEN

 1
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-37070

LY212..IV;LY211,YY211

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-37010

LY212..SA;LY211,YY211..RHD

 1
87105-37010

LY211,YY211..RHD..GEN

 1
87105-14030

LY211,YY211..RHD

 1
87116 - SPRING, HEATER CASE FASTENING
87116-37010

LY212..IV;LY211,YY211

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-37061

LY211,YY211..RHD..GEN

 1
87130-37061

LY212..SA;LY211,YY211..RHD

 1
87130-37060

LY211,YY211..RHD

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-37061

LY211,YY211..RHD..GEN

 1
87130-37061

LY212..SA;LY211,YY211..RHD

 1
87130-37060

LY211,YY211..RHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-37080

LY212..IV;LY211,YY211

 1
88910 - VENTILATOR ASSY, BOOST
88910-37010

LY211,YY211..RHD..GEN

 1
Common parts
87128-37020
90179-08057
91651-60618
91651-60820

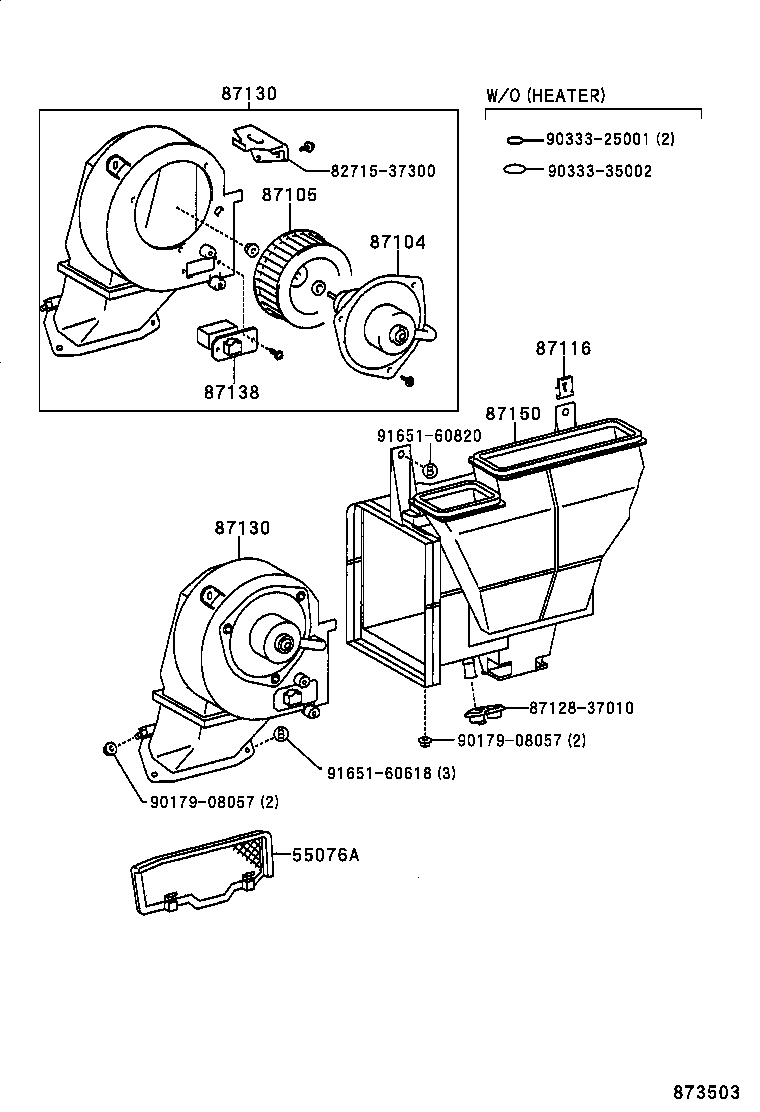

ILLUST NO. 1 OF 2(9505- )

Click highlighted areas on diagram

diagram 55076A 8271537300 87104 87105 87116 8712837010 87130 87130 87138 87150 9017908057 9017908057 9033325001 9033335002 9165160618 9165160820
Part # Description Qty Price
55076A - NET SUB-ASSY, AIR DUCT
55076-37030

LY212..SA;LY211,YY211..RHD..GEN

 1
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-37070

LY212..IV;LY211,YY211

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-37010

LY212..SA;LY211,YY211..RHD

 1
87105-37010

LY211,YY211..RHD..GEN

 1
87105-14030

LY211,YY211..RHD

 1
87116 - SPRING, HEATER CASE FASTENING
87116-37010

LY212..IV;LY211,YY211

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-37061

LY211,YY211..RHD..GEN

 1
87130-37061

LY212..SA;LY211,YY211..RHD

 1
87130-37060

LY211,YY211..RHD

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-37061

LY211,YY211..RHD..GEN

 1
87130-37061

LY212..SA;LY211,YY211..RHD

 1
87130-37060

LY211,YY211..RHD

 1
87138 - RESISTOR, HEATER BLOWER
87138-37080

LY212..IV;LY211,YY211

 1
87150 - RADIATOR ASSY, HEATER
87150-37030

LY211,YY211..RHD..GEN

W(HEATER)

 1
87150-37050

LY211,YY211..RHD..GEN

W(HEAVY TYPE HEATER)

 1
Common parts
82715-37300
87128-37010
90179-08057
90333-25001
90333-35002
91651-60618
91651-60820
