YY211R-TLMGS (1995)

Toyota Dyna 150

Production May 1995 - Feb 2000
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505-0002)WT..15T..CBU ; (0002- )LY212..CBU

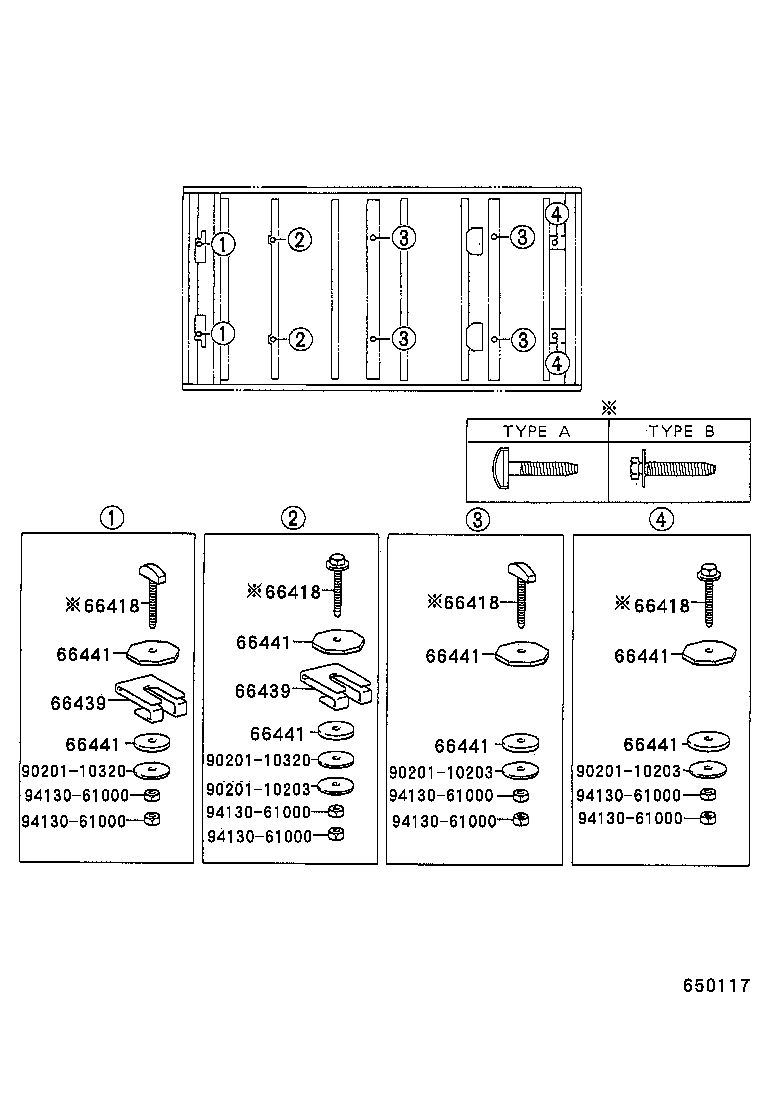

Click highlighted areas on diagram

diagram 66418 66418 66418 66418 66439 66439 66441 66441 66441 66441 66441 66441 66441 66441 9020110203 9020110203 9020110203 9020110320 9020110320 9413061000 9413061000 9413061000 9413061000 9413061000 9413061000 9413061000 9413061000
Part # Description Qty Price
66418 - BOLT, MOUNTING
66418-95400

LY21#,YY211..WT..15T..CBU

TYPE A

 6
90119-10490

LY21#,YY211..(T2,TW2)..TS..CBU

TYPE B

 4
66418 - BOLT, MOUNTING
66418-95400

LY21#,YY211..WT..15T..CBU

TYPE A

 6
90119-10490

LY21#,YY211..(T2,TW2)..TS..CBU

TYPE B

 4
66418 - BOLT, MOUNTING
66418-95400

LY21#,YY211..WT..15T..CBU

TYPE A

 6
90119-10490

LY21#,YY211..(T2,TW2)..TS..CBU

TYPE B

 4
66418 - BOLT, MOUNTING
66418-95400

LY21#,YY211..WT..15T..CBU

TYPE A

 6
90119-10490

LY21#,YY211..(T2,TW2)..TS..CBU

TYPE B

 4
66439 - SHIM, SUPPORT
66439-95400

LY21#,YY211..WT..15T..CBU

 3
66439 - SHIM, SUPPORT
66439-95400

LY21#,YY211..WT..15T..CBU

 3
66441 - SHIM, MOUNTING, NO.1
90564-12013

LY21#,YY211..15T..CBU

LWR

 10
90564-15142

LY21#,YY211..15T..CBU

UPR

 10
66441 - SHIM, MOUNTING, NO.1
90564-12013

LY21#,YY211..15T..CBU

LWR

 10
90564-15142

LY21#,YY211..15T..CBU

UPR

 10
66441 - SHIM, MOUNTING, NO.1
90564-12013

LY21#,YY211..15T..CBU

LWR

 10
90564-15142

LY21#,YY211..15T..CBU

UPR

 10
66441 - SHIM, MOUNTING, NO.1
90564-12013

LY21#,YY211..15T..CBU

LWR

 10
90564-15142

LY21#,YY211..15T..CBU

UPR

 10
66441 - SHIM, MOUNTING, NO.1
90564-12013

LY21#,YY211..15T..CBU

LWR

 10
90564-15142

LY21#,YY211..15T..CBU

UPR

 10
66441 - SHIM, MOUNTING, NO.1
90564-12013

LY21#,YY211..15T..CBU

LWR

 10
90564-15142

LY21#,YY211..15T..CBU

UPR

 10
66441 - SHIM, MOUNTING, NO.1
90564-12013

LY21#,YY211..15T..CBU

LWR

 10
90564-15142

LY21#,YY211..15T..CBU

UPR

 10
66441 - SHIM, MOUNTING, NO.1
90564-12013

LY21#,YY211..15T..CBU

LWR

 10
90564-15142

LY21#,YY211..15T..CBU

UPR

 10
Common parts
90201-10203
90201-10320
94130-61000
