YY211R-TLMGS (1995)
Toyota Dyna 150
Production
May 1995
-
Feb 2000
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )

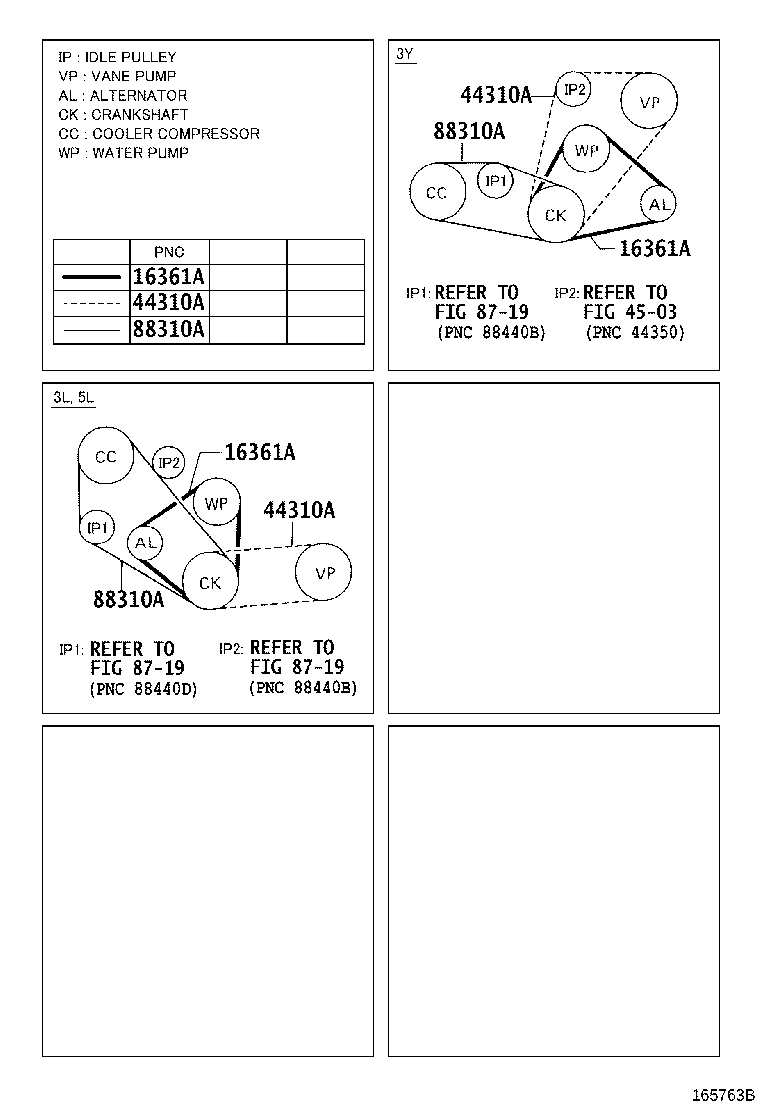

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99365-80820 |
3Y..YY211 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99365-80820 |
3Y..YY211 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99365-80820 |
3Y..YY211 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99332-01055 |
YY211..RHD L=1055 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99332-01055 |
YY211..RHD L=1055 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99332-01055 |
YY211..RHD L=1055 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99332-10880 |
YY211 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99332-10880 |
YY211 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99332-10880 |
YY211 |
1 | ||
| Linked diagrams | ||||
| 4503 | ||||
| 8719 | ||||
