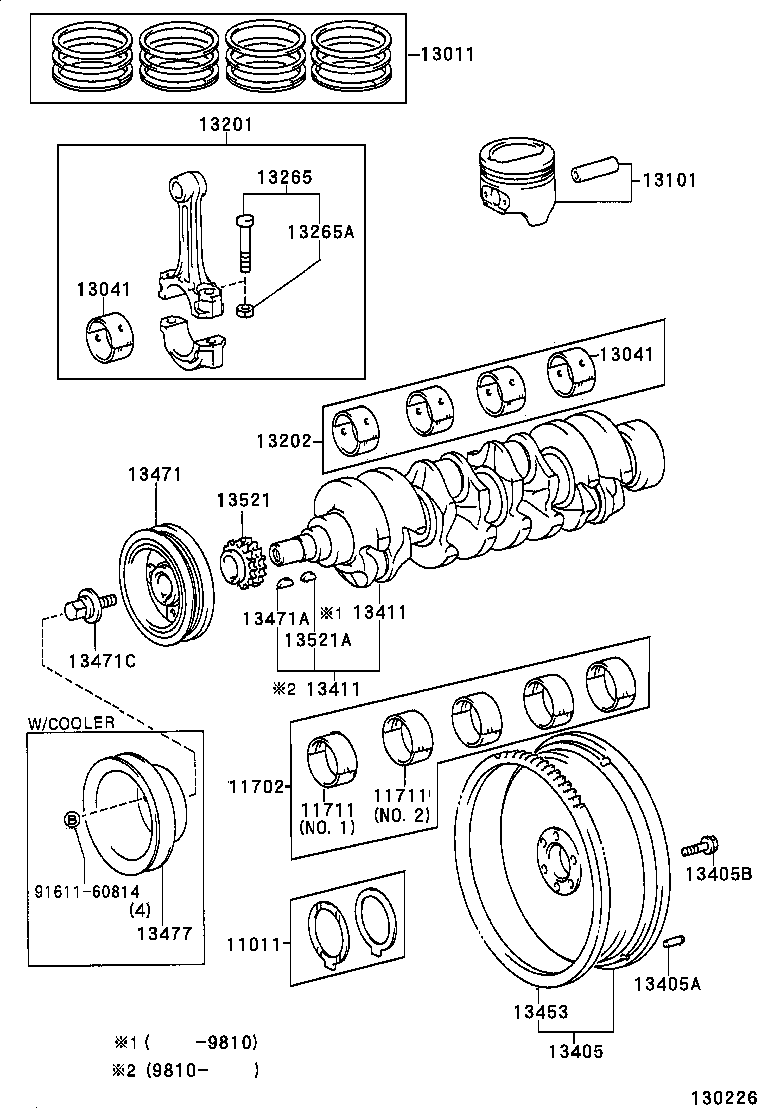

YY211R-TLMGS (1995)
Toyota Dyna 150
(9505- )3Y
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-25010 |
3Y..YY211 STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-71020 |
3Y..YY211 U/S 0.25 |
1 | ||
| 11704-71030 |
3Y..YY211 U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7102001 |
3Y..YY211 MARK 1 |
5 | ||
| 11071-7101001 |
3Y..YY211 MARK 1,NO.1 |
1 | ||
| 11701-7103001 |
3Y..YY211 MARK 1,NO.2 |
4 | ||
| 11071-7101003 |
3Y..YY211 MARK 3,NO.1 |
1 | ||
| 11701-7102002 |
3Y..YY211 MARK 2 |
5 | ||
| 11071-7101002 |
3Y..YY211 MARK 2,NO.1 |
1 | ||
| 11701-7102003 |
3Y..YY211 MARK 3 |
5 | ||
| 11701-7103003 |
3Y..YY211 MARK 3,NO.2 |
4 | ||
| 11701-7103002 |
3Y..YY211 MARK 2,NO.2 |
4 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-7102001 |
3Y..YY211 MARK 1 |
5 | ||
| 11071-7101001 |
3Y..YY211 MARK 1,NO.1 |
1 | ||
| 11701-7103001 |
3Y..YY211 MARK 1,NO.2 |
4 | ||
| 11071-7101003 |
3Y..YY211 MARK 3,NO.1 |
1 | ||
| 11701-7102002 |
3Y..YY211 MARK 2 |
5 | ||
| 11071-7101002 |
3Y..YY211 MARK 2,NO.1 |
1 | ||
| 11701-7102003 |
3Y..YY211 MARK 3 |
5 | ||
| 11701-7103003 |
3Y..YY211 MARK 3,NO.2 |
4 | ||
| 11701-7103002 |
3Y..YY211 MARK 2,NO.2 |
4 | ||
| 13011 - RING SET, PISTON | ||||
| 13013-71021 |
3Y..YY211..WT O/S 0.50 |
1 | ||
| 13014-71021 |
3Y..YY211..WT O/S 0.75 |
1 | ||
| 13011-71021 |
3Y..YY211..WT STD |
1 | ||
| 13015-71021 |
3Y..YY211..WT O/S 1.00 |
1 | ||
| 13011-71012 |
3Y..YY211..WT STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7101106 |
3Y..YY211 MARK 6 |
4 | ||
| 13041-7101108 |
3Y..YY211 MARK 8 |
4 | ||
| 13041-7101107 |
3Y..YY211 MARK 7 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-7101106 |
3Y..YY211 MARK 6 |
4 | ||
| 13041-7101108 |
3Y..YY211 MARK 8 |
4 | ||
| 13041-7101107 |
3Y..YY211 MARK 7 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-7301001 |
3Y..YY211 STD,MARK1 |
4 | ||
| 13101-7301003 |
3Y..YY211 STD,MARK3 |
4 | ||
| 13101-7301002 |
3Y..YY211 STD,MARK2 |
4 | ||
| 13104-73010 |
3Y..YY211 O/S 0.75 |
4 | ||
| 13103-73010 |
3Y..YY211 O/S 0.50 |
4 | ||
| 13105-73010 |
3Y..YY211 O/S 1.00 |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-79045 |
3Y..YY211 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-71011 |
3Y..YY211 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-29025 |
3Y..YY211 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-09001 |
3Y..YY211 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-72011 |
3Y..YY211 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
3Y..YY211 L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10042 |
3Y..YY211 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-73900 |
3Y..YY211 |
1 | ||
| 13411-73010 |
3Y..YY211 |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-73900 |
3Y..YY211 |
1 | ||
| 13411-73010 |
3Y..YY211 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-20010 |
3Y..YY211 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-73010 |
3Y..YY211 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05005 |
3Y..YY211 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-14069 |
3Y..YY211 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88451-20110 |
3Y..YY211..T2,TW2;3Y..YY211..LHD..15T |
1 | ||
| 88451-20110 |
3Y..YY211 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-33010 |
3Y..YY211 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05005 |
3Y..YY211 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
