YY211R-TLMGS (1995)
Toyota Dyna 150
Production
May 1995
-
Feb 2000
Engine
3Y
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )

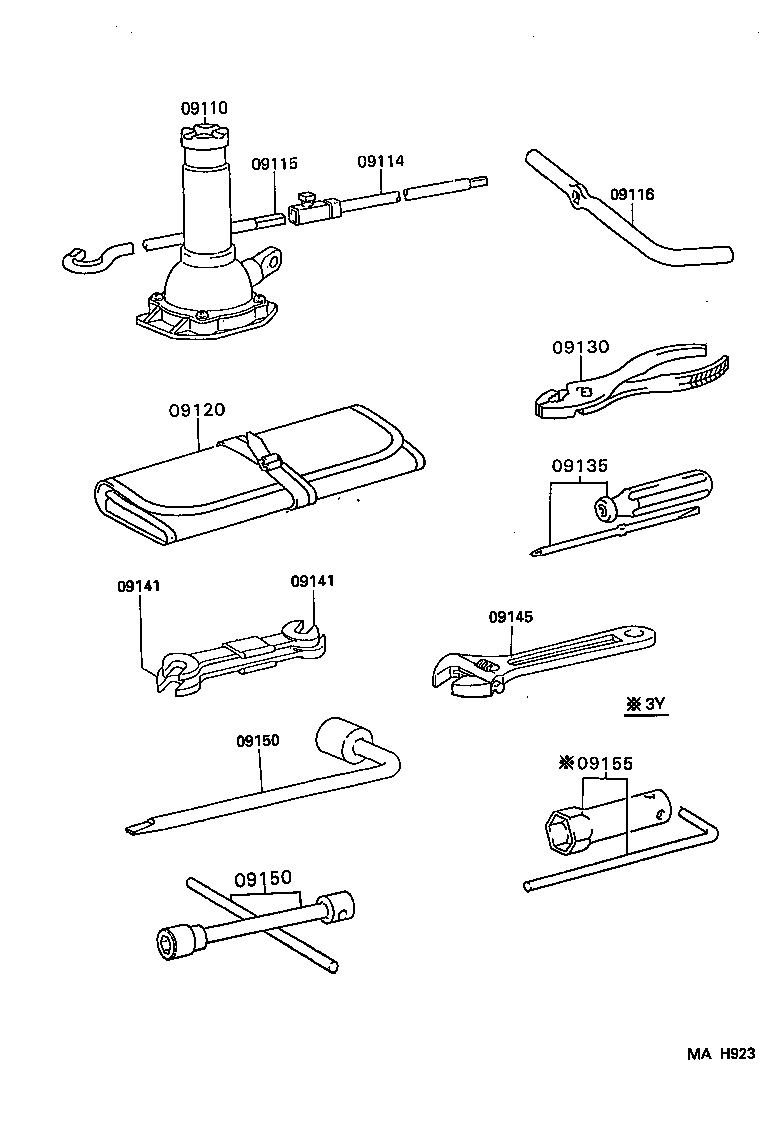

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09110 - JACK ASSY | ||||
| 09111-25071 |
LY211,YY211..EUR,GEN |
1 | ||
| 09110-25111 |
LY21#,YY211 |
1 | ||
| 09111-25073 |
LY21#,YY211 |
1 | ||
| 09110-25110 |
LY211,YY211..EUR,GEN |
1 | ||
| 09114 - EXTENSION SUB-ASSY, JACK HANDLE | ||||
| 09114-28010 |
LY21#,YY211 |
1 | ||
| 09115 - ROD SUB-ASSY, JACK HANDLE | ||||
| 09115-35070 |
LY21#,YY211 |
1 | ||
| 09116 - LEVER, JACK HANDLE | ||||
| 09116-35041 |
LY21#,YY211 |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-26021 |
LY212..T2,TW1;LY21#..ST..EUR;LY211,YY211..ARL,GEN |
1 | ||
| 09130 - PLIERS | ||||
| 99913-11500 |
LY21#,YY211 |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 99915-10700 |
LY21#,YY211 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11214 |
LY21#,YY211 12 X 14 |
1 | ||
| 99914-10810 |
LY21#,YY211 8 X 10 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-11214 |
LY21#,YY211 12 X 14 |
1 | ||
| 99914-10810 |
LY21#,YY211 8 X 10 |
1 | ||
| 09145 - WRENCH, MONKEY | ||||
| 99911-11200 |
LY21#,YY211 |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-25010 |
LY211,YY211..WT..CBU REAR |
1 | ||
| 09150-26030 |
LY21#,YY211..RHD..WT FRONT |
1 | ||
| 09150-25010 |
LY211..ST..EUR;LY211,YY211..ARL,GEN REAR |
1 | ||
| 09150-25030 |
LY211..ST..EUR;LY21#,YY211..ARL,GEN,SA REAR |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-25010 |
LY211,YY211..WT..CBU REAR |
1 | ||
| 09150-26030 |
LY21#,YY211..RHD..WT FRONT |
1 | ||
| 09150-25010 |
LY211..ST..EUR;LY211,YY211..ARL,GEN REAR |
1 | ||
| 09150-25030 |
LY211..ST..EUR;LY21#,YY211..ARL,GEN,SA REAR |
1 | ||
| 09155 - WRENCH, SPARK PLUG | ||||
| 09155-41010 |
YY211 |
1 | ||
