YY211R-TBMFS (1995)

Toyota Dyna 150

Production May 1995 - May 1999
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )15T

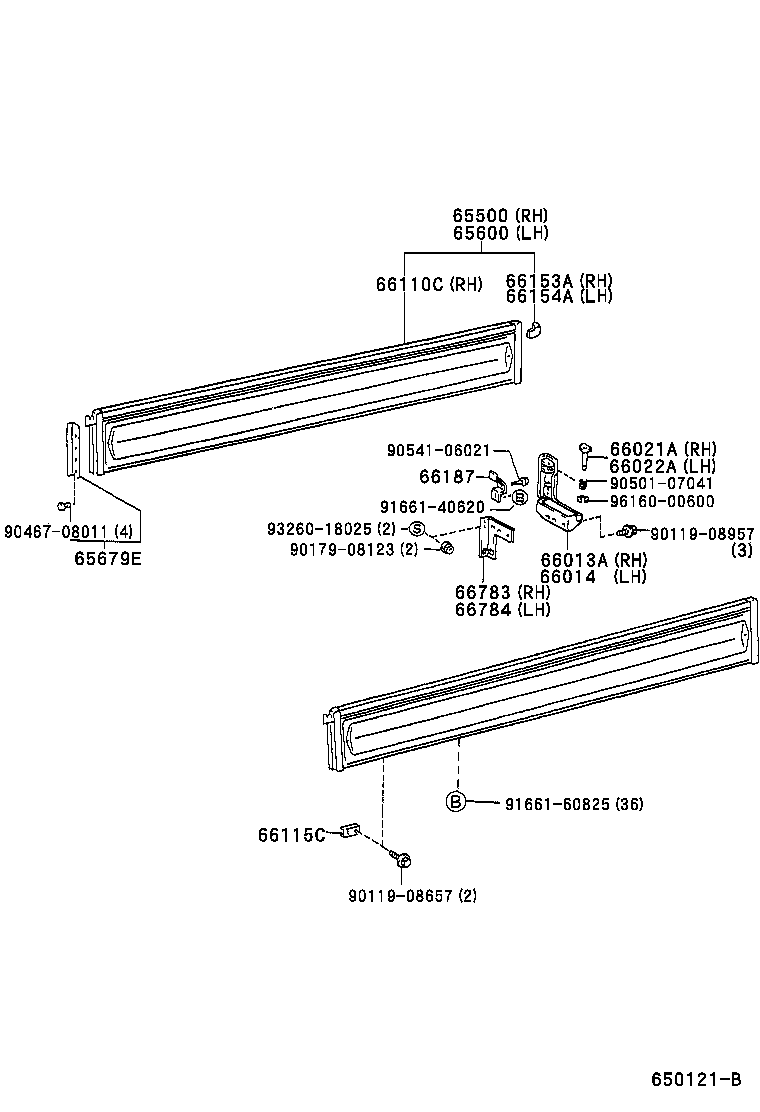

Click highlighted areas on diagram

diagram 65500 65600 65679E 66013A 66014 66021A 66022A 66110C 66115C 66153A 66154A 66187 66783 66784 9011908657 9011908957 9017908123 9046708011 9050107041 9054106021 9166140620 9166160825 9326018025 9616000600
Part # Description Qty Price
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-26060

LY211,YY211..15T..CBU

 1
65500-26061

LY21#,YY211..15T..CBU

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-26060

LY211,YY211..15T..CBU

 1
65600-26061

LY21#,YY211..15T..CBU

 1
65679E - SEAL, SIDE GATE
65679-25040

LY21#,YY211..15T..CBU

RH

 1
65679-25030

LY21#,YY211..15T..CBU

LH

 1
66013A - SUPPORT SUB-ASSY, SIDE GATE, RH
66013-25010

LY21#,YY211..15T..CBU

 1
66014 - SUPPORT SUB-ASSY, CORNER, LH
66014-25010

LY21#,YY211..15T..CBU

 1
66021A - HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER, RH
66021-25010

LY21#,YY211..15T..CBU

 1
66022A - HANDLE SUB-ASSY, SIDE GATE SUPPORT CORNER, LH
66022-25010

LY21#,YY211..15T..CBU

 1
66110C - HINGE ASSY, SIDE GATE, NO.1 RH
65040-95A00

LY21#,YY211..15T..CBU

 6
66115C - RETAINER, GATE HINGE
66115-95018

LY211,YY211..ST..15T..CBU

 12
66153A - LATCH, TAIL GATE FEMALE, RH
66153-26010

LY21#,YY211..15T..CBU

 1
66154A - LATCH, TAIL GATE FEMALE, LH
66154-26010

LY21#,YY211..15T..CBU

 1
66187 - HANDLE, SIDE GATE LATCH, CENTER NO.2
66187-25010

LY21#,YY211..15T..CBU

 2
66783 - BRACKET, SIDE GATE SUPPORT, RH
66197-25010

LY21#,YY211..15T..CBU

 1
66784 - BRACKET, SIDE GATE SUPPORT, LH
66198-25010

LY21#,YY211..15T..CBU

 1
Common parts
90119-08657
90119-08957
90179-08123
90467-08011
90501-07041
90541-06021
91661-40620
91661-60825
93260-18025
96160-00600
