YY211R-TBMFS (1995)

Toyota Dyna 150

Production May 1995 - May 1999
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )LY211,YY211..T3

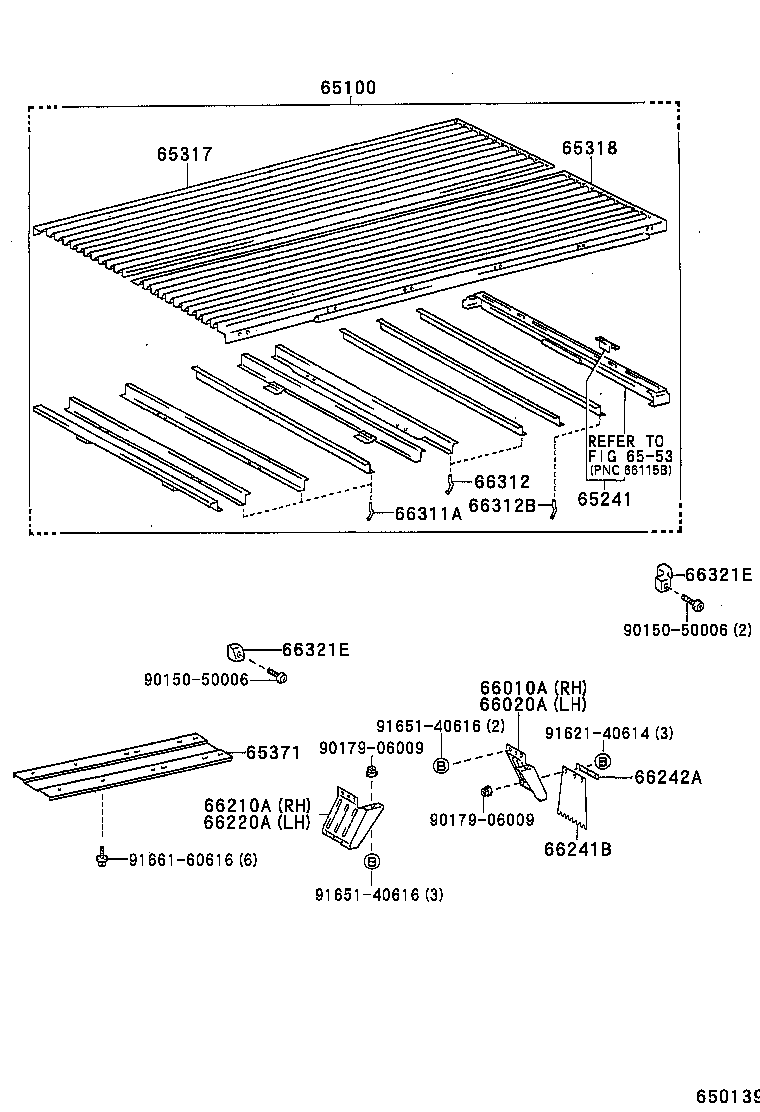

Click highlighted areas on diagram

diagram 65100 65241 65317 65318 65371 6553 66010A 66020A 66210A 66220A 66241B 66242A 66311A 66312 66312B 66321E 66321E 9015050006 9015050006 9017906009 9017906009 9162140614 9165140616 9165140616 9166160616
Part # Description Qty Price
65100 - FLOOR ASSY, REAR BODY
65100-25120

YY211..ST..15T

 1
65241 - SILL, REAR CROSS
65240-95A09

LY211,YY211..ST..15T..CBU

 1
65317 - PANEL, FLOOR SIDE, RH
65317-95044

LY211,YY211..ST..15T..CBU

 1
65318 - PANEL, FLOOR SIDE, LH
65318-95040

LY21#,YY211..15T..CBU

 1
65371 - INSULATOR, REAR FLOOR
65371-25040

YY211..RHD..ST

SINGAPORE SPEC

 1
66010A - FENDER ASSY, REAR NO.2 RH
66010-95017

LY211,YY211..ST..15T..CBU

 1
66020A - FENDER ASSY, REAR NO.2 LH
66020-95017

LY211,YY211..ST..15T..CBU

 1
66210A - FENDER ASSY, REAR NO.1 RH
66205-95011

LY211,YY211..ST..15T..CBU

 1
66220A - FENDER ASSY, REAR NO.1 LH
66206-95011

LY211,YY211..ST..15T..CBU

 1
66241B - BAFFLE, RUBBER
76625-37010

LY211,YY211..ST..CBU

 2
66242A - PLATE, BAFFLE RUBBER
66242-95012

LY211,YY211..ST..CBU

 2
66311A - HOOK, ROPE, NO.1
66311-95014

YY211..15T;LY21#..WT..15T..CBU

 2
66312 - HOOK, ROPE, NO.2
66311-95014

YY211..ST..15T

 2
66312B - HOOK, ROPE, INNER
66311-95014

LY211,YY211..ST..15T..CBU

 2
66321E - BUMPER, GATE RUBBER
66331-95010

LY21#,YY211..15T..CBU

FR

 2
66321-25010

LY21#,YY211..15T..CBU

RR

 2
66321E - BUMPER, GATE RUBBER
66331-95010

LY21#,YY211..15T..CBU

FR

 2
66321-25010

LY21#,YY211..15T..CBU

RR

 2
Common parts
90150-50006
90179-06009
91621-40614
91651-40616
91661-60616
Linked diagrams
6553
