YY211R-PGMES (1995)
Toyota Dyna 150

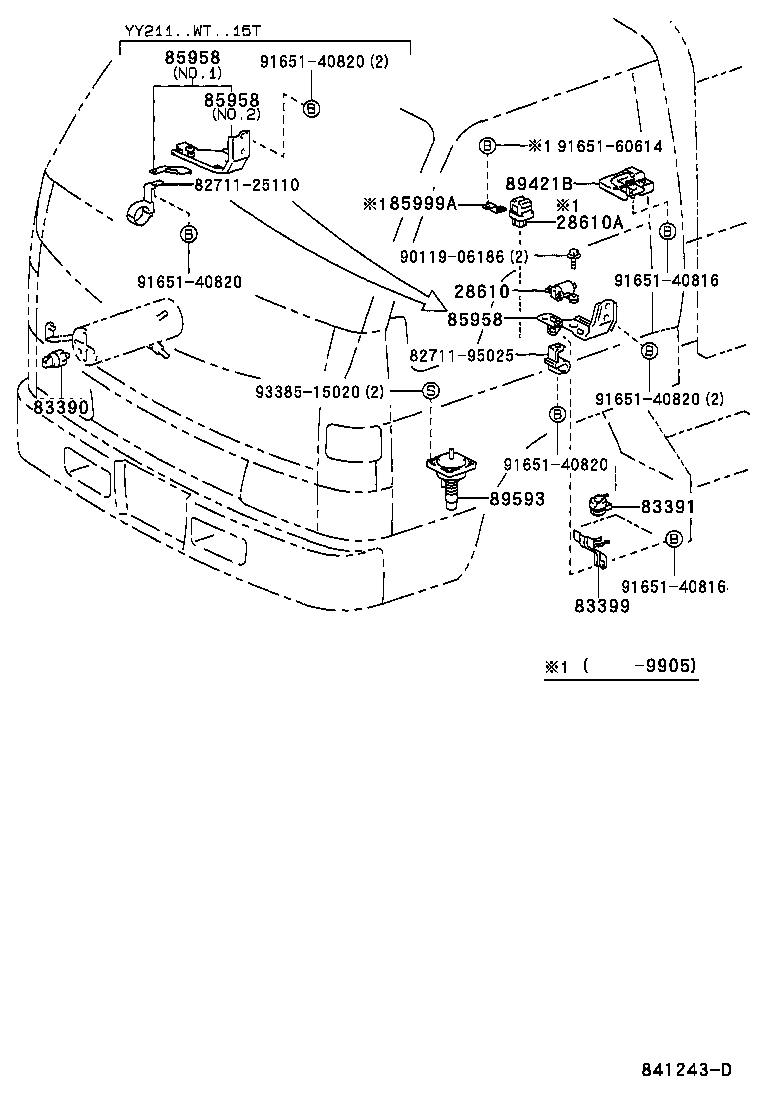

ILLUST NO. 2 OF 7(9505- )
E/G ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83391 - SWITCH, VACUUM | ||||
| 83391-27060 |
YY211 |
1 | ||
| 83391-27060 |
YY211..T2,TW2;YY211..LHD..15T |
1 | ||
| 83399 - BRACKET, VACUUM SWITCH | ||||
| 83399-25030 |
YY211 |
1 | ||
| 83399-25030 |
YY211..T2,TW2;YY211..LHD..15T |
1 | ||
| 85958 - BRACKET, MAIN RELAY | ||||
| 85958-25040 |
LY211,YY211..125 |
1 | ||
| 85958 - BRACKET, MAIN RELAY | ||||
| 85958-25040 |
LY211,YY211..125 |
1 | ||
| 85958 - BRACKET, MAIN RELAY | ||||
| 85958-25040 |
LY211,YY211..125 |
1 | ||
| Common parts | ||||
| 82711-25110 | ||||
| 82711-95025 | ||||
| 90119-06186 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-60614 | ||||
| 93385-15020 | ||||

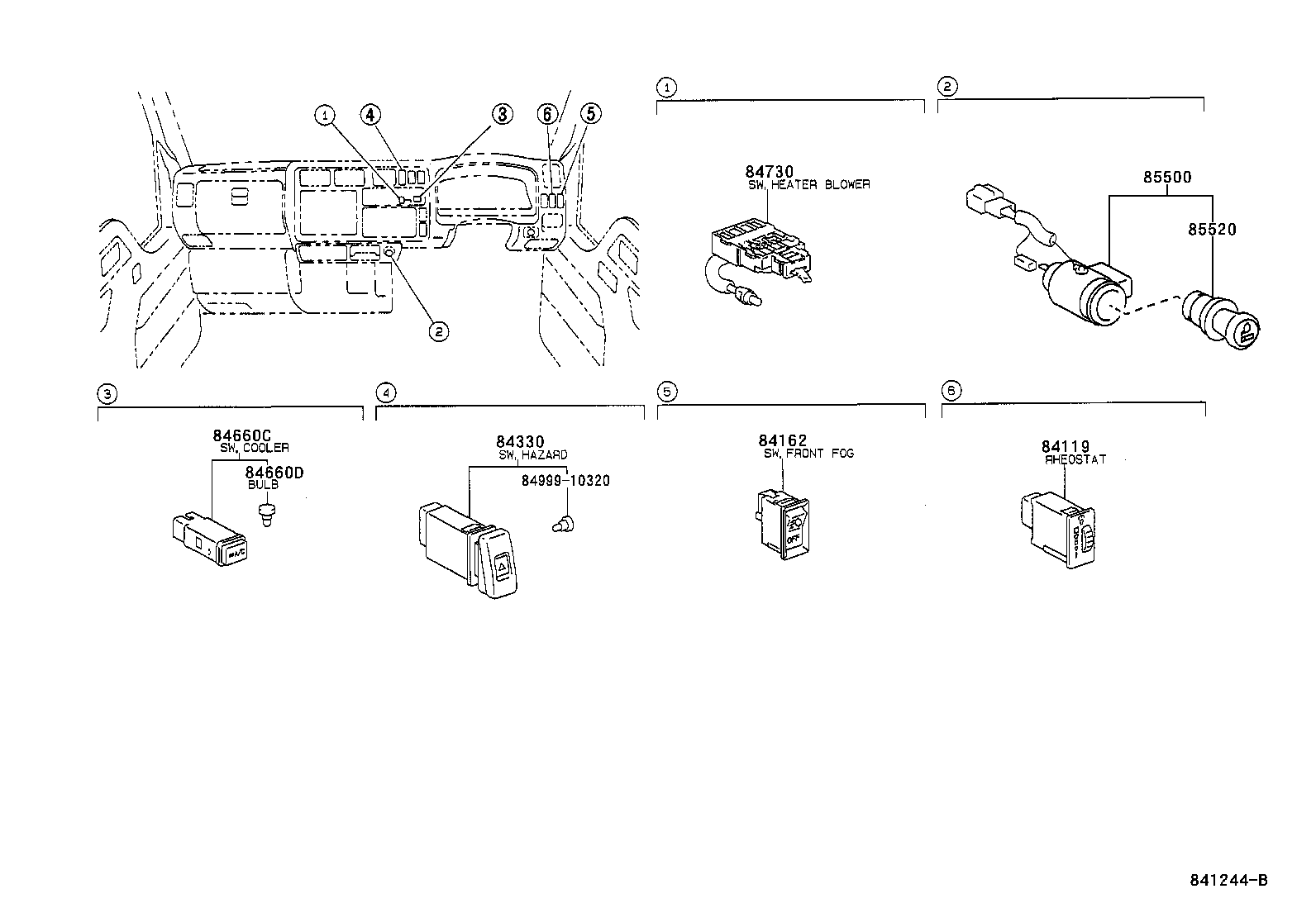

ILLUST NO. 3 OF 7(9505- )
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-95400 |
LY211,YY211..GEN |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37050 |
LY21#,YY211 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-35010 |
LY211,YY211..GEN |
1 | ||
| 84660-37020 |
LY211,YY211..RHD..GEN REFRIGERATOR CAR SERIES |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-16010 |
LY211,YY211..ARL,GEN 14V 0.065A |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-42010 |
LY212..SA;LY211,YY211..RHD |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-25010 |
LY21#,YY211 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-17020 |
LY21#,YY211 |
1 | ||
| Common parts | ||||
| 84999-10320 | ||||

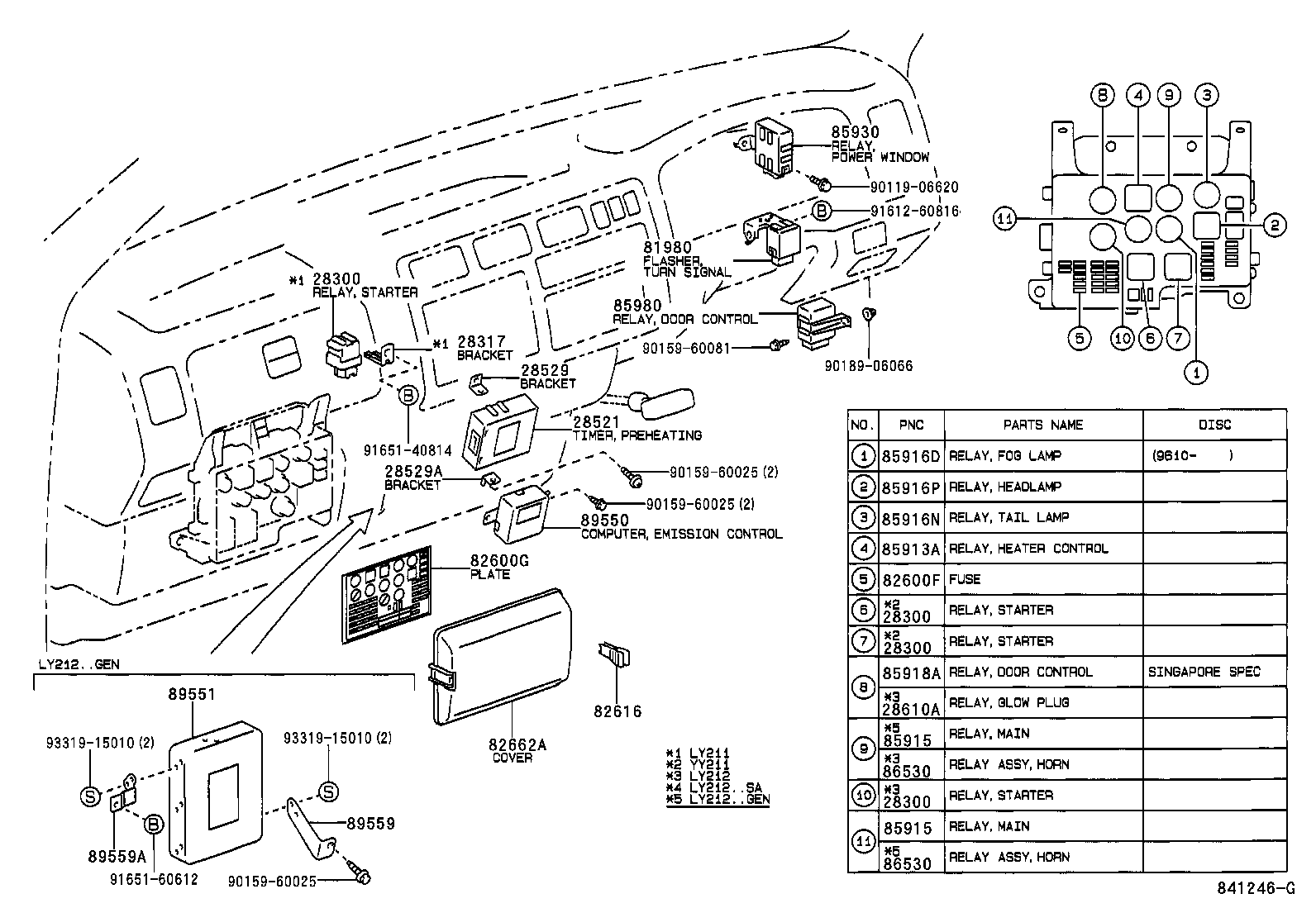

ILLUST NO. 4 OF 7(9505- )RHD
INSTRUMENT PANEL & COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
3Y..YY211 |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
3Y..YY211 |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
3Y..YY211 |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
3Y..YY211 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37041 |
LY21#,YY211 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
LY21#,YY211 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
LY21#,YY211 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
LY21#,YY211 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
LY21#,YY211 30A,MINI FUSE,GRN |
1 | ||
| 90982-09010 |
LY21#,YY211 15A,MINI FUSE,BLUE |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-25020 |
LY211,YY211..T2,T3,TW2 |
1 | ||
| 82683-25021 |
LY211;YY211..RHD |
1 | ||
| 82683-25070 |
LY211,YY211 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
LY21#,YY211 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37010B0 |
LY21#,YY211..ARL,EUR,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 85913A - RELAY, HEATER CONTROL | ||||
| 90987-04002 |
LY21#,YY211 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02004 |
LY211,YY211..GEN |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02004 |
LY21#,YY211 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
LY21#,YY211 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-26260 |
YY211..WT W(FR HEATER) |
1 | ||
| 89550-25070 |
YY211..WT |
1 | ||
| Common parts | ||||
| 90119-06620 | ||||
| 90159-60025 | ||||
| 90159-60081 | ||||
| 90189-06066 | ||||
| 91612-60816 | ||||
| 91651-40814 | ||||
| 91651-60612 | ||||
| 93319-15010 | ||||

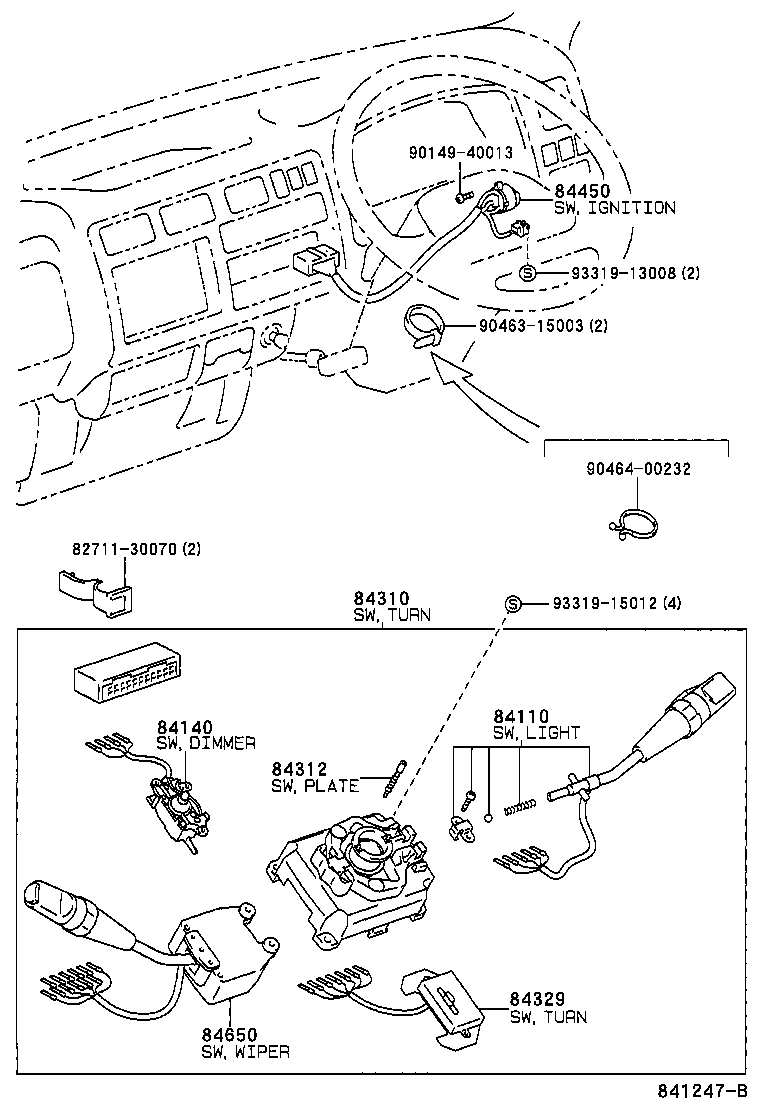

ILLUST NO. 5 OF 7(9505- )
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80189 |
LY211,YY211..RHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-25050 |
LY211,YY211..RHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-25200 |
LY211,YY211..RHD |
1 | ||
| 84310-25170 |
LY211,YY211..RHD W(INTERMITTENT WIPER) |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
LY21#,YY211 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-25020 |
LY211,YY211..RHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-37020 |
YY211;LY211..ARL,EUR |
1 | ||
| 84450-37020 |
LY211..WT;LY212,YY211;LY211..ST..(ARL,EUR) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-25070 |
LY211,YY211..RHD W(INTERMITTENT WIPER) |
1 | ||
| 84652-25090 |
LY211,YY211..RHD |
1 | ||
| Common parts | ||||
| 82711-30070 | ||||
| 90149-40013 | ||||
| 90463-15003 | ||||
| 90464-00232 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||

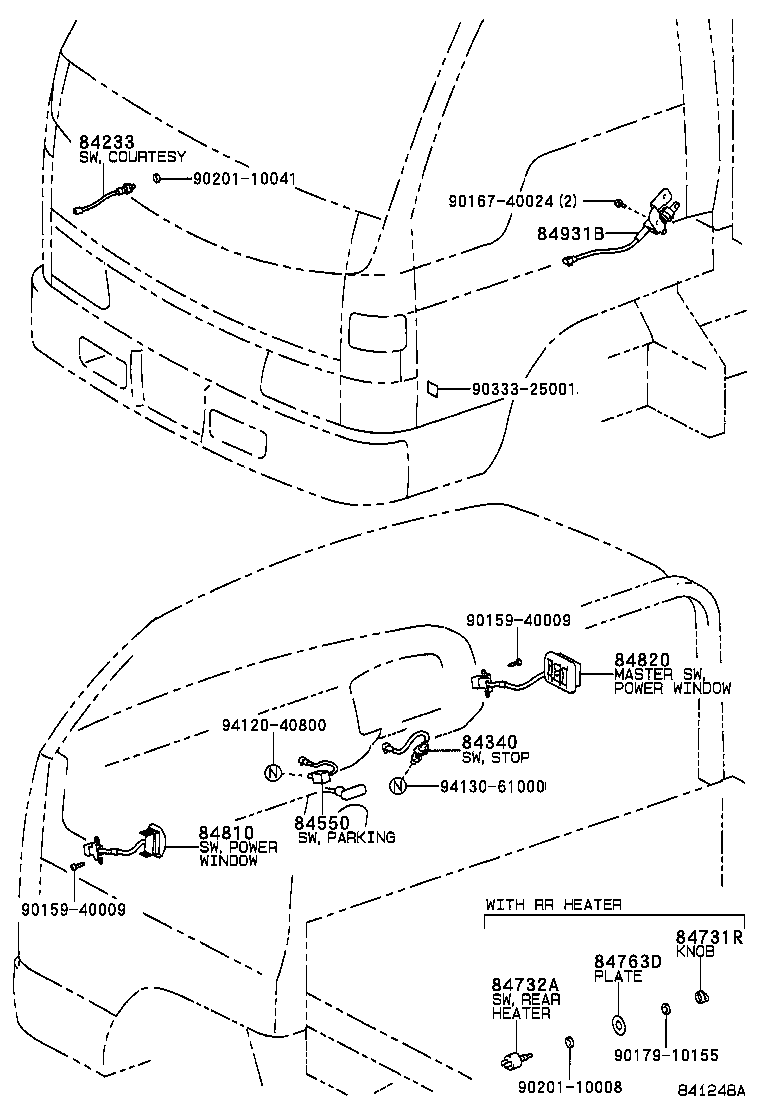

ILLUST NO. 6 OF 7(9505- )
DOOR, ROOF & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-28020 |
LY21#,YY211 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-36070 |
LY21#,YY211 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-25020 |
LY21#,YY211 |
1 | ||
| Common parts | ||||
| 90159-40009 | ||||
| 90167-40024 | ||||
| 90179-10155 | ||||
| 90201-10008 | ||||
| 90201-10041 | ||||
| 90333-25001 | ||||
| 94120-40800 | ||||
| 94130-61000 | ||||

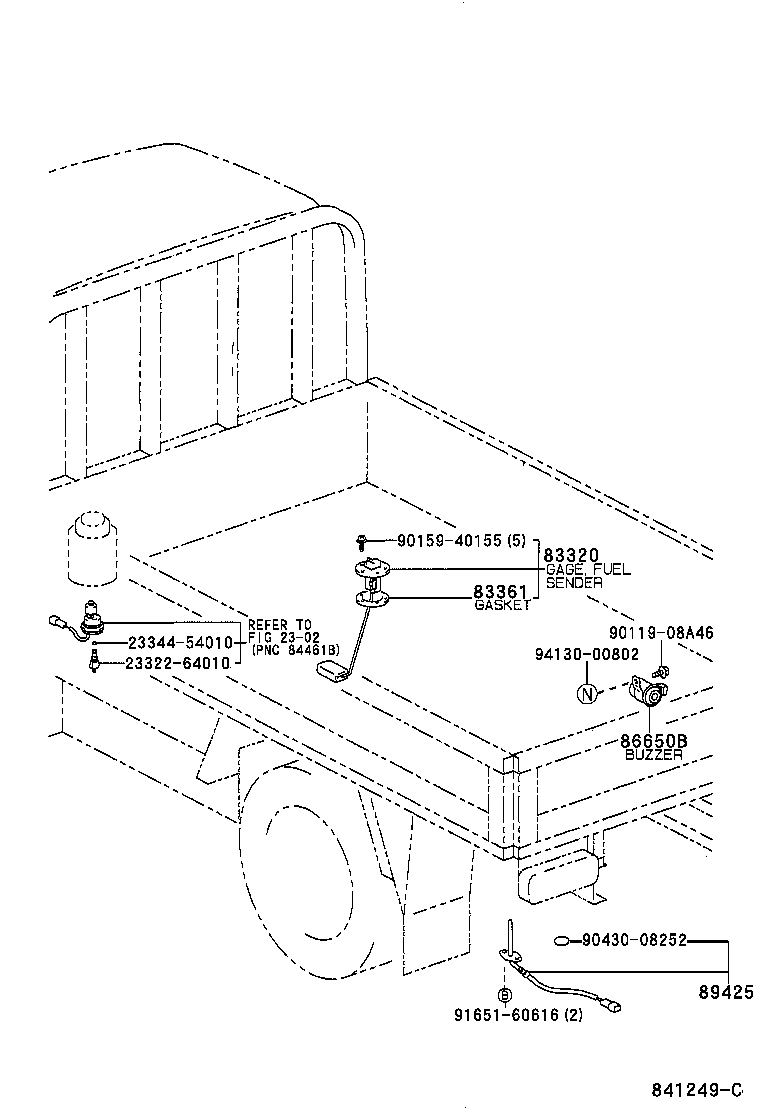

ILLUST NO. 7 OF 7(9505- )
REAR BODY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80317 |
LY21#,YY211..125 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
LY21#,YY211 |
1 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-95A04 |
LY21#,YY211 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-39495 |
YY211..WT |
1 | ||
| 89425-39495 |
YY211..RHD |
1 | ||
| Common parts | ||||
| 23322-64010 | ||||
| 23344-54010 | ||||
| 90119-08A46 | ||||
| 90159-40155 | ||||
| 90430-08252 | ||||
| 91651-60616 | ||||
| 94130-00802 | ||||
ILLUST NO. 1 OF 7(9505- )
E/G,T/M,T/F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
LY21#,YY211 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
LY21#,YY211 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
YY211 |
1 | ||
| 83530-14070 |
YY211 |
1 | ||
| 83530-28020 |
YY211 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
YY211 |
1 | ||
| 83530-14070 |
YY211 |
1 | ||
| 83530-28020 |
YY211 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
LY21#,YY211 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
LY21#,YY211 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-36100 |
YY211 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-36100 |
YY211 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-36100 |
YY211 |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-57010 | ||||
| 28623-54010 | ||||
| 90116-06041 | ||||
| 90116-06095 | ||||
| 90179-05032 | ||||
| 90179-06158 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 90430-27001 | ||||
| 91651-60614 | ||||
| 94613-10601 | ||||
