YY211R-PGMES (1995)

Toyota Dyna 150

Production May 1995 - May 1999
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )LY212..EUR ; (9505- )LY211,YY211

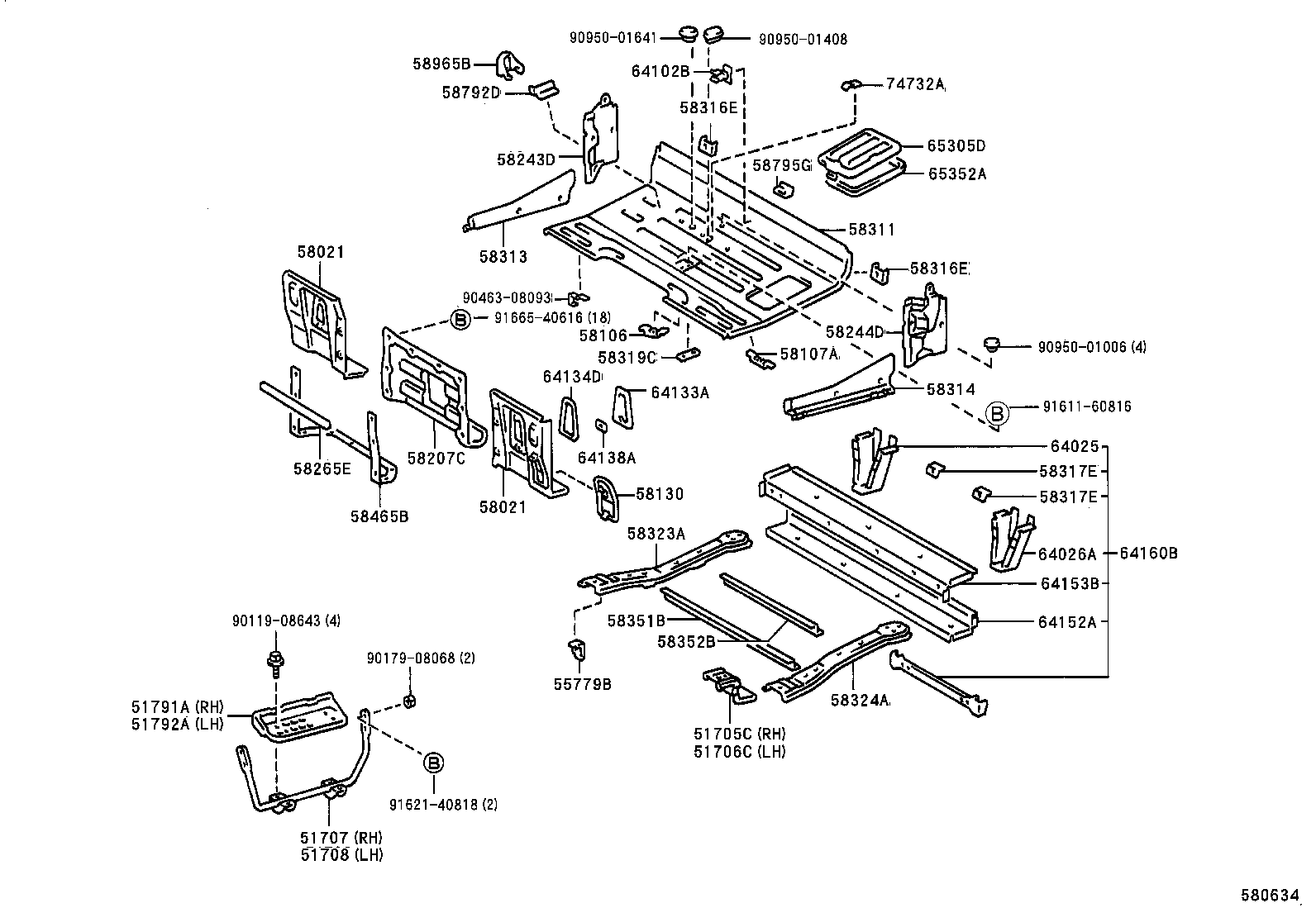

Click highlighted areas on diagram

diagram 51705C 51706C 51707 51708 51791A 51792A 55779B 58021 58021 58106 58107A 58130 58207C 58243D 58244D 58265E 58311 58313 58314 58316E 58316E 58317E 58317E 58319C 58323A 58324A 58351B 58352B 58465B 58792D 58795G 58965B 64025 64026A 64102B 64133A 64134D 64138A 64152A 64153B 64160B 65305D 65352A 74732A 9011908643 9017908068 9046308093 9095001006 9095001408 9095001641 9161160816 9162140818 9166540616
Part # Description Qty Price
51705C - BRACKET SUB-ASSY, CAB REAR MOUNTING, RH
51705-95400

LY21#,YY211..125

 1
51706C - BRACKET SUB-ASSY, CAB REAR MOUNTING, LH
51706-95400

LY21#,YY211..125

 1
51707 - STEP SUB-ASSY, RH
58307-95403

LY21#,YY211..125

 1
51708 - STEP SUB-ASSY, LH
58308-95400

LY21#,YY211..125

 1
51791A - PANEL, STEP, REAR RH
51791-95A00

LY21#,YY211..125

 1
51792A - PANEL, STEP, REAR LH
51791-95A00

LY21#,YY211..125

 1
55779B - BRACKET, WIRING HARNESS MOUNTING
55779-95010

LY21#,YY211..125

 1
58021 - PANEL SUB-ASSY, HEADER
58022-25010

LY21#,YY211..125

LH

 1
58021-25010

LY21#,YY211..125

RH

 1
58021 - PANEL SUB-ASSY, HEADER
58022-25010

LY21#,YY211..125

LH

 1
58021-25010

LY21#,YY211..125

RH

 1
58106 - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2
58106-95A00

LY21#,YY211..125

 2
58107A - BRACKET SUB-ASSY, CLAMP SET, NO.1
58107-95A00

LY21#,YY211..125

 1
58130 - COVER ASSY, RESERVE TANK SERVICE HOLE
58130-92600

LY21#,YY211..125

 1
58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE
58207-37020

LY211,YY211..125

 1
58207-37021

LY21#,YY211..125

 1
58243D - PANEL, FLOOR SIDE, REAR RH
58043-37010

LY21#,YY211..125

 1
58244D - PANEL, FLOOR SIDE, REAR LH
58044-37010

LY21#,YY211..125

 1
58265E - PACKING, TRANSMISSION COVER, C
58265-95400

LY21#,YY211..125

 1
58311 - PAN, REAR FLOOR
58311-95417

LY21#,YY211..125

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-95402

LY21#,YY211..125

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-95403

LY21#,YY211..125

 1
58316E - RETAINER, REAR SEAT SET
58316-95402

LY21#,YY211..125

 2
58316E - RETAINER, REAR SEAT SET
58316-95402

LY21#,YY211..125

 2
58317E - RETAINER, REAR SEAT, NO.2
58317-95402

LY21#,YY211..125

 2
58317E - RETAINER, REAR SEAT, NO.2
58317-95402

LY21#,YY211..125

 2
58319C - ANCHOR, REAR SEAT
58319-95400

LY21#,YY211..125

 1
58323A - BRACE, CENTER TO REAR MOUNTING, RH
58323-95403

LY21#,YY211..125

 1
58324A - BRACE, CENTER TO REAR MOUNTING, LH
58324-95403

LY21#,YY211..125

 1
58351B - REINFORCEMENT, REAR FLOOR PANEL, RH
58351-95406

LY21#,YY211..125

 1
58352B - REINFORCEMENT, REAR FLOOR PANEL, LH
58352-95402

LY21#,YY211..125

 1
58465B - PACKING, TRANSMISSION SERVICE HOLE COVER
58465-92601

LY21#,YY211..125

 1
58792D - SUPPORT, JACK
58792-95400

LY21#,YY211..125

 1
58795G - PLATE, JACK CLAMP
58795-95500

LY21#,YY211..125

 1
58965B - HOLDER, JACK
58965-95400

LY21#,YY211..125

 1
64025 - BRACKET SUB-ASSY, REAR MOUNTING, RH
64025-95401

LY21#,YY211..125

 1
64026A - BRACKET SUB-ASSY, REAR MOUNTING, LH
64025-95401

LY21#,YY211..125

 1
64102B - BRACKET SUB-ASSY, JACK HANDLE SUPPORT
64102-95A00

LY21#,YY211..125

 2
64133A - COVER, HEADER PANEL
64133-95400

LY21#,YY211..125

 2
64134D - PACKING, HEADER PANEL COVER
64134-95400

LY21#,YY211..125

 2
64138A - SEAL, HEADER PANEL COVER
64138-95400

LY21#,YY211..125

 4
64152A - FRAME, BACK, LOWER
64152-95402

LY21#,YY211..125

 1
64153B - FRAME, BACK, REAR
64153-95403

LY21#,YY211..125

 1
64160B - FRAME ASSY, BACK, REAR
64160-95017

LY21#,YY211..125

 1
65305D - COVER SUB-ASSY, BATTERY HOLE
65305-95A03

LY21#,YY211..125

BLACK,TRIM1#

 1
65352A - PACKING, BATTERY HOLE COVER, NO.2
65352-95A02

LY21#,YY211..125

 1
74732A - BRACKET, TOOL BAG SET BAND
74732-95600

LY21#,YY211..125

 2
Common parts
90119-08643
90179-08068
90463-08093
90950-01006
90950-01408
90950-01641
91611-60816
91621-40818
91665-40616
