YY211L-TBMFS (1995)
Toyota Dyna 150

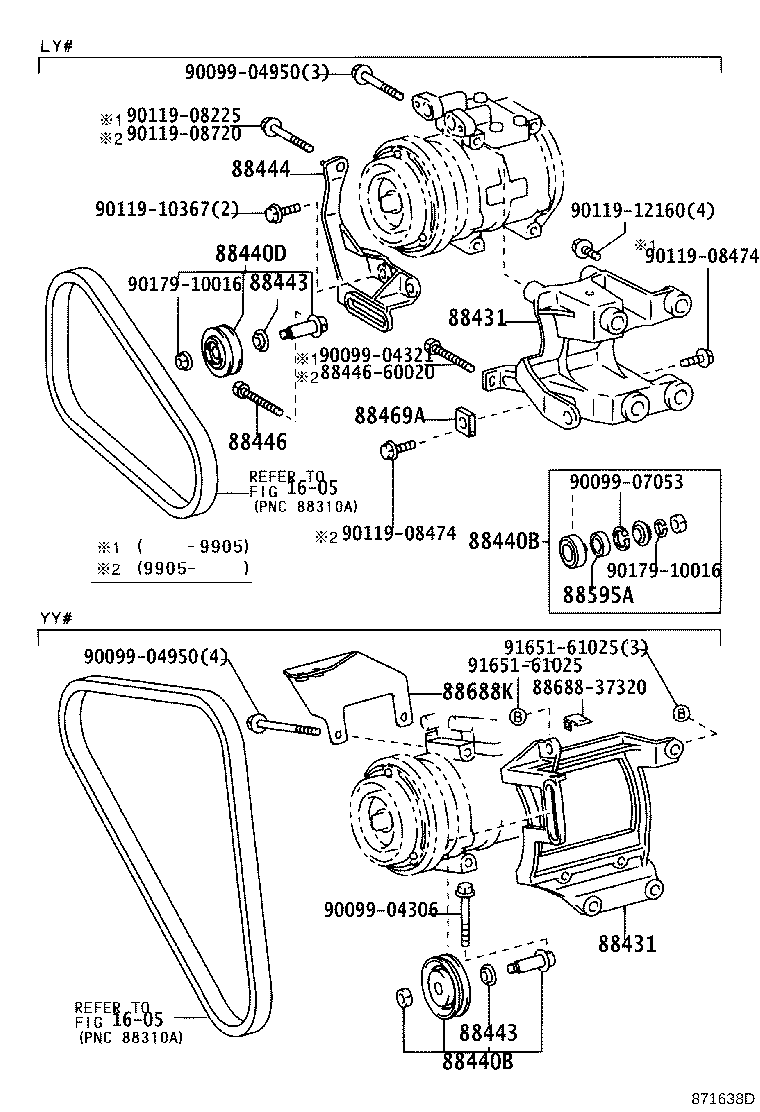

ILLUST NO. 2 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-28070 |
YY211 |
1 | ||
| 88431-28070 |
YY211..T2,TW2;YY211..LHD..15T |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-28070 |
YY211 |
1 | ||
| 88431-28070 |
YY211..T2,TW2;YY211..LHD..15T |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-35020 |
YY211..T2,TW2;YY211..LHD..15T |
1 | ||
| 88440-35020 |
YY211 |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-35020 |
YY211..T2,TW2;YY211..LHD..15T |
1 | ||
| 88440-35020 |
YY211 |
1 | ||
| 88443 - COLLAR, IDLE PULLEY | ||||
| 88443-36010 |
YY211;LY211..RHD |
1 | ||
| 88443 - COLLAR, IDLE PULLEY | ||||
| 88443-36010 |
YY211;LY211..RHD |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-35010 |
LY211,YY211..ARL,GEN |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-25130 |
YY211 |
1 | ||
| Common parts | ||||
| 88446-60020 | ||||
| 88688-37320 | ||||
| 90099-04306 | ||||
| 90099-04321 | ||||
| 90099-04950 | ||||
| 90099-07053 | ||||
| 90119-08225 | ||||
| 90119-08474 | ||||
| 90119-08720 | ||||
| 90119-10367 | ||||
| 90119-12160 | ||||
| 90179-10016 | ||||
| 91651-61025 | ||||
| Linked diagrams | ||||
| 1605 | ||||
ILLUST NO. 3 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88316C - KEY, COMPRESSOR CRANKSHAFT | ||||
| 90099-13024 |
YY211 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-26470 |
YY211 |
1 | ||
| 88320-26470 |
YY211..T2,TW2;YY211..LHD..15T |
1 | ||
| 88320A - BOLT, THROUGH | ||||
| 90099-04958 |
YY211..T2,TW2;YY211..LHD..15T |
5 | ||
| 90099-04958 |
YY211 |
5 | ||
| 88320B - BOLT, SERVICE VALVE | ||||
| 90099-04307 |
YY211 |
4 | ||
| 90099-04307 |
YY211..T2,TW2;YY211..LHD..15T |
4 | ||
| 88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL | ||||
| 88335-28020 |
YY211 |
1 | ||
| 88335-28020 |
YY211..T2,TW2;YY211..LHD..15T |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-30300 |
YY211..T2,TW2;YY211..LHD..15T FRONT |
1 | ||
| 88322-14011 |
YY211..T2,TW2;YY211..LHD..15T REAR |
1 | ||
| 88322-14011 |
YY211 REAR |
1 | ||
| 88321-30300 |
YY211 FRONT |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-30300 |
YY211..T2,TW2;YY211..LHD..15T FRONT |
1 | ||
| 88322-14011 |
YY211..T2,TW2;YY211..LHD..15T REAR |
1 | ||
| 88322-14011 |
YY211 REAR |
1 | ||
| 88321-30300 |
YY211 FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-28260 |
YY211..T2,TW2;YY211..LHD..15T FRONT |
1 | ||
| 88342-28260 |
YY211..T2,TW2;YY211..LHD..15T REAR |
1 | ||
| 88342-28260 |
YY211 REAR |
1 | ||
| 88341-28260 |
YY211 FRONT |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-28260 |
YY211..T2,TW2;YY211..LHD..15T FRONT |
1 | ||
| 88342-28260 |
YY211..T2,TW2;YY211..LHD..15T REAR |
1 | ||
| 88342-28260 |
YY211 REAR |
1 | ||
| 88341-28260 |
YY211 FRONT |
1 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
YY211..T2,TW2;YY211..LHD..15T |
2 | ||
| 88344-14011 |
YY211 |
2 | ||
| 88321B - REED SUB-ASSY, VALVE | ||||
| 88344-14011 |
YY211..T2,TW2;YY211..LHD..15T |
2 | ||
| 88344-14011 |
YY211 |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
YY211 |
2 | ||
| 88343-14011 |
YY211..T2,TW2;YY211..LHD..15T |
2 | ||
| 88321C - REED, SUCTION VALVE | ||||
| 88343-14011 |
YY211 |
2 | ||
| 88343-14011 |
YY211..T2,TW2;YY211..LHD..15T |
2 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-26220 |
YY211..T2,TW2;YY211..LHD..15T |
1 | ||
| 88371-26220 |
YY211 |
1 | ||
| 88325A - PIN, CYLINDER BLOCK | ||||
| 90099-08058 |
LY211,YY211..ARL,GEN |
4 | ||
| 88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT | ||||
| 88360-30310 |
YY211..T2,TW2;YY211..LHD..15T |
1 | ||
| 88360-30310 |
YY211 |
1 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
LY211,YY211..ARL,GEN |
1 | ||

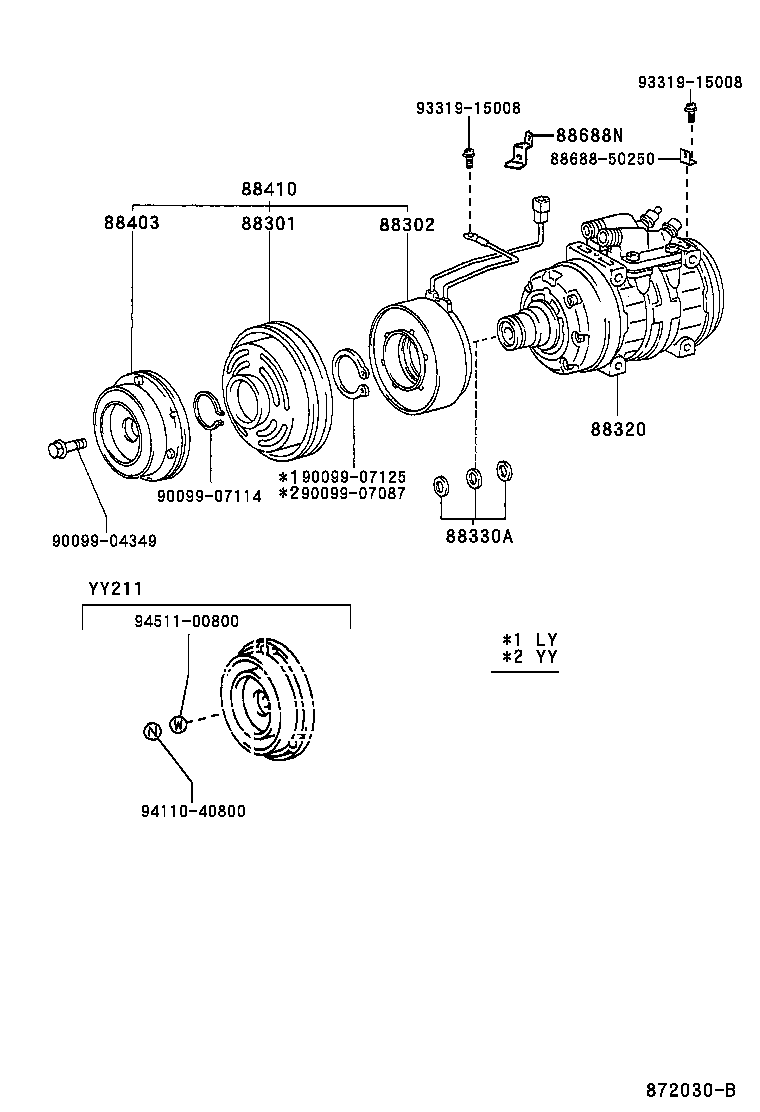

ILLUST NO. 1 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-22240 |
YY211 |
1 | ||
| 88412-22240 |
YY211..T2,TW2;YY211..LHD..15T |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-22300 |
YY211..T2,TW2;YY211..LHD..15T |
1 | ||
| 88411-22300 |
YY211 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-26470 |
YY211 |
1 | ||
| 88320-26470 |
YY211..T2,TW2;YY211..LHD..15T |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-12050 |
YY211 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-12030 |
YY211..T2,TW2;YY211..LHD..15T |
1 | ||
| 88403-12030 |
YY211 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-22470 |
YY211 |
1 | ||
| 88410-22470 |
YY211..T2,TW2;YY211..LHD..15T |
1 | ||
| Common parts | ||||
| 88688-50250 | ||||
| 90099-04349 | ||||
| 90099-07087 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 93319-15008 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
