YY211L-TBMFS (1995)

Toyota Dyna 150

Production May 1995 - May 1999
Engine 3Y
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

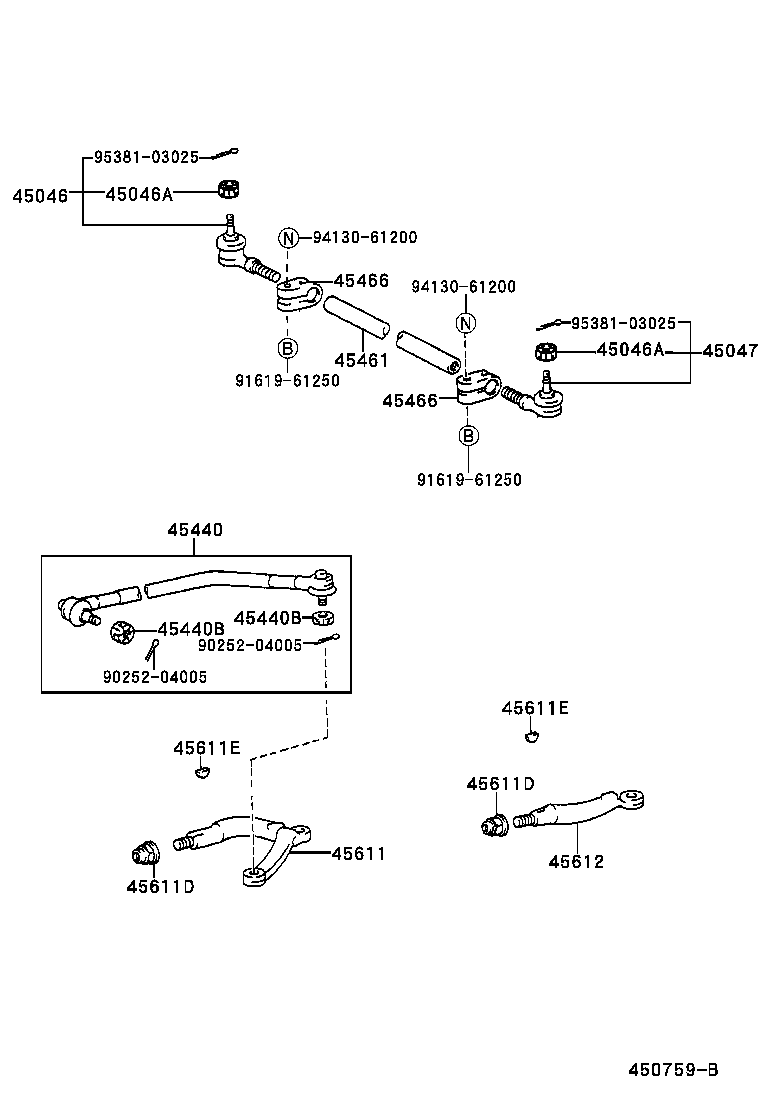

ILLUST NO. 3 OF 3(9505- )

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45440 45440B 45440B 45461 45466 45466 45611 45611D 45611D 45611E 45611E 45612 9025204005 9025204005 9161961250 9161961250 9413061200 9413061200 9538103025 9538103025
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-29315

LY21#,YY211..ARL,EUR,GEN

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

LY21#,YY211..ARL,EUR,GEN

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-14042

LY21#,YY211..ARL,EUR,GEN

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-29095

LY21#,YY211..ARL,EUR,GEN

 1
45440 - LINK ASSY, STEERING DRAG
45440-29245

LY21#,YY211..LHD

 1
45440B - NUT, CASTLE(FOR STEERING DRAG LINK)
90171-18003

LY21#,YY211

 2
45440B - NUT, CASTLE(FOR STEERING DRAG LINK)
90171-18003

LY21#,YY211

 2
45461 - ROD, STEERING TIE
45461-25030

LY21#..ST..EUR;LY21#,YY211..ARL,GEN

 1
45466 - CLAMP, TIE ROD END
45466-36020

LY21#,YY211..ARL,EUR,GEN

 2
45466 - CLAMP, TIE ROD END
45466-36020

LY21#,YY211..ARL,EUR,GEN

 2
45611 - ARM, STEERING KNUCKLE, RH
45611-25110

LY21#,YY211..LHD

 1
45611D - NUT(FOR STEERING KNUCKLE ARM)
90179-22007

LY21#,YY211

 2
45611D - NUT(FOR STEERING KNUCKLE ARM)
90179-22007

LY21#,YY211

 2
45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM)
90280-07012

LY21#,YY211

 2
45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM)
90280-07012

LY21#,YY211

 2
45612 - ARM, STEERING KNUCKLE, LH
45612-25080

LY21#,YY211..LHD

 1
Common parts
90252-04005
91619-61250
94130-61200
95381-03025

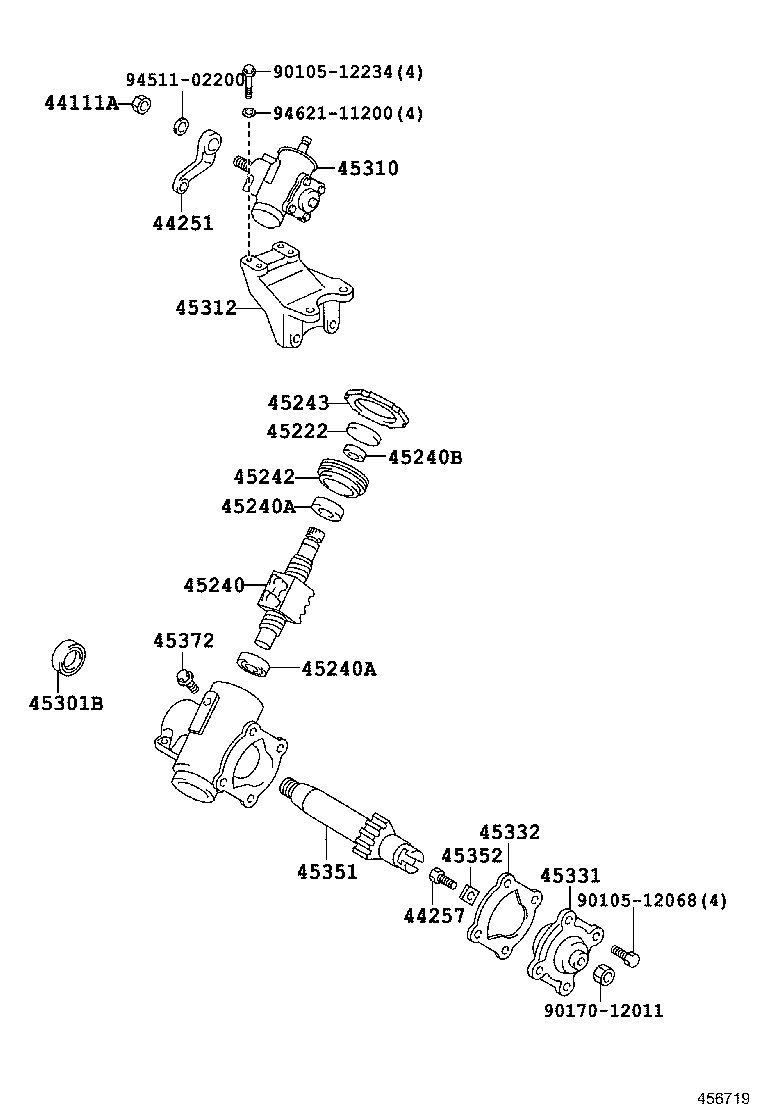

ILLUST NO. 1 OF 3(9505-9708) ; (9708- )ARL,GEN,SA

Click highlighted areas on diagram

diagram 44111A 44251 44257 45222 45240 45240A 45240A 45240B 45242 45243 45301B 45310 45312 45331 45332 45351 45352 45372 9010512068 9010512234 9017012011 9451102200 9462111200
Part # Description Qty Price
44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING)
90170-22058

LY21#,YY211

 1
44251 - ARM, PITMAN
45411-25211

LY211,YY211..LHD..GEN

 1
45411-25211

LY211,YY211..LHD

 1
44257 - SCREW, CROSS SHAFT ADJUSTING
45357-36010

LY21#,YY211..ARL,GEN,SA

 1
45357-36010

LY211,YY211

 1
45222 - COVER, STEERING GEAR DUST
45222-26010

LY211,YY211

 1
45222-26010

LY21#,YY211..ARL,GEN,SA

 1
45240 - WORM ASSY, STEERING
45240-60040

LY211,YY211..LHD

 1
45240-60040

LY211,YY211..LHD..GEN

 1
45240A - BEARING(FOR STEERING WORM)
90363-20024

LY211,YY211

 2
90363-20024

LY21#,YY211..ARL,GEN,SA

 2
45240A - BEARING(FOR STEERING WORM)
90363-20024

LY211,YY211

 2
90363-20024

LY21#,YY211..ARL,GEN,SA

 2
45240B - SEAL, OIL(FOR STEERING WORM)
90311-18010

LY211,YY211

 1
90311-18010

LY21#,YY211..ARL,GEN,SA

 1
45242 - SCREW, WORM BEARING ADJUSTING
45242-25010

LY21#,YY211..ARL,GEN,SA

 1
45242-25010

LY211,YY211

 1
45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK
45243-60020

LY21#,YY211..ARL,GEN,SA

 1
45243-60020

LY211,YY211

 1
45301B - SEAL, OIL(FOR SECTOR SHAFT)
90311-32014

LY21#,YY211..ARL,GEN,SA

 1
90311-32014

LY211,YY211

 1
45310 - HOUSING ASSY, STEERING GEAR
45310-25090

LY211,YY211..LHD

 1
45310-25090

LY211,YY211..LHD..GEN

 1
45312 - BRACKET, STEERING GEAR HOUSING
45312-25180

LY21#,YY211..LHD

 1
45331 - COVER, SECTOR SHAFT END
45304-25020

LY211,YY211

 1
45304-25020

LY21#,YY211..ARL,GEN,SA

 1
45332 - GASKET, SECTOR SHAFT END COVER
45332-26010

LY211,YY211

 1
45332-26010

LY21#,YY211..ARL,GEN,SA

 1
45351 - SHAFT, STEERING SECTOR
45351-25020

LY21#,YY211..ARL,GEN,SA

 1
45351-25020

LY211,YY211

 1
45352 - WASHER, SECTOR SHAFT THRUST
45352-37010

LY21#,YY211..ARL,GEN,SA

T=1.95

 1
45353-37010

LY21#,YY211..ARL,GEN,SA

T=2.00

 1
45353-37010

LY211,YY211

T=2.00

 1
45354-37010

LY211,YY211

T=2.05

 1
45354-37010

LY21#,YY211..ARL,GEN,SA

T=2.05

 1
45352-37010

LY211,YY211

T=1.95

 1
45372 - PLUG, STEERING GEAR HOUSING OIL
90930-03058

LY211,YY211

 1
90930-03058

LY21#,YY211..ARL,GEN,SA

 1
Common parts
90105-12068
90105-12234
90170-12011
94511-02200
94621-11200
