8716 - HEATING & AIR CONDITIONING - WATER PIPING

YY211L-PSMDS (1995)

Toyota Dyna 150

Production May 1995 - Jul 2001

Engine 3Y

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9505- )YY211

Click highlighted areas on diagram

Part #	Description	Period	Qty

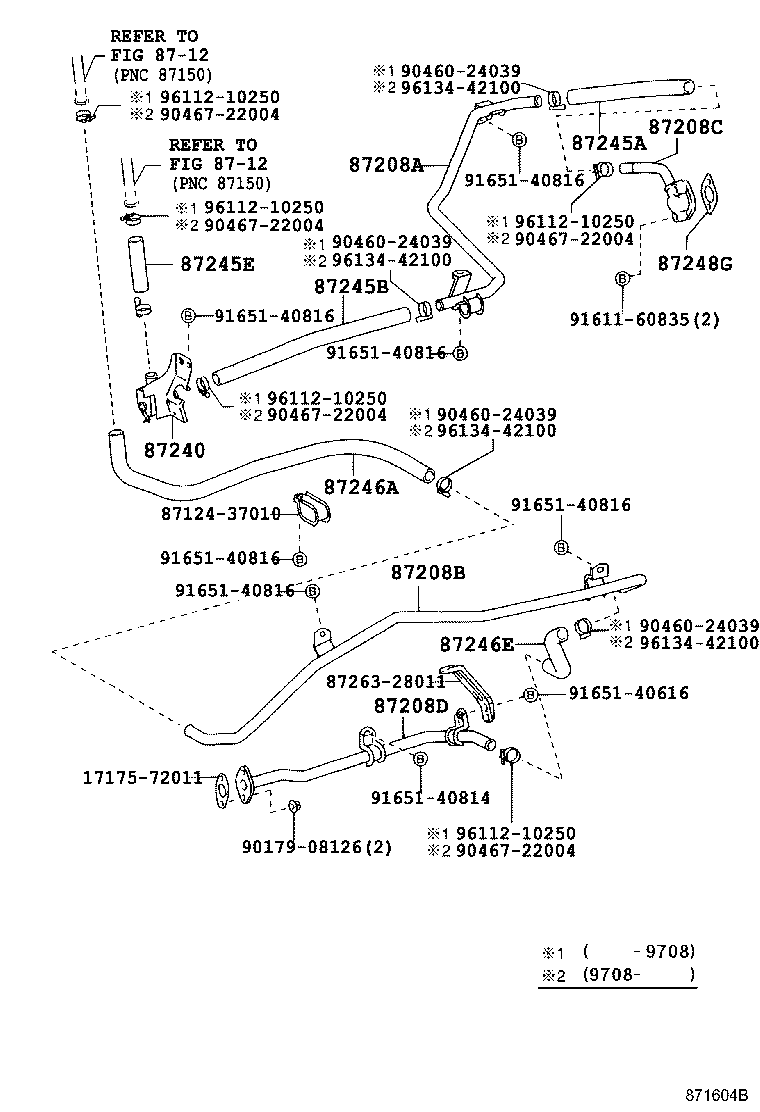

87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-25070	YY211..ST..125 W(FR HEAER & RR HEATER)	05/1995 - 12/2999	1
87208-25050	YY211..ST..125 W(FR HEAER)	05/1995 - 12/2999	1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-25080	YY211..ST..125 W(FR HEAER & RR HEATER)	05/1995 - 12/2999	1
87208-25060	YY211..ST..125 W(FR HEAER)	05/1995 - 12/2999	1
87208C - PIPE SUB-ASSY, HEATER WATER, C
87208-28500	YY211	05/1995 - 12/2999	1
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-28021	YY211	05/1995 - 12/2999	1
87240 - VALVE ASSY, HEATER WATER
87240-37010	LY212..IV;LY211,YY211	05/1995 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
99556-30300	YY211 *H,L=280	05/1995 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
99556-30500	YY211 *H,L=380	05/1995 - 12/2999	1
87245E - HOSE, HEATER WATER, INLET E
99556-30100	LY212..IV;LY211,YY211 *H,L=90	05/1995 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
99556-31000	YY211 *H,L=740	08/1995 - 10/1997	1
87245-25080	YY211 L=740	05/1995 - 08/1995	1
99556-31000	YY211;LY21#..TS..125 *H,L=740	10/1997 - 12/2999	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-25090	YY211	05/1995 - 12/2999	1
87248G - GASKET, WATER INLET PIPE
11493-71011	YY211	05/1995 - 07/1997	1
11493-73010	YY211	07/1997 - 12/2999	1
Common parts
17175-72011
87124-37010
87263-28011
90179-08126
90460-24039
90467-22004
91611-60835
91651-40616
91651-40814
91651-40816
96112-10250
96134-42100
Linked diagrams
8712

(9505- )LY212..EUR ; (9505- )LY211,YY211

Click highlighted areas on diagram

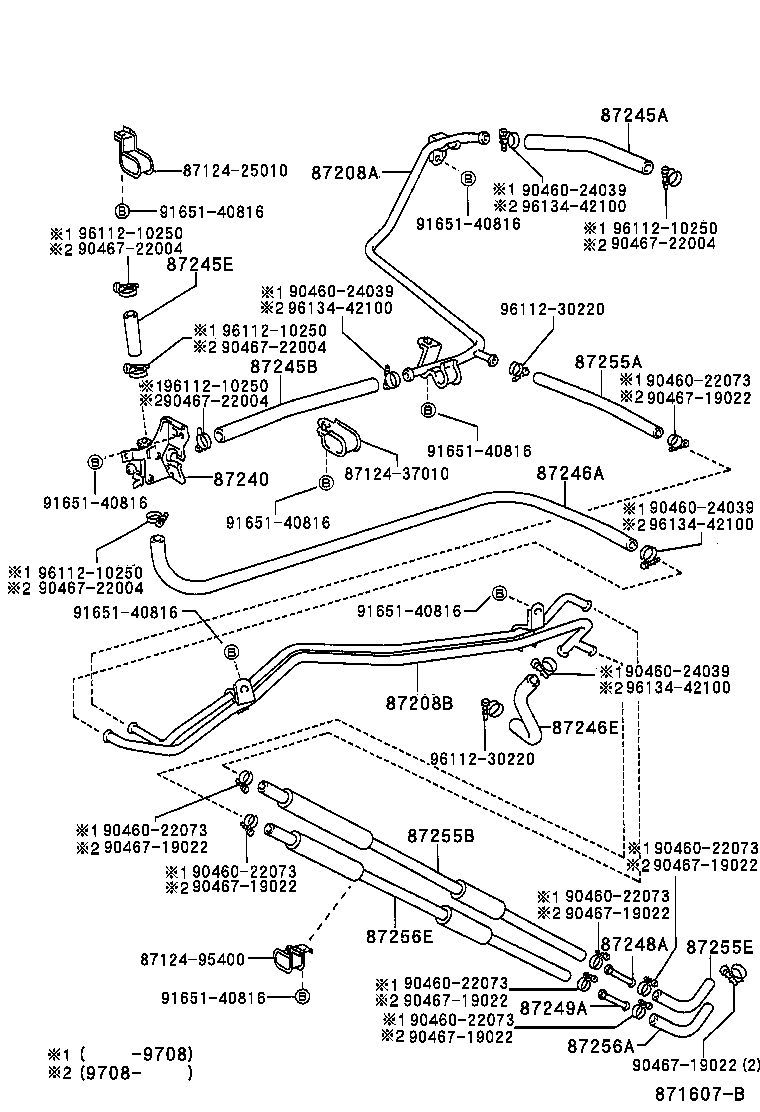

W(REAR HEATER)

Part #	Description	Period	Qty
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-25070	YY211..ST..125 W(FR HEAER & RR HEATER)	05/1995 - 12/2999	1
87208-25050	YY211..ST..125 W(FR HEAER)	05/1995 - 12/2999	1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-25080	YY211..ST..125 W(FR HEAER & RR HEATER)	05/1995 - 12/2999	1
87208-25060	YY211..ST..125 W(FR HEAER)	05/1995 - 12/2999	1
87240 - VALVE ASSY, HEATER WATER
87240-37010	LY212..IV;LY211,YY211	05/1995 - 12/2999	1
87245A - HOSE, HEATER WATER, INLET A
99556-30300	YY211 *H,L=280	05/1995 - 12/2999	1
87245B - HOSE, HEATER WATER, INLET B
99556-30500	YY211 *H,L=380	05/1995 - 12/2999	1
87245E - HOSE, HEATER WATER, INLET E
99556-30100	LY212..IV;LY211,YY211 *H,L=90	05/1995 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
99556-31000	YY211 *H,L=740	08/1995 - 10/1997	1
87245-25080	YY211 L=740	05/1995 - 08/1995	1
99556-31000	YY211;LY21#..TS..125 *H,L=740	10/1997 - 12/2999	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-25090	YY211	05/1995 - 12/2999	1
87248A - PIPE, HEATER WATER INLET, A
87248-95401	LY21#,YY211..TS..125	05/1995 - 12/2999	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-95401	LY21#,YY211..TS..125	05/1995 - 12/2999	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-30300	YY211..ST..125 *H,L=240	05/1995 - 12/2999	1
87255B - HOSE, REAR HEATER WATER INLET, B
87245-25310	YY211..ST..125 L=1100	05/1995 - 12/2999	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-92600	LY21#,YY211..TS..125	05/1995 - 12/2999	1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-92600	LY21#,YY211..TS..125	05/1995 - 12/2999	1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-25320	LY21#,YY211..TS..125 L=960	05/1995 - 12/2999	1
Common parts
87124-25010
87124-37010
87124-95400
90460-22073
90460-24039
90467-19022
90467-22004
91651-40816
96112-10250
96112-30220
96134-42100
