LY212L-TBMFSW3 (1998)
Toyota Dyna 150

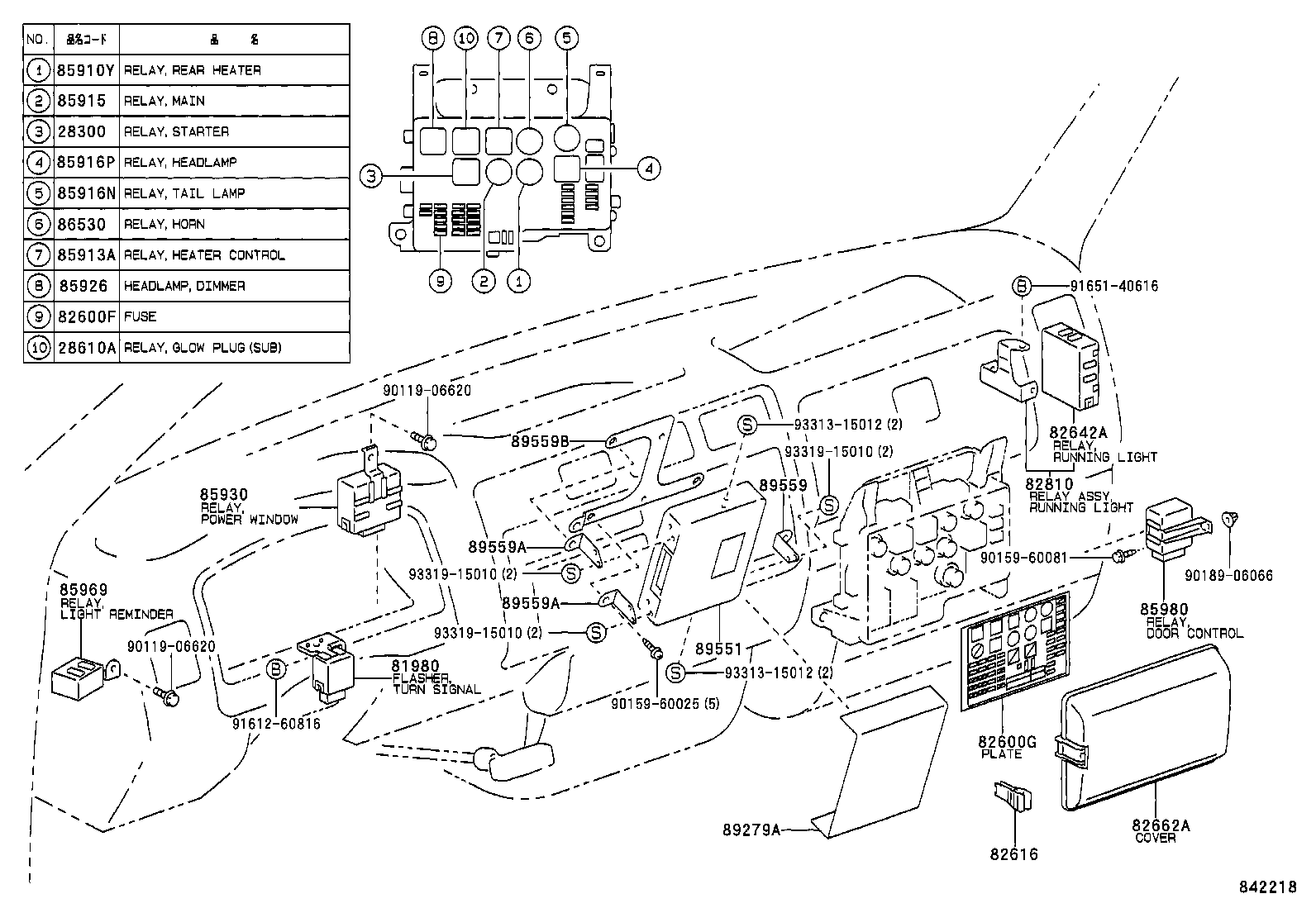

ILLUST NO. 4 OF 7(9805- )EUR
INSTRUMENT PANEL & COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-46010 |
3L,5L..LY21# |
1 | ||
| 28300-46010 |
5L..LY212 |
1 | ||
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-54360 |
5L..LY212 |
1 | ||
| 28610-54360 |
3L,5L..LY21# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-25090 |
LY21#,YY211 |
1 | ||
| 81980-37041 |
LY21#,YY211 |
1 | ||
| 81980-25090 |
LY212;LY211,YY211..ST |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
LY21#,YY211 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
LY21#,YY211 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
LY21#,YY211 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
LY21#,YY211 30A,MINI FUSE,GRN |
1 | ||
| 90982-09010 |
LY21#,YY211 15A,MINI FUSE,BLUE |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-25080 |
LY212..EUR |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
LY21#,YY211 |
1 | ||
| 82616-20010 |
LY212;LY211..ST |
1 | ||
| 82616-20010 |
LY21# |
1 | ||
| 82616-20010 |
LY212;LY211..RHD..ST |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37010B0 |
LY212..EUR,GEN;LY211,YY211..ST BLUISH GRAY,TRIM1# |
1 | ||
| 82662-37010B0 |
LY21#,YY211..ARL,EUR,GEN BLUISH GRAY,TRIM1# |
1 | ||
| 85913A - RELAY, HEATER CONTROL | ||||
| 90987-04002 |
LY212..IV;LY211,YY211..ST |
1 | ||
| 90987-04002 |
LY21#,YY211 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
YY211..125;LY212..EUR,GEN |
1 | ||
| 90987-02004 |
LY212..EUR;LY211,YY211..T2,TW2 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02004 |
LY212;LY211,YY211..ST |
1 | ||
| 90987-02004 |
LY21#,YY211 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
LY21#,YY211 |
1 | ||
| 90987-02006 |
LY212;LY211,YY211..ST |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-25011 |
YY211..125;LY212..EUR,GEN |
1 | ||
| 85930-25011 |
LY212..EUR;LY211,YY211..T2,TW2 |
1 | ||
| 85969 - RELAY, LIGHT REMINDER | ||||
| 85969-25010 |
LY21#..EUR |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02004 |
LY21#..EUR,SA |
1 | ||
| 89279A - COVER, COMPUTER | ||||
| 89279-25010 |
LY212..EUR |
1 | ||
| 89551 - COMPUTER, EMISSION CONTROL | ||||
| 89551-25010 |
LY212 |
1 | ||
| 89551-25011 |
LY212..EUR,GEN |
1 | ||
| 89559 - BRACKET, EMISSION CONTROL COMPUTER | ||||
| 89559-25020 |
LY212..EUR |
1 | ||
| 89559A - BRACKET, EMISSION CONTROL COMPUTER | ||||
| 89559-25030 |
LY212..EUR |
2 | ||
| 89559A - BRACKET, EMISSION CONTROL COMPUTER | ||||
| 89559-25030 |
LY212..EUR |
2 | ||
| 89559B - BRACKET, EMISSION CONTROL COMPUTER | ||||
| 89559-25010 |
LY212..EUR |
1 | ||
| Common parts | ||||
| 90119-06620 | ||||
| 90159-60025 | ||||
| 90159-60081 | ||||
| 90189-06066 | ||||
| 91612-60816 | ||||
| 91651-40616 | ||||
| 93313-15012 | ||||
| 93319-15010 | ||||
