LY211R-TBMFS (1995)

Toyota Dyna 150

Production May 1995 - Jul 2001
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

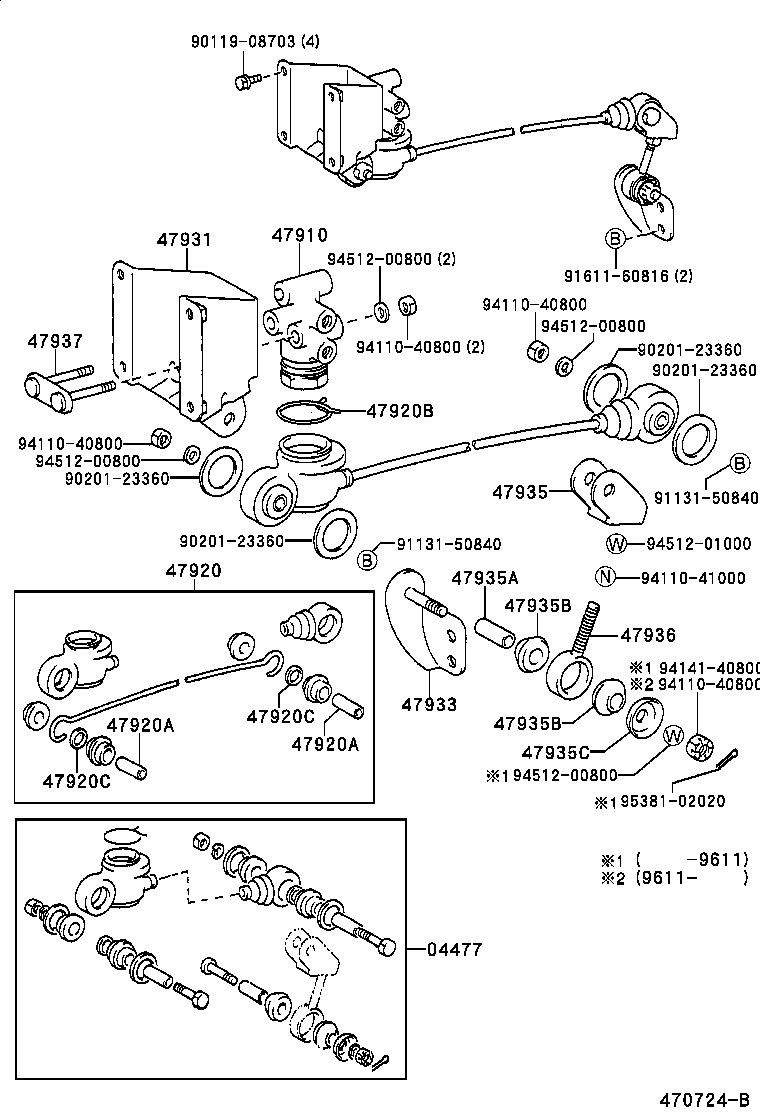

ILLUST NO. 3 OF 3(9505- )

Click highlighted areas on diagram

diagram 04477 47910 47920 47920A 47920A 47920B 47920C 47920C 47931 47933 47935 47935A 47935B 47935B 47935C 47936 47937 9011908703 9020123360 9020123360 9020123360 9020123360 9113150840 9113150840 9161160816 9411040800 9411040800 9411040800 9411040800 9411041000 9414140800 9451200800 9451200800 9451200800 9451200800 9451201000 9538102020
Part # Description Qty Price
04477 - BUSH & BOOT KIT, LOAD SENSING SPRING
04477-60010

LY21#,YY211

 1
47910 - VALVE ASSY, LOAD SENSING PROPORTIONING
47910-35300

LY211,YY211..ST..GEN

 1
47910-25121

LY211,YY211..ST..GEN

 1
47920 - SPRING ASSY, LOAD SENSING
47920-25020

LY21#,YY211

 1
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LY21#,YY211

 2
47920A - COLLAR(FOR LOAD SENSING SPRING)
90387-08099

LY21#,YY211

 2
47920B - CLIP(FOR LOAD SENSING VALVE BOOT)
90467-31110

LY21#,YY211

 1
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LY21#,YY211

 2
47920C - WASHER(FOR LOAD SENSING SPRING)
90202-10103

LY21#,YY211

 2
47931 - BRACKET, LOAD SENSING VALVE
47931-25040

LY21#,YY211..(T3,TW1,TW2)..TS

 1
47933 - BRACKET, LOAD SENSING SHACKLE, NO.1
47933-36050

LY211,YY211

 1
47933-36051

LY21#,YY211

 1
47935 - SHACKLE, LOAD SENSING SPRING, NO.1
47935-35010

LY21#,YY211

 1
47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE)
90387-08099

LY21#,YY211

 1
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LY21#,YY211

 2
47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE)
90385-10064

LY21#,YY211

 2
47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE)
90201-08062

LY21#,YY211

 1
90948-02033

LY211,YY211

 1
47936 - SHACKLE, LOAD SENSING SPRING, NO.2
47936-35010

LY21#,YY211

 1
47937 - PLATE, LOAD SENSING VALVE SET
47937-60010

LY21#,YY211

 1
Common parts
90119-08703
90201-23360
91131-50840
91611-60816
94110-40800
94110-41000
94141-40800
94512-00800
94512-01000
95381-02020

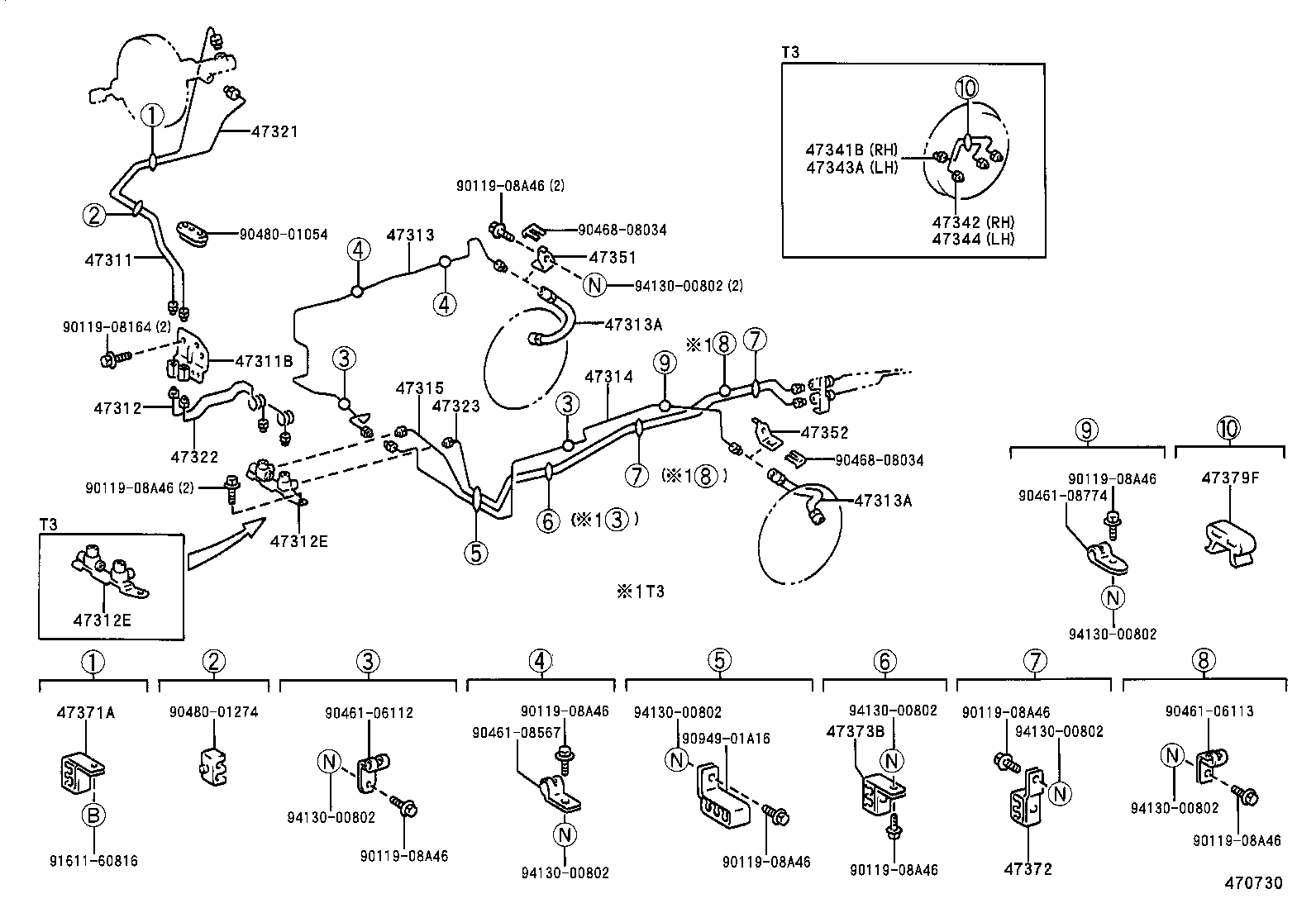

ILLUST NO. 1 OF 3(9505- )RHD

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47312E 47313 47313A 47313A 47314 47315 47321 47322 47323 47341B 47342 47343A 47344 47351 47352 47371A 47372 47373B 47379F 9011908164 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9046106112 9046106113 9046108567 9046108774 9046808034 9046808034 9048001054 9048001274 9094901A16 9161160816 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-25230

LY21#,YY211..RHD..GEN

 1
47311-25240

LY211,YY211..RHD..ST..GEN

W(FRONT DISC BRAKE)

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90904-12018

LY21#,YY211

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-25110

LY21#,YY211..RHD

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10223

LY211,YY211..ST..GEN

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10223

LY211,YY211..ST..GEN

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-25120

LY21#,YY211

 1
47313-25151

LY21#,YY211

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B24

LY211,YY211..ST..GEN

W(FRONT DISC BRAKE)

 2
96940-33955

LY211,YY211..ST..GEN

W(FRONT DISC BRAKE)

 2
90947-02856

LY211,YY211..ST..GEN

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B24

LY211,YY211..ST..GEN

W(FRONT DISC BRAKE)

 2
96940-33955

LY211,YY211..ST..GEN

W(FRONT DISC BRAKE)

 2
90947-02856

LY211,YY211..ST..GEN

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-25150

LY21#,YY211

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-25100

LY211,YY211..RHD..ST..GEN

W(FRONT DISC BRAKE)

 1
47321-25090

LY21#,YY211..RHD..GEN

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-25100

LY21#,YY211..RHD

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-25120

LY21#,YY211

 1
47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1
47341-25020

LY211,YY211..ST..GEN

 1
47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2
47342-25021

LY211,YY211..ST..GEN

 1
47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1
47343-25010

LY211,YY211..ST..GEN

 1
47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2
47344-25021

LY211,YY211..ST..GEN

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-25081

LY21#,YY211

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-25091

LY21#,YY211

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47373-25010

LY21#,YY211

 1
47379F - DAMPER, TUBE(FOR FRONT)
47379-36010

LY211,YY211..ST..GEN

 2
Common parts
90119-08164
90119-08A46
90461-06112
90461-06113
90461-08567
90461-08774
90468-08034
90480-01054
90480-01274
90949-01A16
91611-60816
94130-00802

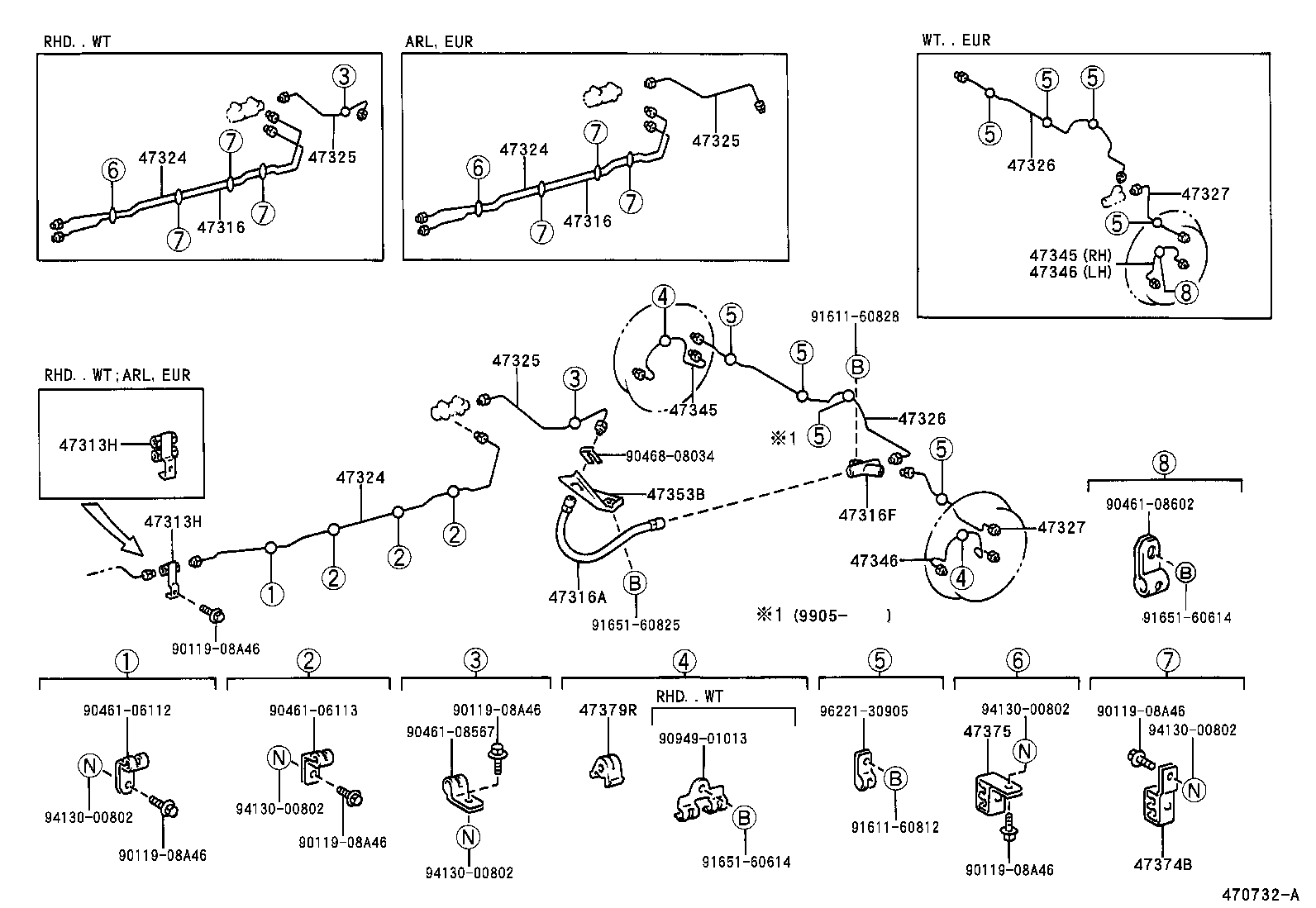

ILLUST NO. 2 OF 3(9505- )

Click highlighted areas on diagram

diagram 47313H 47313H 47316 47316 47316A 47316F 47324 47324 47324 47325 47325 47325 47326 47326 47327 47327 47345 47345 47346 47346 47353B 47374B 47375 47379R 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9011908A46 9046106112 9046106113 9046108567 9046108602 9046808034 9094901013 9161160812 9161160828 9165160614 9165160614 9165160825 9413000802 9413000802 9413000802 9413000802 9413000802 9622130905
Part # Description Qty Price
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90413-10184

LY211,YY211..ST..GEN

 1
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90413-10184

LY211,YY211..ST..GEN

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02647

LY21#,YY211..ST

 1
90947-02B26

LY21#,YY211..ST

 1
47316F - WAY, 3(FOR REAR BRAKE TUBE)
90413-10147

LY21#,YY211

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-25280

LY21#,YY211..(T3,TW1,TW2)..TS

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-25280

LY21#,YY211..(T3,TW1,TW2)..TS

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-25280

LY21#,YY211..(T3,TW1,TW2)..TS

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-25240

LY21#,YY211..ST

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-25240

LY21#,YY211..ST

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-25240

LY21#,YY211..ST

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-25160

LY21#,YY211..ST

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-25160

LY21#,YY211..ST

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-25120

LY21#,YY211..ST

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-25120

LY21#,YY211..ST

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-25030

LY21#,YY211..ST

 1
47345 - TUBE, WHEEL CYLINDER, REAR RH
47345-25030

LY21#,YY211..ST

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-25030

LY21#,YY211..ST

 1
47346 - TUBE, WHEEL CYLINDER, REAR LH
47345-25030

LY21#,YY211..ST

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-25050

LY21#,YY211..ST

 1
47379R - DAMPER, TUBE(FOR REAR)
47379-25010

LY21#,YY211..ST

 2
Common parts
90119-08A46
90461-06112
90461-06113
90461-08567
90461-08602
90468-08034
90949-01013
91611-60812
91611-60828
91651-60614
91651-60825
94130-00802
96221-30905
