LY211R-TBMFS (1995)
Toyota Dyna 150

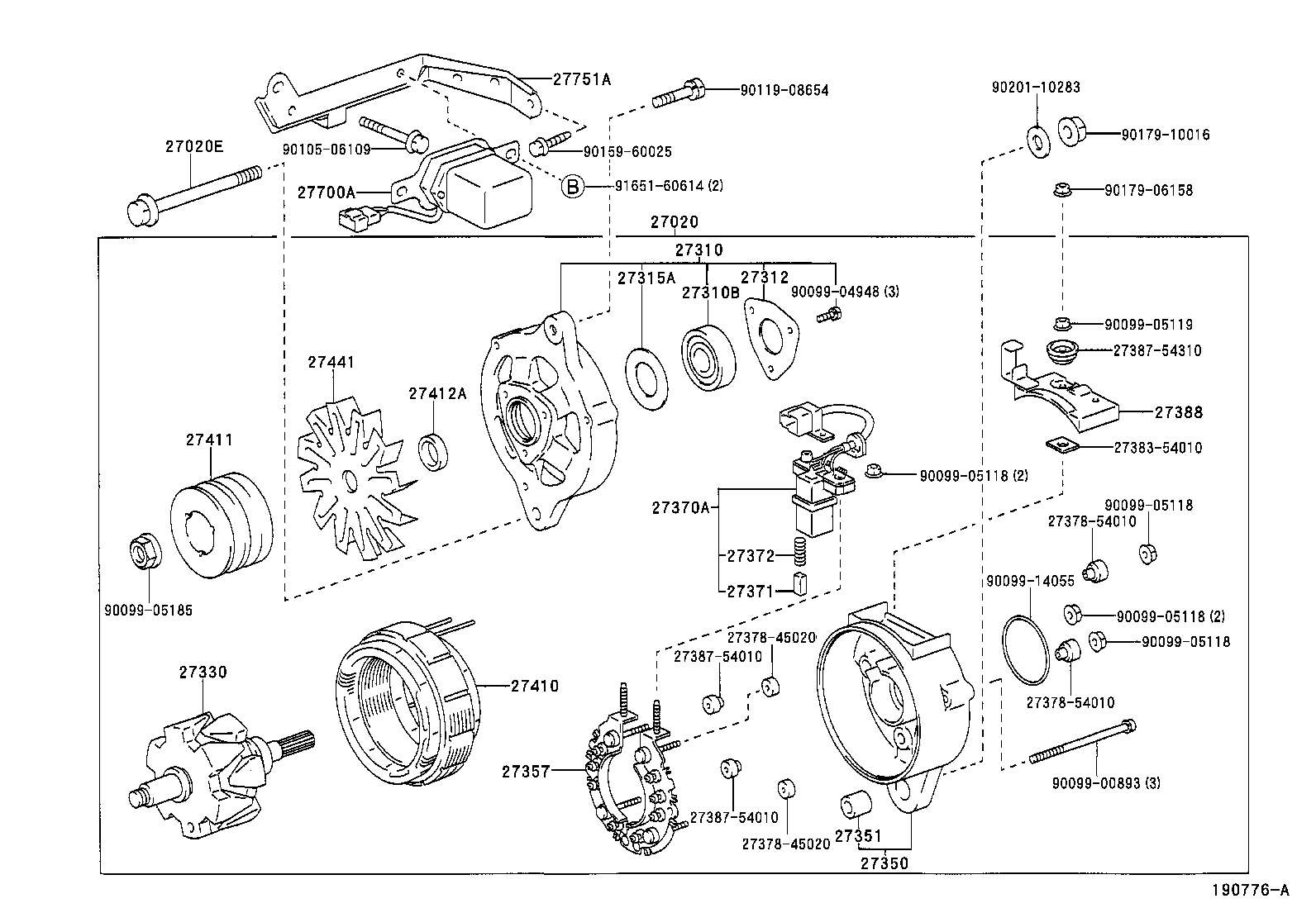

(9505- )3L ; (9505- )5L..EUR
12V 50A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-54330 |
3L,5L..LY21# 12V 55A |
1 | ||
| 27020-54403 |
3L,5L..LY21# 12V 50A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90101-10231 |
3L,5L..LY21# |
1 | ||
| 90105-10287 |
3L,5L..LY21# |
1 | ||
| 90105-10239 |
3L,5L..LY21# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54131 |
3L,5L..LY21# |
1 | ||
| 27310-54440 |
3L,5L..LY21# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10165 |
3L,5L..LY21# |
1 | ||
| 90099-10137 |
3L,5L..LY21# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-64130 |
3L,5L..LY21# |
1 | ||
| 27312-57060 |
3L,5L..LY21# |
1 | ||
| 27315A - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-57060 |
3L,5L..LY21# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64130 |
3L,5L..LY21# |
1 | ||
| 27330-54292 |
3L,5L..LY21# |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-54130 |
3L,5L..LY21# |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
3L,5L..LY21# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-64070 |
3L,5L..LY21# |
1 | ||
| 27357-13360 |
3L,5L..LY21# |
1 | ||
| 27370A - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54250 |
3L,5L..LY21# |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-54412 |
3L,5L..LY21# |
2 | ||
| 27371-70300 |
3L,5L,3Y..LY21#,YY211 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
3L,5L..LY21# |
2 | ||
| 27372-63020 |
3L,5L,3Y..LY21#,YY211 |
2 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-54341 |
3L,5L..LY21# |
1 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-41080 |
3L,5L..LY21# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-54351 |
3L,5L..LY21# |
1 | ||
| 27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27412-57060 |
3L,5L..LY21# |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-56090 |
3L,5L..LY21# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-54070 |
3L,5L..LY21# |
1 | ||
| 27700-50030 |
3L,5L..LY21# |
1 | ||
| 27751A - BRACKET, GENERATOR REGULATOR | ||||
| 27751-54010 |
3L..LY211..RHD..GEN |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-54010 | ||||
| 27387-54310 | ||||
| 90099-00893 | ||||
| 90099-04948 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05185 | ||||
| 90099-14055 | ||||
| 90105-06109 | ||||
| 90119-08654 | ||||
| 90159-60025 | ||||
| 90179-06158 | ||||
| 90179-10016 | ||||
| 90201-10283 | ||||
| 91651-60614 | ||||

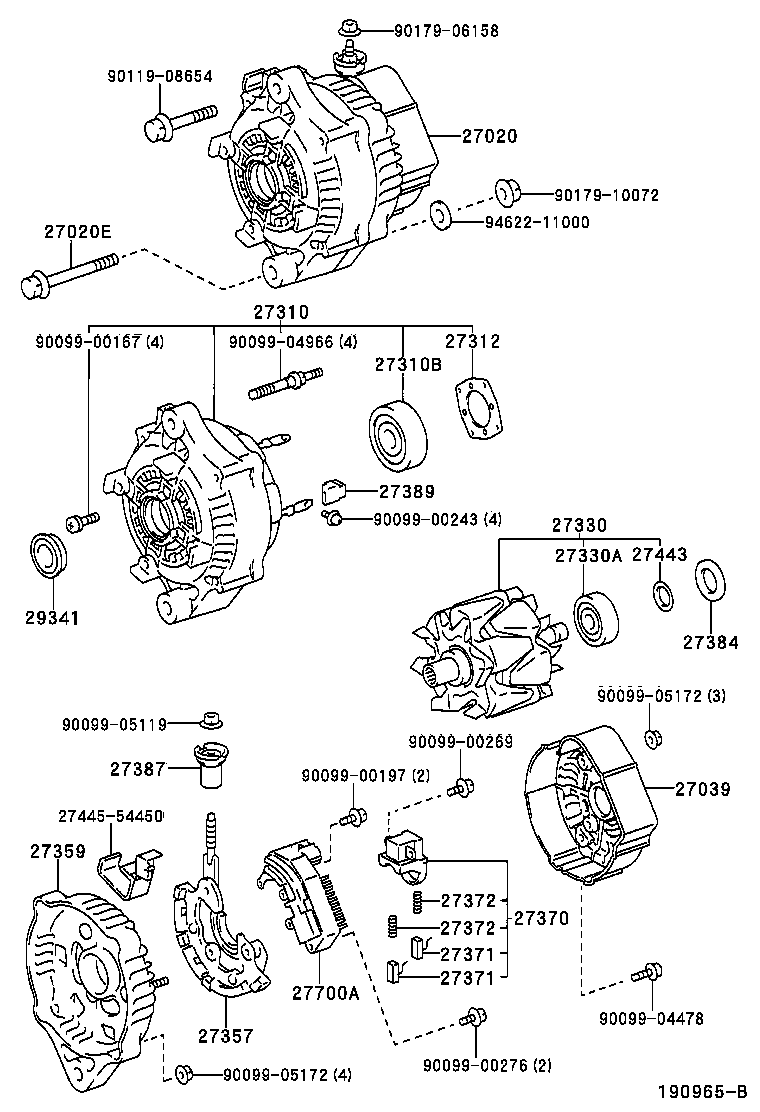

(9905- )3L,5L
12V 55A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-54330 |
3L,5L..LY21# 12V 55A |
1 | ||
| 27020-54403 |
3L,5L..LY21# 12V 50A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90101-10231 |
3L,5L..LY21# |
1 | ||
| 90105-10287 |
3L,5L..LY21# |
1 | ||
| 90105-10239 |
3L,5L..LY21# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-16380 |
3L,5L..LY21# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54131 |
3L,5L..LY21# |
1 | ||
| 27310-54440 |
3L,5L..LY21# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10165 |
3L,5L..LY21# |
1 | ||
| 90099-10137 |
3L,5L..LY21# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-64130 |
3L,5L..LY21# |
1 | ||
| 27312-57060 |
3L,5L..LY21# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64130 |
3L,5L..LY21# |
1 | ||
| 27330-54292 |
3L,5L..LY21# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
3L,5L..LY21# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-64070 |
3L,5L..LY21# |
1 | ||
| 27357-13360 |
3L,5L..LY21# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-16182 |
3L,5L..LY21# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58320 |
3L,5L..LY21# |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-54412 |
3L,5L..LY21# |
2 | ||
| 27371-70300 |
3L,5L,3Y..LY21#,YY211 |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-54412 |
3L,5L..LY21# |
2 | ||
| 27371-70300 |
3L,5L,3Y..LY21#,YY211 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
3L,5L..LY21# |
2 | ||
| 27372-63020 |
3L,5L,3Y..LY21#,YY211 |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
3L,5L..LY21# |
2 | ||
| 27372-63020 |
3L,5L,3Y..LY21#,YY211 |
2 | ||
| 27384 - WASHER | ||||
| 27384-16380 |
3L,5L..LY21# |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70171 |
3L,5L..LY21# |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-63020 |
3L,5L..LY21# |
4 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
3L,5L,3Y..LY21#,YY211 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-54070 |
3L,5L..LY21# |
1 | ||
| 27700-50030 |
3L,5L..LY21# |
1 | ||
| 29341 - SEAL, ALTERNATOR OIL | ||||
| 29341-64130 |
3L,5L..LY21# |
1 | ||
| Common parts | ||||
| 27445-54450 | ||||
| 90099-00167 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05172 | ||||
| 90119-08654 | ||||
| 90179-06158 | ||||
| 90179-10072 | ||||
| 94622-11000 | ||||
