LY211R-PGMES (1995)

Toyota Dyna 150

Production May 1995 - May 1999
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9505- )

Click highlighted areas on diagram

diagram 67913 67914 9018905055 9356055016
Part # Description Qty Price
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-95403B0

LY21#,YY211

GRAY,TRIM1#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-95403B0

LY21#,YY211

GRAY,TRIM1#

 1
Common parts
90189-05055
93560-55016

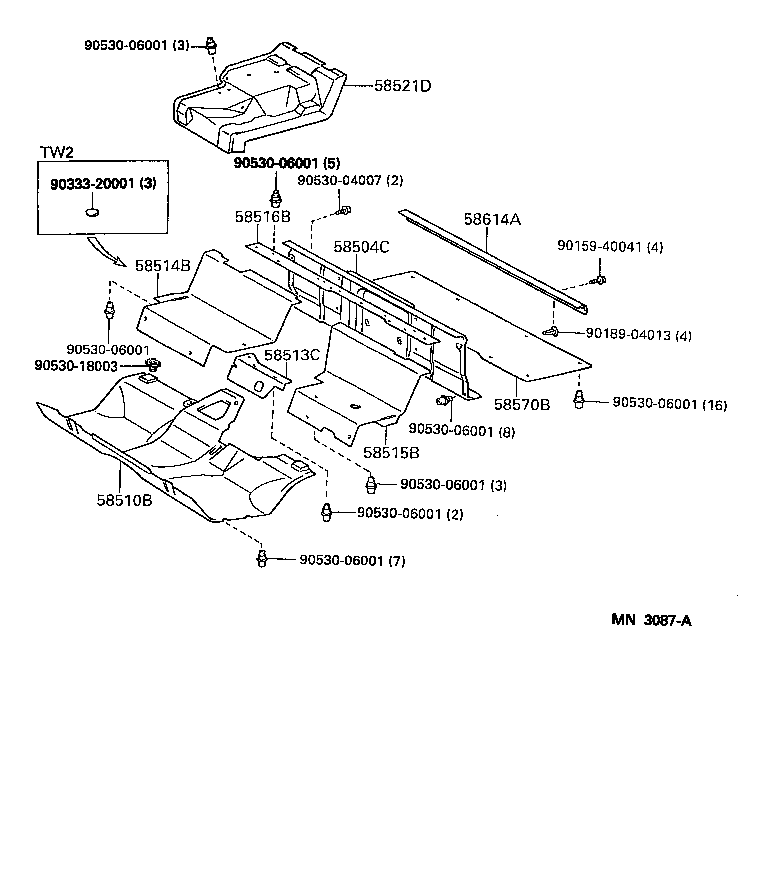

ILLUST NO. 2 OF 2(9505- )

Click highlighted areas on diagram

diagram 58504C 58510B 58513C 58514B 58515B 58516B 58521D 58570B 58614A 9015940041 9018904013 9033320001 9053004007 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 9053006001 9053018003
Part # Description Qty Price
58510B - MAT, FRONT FLOOR, FRONT
58510-25090B0

LY21#,YY211..RHD..(GEN,SA)

BLUISH GRAY,TRIM1#

 1
58513C - MAT, FLOOR, FRONT CENTER
58513-25030B0

LY21#,YY211..RHD..(GEN,SA)

BLUISH GRAY,TRIM1#

 1
58521D - MAT, ENGINE SERVICE HOLE COVER
58521-25010B1

LY21#,YY211..RHD..(GEN,SA)

BLUISH GRAY,TRIM1#

 1
58570B - MAT ASSY, REAR FLOOR
58581-95406B0

LY21#,YY211..125

GRAY,TRIM1#

 1
58614A - PLATE, MAT SET, NO.4
58614-95A01B0

LY21#,YY211..125

GRAY,TRIM1#

 1
Common parts
90159-40041
90189-04013
90333-20001
90530-04007
90530-06001
90530-18003
