LY211L-TBMGSW3 (1995)

Toyota Dyna 150

Production May 1995 - May 1998
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

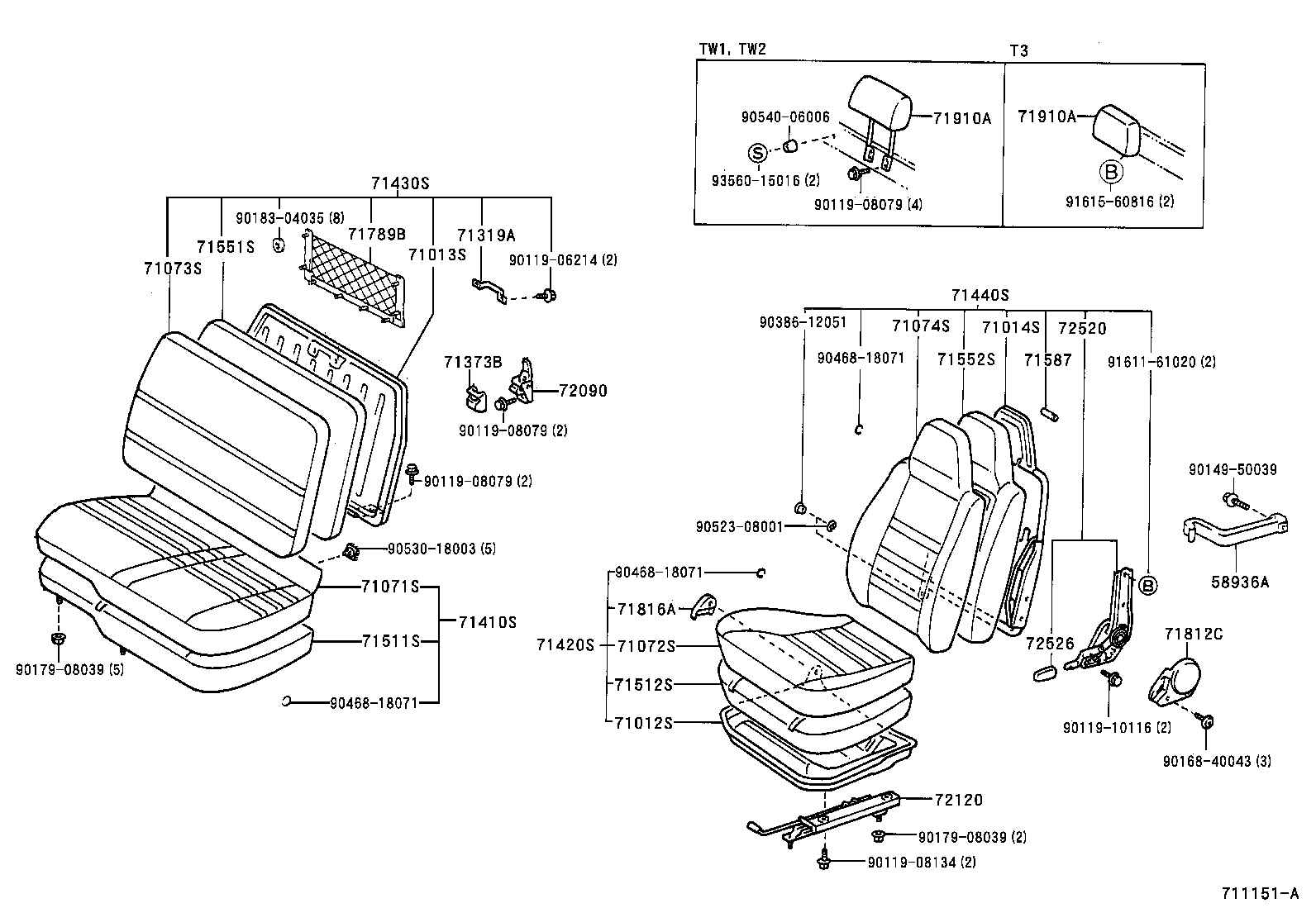

ILLUST NO. 1 OF 3(9505- )LHD

Click highlighted areas on diagram

diagram 58936A 71012S 71013S 71014S 71071S 71072S 71073S 71074S 71319A 71373B 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71587 71789B 71812C 71816A 71910A 71910A 72090 72120 72520 72526 9011906214 9011908079 9011908079 9011908079 9011908134 9011910116 9014950039 9016840043 9017908039 9017908039 9018304035 9038612051 9046818071 9046818071 9046818071 9052308001 9053018003 9054006006 9161161020 9161560816 9356015016
Part # Description Qty Price
58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT
58930-95700B0

LY21#,YY211..LHD

GRAY,TRIM1#

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71012-37020

LY211..EUR

W(SUSPENSION SEAT)

 1
71012-95412

LY21#,YY211..LHD

 1
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-9541601

LY211,YY211..LHD

BLACK,TRIM1#

 1
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-95424

LY211..EUR

W(SUSPENSION SEAT)

 1
71014-95422

LY21#,YY211..LHD

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-37320B0

LY211..EUR

BLUISH GRAY,TRIM1#

 1
71071-37320B0

LY212..EUR;LY211..WT..IV;LY211..125..IV

BLUISH GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-25030B0

LY211..EUR

W(SUSPENSION SEAT),BLUISH GRAY,TRIM1#

 1
71072-37390B0

LY21#..WT..15T..EUR

BLUISH GRAY,TRIM1#

 1
71072-37390B0

LY211..EUR

BLUISH GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71074-37550B0

LY211..WT..IV;LY21#..125..IV

BLUISH GRAY,TRIM1#

 1
71074-37550B0

LY211..EUR

BLUISH GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-37450B0

LY211..EUR

W(SUSPENSION SEAT),BLUISH GRAY,TRIM1#

 1
71074-37440B0

LY211..EUR

BLUISH GRAY,TRIM1#

 1
71319A - STRIKER, FRONT SEAT BACK
71319-95404

LY211,YY211;LY212..T2,TW1

 1
71373B - COVER, FRONT SEAT BACK LOCK
71373-95400B0

LY212..WT;LY211,YY211

GRAY,TRIM1#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-37370B0

LY211..EUR

BLUISH GRAY,TRIM1#

 1
71410-37370B0

LY212..EUR;LY211..WT..IV;LY211..125..IV

BLUISH GRAY,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-37390B0

LY211..EUR

BLUISH GRAY,TRIM1#

 1
71420-25030B0

LY211..EUR

W(SUSPENSION SEAT),BLUISH GRAY,TRIM1#

 1
71420-37390B0

LY21#..WT..15T..EUR

BLUISH GRAY,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-37410B0

LY211..EUR

BLUISH GRAY,TRIM1#

 1
71430-37410B0

LY211..WT..IV;LY211..125..IV

BLUISH GRAY,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-37500B0

LY211..EUR

BLUISH GRAY,TRIM1#

 1
71440-37510B0

LY211..EUR

W(SUSPENSION SEAT),BLUISH GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-95400

LY211..WT..IV;LY211..ST..125;LY212,YY211..LHD;LY211..LHD..GEN..IV

 1
71501-95400

LY211,YY211..LHD

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-37050

LY211..EUR

 1
71512-25010

LY211..EUR

W(SUSPENSION SEAT)

 1
71512-37050

LY21#..WT..15T..EUR

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71552-95403

YY211..LHD;LY211..WT..IV;LY21#..TS..125;LY211..LHD..GEN..IV

 1
71552-95403

LY211,YY211..LHD

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37020

LY211,YY211..LHD

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-95J00

LY211..EUR

 2
71812C - COVER, RECLINING ADJUSTER, LH
71812-95J00B0

LY21#,YY211..LHD

GRAY,TRIM1#

 1
71816A - COVER, FRONT SEAT CUSHION HINGE, LH
71816-95J00B0

LY21#,YY211..LHD

GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-37160B1

LY211..WT..IV

NORWAY SPEC,BLUISH GRAY,TRIM1#,CENTER

 1
71910-37090B0

LY21#..15T..(ARL,EUR)

BLUISH GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-37160B1

LY211..WT..IV

NORWAY SPEC,BLUISH GRAY,TRIM1#,CENTER

 1
71910-37090B0

LY21#..15T..(ARL,EUR)

BLUISH GRAY,TRIM1#

 1
72090 - LOCK ASSY, FRONT SEAT BACK
72090-95400B0

LY211,YY211;LY212..T2,TW1

GRAY,TRIM1#

 1
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-37010

LY21#,YY211..LHD

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-37010B0

LY21#,YY211..LHD

BLUISH GRAY,TRIM1#

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72525-95J01B0

LY21#,YY211..LHD

BLUISH GRAY,TRIM1#

 1
Common parts
90119-06214
90119-08079
90119-08134
90119-10116
90149-50039
90168-40043
90179-08039
90183-04035
90386-12051
90468-18071
90523-08001
90530-18003
90540-06006
91611-61020
91615-60816
93560-15016

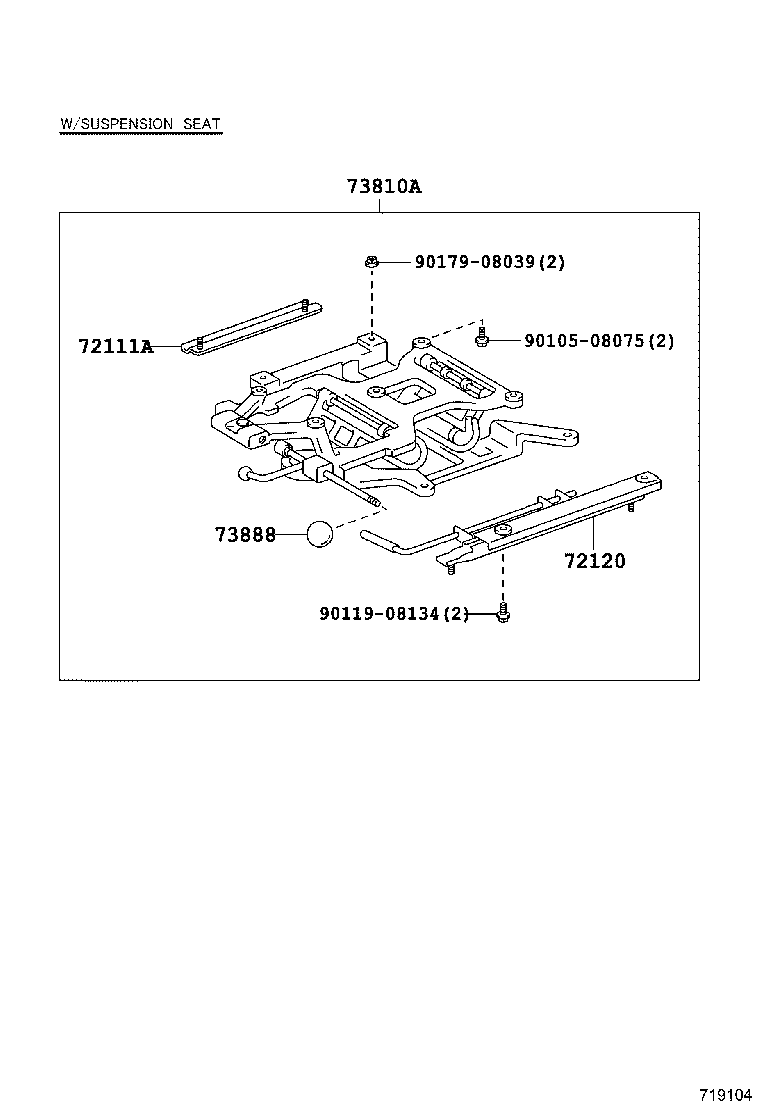

ILLUST NO. 2 OF 3(9505- )

Click highlighted areas on diagram

diagram 72111A 72120 73810A 73888 9010508075 9011908134 9017908039
Part # Description Qty Price
72111A - RAIL, FRONT INNER SEAT TRACK, UPPER
72113-95403

LY211..EUR

 1
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-37010

LY21#,YY211..LHD

 1
73810A - SUSPENSION ASSY, SEAT, LH
73810-25010B0

LY211..EUR

BLUISH GRAY,TRIM1#

 1
73888 - HANDLE, SEAT SUSPENSION CONTROL
73888-37010B0

LY211..EUR

BLUISH GRAY,TRIM1#

 1
Common parts
90105-08075
90119-08134
90179-08039

ILLUST NO. 3 OF 3(9505- )

Click highlighted areas on diagram

diagram 71075B 71077B 71301D 71302D 71308C 71315B 71334A 71409 71460B 71480B 71611 71621A 71650 71651B 71670 71777A 71778A 72613A 72630A 72658 72666 79189 79199 9010908137 9010908157 9010910084 9011910185 9011910258 9011910395 9020612035 9020612035 9046818071 9046818071 9050623037 9052306017 9161160614 9161160816 9331116010 9356855018
Part # Description Qty Price
Common parts
90109-08137
90109-08157
90109-10084
90119-10185
90119-10258
90119-10395
90206-12035
90468-18071
90506-23037
90523-06017
91611-60614
91611-60816
93311-16010
93568-55018
