LY211L-TBMGSW3 (1995)

Toyota Dyna 150

Production May 1995 - May 1998
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )WT..EUR

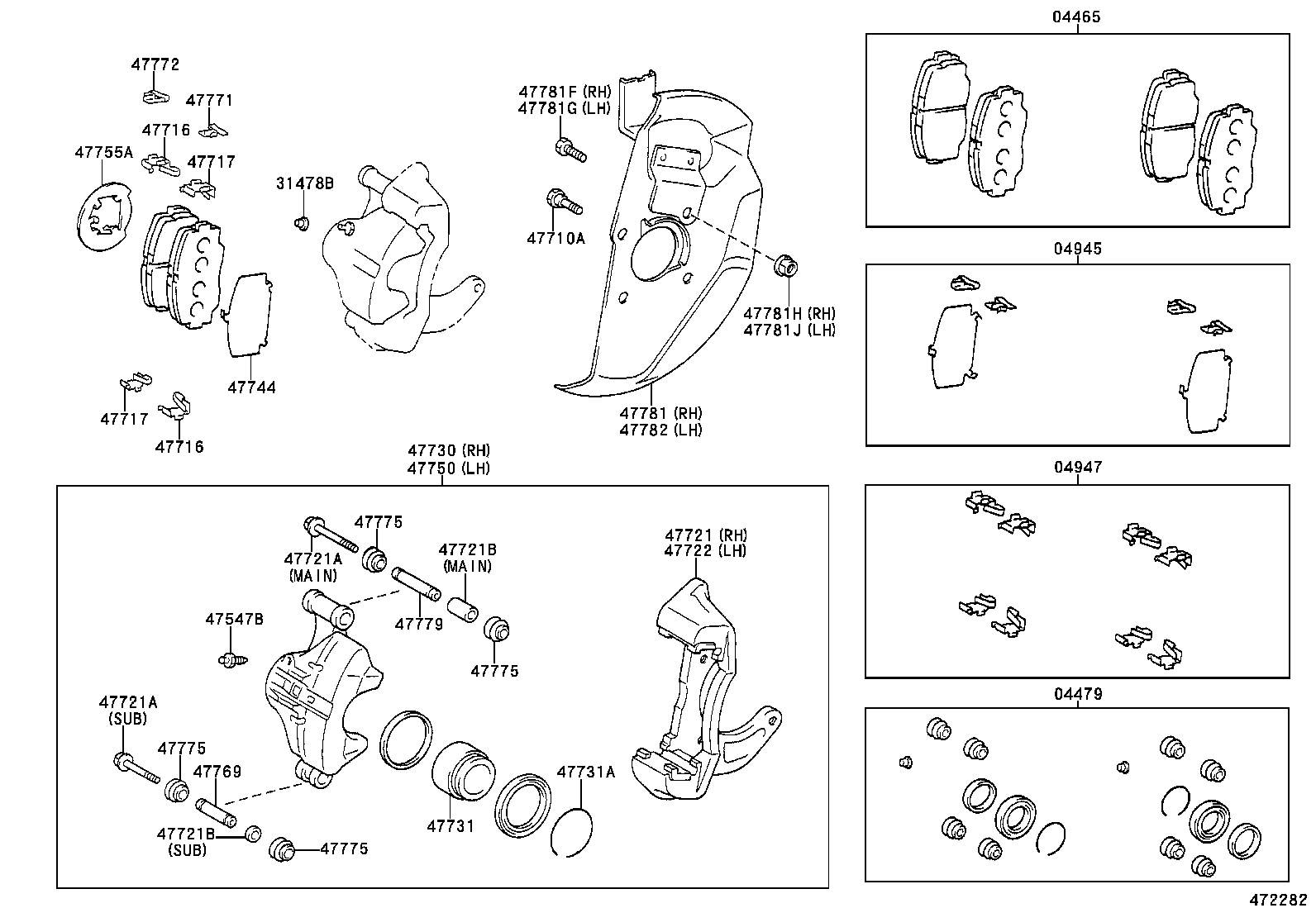

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47716 47716 47717 47717 47721 47721A 47721A 47721B 47721B 47722 47730 47731 47731A 47744 47750 47755A 47769 47771 47772 47775 47775 47775 47775 47779 47781 47781F 47781G 47781H 47781J 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-25080

LY21#..WT..EUR

MARK AISIN T535

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-25010

LY21#,YY211

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-25010

LY21#..WT..EUR

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-25010

LY21#,YY211

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

LY21#,YY211

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12010

LY21#,YY211

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90109-12027

LY21#..WT..EUR

*12-1.25PX30-18

 6
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-25011

LY21#,YY211

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-25011

LY21#,YY211

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-25011

LY21#,YY211

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-25011

LY21#,YY211

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-25020

LY21#..WT..EUR

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10451

LY211..WT..IV

*10-1.25PX65.5-30,SUB

 2
90119-10249

LY21#,YY211

*10-1.25PX95.5-30,MAIN PIN SIDE

 2
90119-10452

LY211..WT..IV

*10-1.25PX95.5-30,MAIN

 2
90119-10014

LY21#,YY211

*10-1.25PX65.5-30,SUB PIN SIDE

 2
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90119-10451

LY211..WT..IV

*10-1.25PX65.5-30,SUB

 2
90119-10249

LY21#,YY211

*10-1.25PX95.5-30,MAIN PIN SIDE

 2
90119-10452

LY211..WT..IV

*10-1.25PX95.5-30,MAIN

 2
90119-10014

LY21#,YY211

*10-1.25PX65.5-30,SUB PIN SIDE

 2
47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90387-16004

LY21#,YY211

SUB PIN SIDE

 2
90387-16005

LY21#,YY211

MAIN PIN SIDE

 2
47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90387-16004

LY21#,YY211

SUB PIN SIDE

 2
90387-16005

LY21#,YY211

MAIN PIN SIDE

 2
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-25020

LY21#..WT..EUR

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-25020

LY21#..WT..EUR

 1
47731 - PISTON, FRONT DISC BRAKE
47731-25010

LY21#,YY211

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-76001

LY21#,YY211

 2
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-25020

LY21#..WT..IV

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-25020

LY21#..WT..EUR

 1
47755A - INSULATOR, DISC BRAKE HEAT
47755-25010

LY21#,YY211

 2
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-40010

LY21#,YY211

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-25010

LY21#..WT..EUR

 2
47772 - PLATE, PAD WEAR INDICATOR, NO.2
47772-25010

LY21#..WT..EUR

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-40010

LY21#,YY211

 8
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-40010

LY21#,YY211

 8
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-40010

LY21#,YY211

 8
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-40010

LY21#,YY211

 8
47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)
47779-40010

LY21#,YY211

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47703-37010

LY21#..WT..EUR

 1
47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
90101-12155

LY21#..WT..EUR

 1
47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
90101-12155

LY21#..WT..EUR

 1
47781H - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
94115-71200

LY21#,YY211

 1
47781J - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
94115-71200

LY21#,YY211

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47704-37010

LY21#..WT..EUR

 1
