LY211L-TBMGSW3 (1995)

Toyota Dyna 150

Production May 1995 - May 1998
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

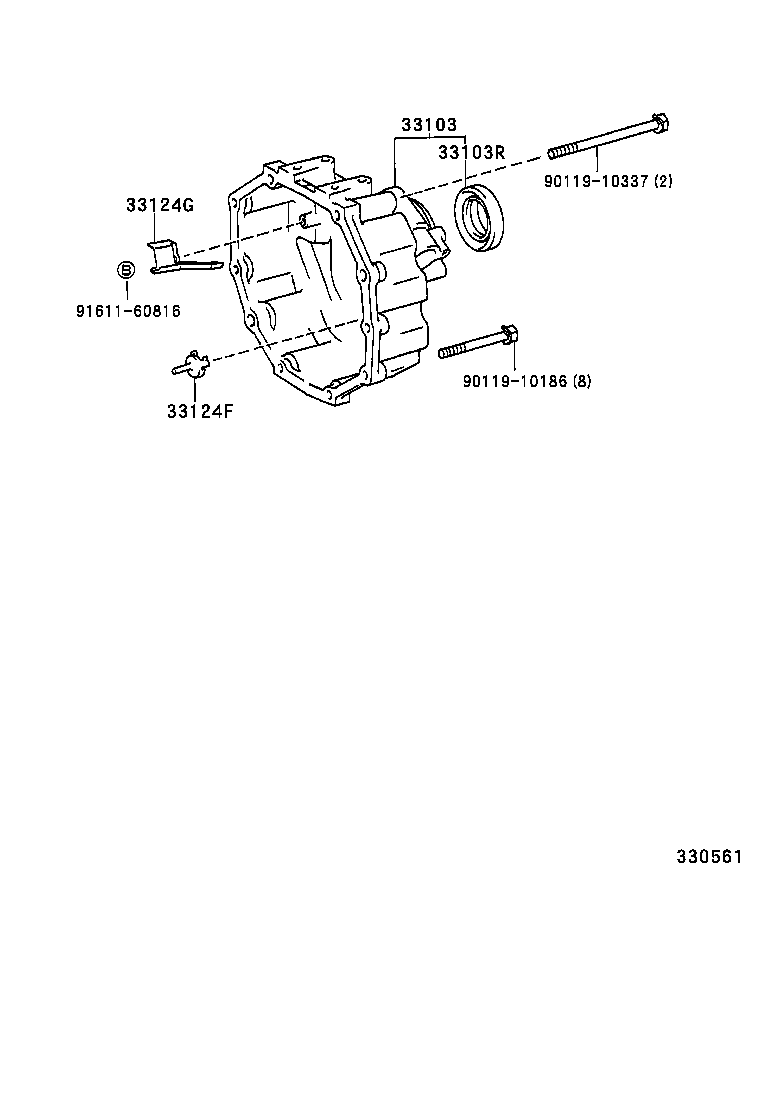

Click highlighted areas on diagram

R451,R452,R453

diagram 33103 33103R 33124F 33124G 9011910186 9011910337 9161160816
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-25040

LY211,YY211

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38093

LY21#,YY211

 1
33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33124-35100

LY21#,YY211

 1
33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)
33124-25010

LY21#,YY211

 1
Common parts
90119-10186
90119-10337
91611-60816
