LY211L-TBMFSW3 (1995)
Toyota Dyna 150
Production
May 1995
-
May 1998
Engine
3L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )

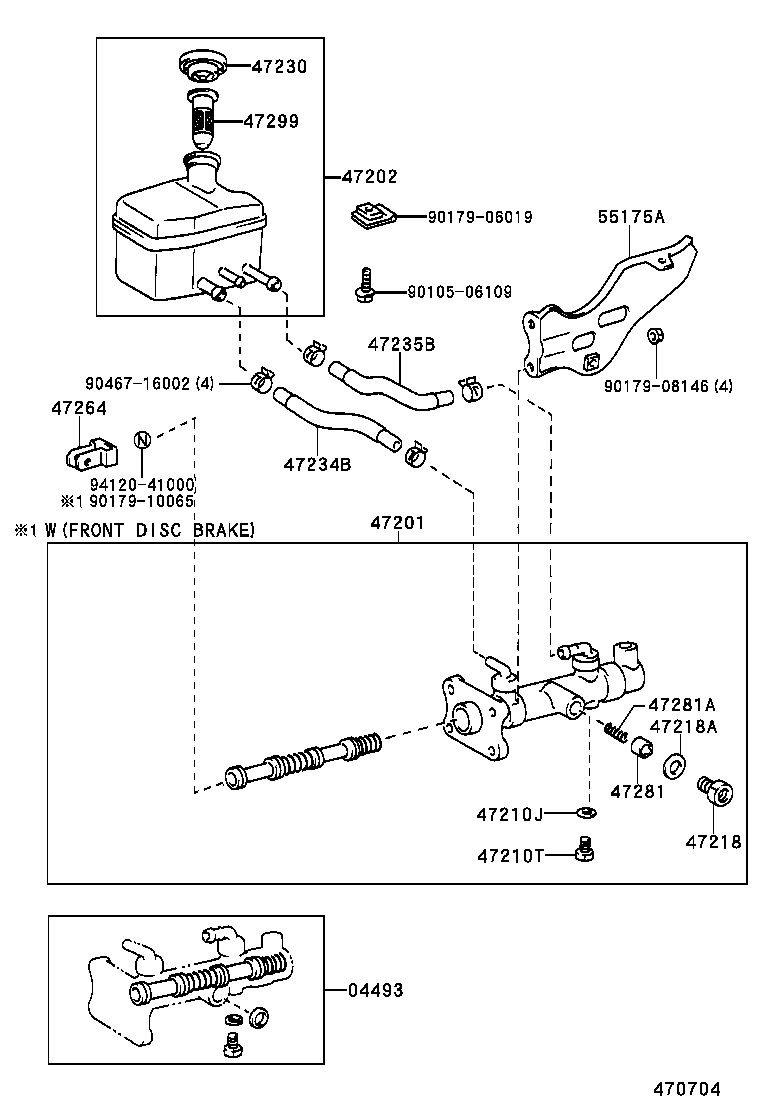

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-25080 |
LY212;LY211,YY211..WT;LY211..ST..(ARL,EUR) |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-25210 |
LY21#..EUR |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-37040 |
LY21#,YY211..LHD |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
LY21#,YY211 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
LY21#,YY211 |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-30040 |
LY21#,YY211 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-11001 |
LY21#,YY211 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-37020 |
LY21#,YY211 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-37070 |
LY21#,YY211..LHD |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-37060 |
LY21#,YY211..LHD |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
LY21#..ARL,EUR,SA |
1 | ||
| 47281 - VALVE, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-30020 |
LY21#,YY211 |
1 | ||
| 47281A - SPRING COMPRESSION(FOR OUTLET CHECK VALVE) | ||||
| 90501-05012 |
LY21#,YY211 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-26020 |
LY21#,YY211 |
1 | ||
| 55175A - SUPPORT SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 55175-37010 |
LY21#..ARL,EUR,SA |
1 | ||
| Common parts | ||||
| 90105-06109 | ||||
| 90179-06019 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
| 90467-16002 | ||||
| 94120-41000 | ||||
