LY211L-TBMFSW3 (1995)
Toyota Dyna 150
(9708- )EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-26030 |
LY212;LY211..EUR;LY211..RHD..GEN |
1 | ||
| 44039 - BRACKET SUB-ASSY, OIL RESERVOIR | ||||
| 44369-25050 |
LY21#..EUR |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-30110 |
LY212;LY211..EUR;LY211..RHD..GEN |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-60001 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN |
1 | ||
| 44302C - RING, O, NO.2(FOR VANE PUMP HOUSING) | ||||
| 96711-19016 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-17004 |
LY212;LY211..EUR;LY211..RHD..GEN |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-51003 |
LY212;LY211..EUR;LY211..RHD..GEN |
1 | ||
| 44302K - SEAL, OIL, NO.3(FOR VANE PUMP HOUSING) | ||||
| 90313-23001 |
LY212;LY211..EUR;LY211..RHD..GEN |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-30051 |
LY212;LY211..EUR;LY211..RHD..GEN |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-32010 |
LY212;LY211..EUR;LY211..RHD..GEN |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-35060 |
LY21#..EUR |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-30150 |
LY212;LY211..EUR;LY211..RHD..GEN |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90178-12003 |
LY212;LY211..EUR;LY211..RHD..GEN |
1 | ||
| 90179-12022 |
LY211..EUR;LY211..RHD..GEN |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-28010 |
LY212;LY211..EUR;LY211..RHD..GEN |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90363-17011 |
LY212;LY211..EUR;LY211..RHD..GEN |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-15005 |
LY212;LY211..EUR;LY211..RHD..GEN |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22070 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN MARK 3 |
1 | ||
| 44313-22050 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN MARK 1 |
1 | ||
| 44313-22040 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN NO MARK |
1 | ||
| 44313-22080 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN MARK 4 |
1 | ||
| 44313-22060 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN MARK 2 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-35441 |
LY21#..EUR |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12020 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN MARK 1 |
1 | ||
| 44325-12040 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN MARK 3 |
1 | ||
| 44325-12050 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN MARK 4 |
1 | ||
| 44325-12030 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN MARK 2 |
1 | ||
| 44325-12010 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN NO MARK |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN L=25,OD=5.0 |
2 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12151 |
LY21#..EUR MARK C |
1 | ||
| 44330-12131 |
LY21#..EUR MARK A |
1 | ||
| 44330-12161 |
LY21#..EUR MARK D |
1 | ||
| 44330-12181 |
LY21#..EUR MARK F |
1 | ||
| 44330-12171 |
LY21#..EUR MARK E |
1 | ||
| 44330-12141 |
LY21#..EUR MARK B |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-30010 |
LY21#..EUR |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 96711-19013 |
LY212;LY211..EUR;LY211..RHD..GEN |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN OD=17.0,ID=13.0 |
1 | ||
| 90301-22001 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN OD=25.5,ID=22.5 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN OD=17.0,ID=13.0 |
1 | ||
| 90301-22001 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN OD=25.5,ID=22.5 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44341-12010 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53002 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN |
1 | ||
| 44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90501-23014 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12040 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19014 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12010 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN L=14.997 |
10 | ||
| 44345-12040 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN L=14.991 |
10 | ||
| 44345-12020 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN L=14.995 |
10 | ||
| 44345-12050 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN L=14.989 |
10 | ||
| 44345-12030 |
LY212;LY211..EUR;LY211,YY211..RHD..GEN L=14.993 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-26020 |
LY21#..EUR |
1 | ||
| Common parts | ||||
| 90119-10072 | ||||
| 90410-06006 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91651-40614 | ||||

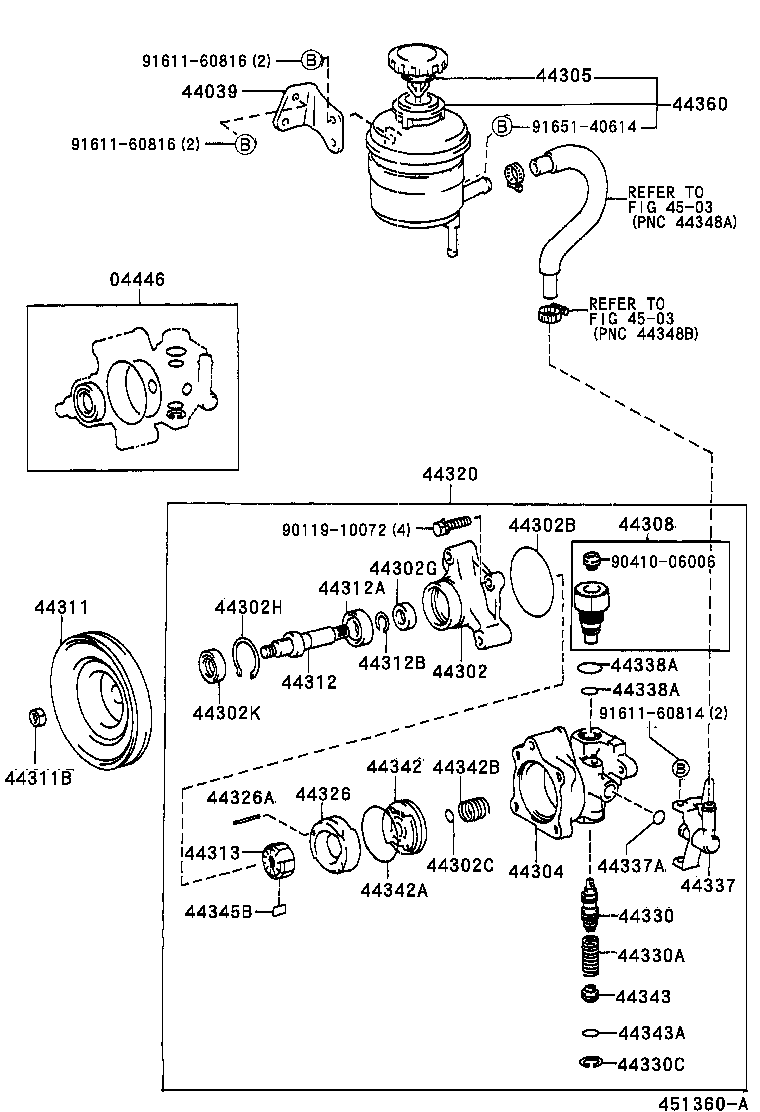

| Linked diagrams | ||||
| 4503 | ||||
