LY211L-TBMFSW3 (1995)

Toyota Dyna 150

Production May 1995 - May 1998
Engine 3L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

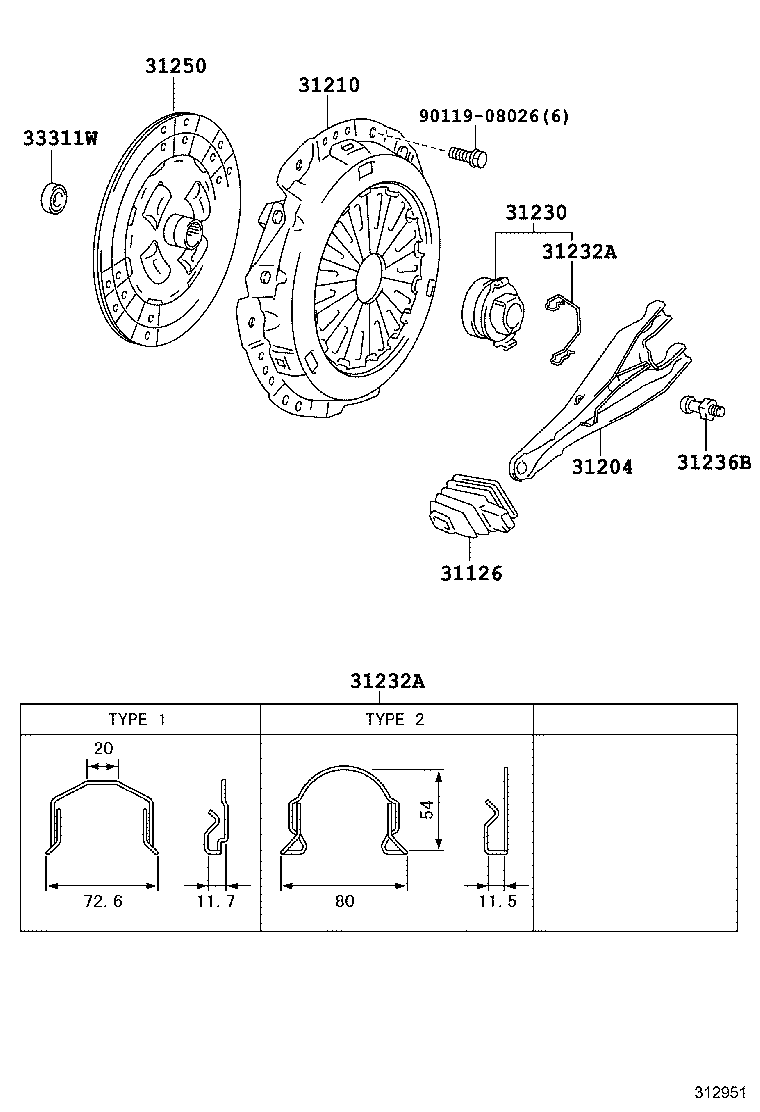

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31250 33311W 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-34010

LY21#,YY211

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-35031

LY21#,YY211

 1
31210 - COVER ASSY, CLUTCH
31210-35121

LY21#

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-35060

LY21#

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35020

LY21#,YY211

TYPE 1

 1
31232-35030

LY21#,YY211

TYPE 2

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35020

LY21#,YY211

TYPE 1

 1
31232-35030

LY21#,YY211

TYPE 2

 1
31236B - SUPPORT, RELEASE FORK
31236-35030

LY21#,YY211

 1
31250 - DISC ASSY, CLUTCH
31250-26180

LY211

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

LY21#,YY211

 1
Common parts
90119-08026
