LY211L-TBMFS3 (1995)
Toyota Dyna 150
Production
May 1995
-
Jul 2001
Engine
3L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )

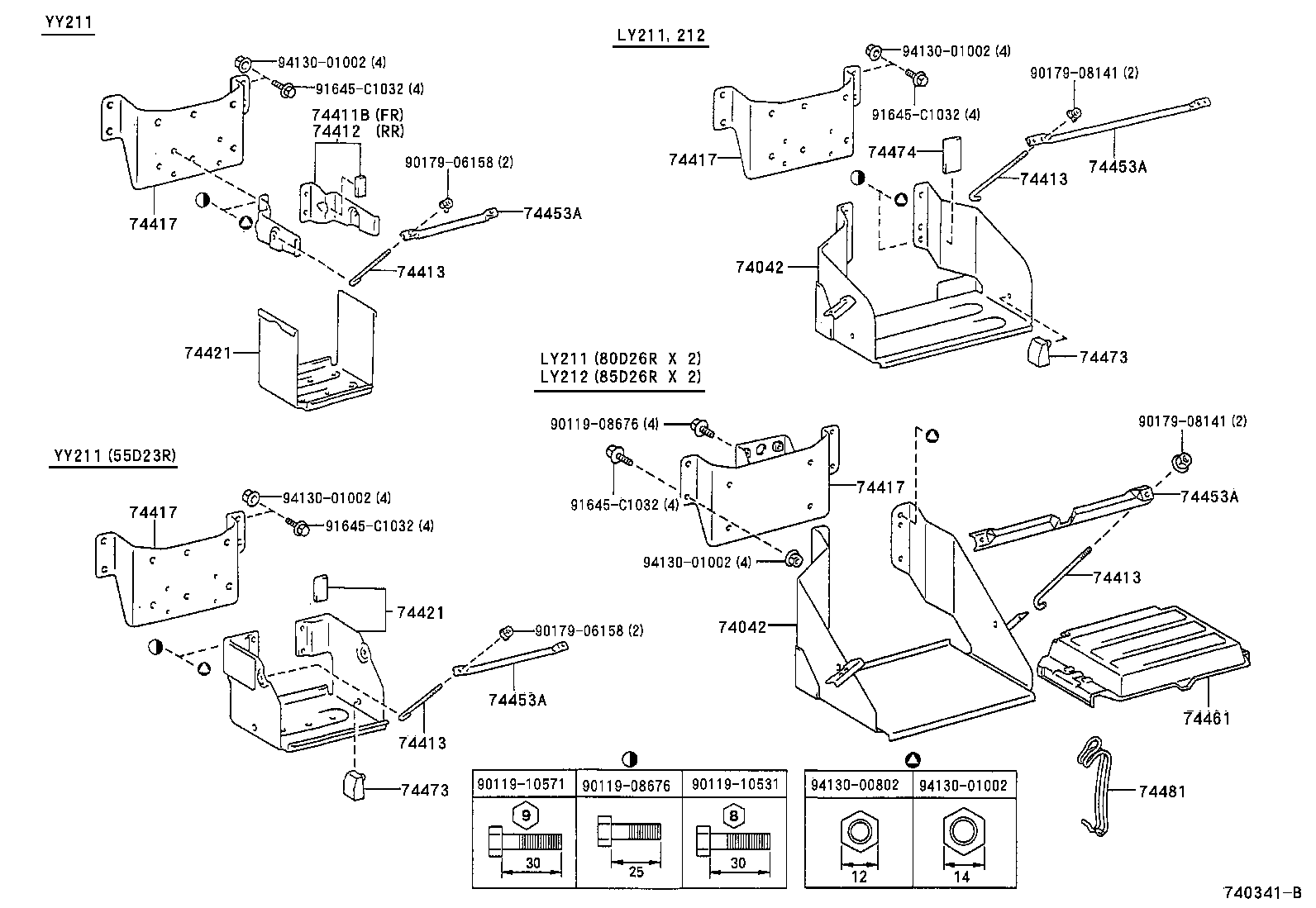

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74042 - BRACKET SUB-ASSY, BATTERY | ||||
| 74042-25030 |
LY21#..T3 |
1 | ||
| 74042 - BRACKET SUB-ASSY, BATTERY | ||||
| 74042-25030 |
LY21#..T3 |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-36070 |
LY21# |
2 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-36070 |
LY21# |
2 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-36070 |
LY21# |
2 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-36070 |
LY21# |
2 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-25030 |
LY21#..15T |
1 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-25030 |
LY21#..15T |
1 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-25030 |
LY21#..15T |
1 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-25030 |
LY21#..15T |
1 | ||
| 74453A - BAR, BATTERY SET PLATE | ||||
| 74453-36060 |
LY21#..T3 |
1 | ||
| 74453-36050 |
LY21#..T3 |
1 | ||
| 74453A - BAR, BATTERY SET PLATE | ||||
| 74453-36060 |
LY21#..T3 |
1 | ||
| 74453-36050 |
LY21#..T3 |
1 | ||
| 74453A - BAR, BATTERY SET PLATE | ||||
| 74453-36060 |
LY21#..T3 |
1 | ||
| 74453-36050 |
LY21#..T3 |
1 | ||
| 74453A - BAR, BATTERY SET PLATE | ||||
| 74453-36060 |
LY21#..T3 |
1 | ||
| 74453-36050 |
LY21#..T3 |
1 | ||
| 74473 - SPACER, BATTERY | ||||
| 74473-25010 |
LY21#..T3 |
2 | ||
| 74473 - SPACER, BATTERY | ||||
| 74473-25010 |
LY21#..T3 |
2 | ||
| 74474 - PAD, BATTERY | ||||
| 74475-36040 |
LY21# |
2 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90119-10531 | ||||
| 90119-10571 | ||||
| 90179-06158 | ||||
| 90179-08141 | ||||
| 91645-C1032 | ||||
| 94130-00802 | ||||
| 94130-01002 | ||||
